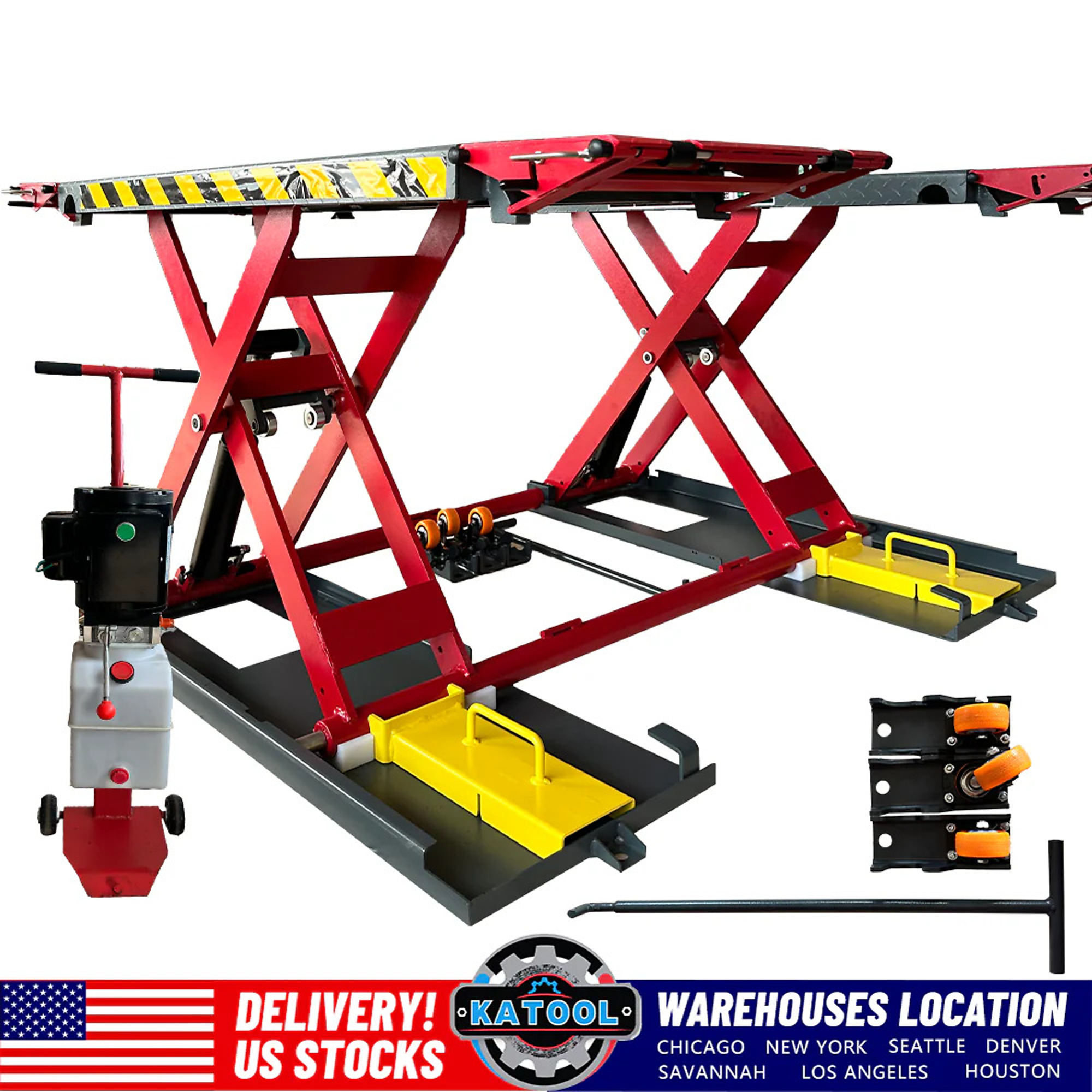

Katool X77 Commercial-Grade Scissor Auto Lift — Reinforced Frame, Upgraded Hydraulic System, Model# KT-X77

Item# 7003597
"Katool X77 Commercial-Grade Scissor Auto Lift — Reinforced Frame, Upgraded Hydraulic System, Model# KT-X77"
Top Seller
Katool X77 Commercial-Grade Scissor Auto Lift — Reinforced Frame, Upgraded Hydraulic System, Model# KT-X77

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Katool X77 Commercial-Grade Scissor Auto Lift — Reinforced Frame, Upgraded Hydraulic System, Model# KT-X77

Click or Tap image to Zoom

$1899.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Expanded platform design for better stability and vehicle support.
  • Upgraded hydraulic system ensures smooth, balanced lifting.
  • Ideal height reach for suspension, brake, and undercarriage work.
  • Reinforced heavy-duty steel structure for commercial reliability.
  • Safety lock positions provide secure, stable operation at any height.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The X77 Scissor Auto Lift is engineered for shops needing a wider, more stable lifting platform with higher working clearance. Its reinforced frame and upgraded hydraulic system deliver dependable lifting power for professional automotive service. Designed for versatility, the X77 handles everything from compact vehicles to mid-size trucks with ease.

What's Included

    (1) Lift Platform

Features + Benefits

  • Expanded platform design for better stability and vehicle support.
  • Upgraded hydraulic system ensures smooth, balanced lifting.
  • Ideal height reach for suspension, brake, and undercarriage work.
  • Reinforced heavy-duty steel structure for commercial reliability.
  • Safety lock positions provide secure, stable operation at any height.
  • A forklift is required to offload the lift from a box truck or a dock-height flatbed trailer.

Key Specs

AttributeSpecification

item#

7003597

Brand

KATOOL

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1212.0 LB

Capacity

7,000 lb

Max. Lift Height

39.37 in

Collapsed Height

4.33 in
AttributeSpecification

Lift Type

Hydraulic/ Electric

Horsepower

3 HP

Motor Phase

Single-phase

Volts

110

Material

Alloy Steel

Product Weight

1212.0000 lb

Dimensions L x W x H (in.)

91.54 x 41.89 x 4.72 in

Reviews

Questions & Answers

10 Reviews This action will navigate to reviews.

Questions

1–10 of 12 Questions
Sort by:

  1. What type of hydraulic fluid should I purchase

    1 answer

    1. You would use a high-quality hydraulic fluid such as ISO 32, which is an equivalent to AW 32 or AW46 hydraulic fluid.

      Helpful?

  2. How many boxes are in shipment

    1 answer

    1. This scissor auto lift ships on a pallet. The package dimensions are 91.54" L x 41.89" W x 4.72" H.

      Helpful?

  3. Can you use it to keep your car lifted above flood waters? I live in south Louisiana. We get lots of coastal floods on the bayous.

    1 answer

    1. The lift can be left on the scissor lift for extended periods of time, provided it is properly supported by the lift's mechanical safety locks, not just the hydraulic pressure.

      Helpful?

  4. does this need to be bolted to the floor abd if so how thick does the slab need to be

    1 answer

    1. The lift does not require that it be bolted to the floor. The lift can only be placed on a level concrete slab. The minimum thickness of 5.9" (150MM) with a 3000 PSI rating or more and should be aged at least 7 days. It is not to be used on asphalt or any other surface other than concrete.

      Helpful?

  5. Are the safety locks good quality? It's the yellow things? Are they secure?

    1 answer

    1. The safety locks are considered good quality, secure and reliable.

      Helpful?

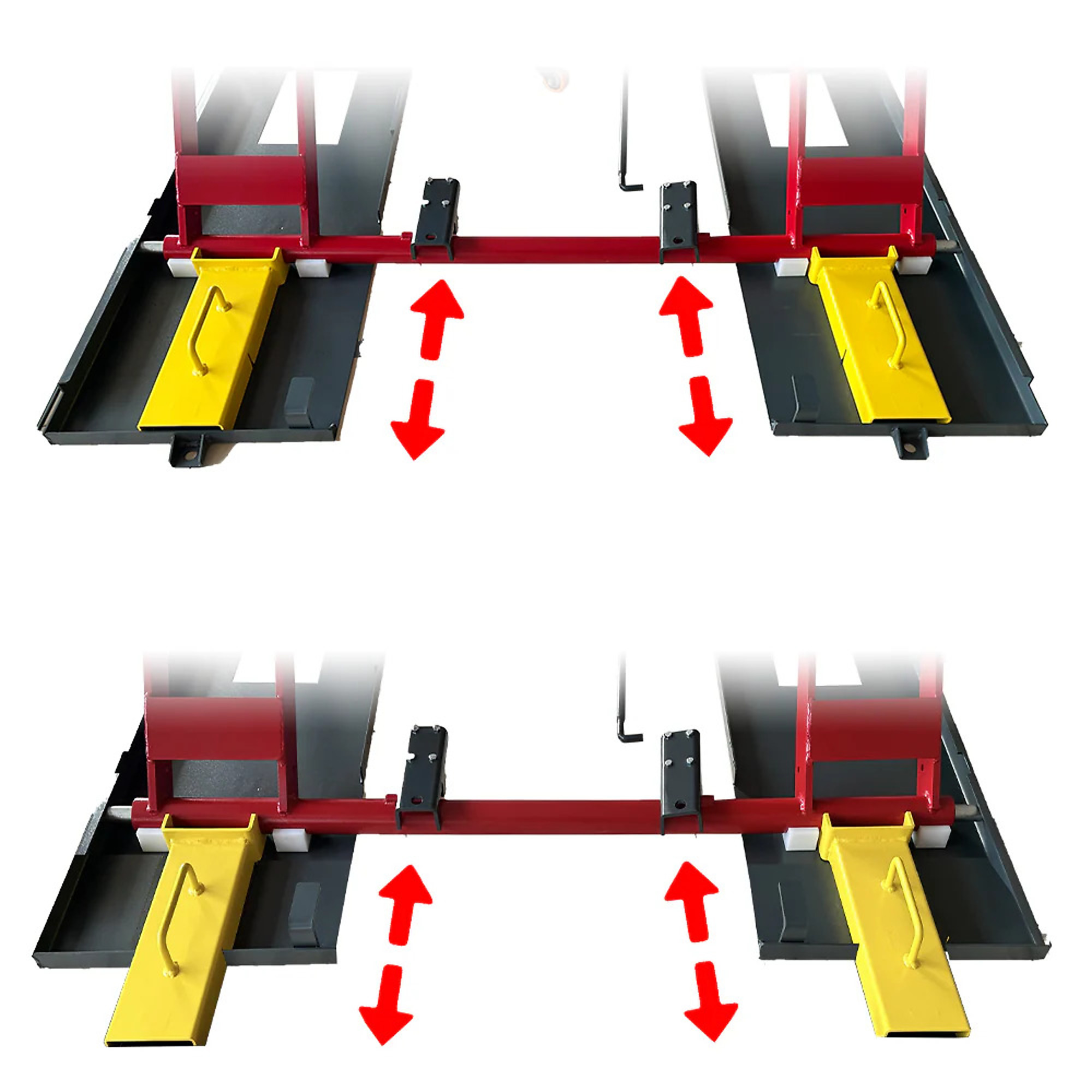

  6. Can you lift on the extensions or are they only for ramps to get on and off the lift?

    1 answer

    1. The ramps will lock into position to become part of the lifting platform.

      Helpful?

  7. Can it be easily moved around the shop

    1 answer

    1. There are three casters included with the lift to easily pull the lift over a flat surface to the location needed.

      Helpful?

  8. How much electricity it uses

    1 answer

    1. The KT‑X77 runs on a 110V circuit and needs a minimum 20-amp breaker for the hydraulic pump.

      Helpful?

  9. Are the locks electric or pneumatic?

    1 answer

    1. The locks would be pneumatic.

      Helpful?

  10. are the platform extensions removeable?

    1 answer

    1. The platform extensions would be removeable.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
