KATOOL, Swing Arm Tire Changer Electric Lever, Volts 110 Model# KT-T800

Item# 6349537
KATOOL, Swing Arm Tire Changer Electric Lever, Volts 110 Model# KT-T800

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

KATOOL, Swing Arm Tire Changer Electric Lever, Volts 110 Model# KT-T800

Click or Tap image to Zoom

$1399.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the inside of the jaw to have more tenacity and the outside harder, and use the jaw cover for protecting the rim
  • The mounting head is made by stainless steel with solution treatment and interface polishing, the shape conforms to the engineering mechanics and accompanied by plastic cover for protecting the rim
  • Inflation gauge with pedal control
  • The high-quality spade cover effectively prevents the rim from being damaged
  • Pull type pedal control system, easy for tire changing and maintenance

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

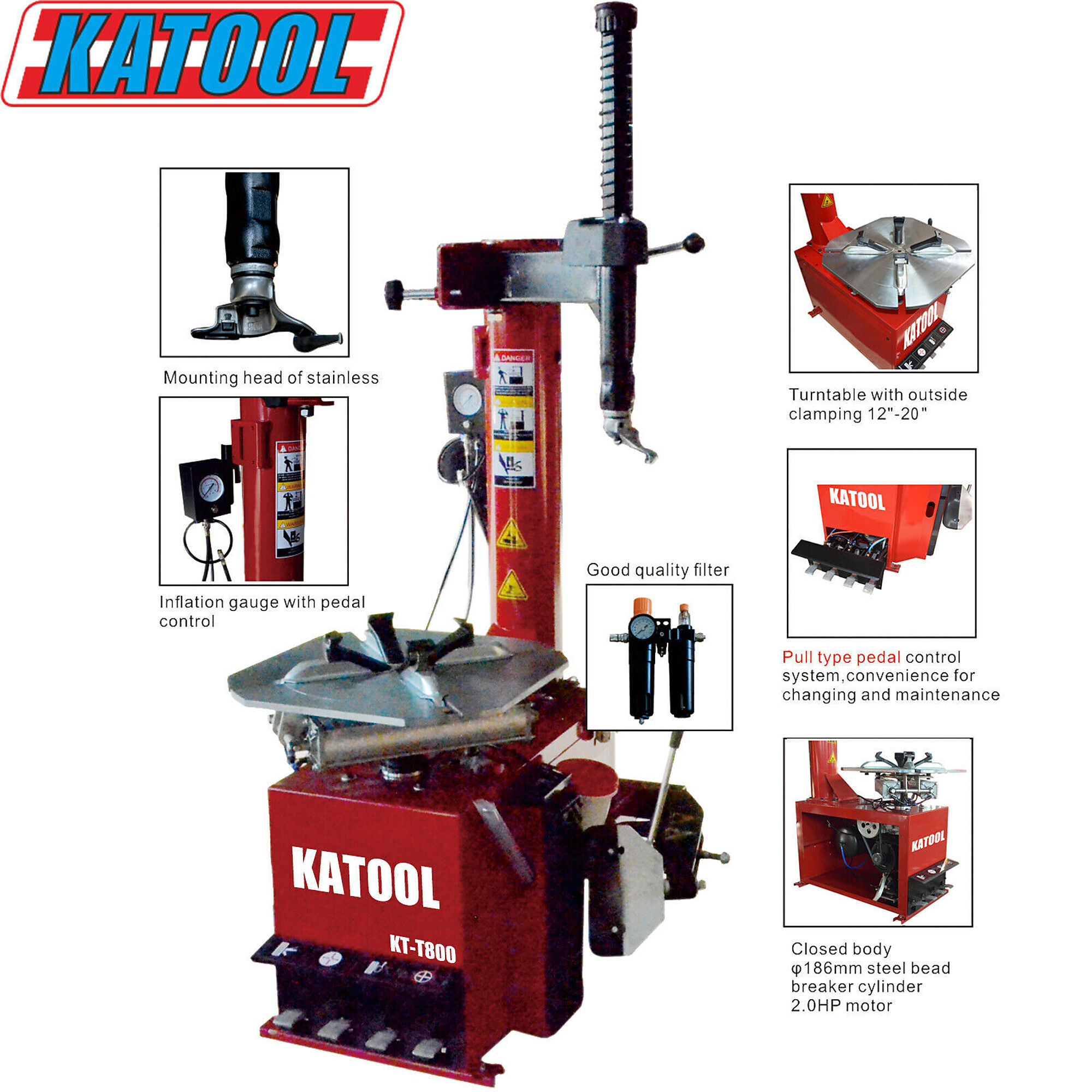

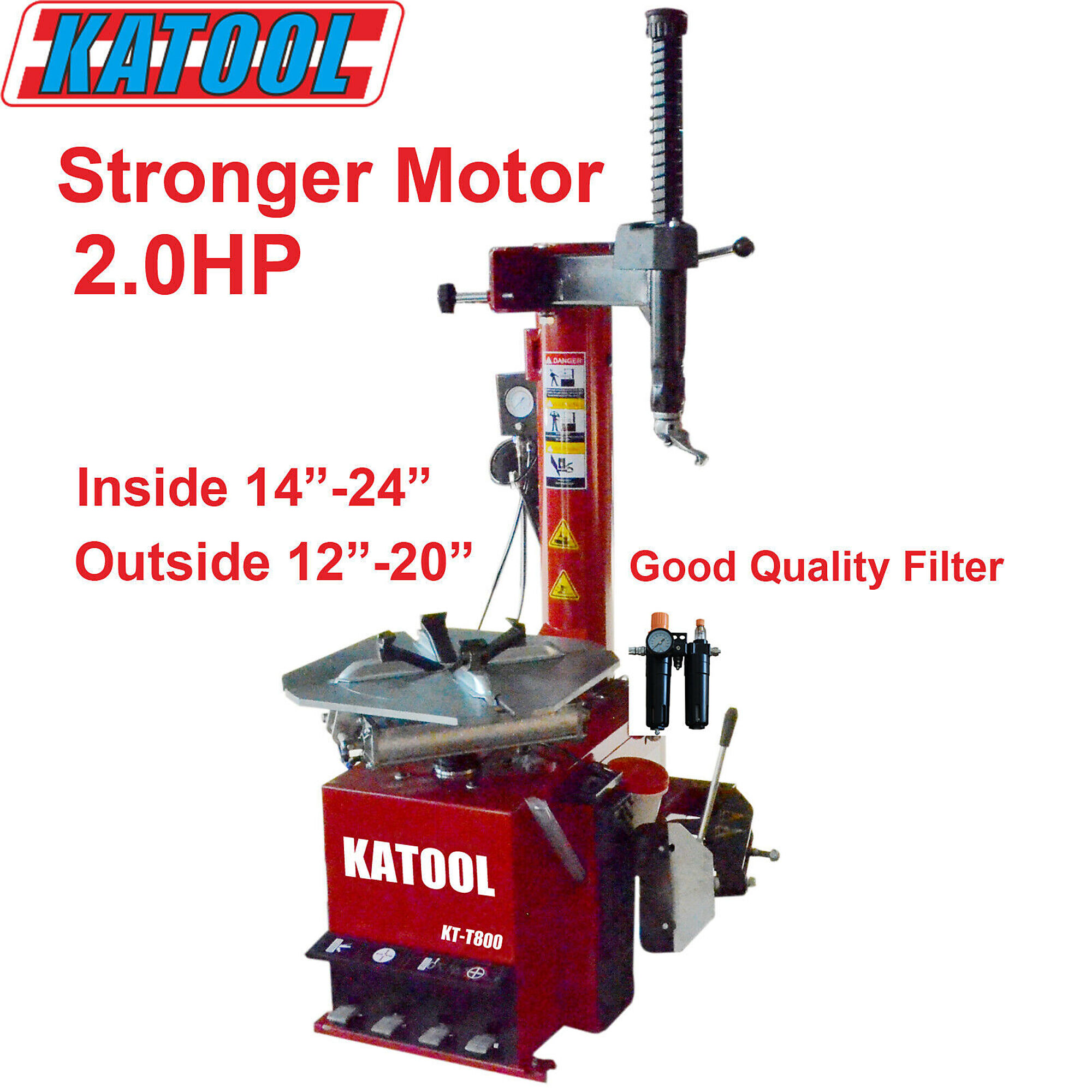

The Katool KT-T800 Wheel Clamp Tire Changer Machine is engineered for precision and durability. The alloy steel jaw undergoes carburization treatment for enhanced tenacity, with a quenching process that ensures both toughness and hardness. The stainless steel mounting head, designed according to engineering mechanics, features a plastic cover for rim protection. Equipped with an inflation gauge controlled by a pedal, the machine includes a high-quality spade cover to prevent rim damage. The pull-type pedal control system facilitates tire changing and maintenance, supported by a top-level motor with pure copper winding for optimal power and longevity. The high-quality lubricator ensures reliable oil-drop and efficient compressed air filtration, extending the pneumatic system's service life. Specifically tailored for North America, it operates with a robust 110V/1ph/2.0HP motor for superior power and efficiency. With a closed body design, the Katool KT-T800 ensures the protection of internal components, delivering a reliable and efficient tire-changing experience.

What's Included

    (1) Tire Changer

Features + Benefits

  • Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the inside of the jaw to have more tenacity and the outside harder, and use the jaw cover for protecting the rim
  • The mounting head is made by stainless steel with solution treatment and interface polishing, the shape conforms to the engineering mechanics and accompanied by plastic cover for protecting the rim

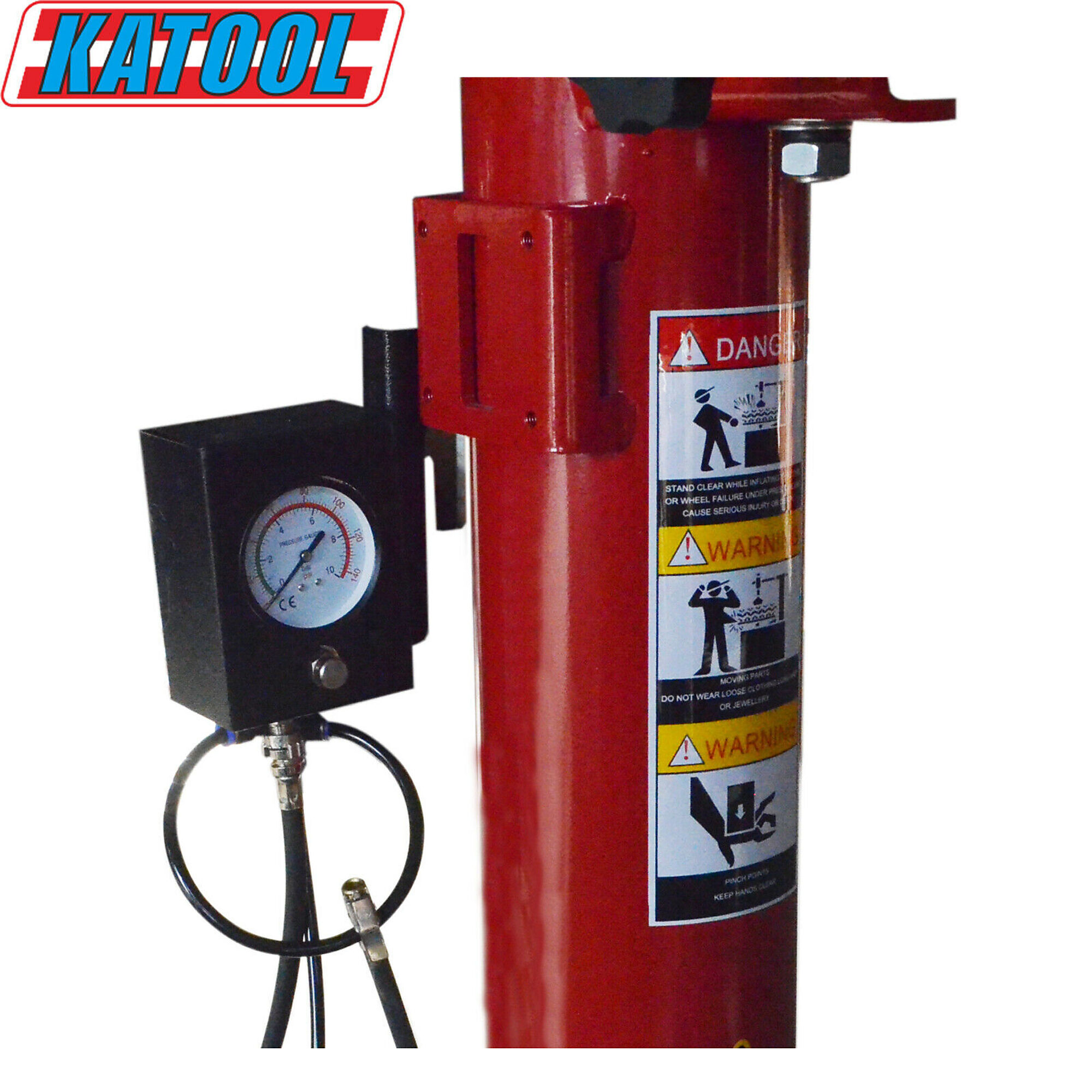

  • Inflation gauge with pedal control
  • The high-quality spade cover effectively prevents the rim from being damaged
  • Pull type pedal control system, easy for tire changing and maintenance
  • Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer using life
  • The high-quality lubricator provides reliable oil-drop and effectively filters compressed air so that the service life of the pneumatic system is extended
  • For North America region it supports 110V/1ph/2.0HP motor for strongest power and better efficiency
  • Closed body for the protection of the parts inside

Key Specs

AttributeSpecification

item#

6349537

Brand

KATOOL

Manufacturer's Warranty

1 year limited warranty

Ship Weight

520.0 LB

Power Type

Electric

Control Type

Lever

Volts

110
AttributeSpecification

Min. Wheel Diameter

12 in

Max. Wheel Diameter

24 in

Product Type

Electric Tire Changer

Horsepower

2 HP

Motor Phase

Single-phase

Product Weight

500.0000 lb

Dimensions L x W x H (in.)

70.0 x 35.0 x 40.0 in

Reviews

Questions & Answers

Questions

1–7 of 7 Questions
Sort by:

  1. How much air pressure does it take to work properly? 125?? 175?? Just wondering if my air compressor is big enough

    1 answer

    1. The tire changer would require 116-145 PSI air pressure to work properly.

      Helpful?

  2. Hi, I'm interested in the KT-T800 tire machine. i see this machine is electric, will it inflate the tire as well as mount and dismount? thank you.

    1 answer

    1. The KT-T800 electric tire changer is used for mounting, dismounting, and inflating tires using its pedal-controlled gauge and spade valve. However, it requires a connection to an external air compressor.

      Helpful?

  3. Can this machine change skid loader tires

    1 answer

    1. The KT-T800 is unsuitable for skid loader tires due to their size and weight. A heavy-duty tire changer for industrial or agricultural use is recommended. Please see Item# 6478515 on our website.

      Helpful?

  4. Does this model KT-T800 have the capability to mount low profile tires ?

    1 answer

    1. Yes, the KATOOL KT-T800 swing arm tire changer is designed to mount and dismount low profile tires.

      Helpful?

  5. what is the snmallest tire

    1 answer

    1. Katool KT-T800 tire changer features adjustable outside clamps for rims ranging from 12" to 20" and adjustable inside clamps for rims from 14" to 24".

      Helpful?

  6. Does it have a bead blaster?

    1 answer

    1. The KATOOL KT-T800 Swing Arm Tire Changer (Model# KT-T800, Item# 6349537) does not include a bead blaster.

      Helpful?

  7. What is the biggest tire that this machine can handle.

    1 answer

    1. The max wheel diameter that can be used with this tire changer is 41 inches and the max wheel width is 15 inches.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
