Ranger Products RimGuard Advanced Tilt-Back Tire Changer Machine, Model# R76ATR

Item# 46343
Top Seller

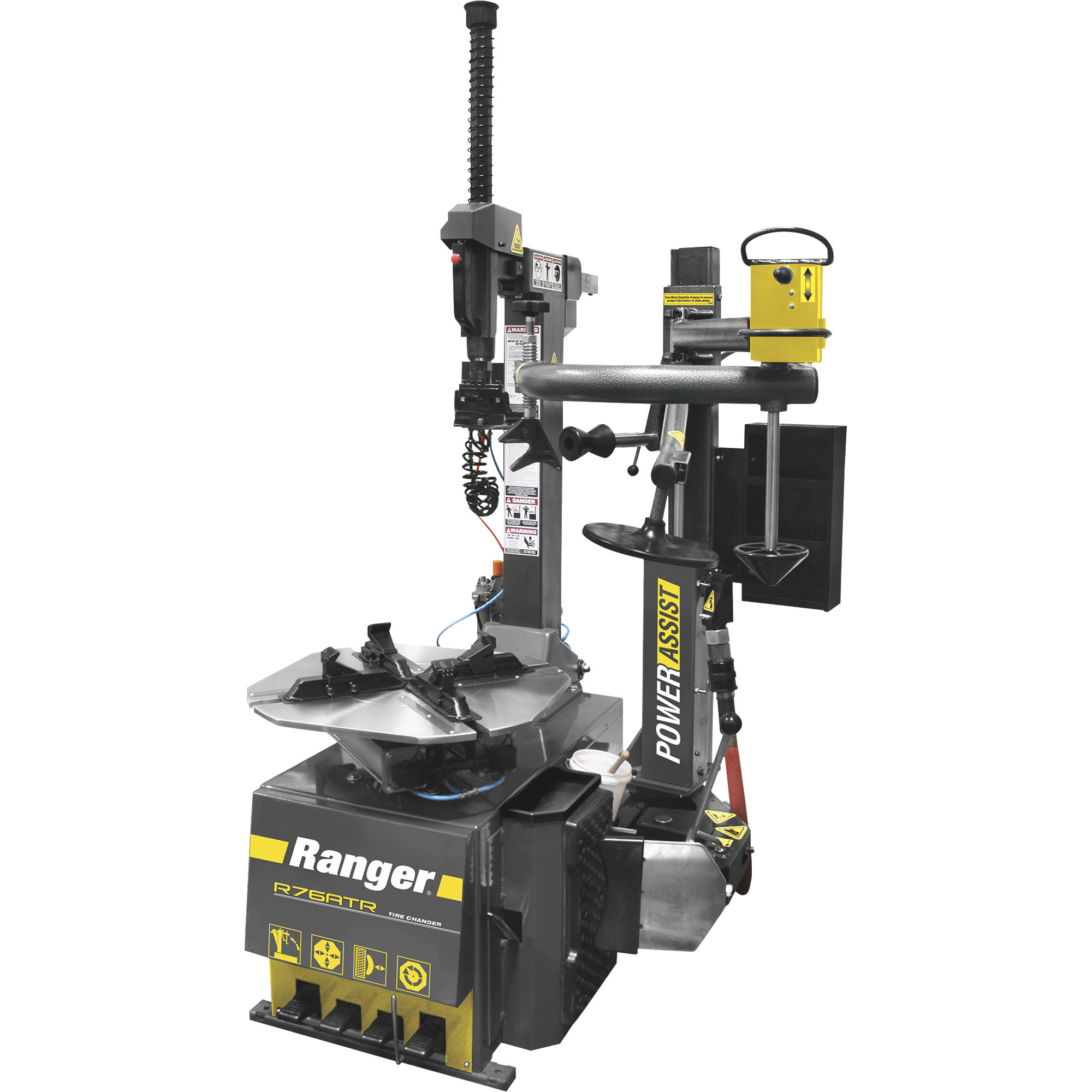

Ranger Products RimGuard Advanced Tilt-Back Tire Changer Machine, Model# R76ATR

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ranger Products RimGuard Advanced Tilt-Back Tire Changer Machine, Model# R76ATR

Click or Tap image to Zoom

$7395.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • The high-torque electric turntable drive features increased speed and reversible direction for quicker tire removal and installation
  • Adjustable RimGuard™ wheel clamps can accommodate wheels from 9in. to 30in.
  • Provides lightning fast bead-breaker speeds in both directions
  • Multi-axis, adjustable blade offers multi-angle tire capacity
  • Maintenance-free gearbox

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Ranger Products RimGuard™ Advanced Tilt-Back Tire Changer Machine is a 2 HP, 110/240V quick and trouble-free way to masterfully service a wide variety of wheels, including virtually all OEM and performance tire and wheel configurations. The tilt-back tower design provides greater clearance and access for tire removal and inflation. Free shipping offer is valid in all 48 contiguous U.S. states, but not valid in Alaska, Hawaii, and all other U.S. Territories including Guam, American Samoa, Puerto Rico and U.S. Virgin Islands. Terms are subject to change without notice. Shipping method will be determined at time of purchase.

What's Included

    (1) Tilt-back tire changer machine (1) Tire iron (1) Bead lever tool (1) Parts box

Downloads

Product Manual

Features + Benefits

  • The high-torque electric turntable drive features increased speed and reversible direction for quicker tire removal and installation
  • Adjustable RimGuard™ wheel clamps can accommodate wheels from 9in. to 30in.
  • Provides lightning fast bead-breaker speeds in both directions
  • Multi-axis, adjustable blade offers multi-angle tire capacity
  • Maintenance-free gearbox
  • Nonmarring pneumatic nylon wheel restraint device is gentle on all wheels and keeps them safely secured to the turntable during inflation
  • Rigid 45mm spring-assist hexagonal vertical tool shaft combines with a hardened steel horizontal outrigger support arm to maintain perfect position of the mount/demount tool head
  • Stainless steel and aluminum pneumatic cylinders reduce machine vibration and keep friction low for long life operation
  • Integrated rubber bump stops assure smooth return during tilt-back operations
  • High-strength, oversized worm gears
  • Powerful right-side assist tower features a multi-profile traveling drop-center tool for precise mounting
  • Enhanced bead breaker arm
  • Balanced flywheel for smooth operation
  • Advanced clamp positioning allows for exceptional control when clamping wheels
  • Non-binding foot pedal control valves
  • Upfront controls
  • Includes tire iron and bead lever tool

Key Specs

AttributeSpecification

item#

46343

Brand

Ranger Products

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

924.0 LB

Power Type

Electric

Control Type

Foot Pump

Volts

220

Product Type

Electric Tire Changer
AttributeSpecification

Horsepower

2 HP

Motor Phase

Single-phase

Drive Type

Belt

Max. Pressure

175 PSI

Max. Bead Breaking

16 in

Material

Steel

Product Weight

lb

Dimensions L x W x H (in.)

46.0 x 52.0 x 72.0 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

12 months parts/12months labor
