K2 IntelliJet 3/4 HP Cast Iron Convertible Deep Well, Max. Flow 1200 GPH, Port Size 1 in, Model# WPD07502K

Item# 6114738
K2 IntelliJet 3/4 HP Cast Iron Convertible Deep Well, Max. Flow 1200 GPH, Port Size 1 in, Model# WPD07502K

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

K2 IntelliJet 3/4 HP Cast Iron Convertible Deep Well, Max. Flow 1200 GPH, Port Size 1 in, Model# WPD07502K

Click or Tap image to Zoom

$349.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only

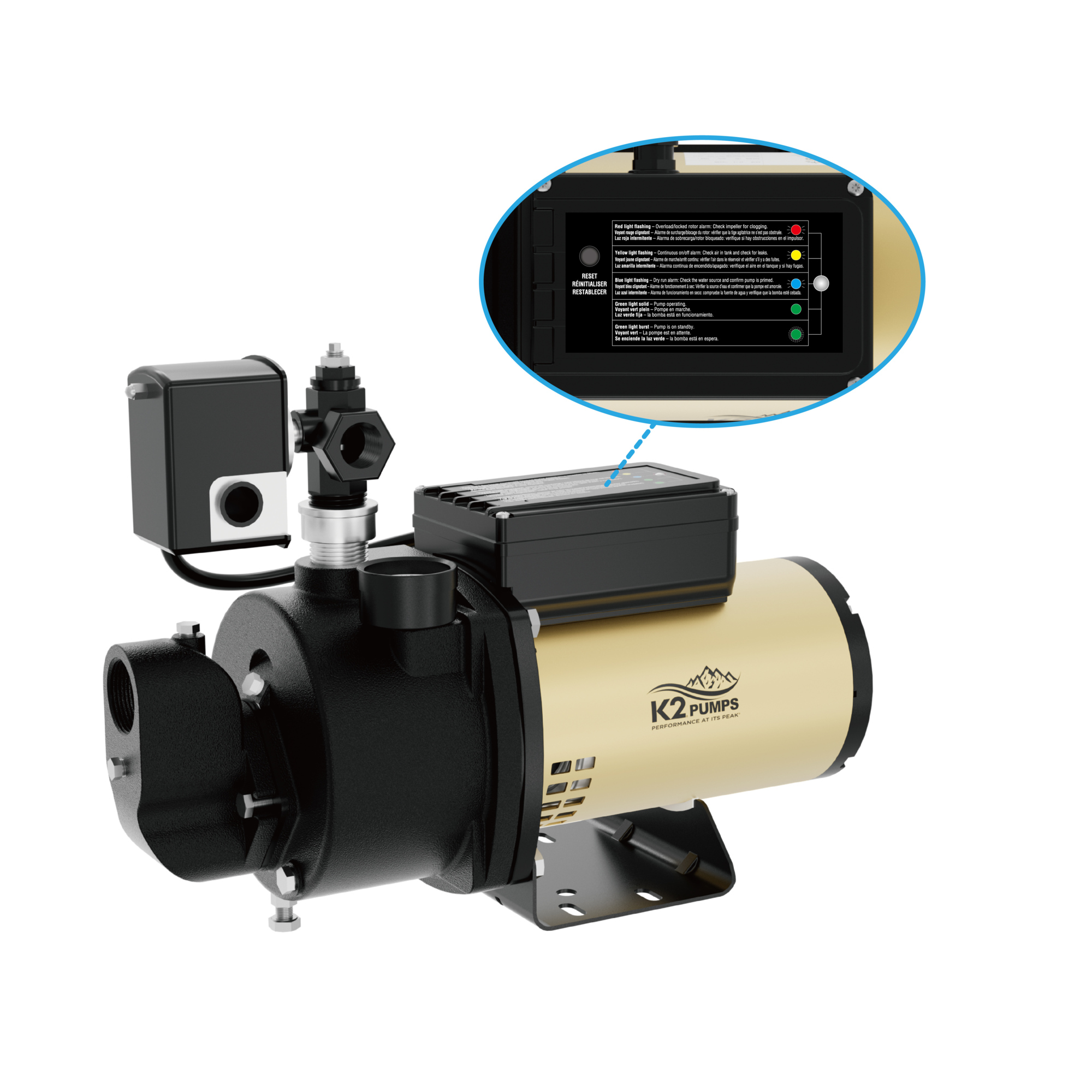

  • LED Diagnostics Panel indicates operation status of the pump and alerts you if there is an issue

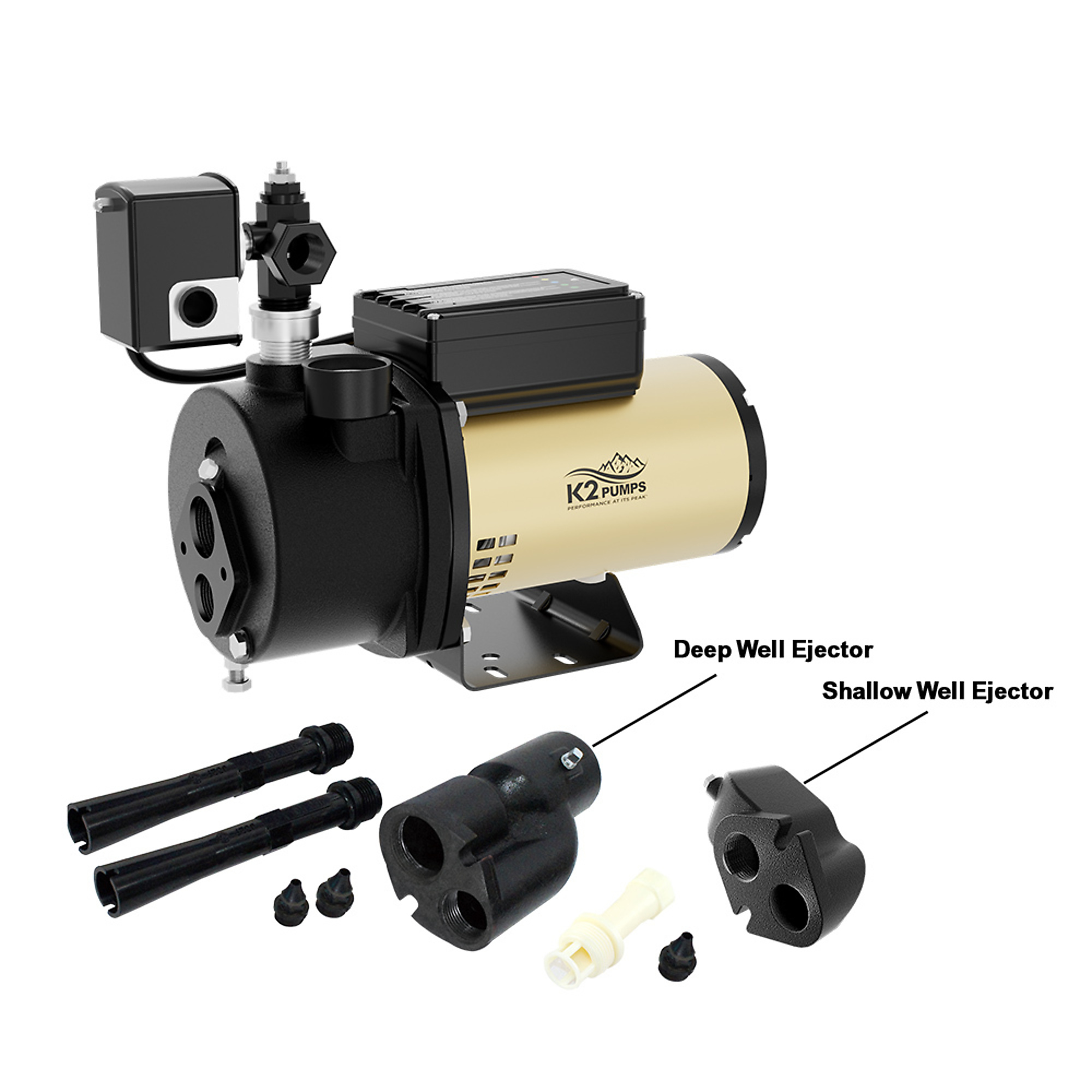

  • Both shallow well (single pipe) and deep well (two pipe) ejector kits included
  • Includes pressure regulator for deep well applications
  • Includes 30-50 pressure switch for monitoring pressure
  • Pressure gauge included for monitoring pressure

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

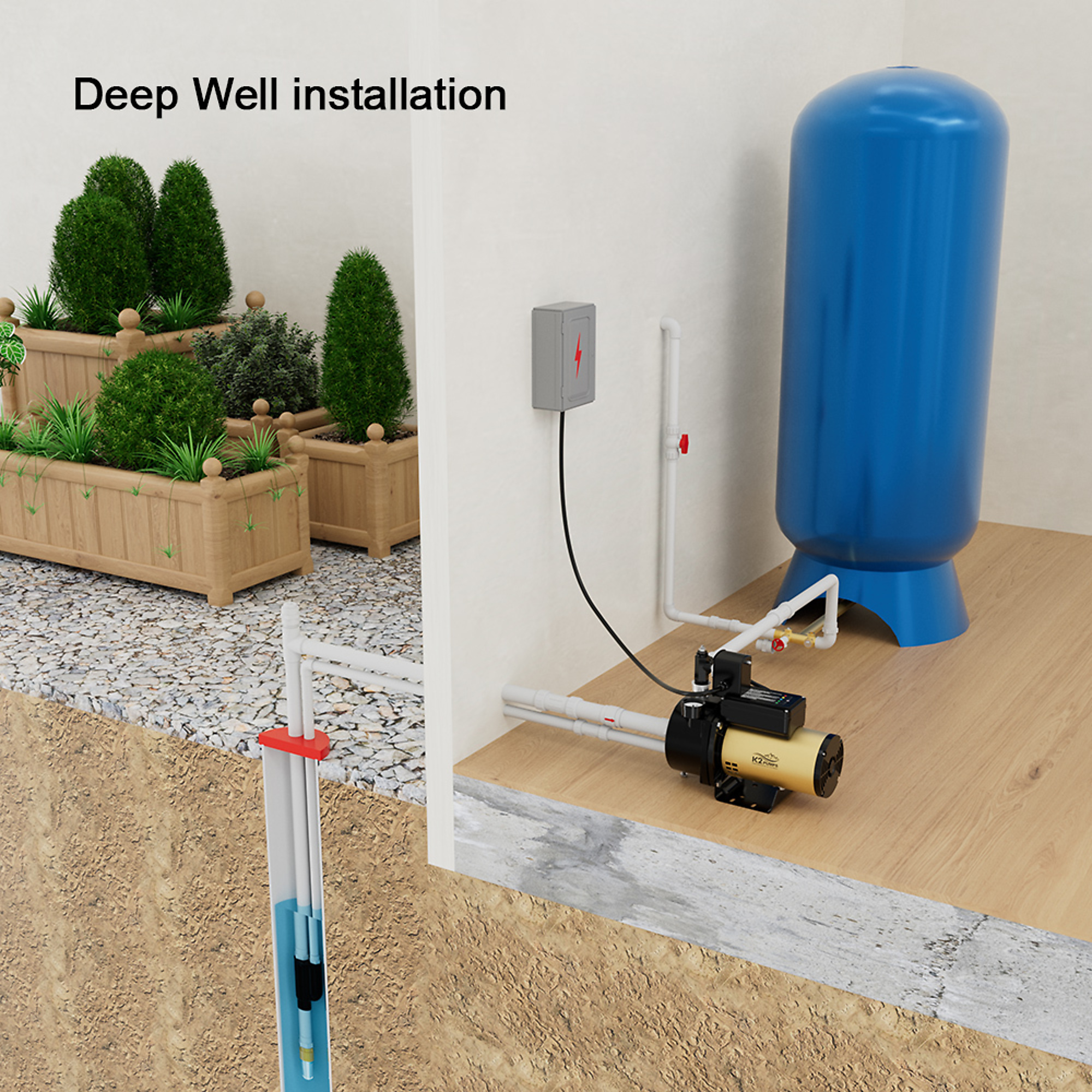

The K2 Pumps IntelliJet™ Convertible Jet Pump is constructed of heavy-duty cast iron and may be used for shallow well (single pipe) applications with water depth to 25ft. or deep well (two pipe) applications with water depths to 90ft. The IntelliJet technology is the most advanced in its category and does the troubleshooting for you. The LED panel indicates different status functions such as dry run protection, locked rotor/clogged impeller protection, unusual voltage protection, and too frequent starting (short cycle) protection. The IntelliJet motor design is a dual voltage 115/230V motor that automatically detects the voltage. No rewiring or switching needed.

What's Included

    (1) Pump

Features + Benefits

  • LED Diagnostics Panel indicates operation status of the pump and alerts you if there is an issue
  • Both shallow well (single pipe) and deep well (two pipe) ejector kits included
  • Includes pressure regulator for deep well applications
  • Includes 30-50 pressure switch for monitoring pressure
  • Pressure gauge included for monitoring pressure
  • 1-1/4 inch NPT suction and 1 inch NPT discharge
  • Certified to NSF/ANSI CAN 61 Standard for Safe Drinking Water and NSF/ANSI 372 Lead-Free Standard

Key Specs

AttributeSpecification

item#

6114738

Brand

K2

Manufacturer's Warranty

3 year limited warranty

Ship Weight

53.0 LB

Max. Flow

1,200 GPH

Port Size

1 in

Volts

115/230

Solar Powered

No

Phase

Single-phase

Max. Head Pressure

90 ft
AttributeSpecification

Amps

15.8

Vertical Lift

90 ft

Discharge Flow @ 0 Ft.

1,200 GPH

Discharge Flow @ 10 Ft.

978 GPH

Min. Working Temperature

32 °F

Max. Working Temperature

104 °F

Housing Material

Cast-Iron

Horsepower

0.75

Product Weight

47.3000 lb

Dimensions L x W x H (in.)

7.2 x 18.1 x 13.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

3 year limited warranty
