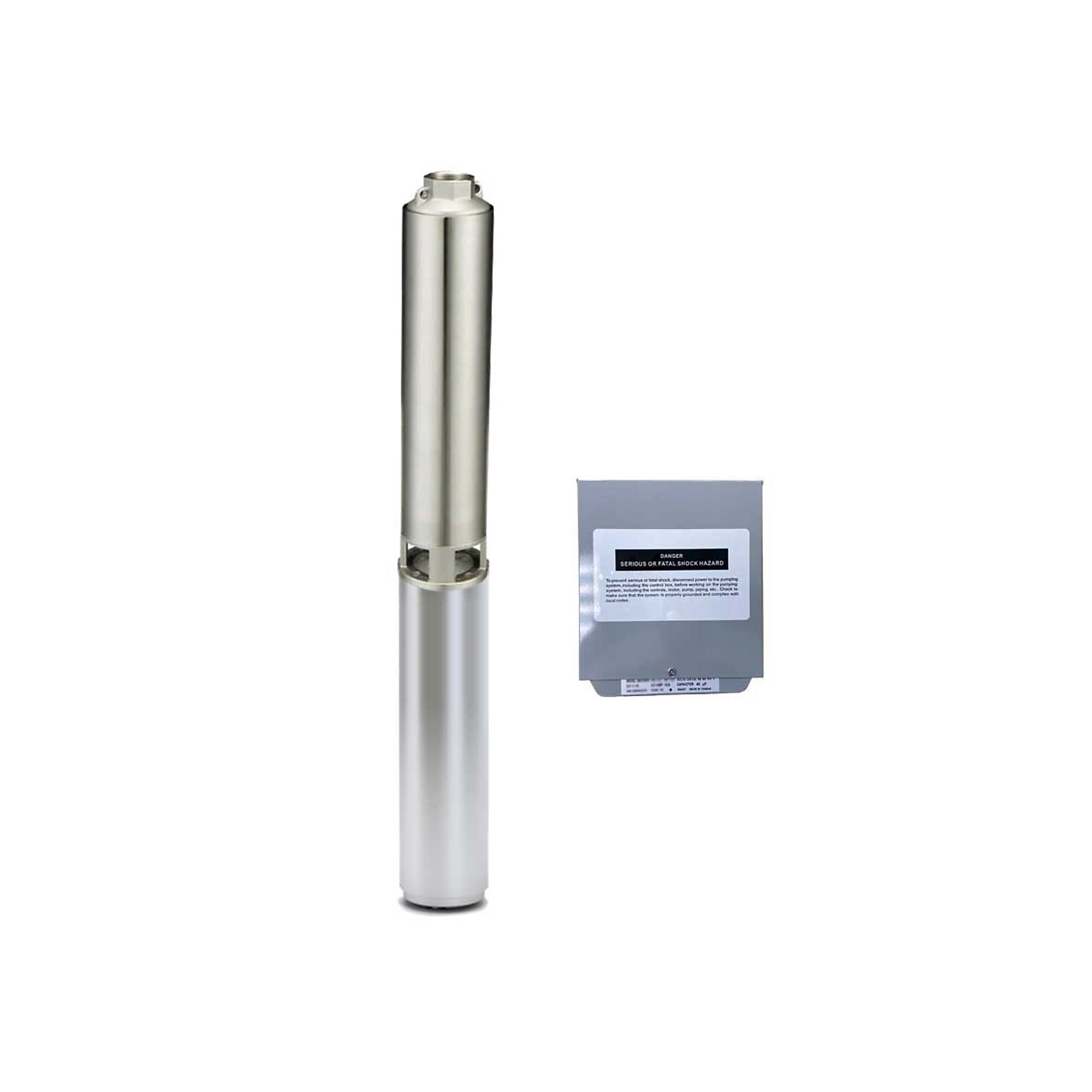

Gol Pumps, 4in. 3-Wire Deep Well Submersible Pump, Max. Flow 1110 GPH, Horsepower 5 HP, Port Size 1.25 in, Model# ST1034

Item# 4476701
Gol Pumps, 4in. 3-Wire Deep Well Submersible Pump, Max. Flow 1110 GPH, Horsepower 5 HP, Port Size 1.25 in, Model# ST1034

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Gol Pumps, 4in. 3-Wire Deep Well Submersible Pump, Max. Flow 1110 GPH, Horsepower 5 HP, Port Size 1.25 in, Model# ST1034

Click or Tap image to Zoom

$2613.69

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Discharge Head and Motor Adaptor are precision machined cast 304 stainless steel.
  • Impellers Noryl
  • Impellers Bowls are made from 304 stainless steel.
  • Shaft Coupling is made from 304 stainless steel for easy alignment to motor shaft.
  • Non-Return valve made from 304 stainless steel, fitted in the discharge to prevent any back flow of water and alleviate any water hammer to the pumps.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Gol Pumps 4in. 3-Wire Deep Well Submersible Pump is a high-performance solution designed to deliver maximum efficiency and reliability in water extraction applications. With a powerful 5 HP motor, this pump can achieve a maximum flow rate of 1110 GPH, making it ideal for a wide range of residential, agricultural, and industrial uses. The pump features a 1.25 in. port size, ensuring compatibility with standard piping systems for easy installation and integration. Engineered to save energy and reduce operational costs, this submersible pump is built to protect your land and resources while providing consistent water supply. Its robust construction and advanced technology ensure long-lasting durability and optimal performance even in demanding conditions. Whether you need to irrigate crops, supply water to livestock, or provide a reliable water source for your home, the Gol Pumps Deep Well Submersible Pump offers a dependable and efficient solution that helps you save money and energy.

What's Included

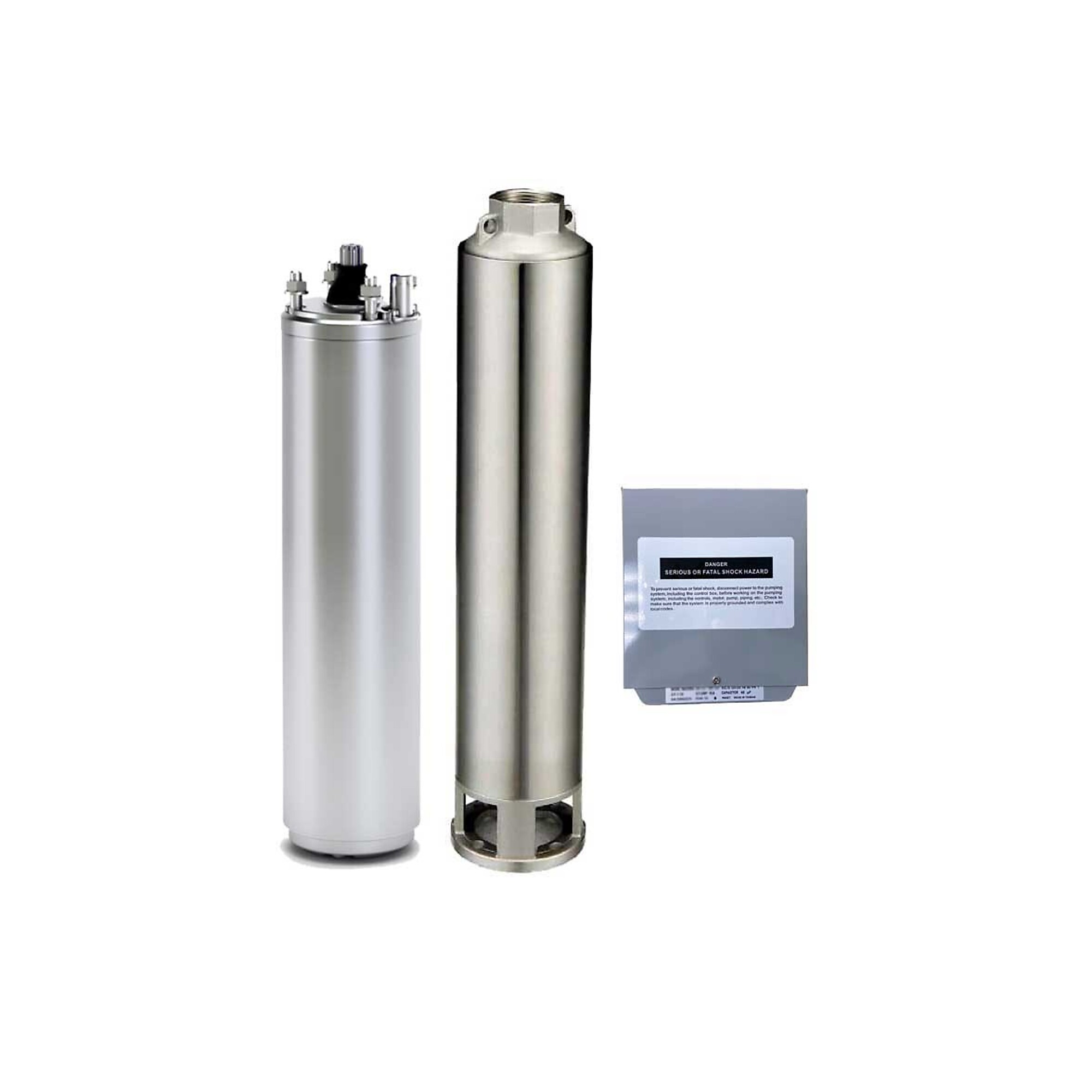

    (1) Pump (1) motor (1) Control box

Features + Benefits

  • Discharge Head and Motor Adaptor are precision machined cast 304 stainless steel.
  • Impellers Noryl
  • Impellers Bowls are made from 304 stainless steel.
  • Shaft Coupling is made from 304 stainless steel for easy alignment to motor shaft.
  • Non-Return valve made from 304 stainless steel, fitted in the discharge to prevent any back flow of water and alleviate any water hammer to the pumps.
  • Pump Shaft is made from hex 304 stainless steel bas material for high corrosion resistance.
  • Beating is made with Polyacetal for strong wear and abrasive resistance.
  • CSA and NSF certified
  • Pump body is covered by a 1.5mm thick 304 polished stainless steel.

Key Specs

AttributeSpecification

item#

4476701

Brand

Gol Pumps

Manufacturer's Warranty

6 month limited warranty

Ship Weight

180.0 LB

Max. Flow

1,110 GPH

Port Size

1.25 in

Volts

230
AttributeSpecification

Phase

Single-phase

Max. Head Pressure

1,112 ft

Amps

27.2

Max. Working Temperature

104 °F

Housing Material

Stainless Steel

Product Weight

180.0000 lb

Dimensions L x W x H (in.)

55.2 x 3.9 x 3.9 in

Reviews

Questions & Answers

Questions

  1. Who made from the Gol Pump?

    1 answer

    1. The pump is manufactured by GOL Pump Technology in Taiwan.

      Helpful?

Warranty

Manufacturer's Warranty

6 month limited warranty
