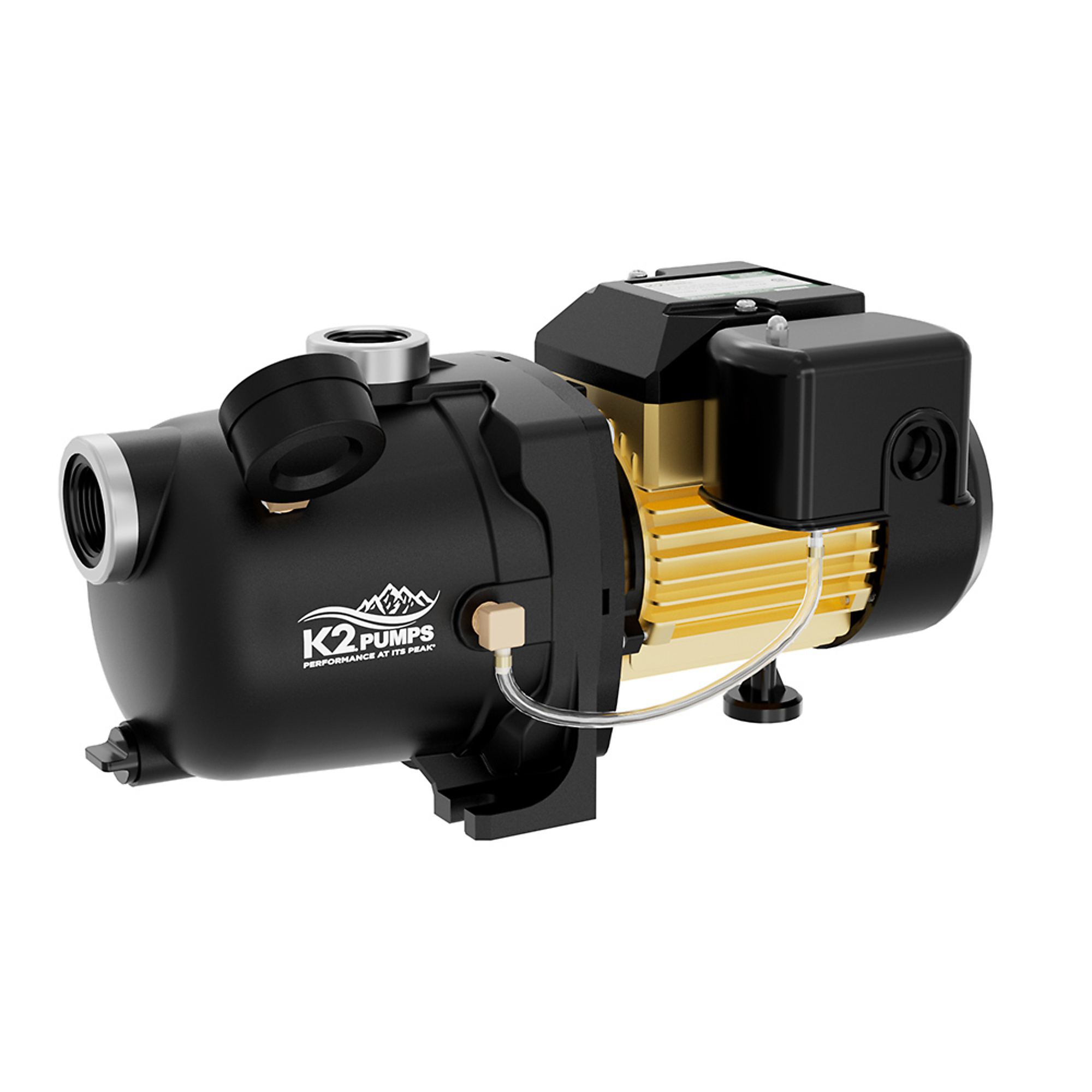

K2 3/4 HP Thermoplastic Shallow Well Jet Pump, Max. Flow 552 GPH, Port Size 1 in, Model# WPS07503K

Item# 6114623
K2 3/4 HP Thermoplastic Shallow Well Jet Pump, Max. Flow 552 GPH, Port Size 1 in, Model# WPS07503K

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

K2 3/4 HP Thermoplastic Shallow Well Jet Pump, Max. Flow 552 GPH, Port Size 1 in, Model# WPS07503K

Click or Tap image to Zoom

$209.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Dual voltage, 115/230V motor is preset at 230 volts and has a built-in voltage switch for easy conversion to 115 volts; see instructions
  • Totally Enclosed Fan Cooled (TEFC) motor protects motor internals from the elements. Energy efficient PSC design reduces operating cost.
  • Self-priming after pump housing is initially filled and foot valve or check valve is installed
  • Pre-mounted 30-50 pressure switch for automated operation.
  • Includes 100 PSI gauge for monitoring pressure.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

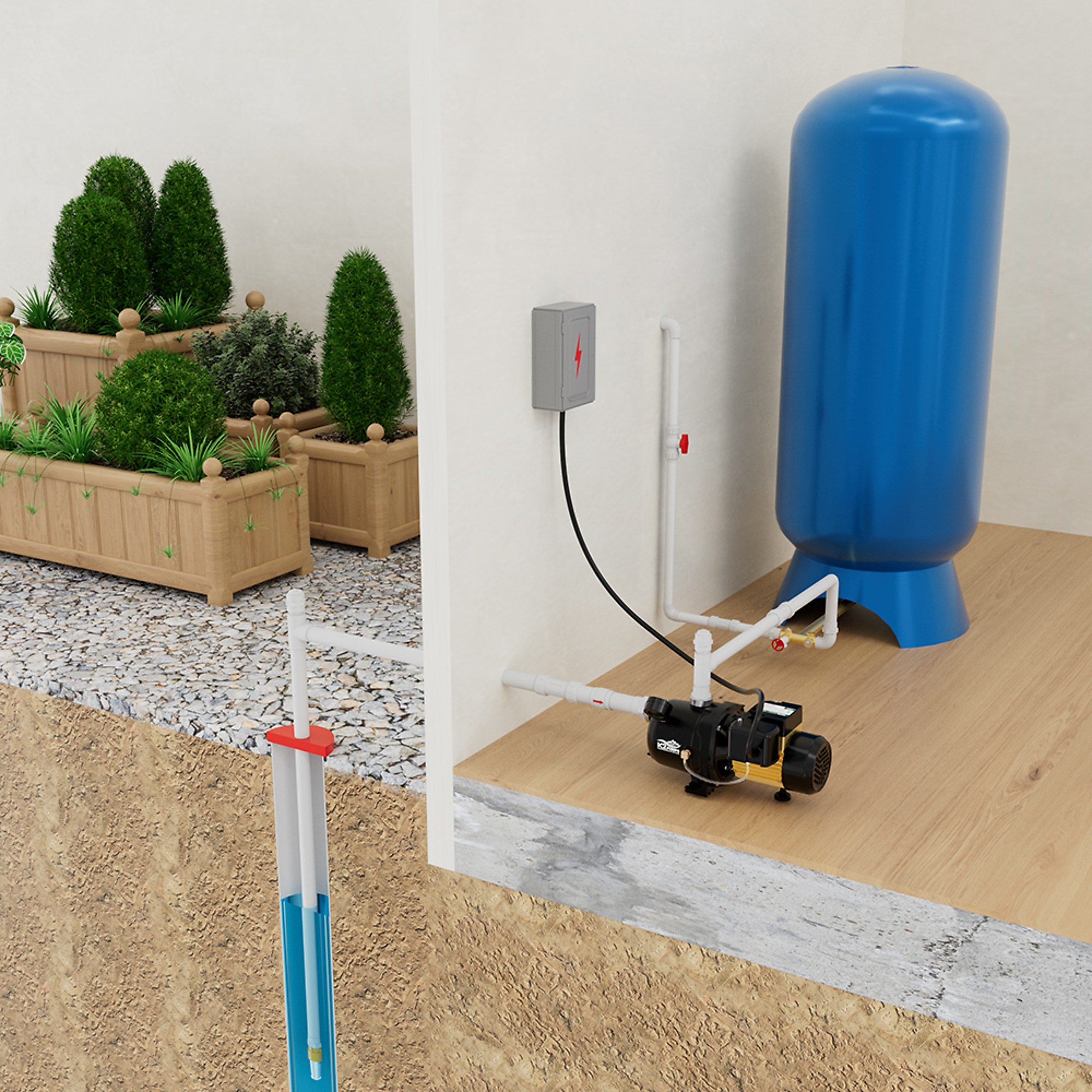

The K2 Pumps 3/4 HP shallow well jet pump may be used for shallow well applications with water depths up to 25ft. This may include drilled wells, driven wells, bored wells, creeks, lakes, ponds, and other water sources when the distance to the water is 25ft. or less. Typical applications would be water supply for homes, cabins, farms, low-flow sprinkler systems, and utility water. The pump housing is constructed of fiberglass-reinforced thermoplastic which makes it corrosion resistant and extends the life in the most corrosive water applications. Excellent choice for driven wells

What's Included

    (1) Pump

Downloads

Product Manual

Features + Benefits

  • Dual voltage, 115/230V motor is preset at 230 volts and has a built-in voltage switch for easy conversion to 115 volts; see instructions
  • Totally Enclosed Fan Cooled (TEFC) motor protects motor internals from the elements. Energy efficient PSC design reduces operating cost.
  • Self-priming after pump housing is initially filled and foot valve or check valve is installed
  • Pre-mounted 30-50 pressure switch for automated operation.
  • Includes 100 PSI gauge for monitoring pressure.
  • 1 1/4" NPT Suction and 1" NPT Discharge. Includes stainless steel discharge and suctions rings to prevent cracking when over tightening.
  • Certified to both NSF/ANSI CAN 61 Standard for Safe Drinking Water and NSF/ANSI 372 Lead-Free Standard

Key Specs

AttributeSpecification

item#

6114623

Brand

K2

Manufacturer's Warranty

1 year limited warranty

Ship Weight

18.0 LB

Max. Flow

552 GPH

Port Size

1 in

Volts

115/230

Solar Powered

No

Phase

Single-phase

Max. Head Pressure

25 ft
AttributeSpecification

Amps

8.4

Vertical Lift

25 ft

Discharge Flow @ 0 Ft.

552 GPH

Discharge Flow @ 10 Ft.

486 GPH

Min. Working Temperature

32 °F

Max. Working Temperature

95 °F

Housing Material

Thermoplastic

Product Weight

15.7000 lb

Dimensions L x W x H (in.)

7.99 x 15.0 x 7.36 in

Reviews

Questions & Answers

Questions

  1. What is the inlet pipe size and the outlet pipe size?

    1 answer

    1. This pump features 1-1/4" NPT inlet port and 1" NPT outlet port.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
