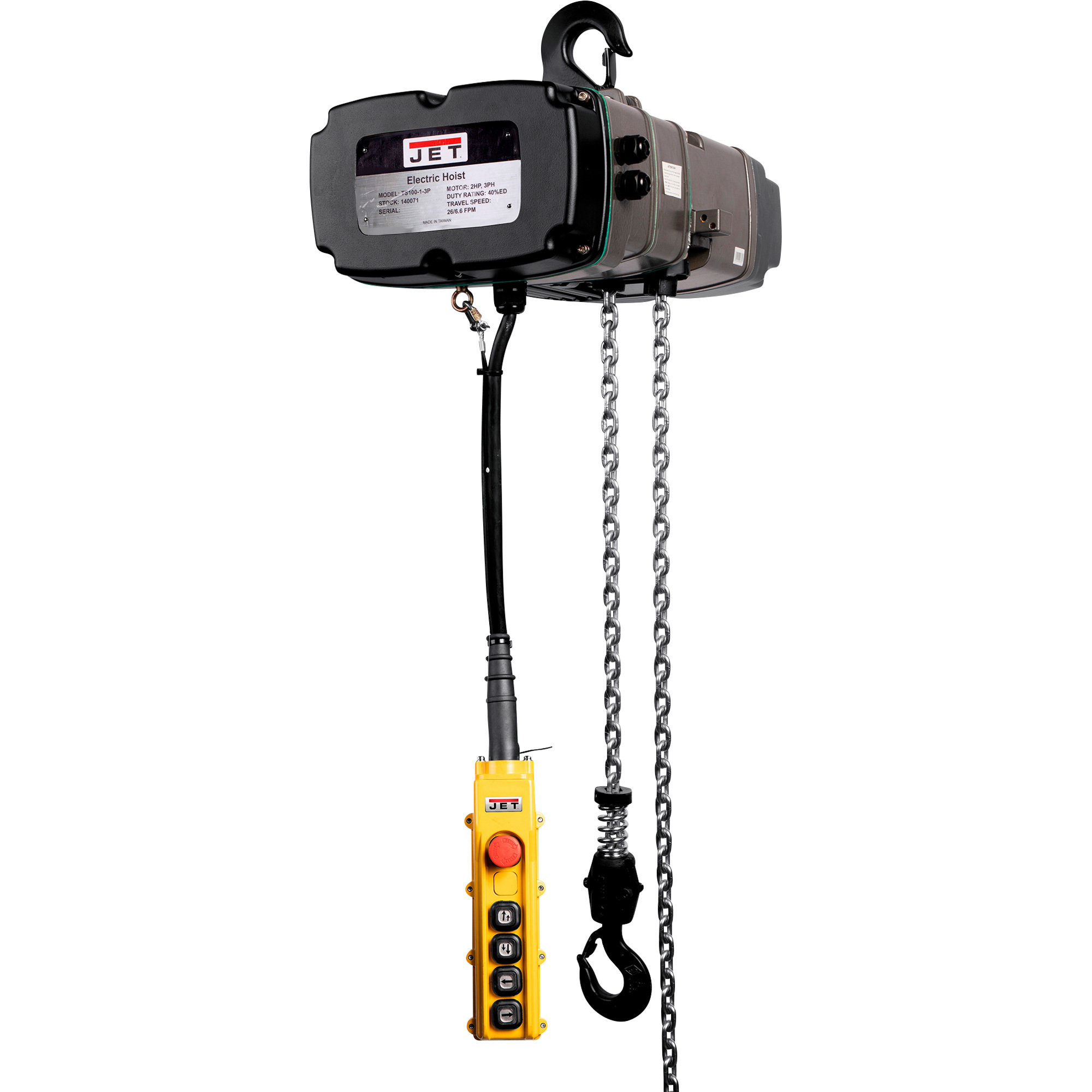

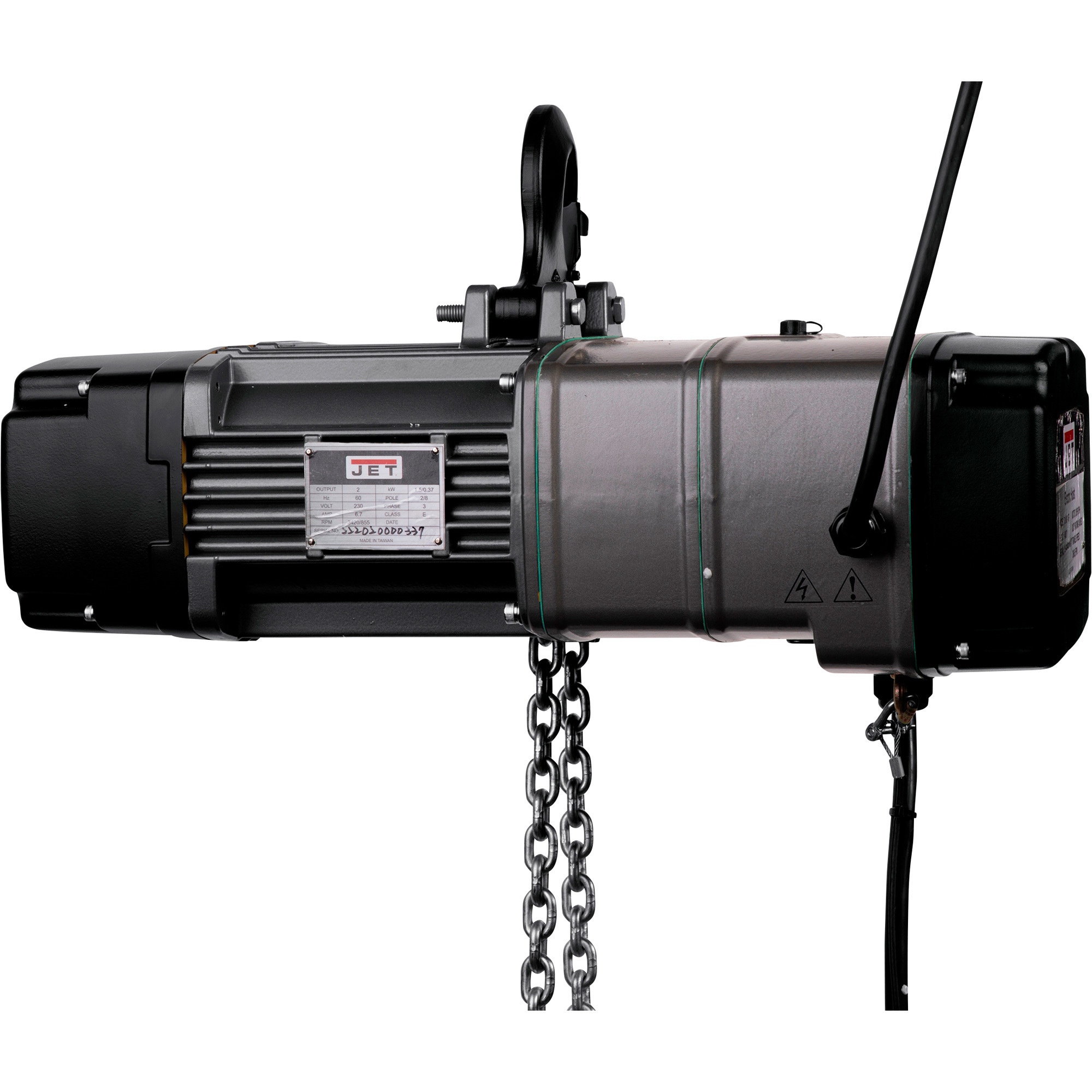

Jet TS Series 3-Phase Electric Chain Hoist, 5-Ton Capacity, 10ft. Lift Height, Model# TS300-020

Item# 104891
Jet TS Series 3-Phase Electric Chain Hoist, 5-Ton Capacity, 10ft. Lift Height, Model# TS300-020

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Jet TS Series 3-Phase Electric Chain Hoist, 5-Ton Capacity, 10ft. Lift Height, Model# TS300-020

Click or Tap image to Zoom

$9905.00

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only

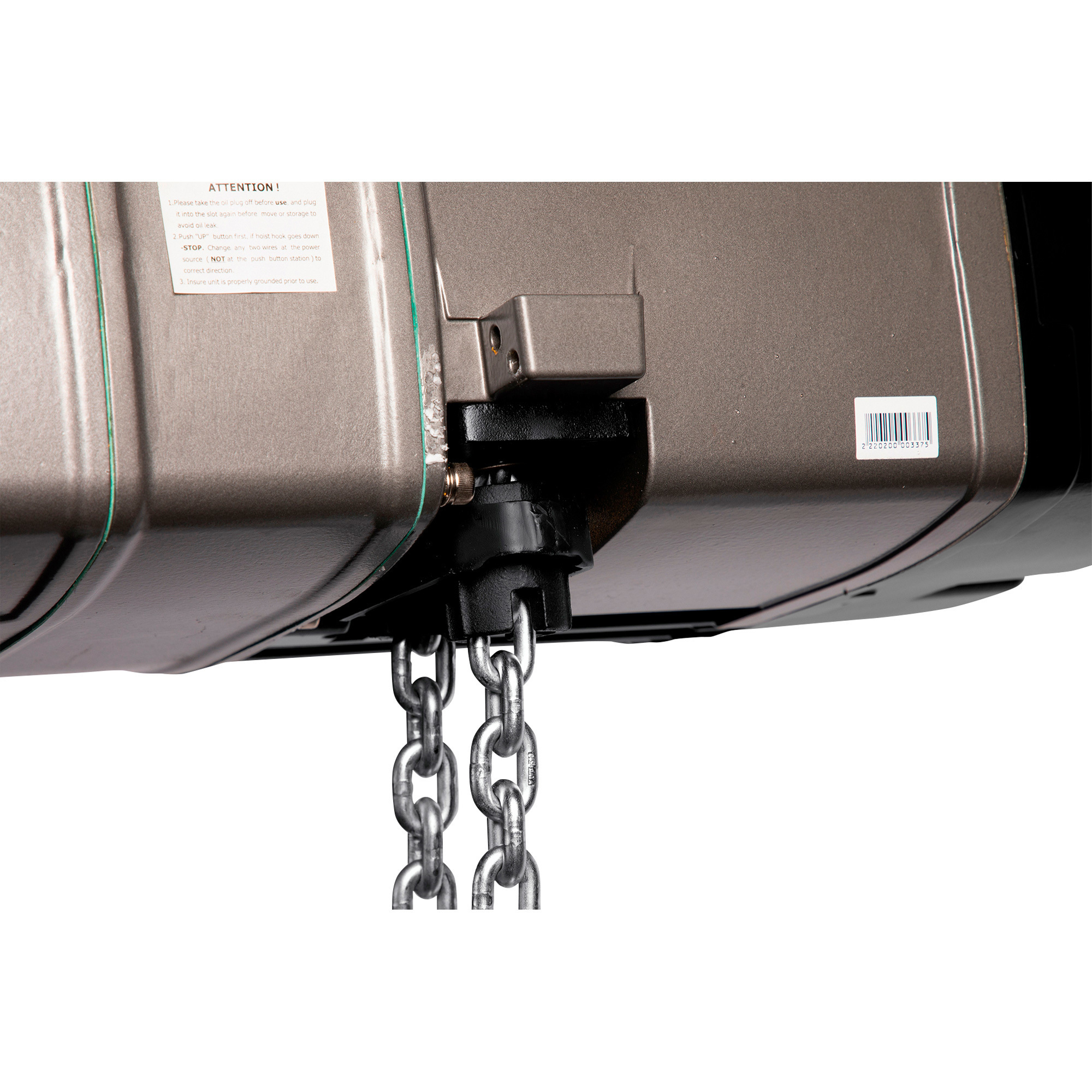

  • 5-pocket chain sprocket provides reduced vibration, smoother operation, and reduced chain wear during long lifting or lowering of loads
  • Load chain is Grade 80 hardened and galvanized alloy steel built to withstand harsh conditions such as rain, saltwater and chemicals with minimal wear
  • Pendant control is IP65 rated and fully waterproof, insulated and impact-resistant for years of service
  • Built-in heat protection will not allow lifting if internal temperatures exceed 285°F (+/-40°)
  • Load will be allowed to be lowered until unit cools

See full description

Complete Your Solution

  • Jet TS Series 3-Phase Electric Chain Hoist, 5-Ton Capacity, 10ft. Lift Height, Model# TS300-020
  • Pyramex Cap-Style Hard Hat with 4-Point Pin-Lock Suspension - White, One Size Fits All, Model# HP14010
  • Bullhead Safety Discus Safety Glasses, 10 Base Curve Wrap Around Clear Lens, Model# BH2811
  • JET PT Series Heavy-Duty Manual Trolley, 5-Ton Capacity, Fits 4 5/8in.W-8in.W Beams, Model# 5-PT
Price for all four:

$10,785.16

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Jet® TS Series 3-Phase Electric Chain Hoist is designed and built for safety, durability and efficiency in the toughest industrial applications. Two speeds allow you to move materials quickly and safely. You can allow your material to slow down to be placed exactly where you need it without excessive bump firing. Additionally, a 2in.-1 mechanical brake and overload protection assure you of safety first on the jobsite. This new system will brake quickly while providing protection from overloading the hoist. We engineered this hoist to keep the operator safe and prolong the life of your tool. A patented gear limit switch will allow precise control of the stopping point in both directions. This feature will prolong the life of the hoist and help avoid possible damage to the unit. Safe lifting speeds up to 33ft. per minute and as low as 3ft. per minute give you the ability to be more efficient with every load. The TS series is available from 1/2-ton to 5-ton capacities.

What's Included

    (1) 3-phase electric chain hoist

Features + Benefits

  • 5-pocket chain sprocket provides reduced vibration, smoother operation, and reduced chain wear during long lifting or lowering of loads
  • Load chain is Grade 80 hardened and galvanized alloy steel built to withstand harsh conditions such as rain, saltwater and chemicals with minimal wear
  • Pendant control is IP65 rated and fully waterproof, insulated and impact-resistant for years of service
  • Built-in heat protection will not allow lifting if internal temperatures exceed 285°F (+/-40°)
  • Load will be allowed to be lowered until unit cools
  • Heat protection saves internal components and extends the life of the product
  • Comes with 10ft. power supply cord

Key Specs

AttributeSpecification

item#

104891

Brand

JET

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

428.0 LB

Capacity

10,000 lb

Lift Height

10 ft

Lift Speed

13 ft./min.

Volts

230
AttributeSpecification

Brake Type

Motor

Control Type

Push Button

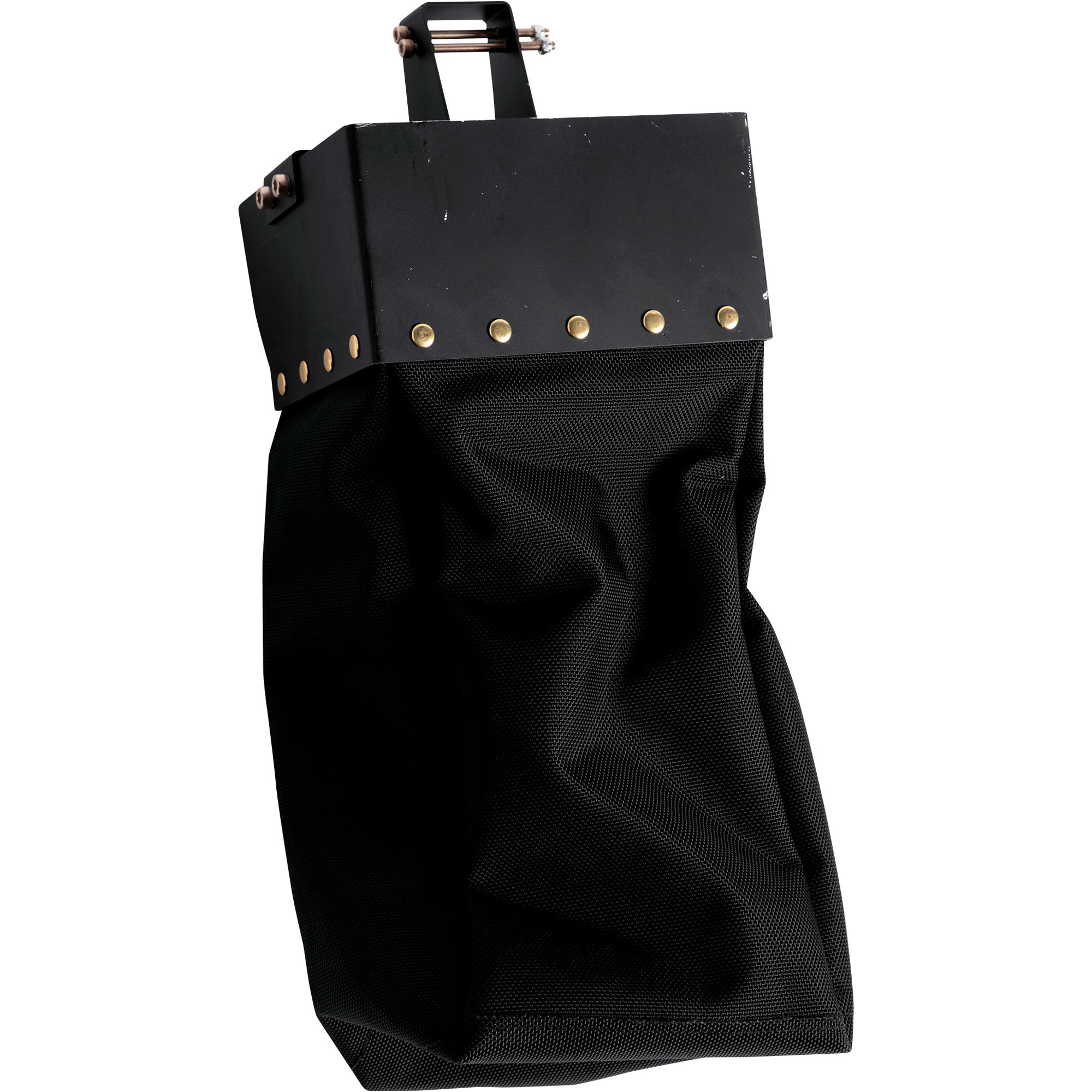

Chain Bag Included

Yes

Required Head Room

43.3 in

Motor Output

4.167

Hoist Classification

H4

Dimensions L x W x H (in.)

37.0 x 27.0 x 23.62 in

Product Weight

428.0000 lb

Reviews

Questions & Answers

Questions

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

24 months parts/24months labor
