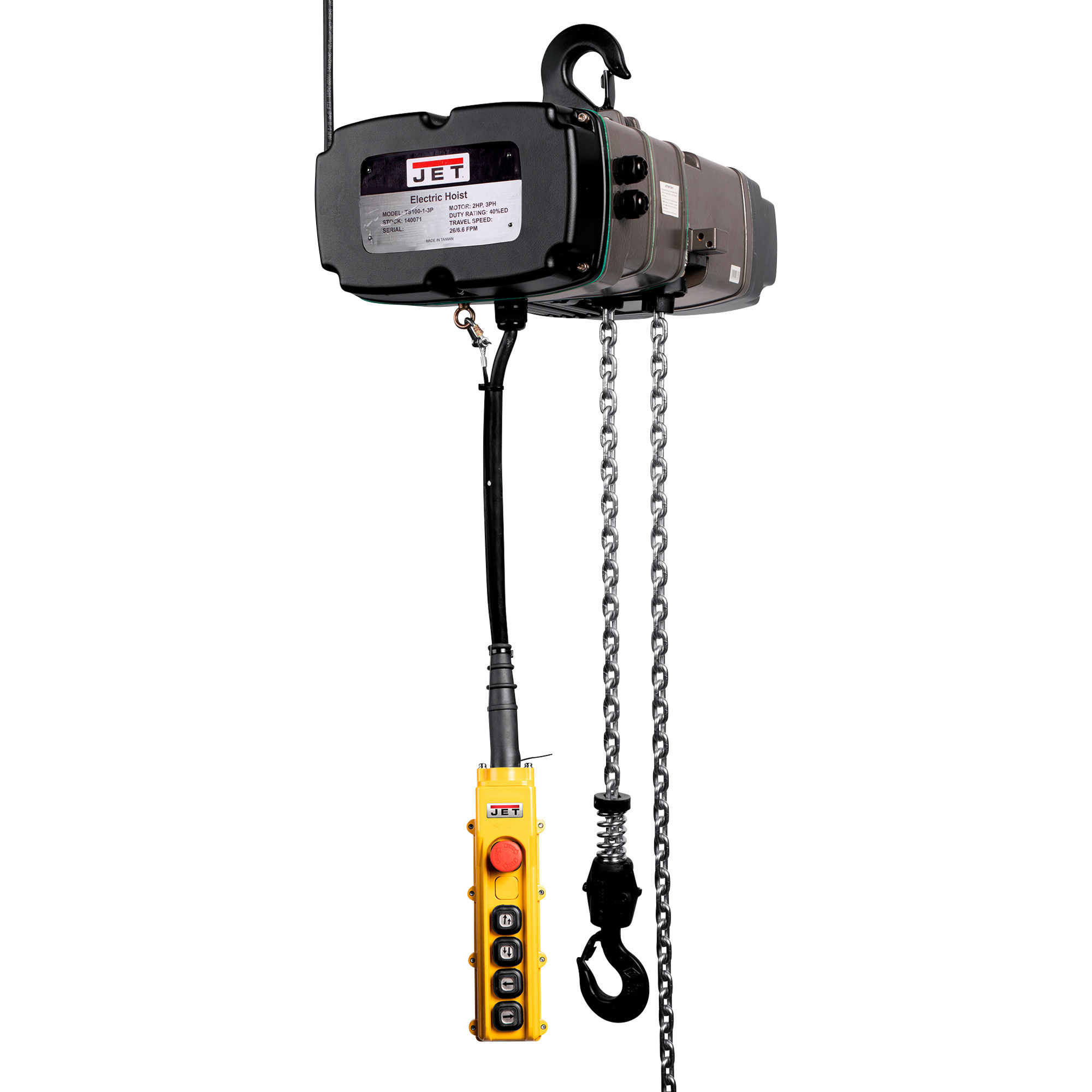

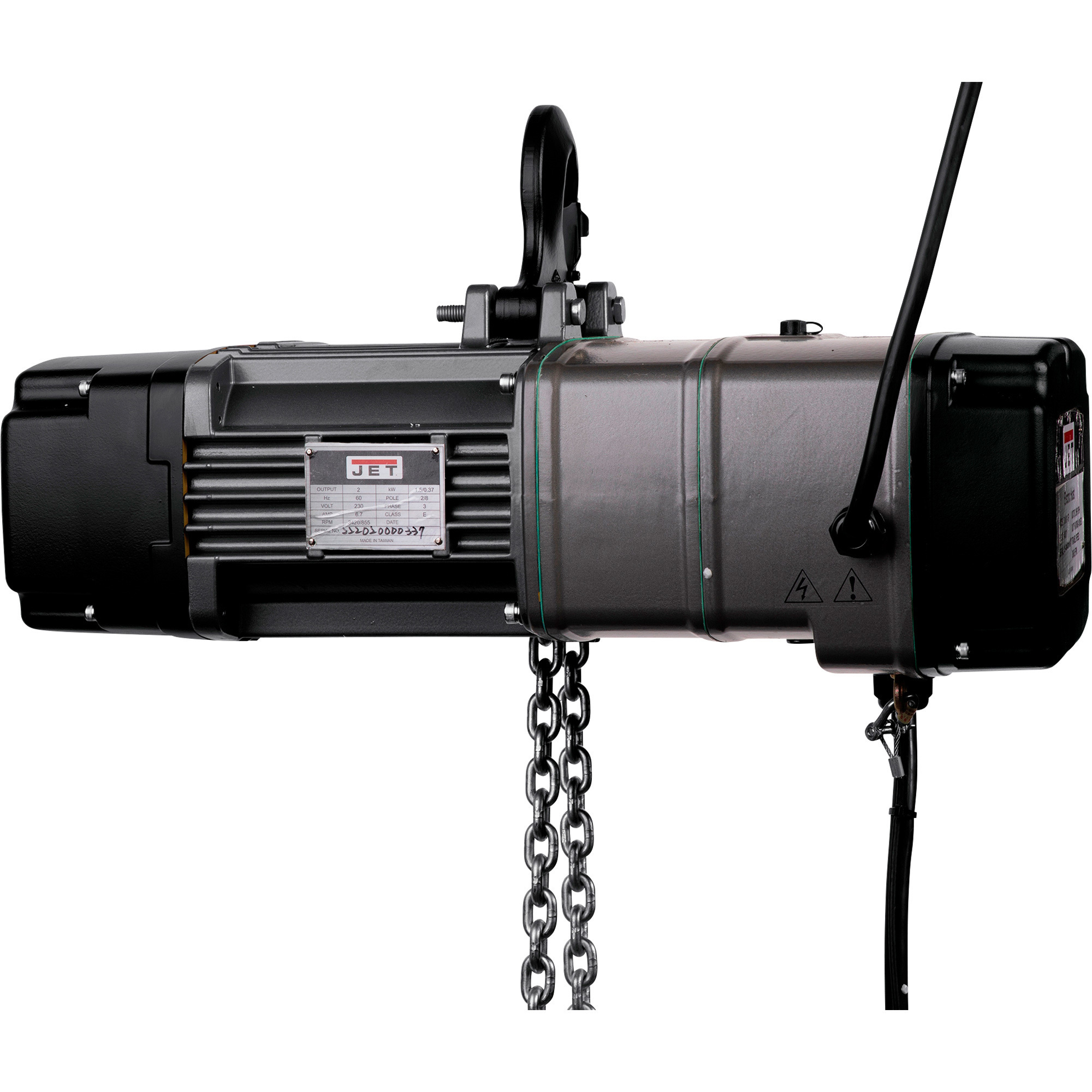

JET TS Series 2-Speed Electric Chain Hoist, 1-Ton Capacity, 10ft. Lift, 3-Phase, Model# TS100-1-3P460-010

Item# 107215
JET TS Series 2-Speed Electric Chain Hoist, 1-Ton Capacity, 10ft. Lift, 3-Phase, Model# TS100-1-3P460-010

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET TS Series 2-Speed Electric Chain Hoist, 1-Ton Capacity, 10ft. Lift, 3-Phase, Model# TS100-1-3P460-010

Click or Tap image to Zoom

$5068.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Pendant control is IP65 rated and fully water-proof, insulated and impact resistant for years of service
  • Built-in heat protection will not allow lifting if internal temperatures exceed 285°F (+/-40°)
  • Load will be allowed to be lowered until unit cools, saving internal components to extend product life
  • Comes with 10ft. power supply cord
  • IP55 TEFC Motor with Class F insulation for working in harsh environments

See full description

Complete Your Solution

  • JET TS Series 2-Speed Electric Chain Hoist, 1-Ton Capacity, 10ft. Lift, 3-Phase, Model# TS100-1-3P460-010
  • Bullhead Safety Discus Safety Glasses, 10 Base Curve Wrap Around Clear Lens, Model# BH2811
  • JET PT Series Adjustable Push Trolley, 1-Ton Capacity, Model# 1-PT
  • Strongway Quick Install Trolley with Lift Eye, 2200-Lb. Capacity, Fits Flange Width 2-15/16in.–5-1/8in.
Price for all four:

$5407.17

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The JET TS Series 2-Speed Electric Chain Hoist is designed and built for safety, durability, and efficient operation in the toughest industrial applications. 2 speeds allow you to move materials quickly and safely. You can then slow your load down to position it exactly where you need it without excessive bump firing. The 2in.-1 mechanical brake and overload protection assure you of safety first on the jobsite. This new system will brake quickly while providing protection from overloading the hoist. The patented gear limit switch will allow precise control of the stopping point in both directions. This feature will prolong the life of the hoist and help avoid possible damage to the unit. All of this with safe lifting speeds up to 33ft. per minute and as low as 3ft. per minute give you the ability to be more efficient with every load.

What's Included

    (1) Electric chain hoist

Features + Benefits

  • Pendant control is IP65 rated and fully water-proof, insulated and impact resistant for years of service
  • Built-in heat protection will not allow lifting if internal temperatures exceed 285°F (+/-40°)
  • Load will be allowed to be lowered until unit cools, saving internal components to extend product life
  • Comes with 10ft. power supply cord
  • IP55 TEFC Motor with Class F insulation for working in harsh environments
  • 2-in-1 design of mechanical brake and overload protection ensure operator safety and extended product life
  • DC Motor Brake actuates instantly in the event of a power failure to ensure operator safety
  • Patented gear limit switch ensures switches power instantly in the case of over lifting or lowering position

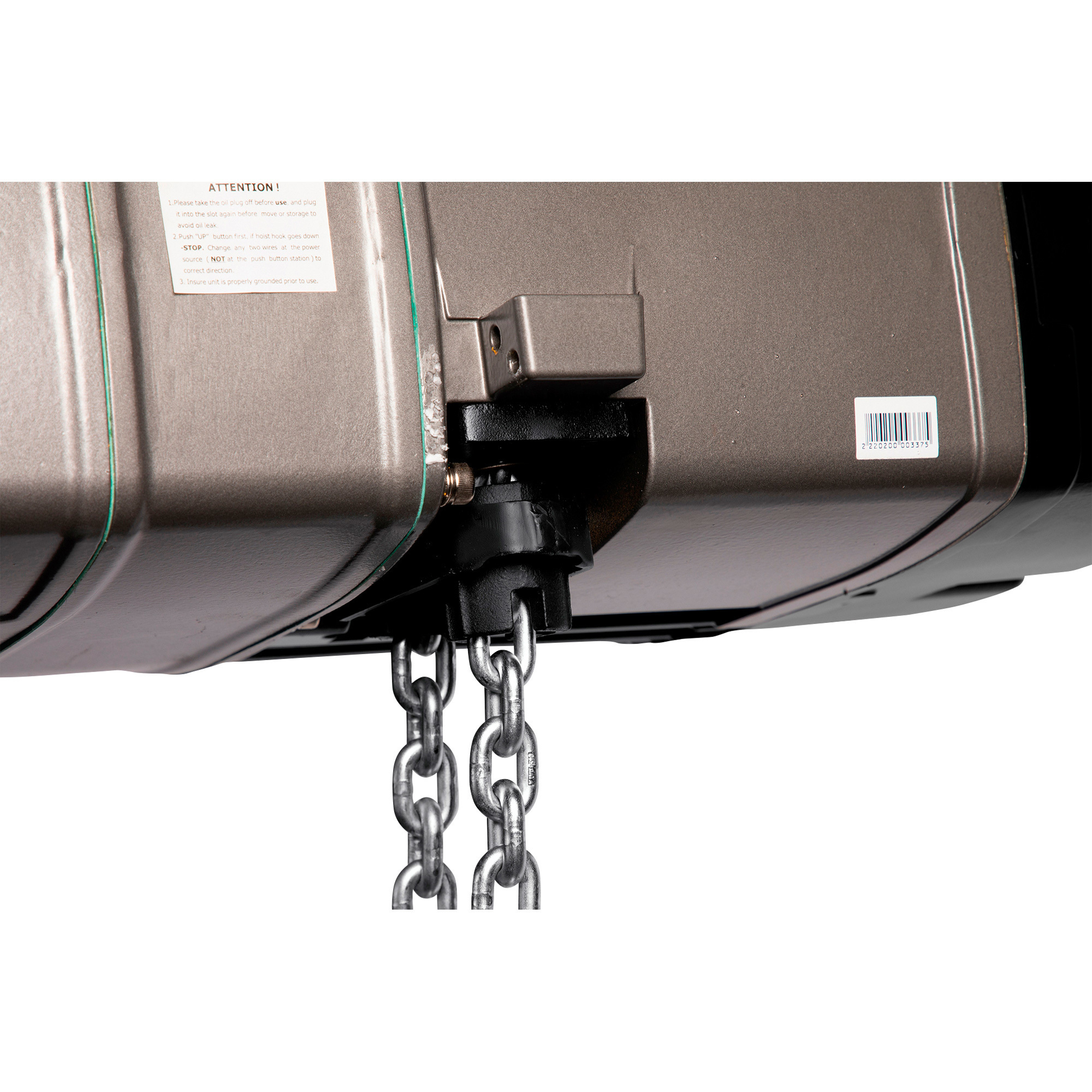

  • 5-pocket chain sprocket reduces vibration for smoother operation and reduced chain wear during long lifting or lowering of loads
  • Grade 80 load chain is hardened and galvanized alloy steel that withstands harsh conditions such as rain, saltwater and chemicals with minimal wear

Key Specs

AttributeSpecification

item#

107215

Brand

JET

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

218.0 LB

Capacity

2,000 lb

Lift Height

10 ft

Lift Speed

3.71 ft./min.

Volts

460

Brake Type

Motor
AttributeSpecification

Control Type

Push Button

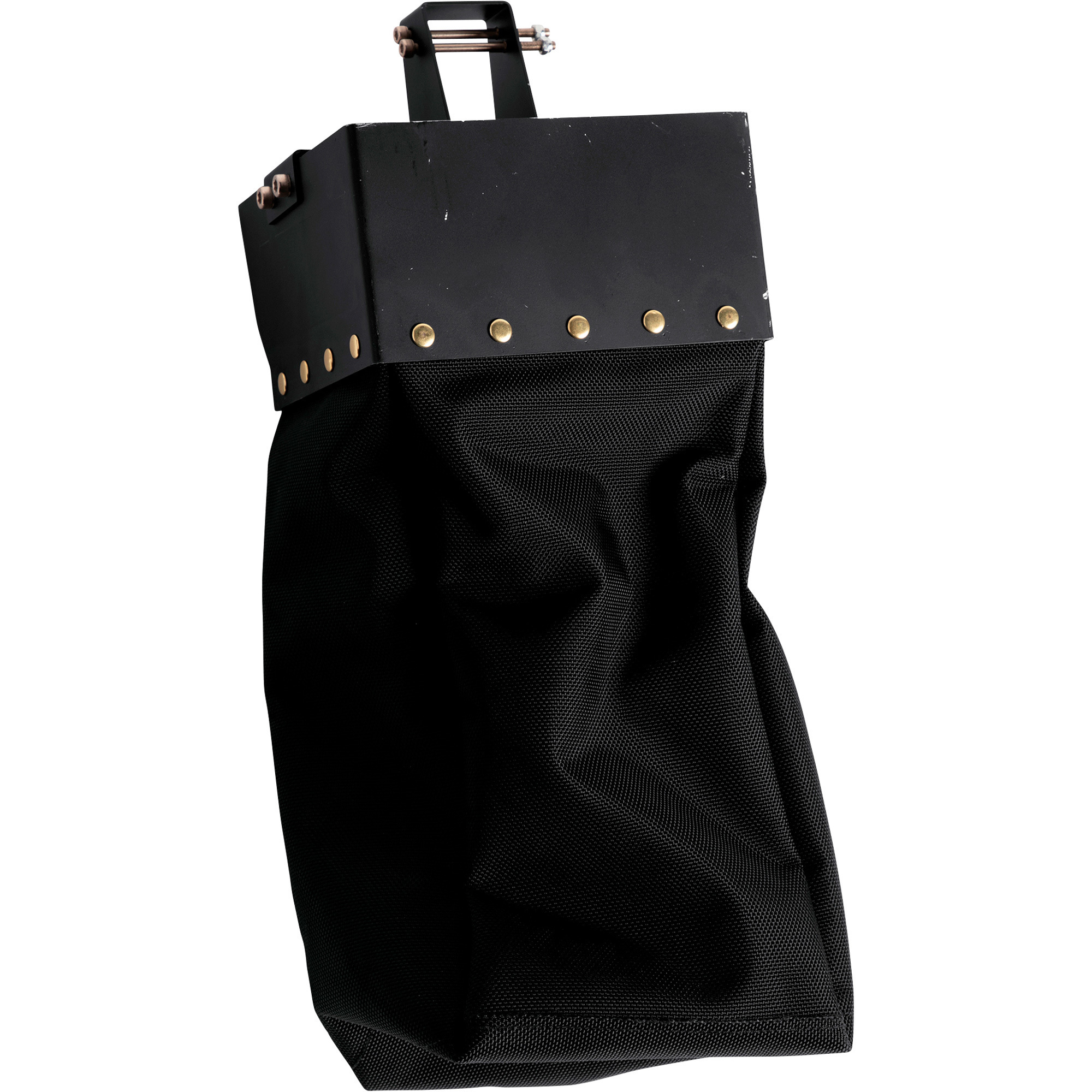

Chain Bag Included

Yes

Required Head Room

21.7 in

Motor Output

4

Thermal Overload Protection

Yes

Hoist Classification

H4

Dimensions L x W x H (in.)

29.52 x 21.65 x 23.62 in

Product Weight

218.0000 lb
