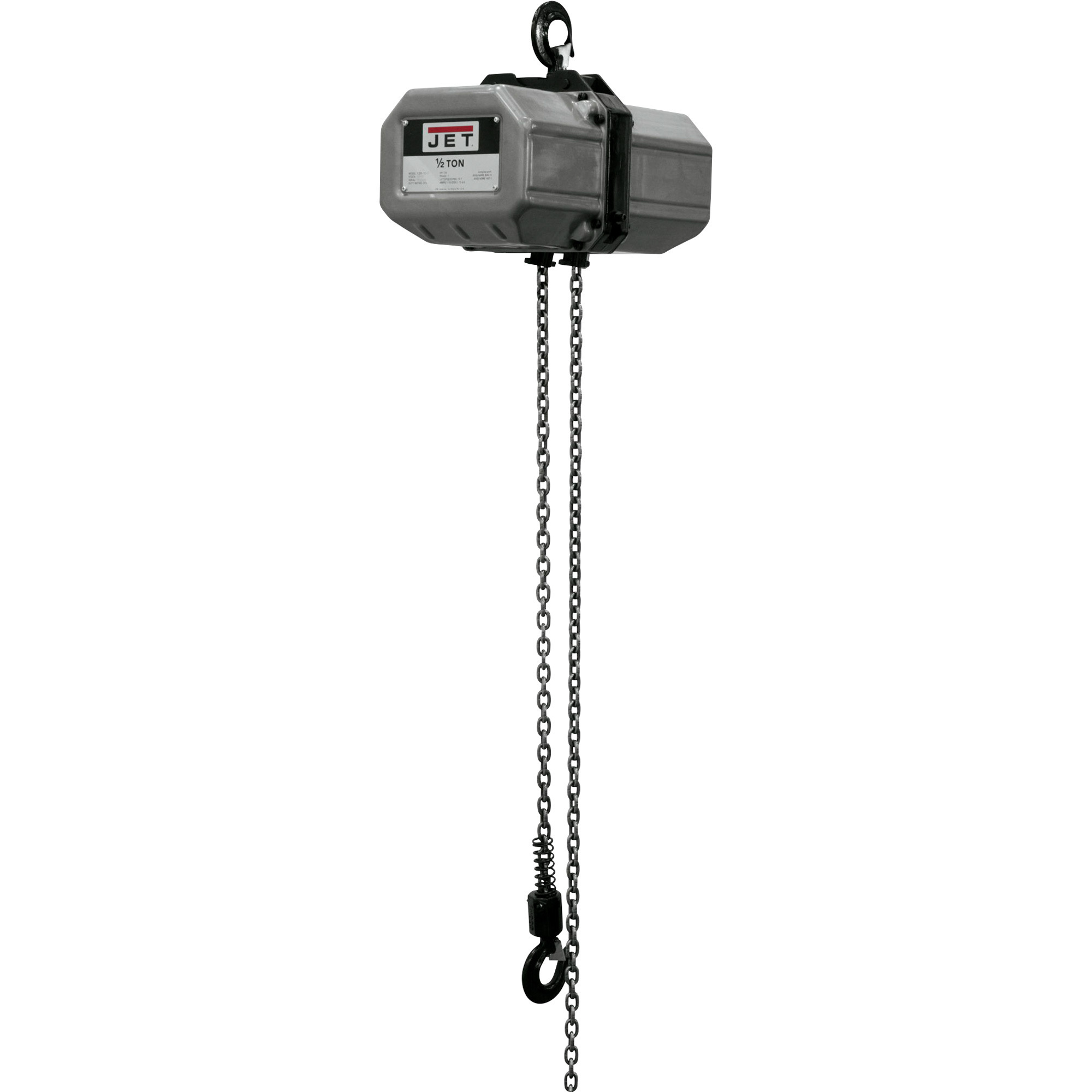

JET SS Series Electric Chain Hoist, 1000-Lb. Capacity, 10ft.Lift, Model# 1/2SS-3C-10

Item# 100188
JET SS Series Electric Chain Hoist, 1000-Lb. Capacity, 10ft.Lift, Model# 1/2SS-3C-10

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET SS Series Electric Chain Hoist, 1000-Lb. Capacity, 10ft.Lift, Model# 1/2SS-3C-10

Click or Tap image to Zoom

$2759.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Safety switch that protects the hoist from incorrect wiring of power supply
  • DC electro-magnetic brake secures load even if power to hoist is interrupted
  • Upper and lower limit switches increase safety by preventing the load chain from over traveling
  • Gear train incorporates sealed oil bath that eliminates upkeep
  • Grade 80 black oxide coated load chain for durability

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The JET SS Series Electric Chain Hoist combines safety and durability to operate in commercial and industrial applications. This 3-phase unit features a slip clutch overload protection mechanism that prevents the hoist from lifting damaging loads above its rated capacity. The industry-proven DC electro-magnetic brake increases safety by holding the load even when power is interrupted. The maintenance-free gear train incorporates a sealed oil bath, for reliability and durability. Please closely verify all details prior to confirming this order. NOTE: Because this made-to-order item is manufactured exclusively to match your specifications, it is not eligible for cancellation, refund or return once the order has been placed.

What's Included

    (1) Electric chain hoist

Features + Benefits

  • Safety switch that protects the hoist from incorrect wiring of power supply
  • DC electro-magnetic brake secures load even if power to hoist is interrupted
  • Upper and lower limit switches increase safety by preventing the load chain from over traveling
  • Gear train incorporates sealed oil bath that eliminates upkeep
  • Grade 80 black oxide coated load chain for durability
  • 24 Volt pushbutton control pendant with cable strain relief suitable for industrial and commercial settings
  • 3-phase; H4 duty rating; 30% duty cycle
  • Complies with ANSI / ASME B30.16 and HST-1 standards
  • Load tested to 125% of capacity with certificate
  • NEMA 4X compliant push button control pendants
  • Note: JET VOLT and SSC Series Electric Hoists and JET ET Series Electric Trolleys are NOT rated or designed for outdoor use or wet environments

Key Specs

AttributeSpecification

item#

100188

Brand

JET

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

110.0 LB

Capacity

1,000 lb

Lift Height

10 ft

Lift Speed

31 ft./min.
AttributeSpecification

Duty Cycle

30 %

Volts

230/460

Brake Type

Magnetic

Control Type

Push Button

Required Head Room

20.18 in

Motor Output

1.33

Product Weight

102 lb

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

24 months parts/24months labor
