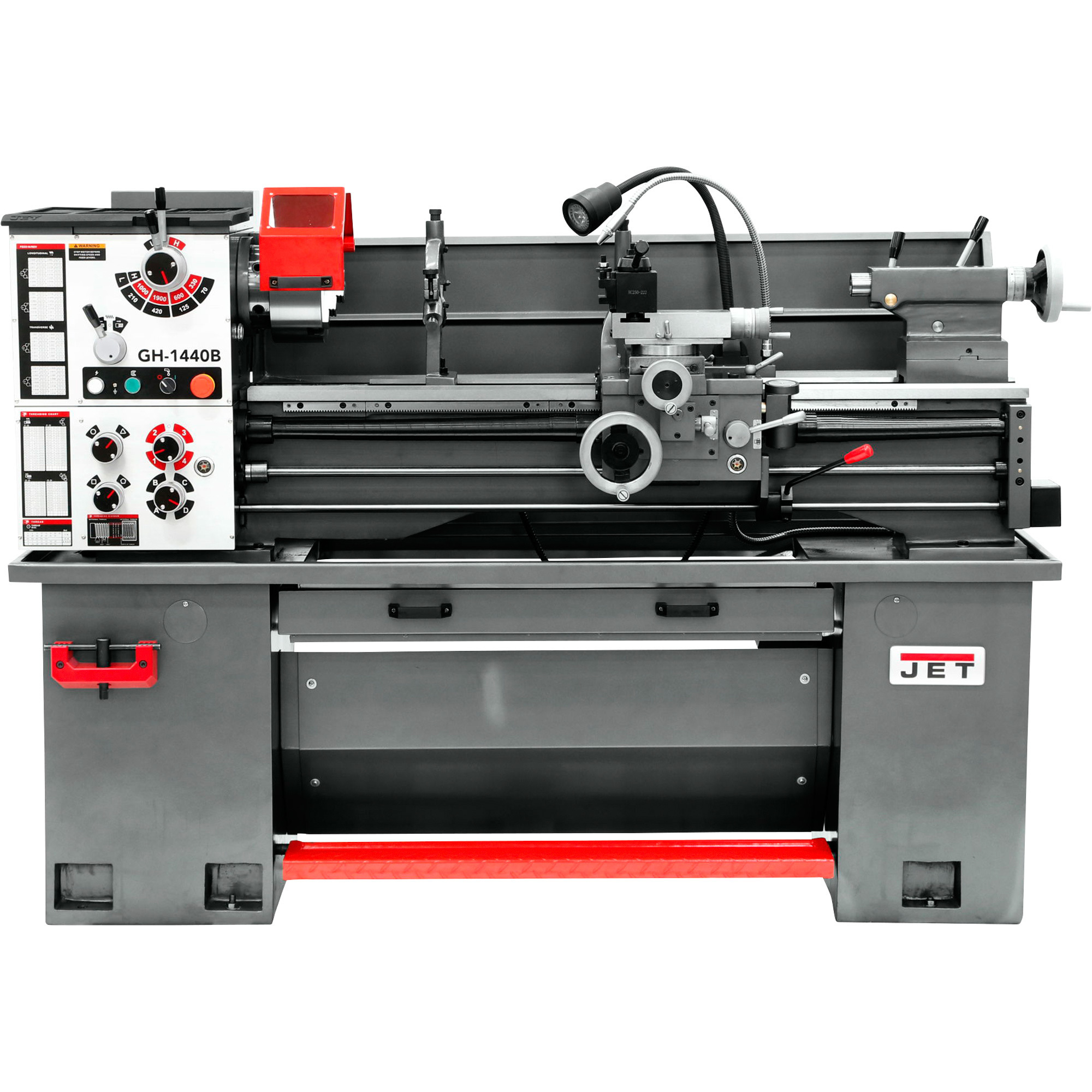

JET Geared-Head Bench Lathe with Taper Attachment, 14in. x 40in., Model# GH-1440B/323442

Item# 70603
JET Geared-Head Bench Lathe with Taper Attachment, 14in. x 40in., Model# GH-1440B/323442

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Geared-Head Bench Lathe with Taper Attachment, 14in. x 40in., Model# GH-1440B/323442

Click or Tap image to Zoom

$19,575.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • 14in. swing over bed with 8in. swing over cross slide and 20in. swing through gap
  • 2in. D1-5 spindle is supported by precision spindle roller bearings
  • High quality steel hardened gears in headstock
  • Lead screw cover
  • Comes mounted on a sturdy cast iron stand

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • JET Geared-Head Bench Lathe with Taper Attachment, 14in. x 40in., Model# GH-1440B/323442
  • Milwaukee Men's Cut 1 Nitrile Utility Gloves, Red/Black, Large, Model# 48-22-8902
  • Radians Earplug Neckband, NRR 25dB, Orange, Model# RB2120
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
Price for all four:

$19,599.44

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This 14in. x 40in. JET Geared-Head Bench Lathe with Taper Attachment is engineered for smooth, quiet operation and user versatility. Positioned on a heavy-duty stand with a built-in footbrake, the GH-1440B includes precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for ultimate working durability. This lathe also includes a patented electronic chuck key docking station that prevents startup without the chuck key when safely docked. 2-year warranty. Please closely verify all details prior to confirming this order. NOTE: Because this made-to-order item is manufactured exclusively to match your specifications, it is not eligible for cancellation, refund or return once the order has been placed.

What's Included

    (1) Geared-head bench lathe with taper attachment

Features + Benefits

  • 14in. swing over bed with 8in. swing over cross slide and 20in. swing through gap
  • 2in. D1-5 spindle is supported by precision spindle roller bearings
  • High quality steel hardened gears in headstock
  • Lead screw cover
  • Comes mounted on a sturdy cast iron stand
  • Hands-free foot brake comes standard
  • Emergency stop within easy reach of the operator
  • Chuck guard
  • Electronic chuck key docking station provides operator safety, as the lathe will not turn without the chuck key being docked
  • Enclosed gearbox design provides smooth, quiet operation
  • Gap bed section provided for larger diameter work
  • Adjustable gibs are incorporated in the carriage and slideways
  • Gearbox gives a wide range of inch and metric threading and feed capabilities with few gear changes
  • Compound and cross slide have backlash adjustment
  • Tailstock may be offset for turning tapers and includes an inch/metric graduated quill
  • Spindle spider available for ease of turning gun barrels
  • Standard Equipment includes:
  • 8in., 3-jaw chuck
  • 8in., 4-jaw chuck
  • Steady rest with roller bearings

Key Specs

AttributeSpecification

item#

70603

Brand

JET

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

1791.0 LB

Horsepower

2 HP

Volts

230

Distance Between Centers

36.875 in

Swing Over Bed

14 in

Product Type

Other

Carriage Travel

37.406 in
AttributeSpecification

Thread Cutting Max. (SAE)

56 in

Thread Cutting Max.

7 mm

Phase

Single-phase

Variable Speed

No

Max. Speed

1,900 rpm

Spindle Mount

Yes

Spindle Bore Size

2 in

Stand Included

Yes

Product Weight

lb

Dimensions L x W x H (in.)

76.4 x 29.9 x 59.81 in

Reviews

Questions & Answers

Questions

  1. Where can I get a manual & parts for this machine?

    1 answer

    1. Please contact JET directly for parts assistance.
