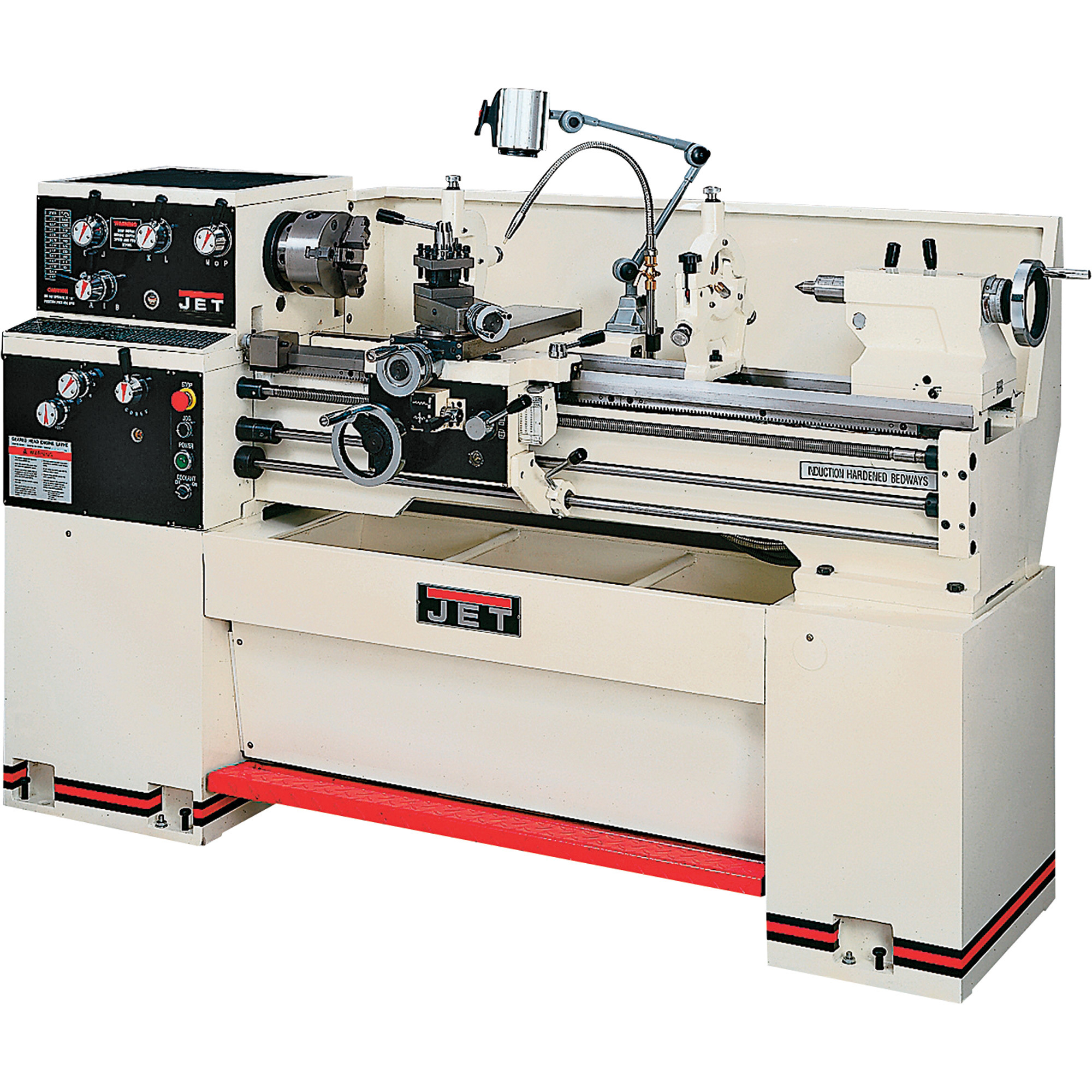

JET Geared Head Engine Lathe, 12 Speeds, 13in. x 40in. Model# GH-1340W-3

Item# 142276
JET Geared Head Engine Lathe, 12 Speeds, 13in. x 40in. Model# GH-1340W-3

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Geared Head Engine Lathe, 12 Speeds, 13in. x 40in. Model# GH-1340W-3

Click or Tap image to Zoom

  • Cuts 40 inch threads and 22 metric threads
  • Splined, not keyed, shafts in the headstock
  • 3- and 4-jaw chucks
  • 13in. swing over bed
  • 7 1/2in. swing over cross slide

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This uniquely designed JET® engine lathe delivers precision metal parts in less time, thanks to its geared head. Gear box provides large threading and feed capabilities without gear changes. Hardened and ground gears are featured in the headstock and gearbox. D1-4 spindle is supported by high-quality tapered roller bearings. Headstock is constantly oiled during operation. V-way bed design is induction hardened and ground.

What's Included

    (1) Lathe (1) Stand

Downloads

Product Manual

Features + Benefits

  • Cuts 40 inch threads and 22 metric threads
  • Splined, not keyed, shafts in the headstock
  • 3- and 4-jaw chucks
  • 13in. swing over bed
  • 7 1/2in. swing over cross slide
  • 19in. swing through gap
  • 40in. centers
  • 1 1/2in. spindle bore
  • MT-5 spindle taper (MT-3 with sleeve)
  • 9 3/8in. length of gap
  • 40 Longitudinal and Cross Feed rates
  • 0.0012 - 0.0294 range of Longitudinal Feeds (IPR)
  • 0.0003 - 0.0103 Range of Cross Feeds (IPR)
  • 40 Inch Threads
  • 4 - 112 range of Inch Threads (TPI)
  • 0.45 -7.5 range of Metric Threads
  • 3 1/2in. compound slide travel
  • 6 3/8in. cross slide travel
  • 37 1/2 in. carriage travel
  • 4 3/4in. tailstock spindle travel

Key Specs

AttributeSpecification

item#

142276

Brand

JET

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

2274.0 LB

Horsepower

3 HP
AttributeSpecification

Volts

230/460

Max. Speed

1,800 rpm

Stand Included

Yes

Product Weight

lb

Dimensions L x W x H (in.)

74.0 x 30.0 x 48.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. Is the electric motor on the 240 v setting 1 phase?

    1 answer

    1. The electric motor is a 3 HP, three phase 230/460 volt. It is prewired for 230 volt three phase power.

      Helpful?

  2. Is this lathe ISO 9001 certified?

    1 answer

    1. The JET Geared Head Engine Lathe is not ISO 9001 certified.

      Helpful?

  3. Would this be a good option for wooden baseball bats?

    1 answer

    1. This is not to be used for wood, it is for metal work only.

      Helpful?

Warranty

Manufacturer's Warranty

24 months parts/24months labor
