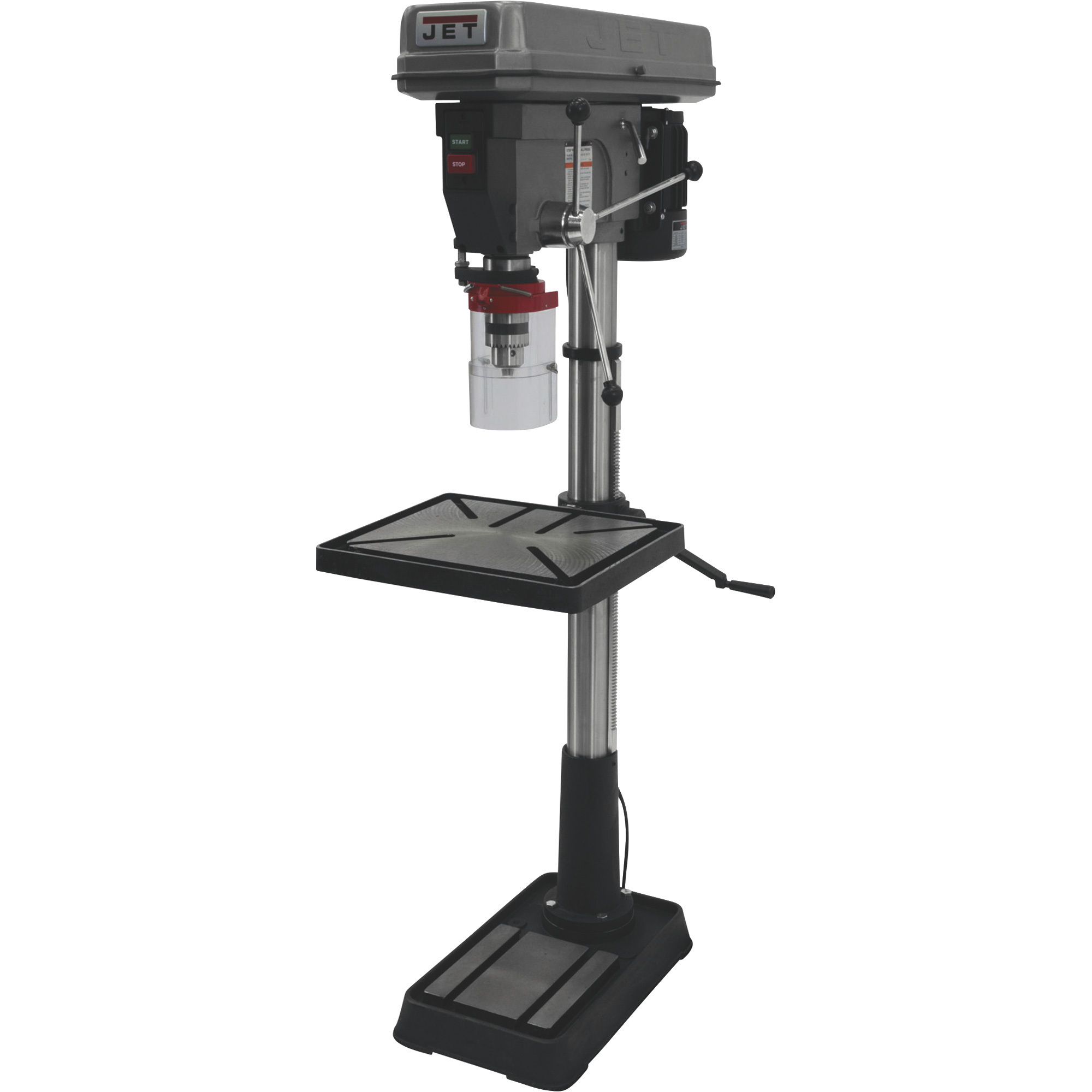

JET Floor-Mount Drill Press, 20in., 1 1/2 HP, 115/230V, Model# JDP-20MF

Item# 155880
13 of 20 reviewers received a sample product or took part in a promotion
JET Floor-Mount Drill Press, 20in., 1 1/2 HP, 115/230V, Model# JDP-20MF

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Floor-Mount Drill Press, 20in., 1 1/2 HP, 115/230V, Model# JDP-20MF

Click or Tap image to Zoom

$1899.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 12 spindle speeds
  • Rotating, 45° tilting, crank-operated worktable with quick release clamp
  • On/off switch located on front of the drill press head
  • A 1/2in. dia. external positive depth stop with 3-nut locking feature for quick adjustment
  • Spindle is supported by high quality ball bearings

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • JET Floor-Mount Drill Press, 20in., 1 1/2 HP, 115/230V, Model# JDP-20MF
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
  • Milwaukee Men's Cut 1 Nitrile Utility Gloves, Red/Black, Large, Model# 48-22-8902
Price for all three:

$1915.45

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The JET Floor-Mount Drill Press has a 1in. drilling capacity, a 1 1/2 HP, single-phase 115/230V motor and a hinged metal belt and pulley cover coupled with quick adjustment motor mount allow rapid changing of spindle speeds. Features adjustable tension spindle return spring and built-in work lamp (bulb not included).

What's Included

    (1) Floor-mount drill press

Downloads

Product Manual

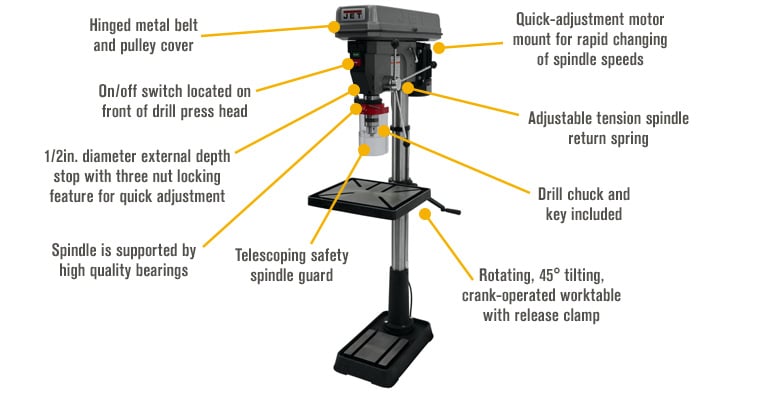

Features + Benefits

  • 12 spindle speeds
  • Rotating, 45° tilting, crank-operated worktable with quick release clamp
  • On/off switch located on front of the drill press head
  • A 1/2in. dia. external positive depth stop with 3-nut locking feature for quick adjustment
  • Spindle is supported by high quality ball bearings
  • 3/4in. drill chuck and key included
  • 3 3/8in. column dia.
  • 19in.W x 33in.D x 67in.H

Key Specs

AttributeSpecification

item#

155880

Brand

JET

Manufacturer's Warranty

5 year limited warranty

Ship Weight

325.0 LB

Horsepower

1.5 HP

Volts

115/230

Max. Speed

4,200 rpm

360 Degree Head Swivel

No
AttributeSpecification

Speeds (qty.)

12

Product Type

Drill Press

Chuck Size

3/4 in

Light Included

No

Stand Included

No

Variable Speed

No

Product Weight

lb

Dimensions L x W x H (in.)

19.0 x 33.0 x 67.0 in

Reviews

Questions & Answers

20 Reviews This action will navigate to reviews.

Questions

1–10 of 14 Questions
Sort by:

  1. does this  drill press handle taper shank drill bits up to 1"

    1. No.

      Helpful?

    2. The drill press can go up to 1" for cast iron and 3/4" for mild steel. Whatever spindle bit you use it must be 3 morse (MT) taper.

      Helpful?

  2. what is the slowest RPM this drill press can do?

    1. 150 rpm

      Helpful?

    2. This drill press features a low end RPM of 150. The available RPM range is 150-4200.

      Helpful?

  3. is this 3ph or single ph

    1 answer

    1. This is a single phase unit.

      Helpful?

  4. Is there a smaller chuck avaliable to fit this press if needed?

    1 answer

    1. Multiple drill chucks are available for this unit with the manufacturer. Please contact them directly for further assistance.

      Helpful?

  5. Does the table have a hole in it for drilling through the work?  It doesn’t look like it.  Usually there’s one in the center.

    1 answer

    1. The unit does not use a hole in the center for drilling through. Placing a piece of wood on the table would be recommended for this application.

      Helpful?

  6. The motor is 11/5 hp, how many amps?

    1 answer

    1. The motor would be rated at 18 amps on 120 volt and 9 amps on 240 volt.

      Helpful?

  7. What is the spindle runout?

    Would like to know the spindle runout - wish to use for drilling holes with fair precision.

    1 answer

    1. The spindle runout with the quill fully extended is 0.008".

      Helpful?

  8. Quill Depth Stop Thread Size

    Looking at purchasing a Quill clip depth stop to work with this model. Most fit a thread size of any 1/2"-20 stop rod. What size and thread size is the Jet depth stop shaft?

    1 answer

    1. The depth stop thread size is 1/2-20.

      Helpful?

  9. Is there a VFD option?

    Is there an optional variable frequency drive for this unit?

    1 answer

    1. This unit does not have an option for a variable frequency drive. Please see my recommendations below.

      Helpful?

  10. Does this unit have a digital speed display?

    Does this unit have a digital speed display? Is there any speed indicator? If not, is there a speed indicator option?

    1 answer

    1. This unit does not have a digital speed display or speed indicator option. Please see my recommendations below.

      Helpful?
