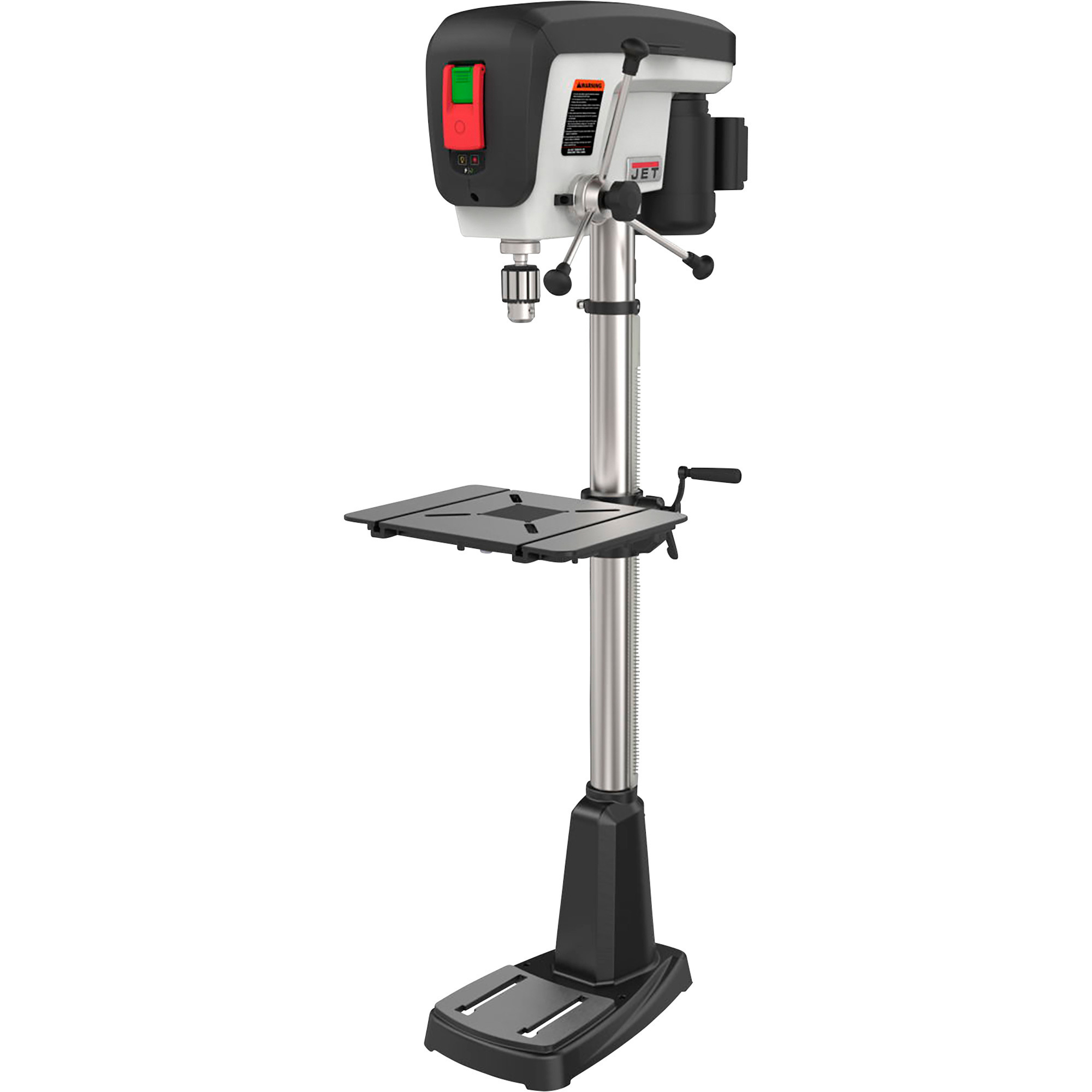

JET Floor Drill Press, 16 Speeds, 15in., 3/4 HP, 115V, Model# JDP-15F

Item# 72780
JET Floor Drill Press, 16 Speeds, 15in., 3/4 HP, 115V, Model# JDP-15F

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Floor Drill Press, 16 Speeds, 15in., 3/4 HP, 115V, Model# JDP-15F

Click or Tap image to Zoom

$1539.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 63 7/8in.H floorstanding design can be used anywhere in the garage or shop, without the need for a table or workbench
  • Spindle travels a full 3 1/8in. with one revolution of the handle
  • Large 12 1/2in. x 17in. precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project
  • Xacta-X Laser System™ easily identifies the drill center
  • 1-handed belt tensioning allows for rapid speed changes

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • JET Floor Drill Press, 16 Speeds, 15in., 3/4 HP, 115V, Model# JDP-15F
  • Radians Earplug Neckband, NRR 25dB, Orange, Model# RB2120
  • Milwaukee Men's Cut 1 Nitrile Utility Gloves, Red/Black, Large, Model# 48-22-8902
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
Price for all four:

$1563.44

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This 15in. JET Floor Drill Press is designed to perform. From its full 3 1/8in. of spindle travel to the sturdy cast iron head with a poly V-belt drive system, 1-handed belt-tensioning system and large 12 1/2in. x 17in. work table, the drill press can handle the toughest jobs.

What's Included

    (1) Floor drill press

Features + Benefits

  • 63 7/8in.H floorstanding design can be used anywhere in the garage or shop, without the need for a table or workbench
  • Spindle travels a full 3 1/8in. with one revolution of the handle
  • Large 12 1/2in. x 17in. precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project
  • Xacta-X Laser System™ easily identifies the drill center
  • 1-handed belt tensioning allows for rapid speed changes
  • Power switch features a safety key and large, paddle-style off button
  • Integrated depth stop makes repetitive drilling quick and easy
  • Long-lasting, built-in LED work light reduces shadows during operation
  • Table edge lip designed to make clamping easy
  • Replaceable MDF table insert
  • Large cast iron base provides stability

Key Specs

AttributeSpecification

item#

72780

Brand

JET

Manufacturer's Warranty

5 year limited warranty

Ship Weight

172.0 LB

Horsepower

0.75 HP

Volts

115

Max. Speed

1,720 rpm

360 Degree Head Swivel

No

Speeds (qty.)

16

Product Type

Drill Press

Vertical Stroke

3-1/8 in
AttributeSpecification

Drilling Capacity

3/8 in

Chuck Size

5/8 in

Light Included

Yes

Stand Included

Yes

Variable Speed

No

Max. Spindle Distance

30.5 in

Draw Bar

No

Swing

15 in

Product Weight

lb

Dimensions L x W x H (in.)

26.625 x 17.0 x 63.875 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. How is this drill package for shipping? Is it packaged horizontally?

    1 answer

    1. The drill press would ship in a box on a pallet in the upright position.

      Helpful?

  2. What is the slowest speed?

    1 answer

    1. With no load and set to the slowest setting, the spindle speed would be 210 RPM's.

      Helpful?

  3. What is the smallest size bit this chuck will hold? I sometimes used down to 4 mm. Can this adapt to another chuck for smaller diameters if needed?

    1 answer

    1. This chuck on this drill press will accept 1/8" to 5/8" diameter bits. If a smaller bit is required, a smaller chuck and new arbor would need to be purchased separately. The manufacturer part number for a 0" to 1/2" chuck is #561706 and the arbor it fits is #561764.

      Helpful?
