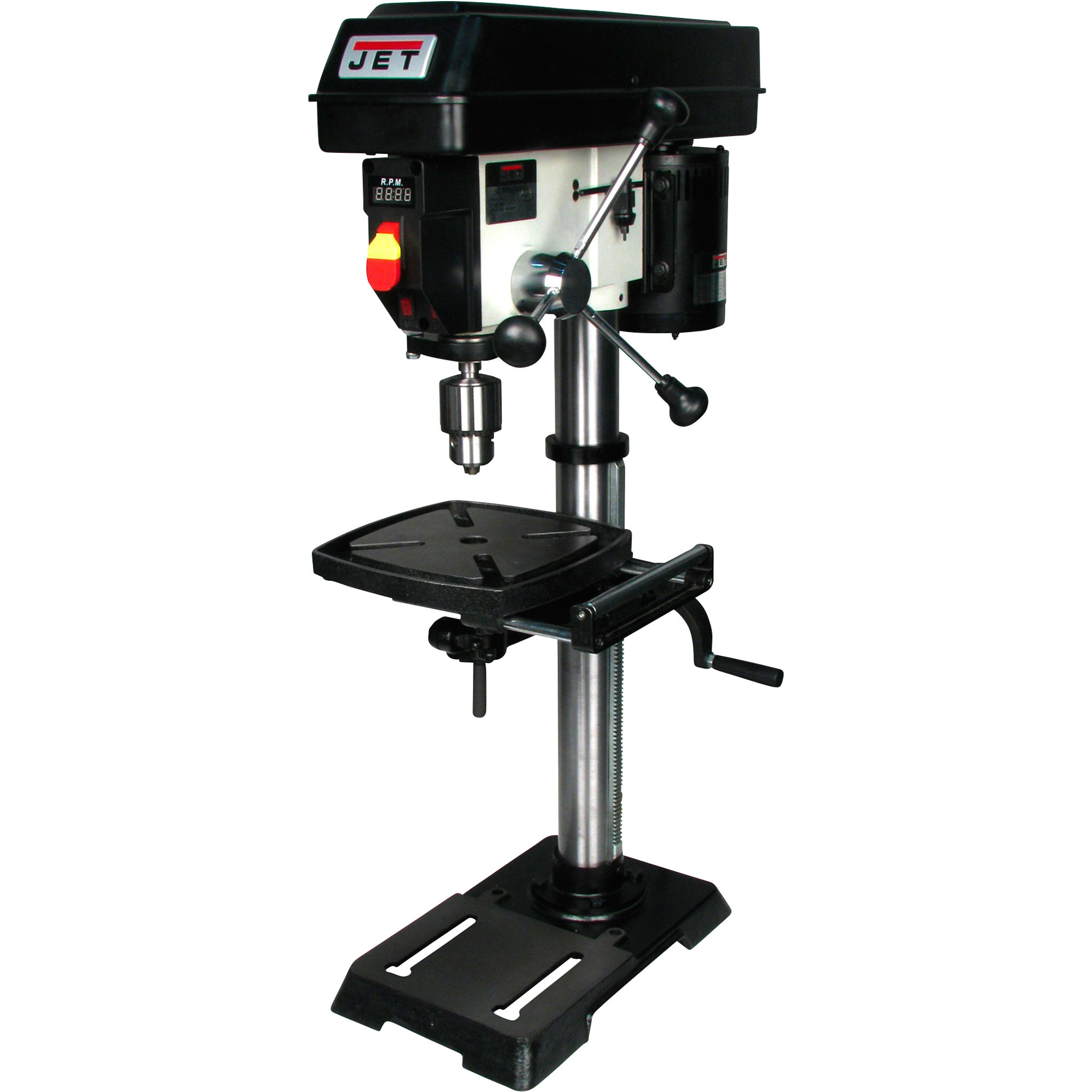

JET Benchtop Drill Press with DRO, Variable Speed, 12in., 1/2 HP, 115 Volt, Model# JWDP-12

Item# 72778
JET Benchtop Drill Press with DRO, Variable Speed, 12in., 1/2 HP, 115 Volt, Model# JWDP-12

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Benchtop Drill Press with DRO, Variable Speed, 12in., 1/2 HP, 115 Volt, Model# JWDP-12

Click or Tap image to Zoom

$736.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 10in. x 16 1/8in. cast iron base fits neatly on work benches with limited space
  • Heavy-duty 1/2 HP induction motor handles various drilling applications
  • Mechanical variable speed drive system for easy speed changes
  • Industrial 5/8in. drill chuck for multiple drilling applications
  • X-shaped XACTA Laser™ ensures drilling accuracy

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • JET Benchtop Drill Press with DRO, Variable Speed, 12in., 1/2 HP, 115 Volt, Model# JWDP-12
  • Radians Earplug Neckband, NRR 25dB, Orange, Model# RB2120
  • Milwaukee Men's Cut 1 Nitrile Utility Gloves, Red/Black, Large, Model# 48-22-8902
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
Price for all four:

$760.44

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This 12in. JET Benchtop Drill Press with digital readout is powerful enough to tackle the big jobs, and portable enough to do it anywhere! Features a 1/2 HP induction motor that pushes through almost anything you throw at it. Over 3 1/8in. spindle travel provides maximum depth cutting, and an innovative X-shaped XACTA Laser™ ensures drilling accuracy. This workhorse is an excellent choice for in your shop or on the go.

What's Included

    (1) Benchtop drill press

Features + Benefits

  • 10in. x 16 1/8in. cast iron base fits neatly on work benches with limited space
  • Heavy-duty 1/2 HP induction motor handles various drilling applications
  • Mechanical variable speed drive system for easy speed changes
  • Industrial 5/8in. drill chuck for multiple drilling applications
  • X-shaped XACTA Laser™ ensures drilling accuracy
  • Digital readout displays spindle speed for different drilling applications
  • MT-2 Spindle Taper
  • 3 1/8in. spindle travel
  • -45 degree to +45 degree table tilt
  • Powerful 1/2 HP, single phase, 115V, 5 Amp motor
  • LED work light increases visibility for intricate applications
  • Compact benchtop design allows for easy transport
  • Stable base design allows for easy re-positioning on work bench
  • Oversized, ergonomic knobs provide ease of use and maximum control

Key Specs

AttributeSpecification

item#

72778

Brand

JET

Manufacturer's Warranty

5 year limited warranty

Ship Weight

93.0 LB

Horsepower

0.5 HP

Volts

115

Max. Speed

3,100 rpm

360 Degree Head Swivel

No

Product Type

Drill Press
AttributeSpecification

Chuck Size

5/8 in

Light Included

No

Stand Included

Yes

Variable Speed

Yes

Max. Spindle Distance

23.375 in

Swing

12 in

Product Weight

85.0000 lb

Dimensions L x W x H (in.)

10.0 x 16.12 x in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. What is the smallest drill size this chuck will take 1\64" if not, can this chuck be replace and do you have such chuck.

    1. You can purchase a small chuck for small drills, often these will have a hex shank so you can chuck them up in the drill press chuck.

      Helpful?

    2. The drill capacity is 1/32 - 5/8 inch (0.8-16 MM). A smaller capacity chuck is not available.

      Helpful?

  2. how low on RPM will it go? will it go below 100 rpm?

    1 answer

    1. The range of spindle speed is 530 to 3100 RPM.

      Helpful?

  3. does it have reverse?

    1 answer

    1. This drill press does not have reverse.

      Helpful?

  4. What size T-nuts fit in the table slots for attaching a vice??

    1 answer

    1. The best way to hold down a vice on this table is to use a 1/2" carriage bolt or one that fits the slot.

      Helpful?

  5. Is this unit belt driven or gear driven, and is it good on hardened metal?

    1 answer

    1. This is belt driven, and may be used on hardened metals.

      Helpful?

  6. What is the diameter of the main pipe back column

    1 answer

    1. The column diameter is 2.5".

      Helpful?

  7. Overall dimensions, specifically height of drill press

    1 answer

    1. This drill press measures 19.9" L x 12.2" W x 29.7" H.
