Replacement blades are available through the manufacturer.

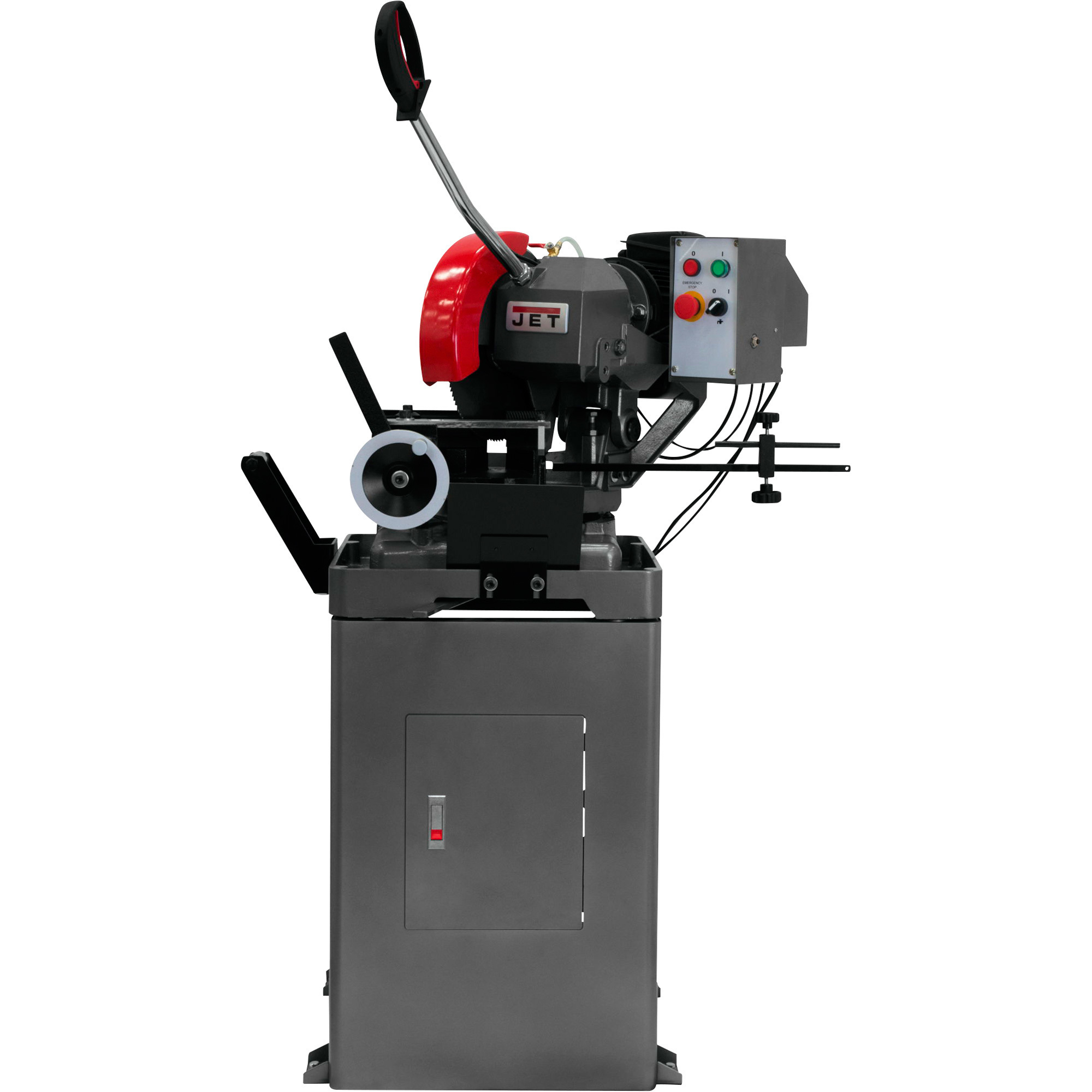

JET Ferrous Manual Cold Saw, 315mm, 2 HP, 230 Volt, 3-Phase, Model# CS-315
Top Seller
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$3728.99
- 2-piece cast iron blade guard system permits quick and easy blade changes without removing the guards
- Quick clamping cam-action vise with adjustable gib and material support bar for burr-free cutting operations
- Hardened and ground direct drive worm shaft and bronze worm wheel transmits maximum torque to the saw blade
- Blade drive reduction gearbox operates in an oil bath for increased durability
- Heavy-duty cast iron frame base with easy access storage provides a stable cutting platform
Prop 65 Warning: See Details
See full description
Price for all three:
$3746.97
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Cold Saws
See All JET Cold Saws
Currently Viewing This Product
$9127.99
Specifications
Specifications
JET Ferrous Manual Cold Saw, 315mm, 2 HP, 230 Volt, 3-Phase, Model# CS-315
Baileigh Manual Cold Band Saw, 4 HP, Volts 220, Model# CS-350P
Baileigh Semi-Automatic Cold Band Saw, 11in. Blade, 3 HP, Volts 220, Model# CS-275SA
Baileigh Stationary Metal Band Saw 2-1/2 HP, Volts 220, Model# CS-315EU
Max. Blade Diameter
Same
12.4 in
14 in
11 in
12.5 in
Volts
Same
230
220
220
220
Power Source
Same
Hardwired
Corded
Corded
Corded
Arbor Size
Same
1.25 in
1.26 in
1.26 in
1.26 in
Head Miter
Same
45° Left / 45° Right
45° Left / 45° Right
45° Left / 45° Right
45° Left / 45° Right
Horsepower
Same
2 HP
4 HP
3 HP
2.5 HP
Product Weight
Same
450.0000 lb
850.0000 lb
715.0000 lb
460.0000 lb
Dimensions L x W x H (in.)
Same
40.0 x 40.0 x 72.0 in
60.0 x 77.0 x 44.0 in
60.0 x 77.0 x 44.0 in
48.0 x 44.0 x 31.0 in
Phase
Same
-
Three-phase
Three-phase
Single-phase
Blade Mounting Holes
Same
-
32 mm
32 mm
32 mm
Max. Vise Opening
Same
-
6.5 in
4 in
4.72 in
Coolant System
Same
-
Yes
Yes
Yes
Round Solid Capacity @ 90 Deg.
Same
-
1.57 in
1.5 in
3.5 in
Round Tube Capacity @ 90 Deg.
Same
-
2.95 in
2.75 in
3.5 in
Square Tube Capacity @ 90 Deg.
Same
-
2.95 in
2.75 in
3.2 in
