Baileigh Manual Band Saw 11in. Blade, 1-1/2 HP, Volts 110, Model# CS-275EU

Item# 4765035
Top Seller
Baileigh Manual Band Saw 11in. Blade, 1-1/2 HP, Volts 110, Model# CS-275EU

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh Manual Band Saw 11in. Blade, 1-1/2 HP, Volts 110, Model# CS-275EU

Click or Tap image to Zoom

$3079.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Accepts an 11” blade (included).
  • 3.25” round tube capacity at 90°, big enough for just about any chassis project.
  • Miters up to 45° left and right.
  • Dual-mitering head lets you tackle various shapes and materials like pipe, angle iron, and solid bar.
  • Blade turns at 54 rpm.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Baileigh Cold Saw, is a high-performance tool designed for precision cutting in light metal fabrication and chassis work. Featuring a maximum blade diameter of 11 inches, this cold saw delivers clean, accurate cuts with minimal effort. Its robust cast iron base provides exceptional stability and durability, ensuring consistent performance over a long lifespan. Additionally, the integrated flood coolant system helps to maintain optimal cutting conditions by reducing heat and extending blade life. Operating at 110 Volts, the CS-275EU is engineered to meet the demands of professional workshops, offering reliable and efficient cutting capabilities for a wide range of metalworking applications.

What's Included

    (1) CS-275EU-11" Manual Cold Saw

Features + Benefits

  • Accepts an 11” blade (included).
  • 3.25” round tube capacity at 90°, big enough for just about any chassis project.
  • Miters up to 45° left and right.
  • Dual-mitering head lets you tackle various shapes and materials like pipe, angle iron, and solid bar.
  • Blade turns at 54 rpm.
  • Robust 1.5 hp motor runs on 110-volt power, so you can use it anywhere.
  • Fully cast iron head will deliver clean cuts for many years.

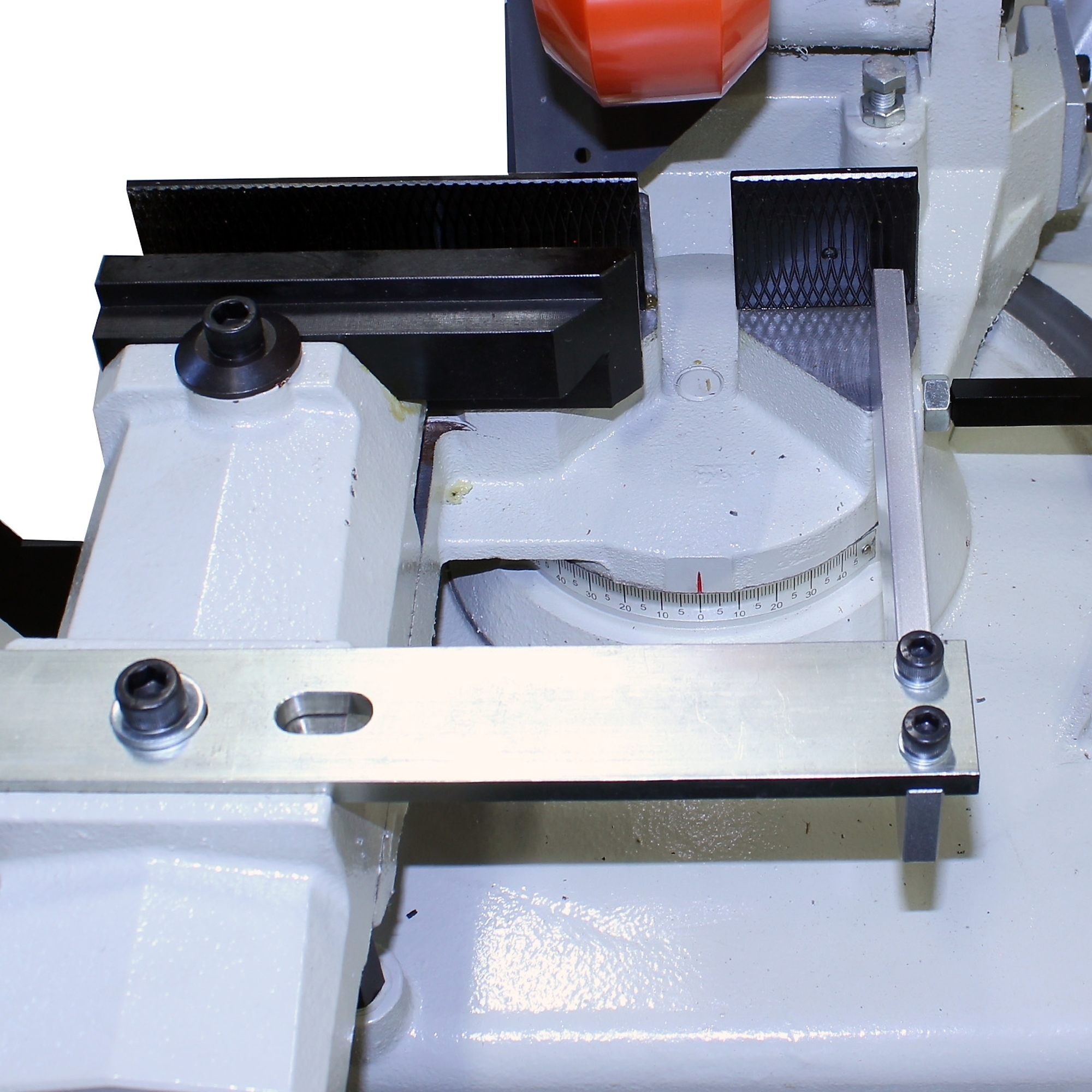

  • European-style vise with a cam lock allows for fast material loading and unloading.
  • Vise supports the material on opposite sides of the blade to maintain high cut quality.
  • Material stop rod lets you conveniently set up repeatable cuts for production runs.
  • Solid cast iron saw base keeps the machine stable, so that the blade cuts accurately.
  • Saw sits on top of a sturdy steel stand that puts the machine at a comfortable cutting height.

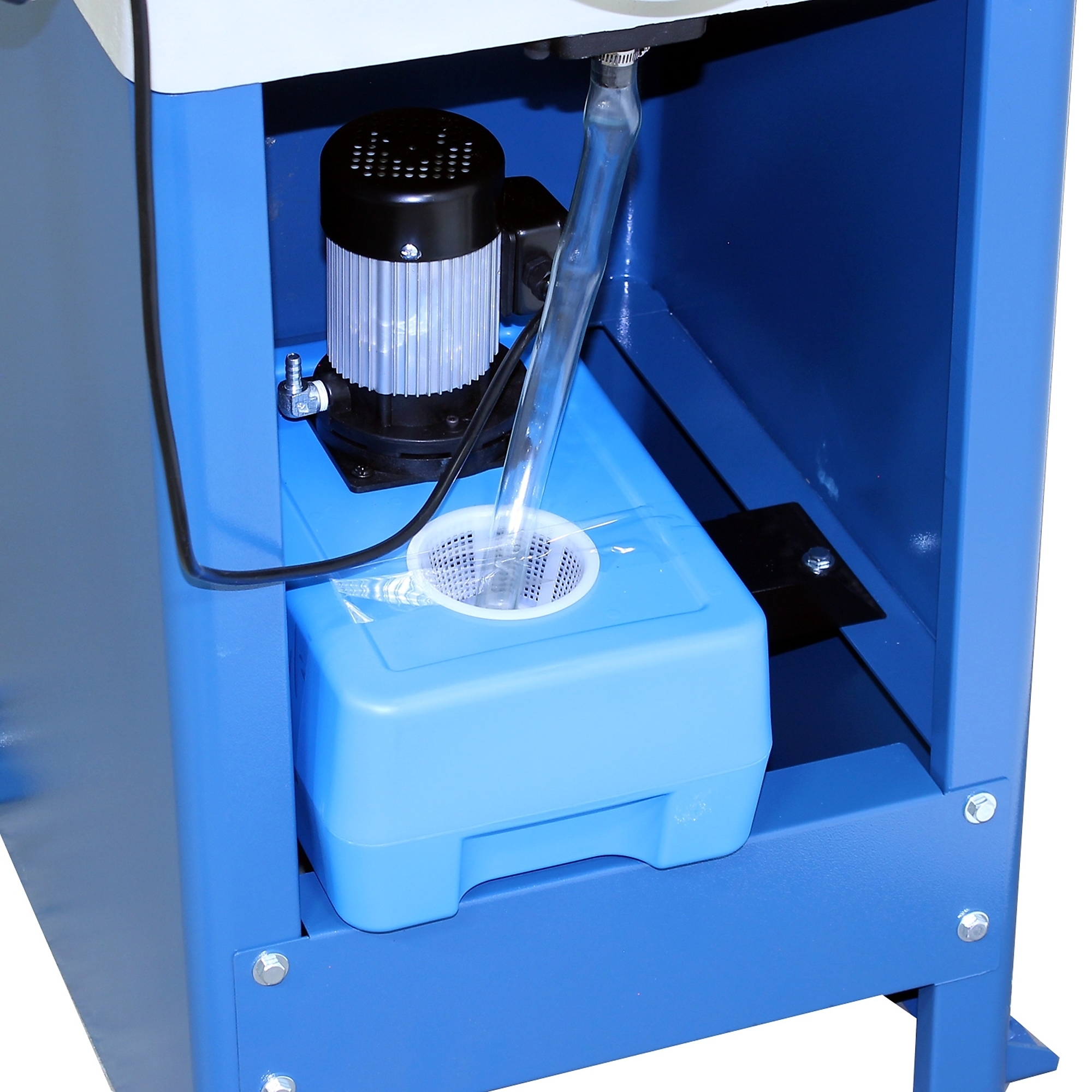

  • Flood coolant system helps the operator cut material more easily and prolongs blade and machine life.
  • Usually in stock for quick deliveries.
  • Replacement parts are available and stocked at our Wisconsin headquarters for fast shipping.
  • We cover this circular cold saw with a 1-year parts warranty.
  • Includes lifetime technical support by phone from Baileigh reps with hands-on machine experience.

Key Specs

AttributeSpecification

item#

4765035

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

460.0 LB

Max. Blade Diameter

11 in

Volts

110

Power Source

Corded

Phase

Single-phase

Blade Mounting Holes

32 mm

Max. Vise Opening

4 in
AttributeSpecification

Coolant System

Yes

Arbor Size

1.26 in

Round Solid Capacity @ 90 Deg.

3.3 in

Round Tube Capacity @ 90 Deg.

3.3 in

Square Tube Capacity @ 90 Deg.

2.5 in

Head Miter

45° Left / 45° Right

Horsepower

1.5 HP

Product Weight

460.0000 lb

Dimensions L x W x H (in.)

48.0 x 43.0 x 31.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
