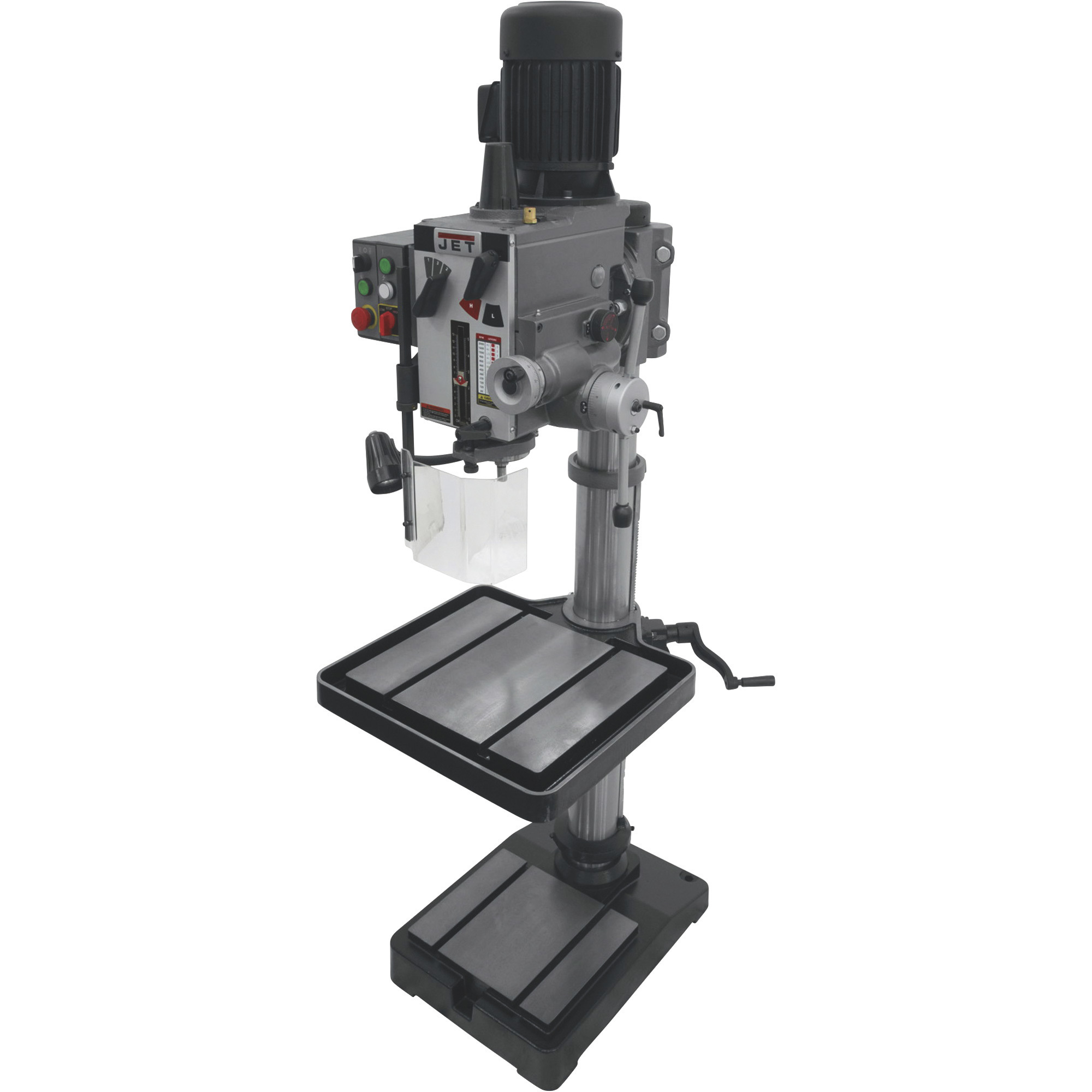

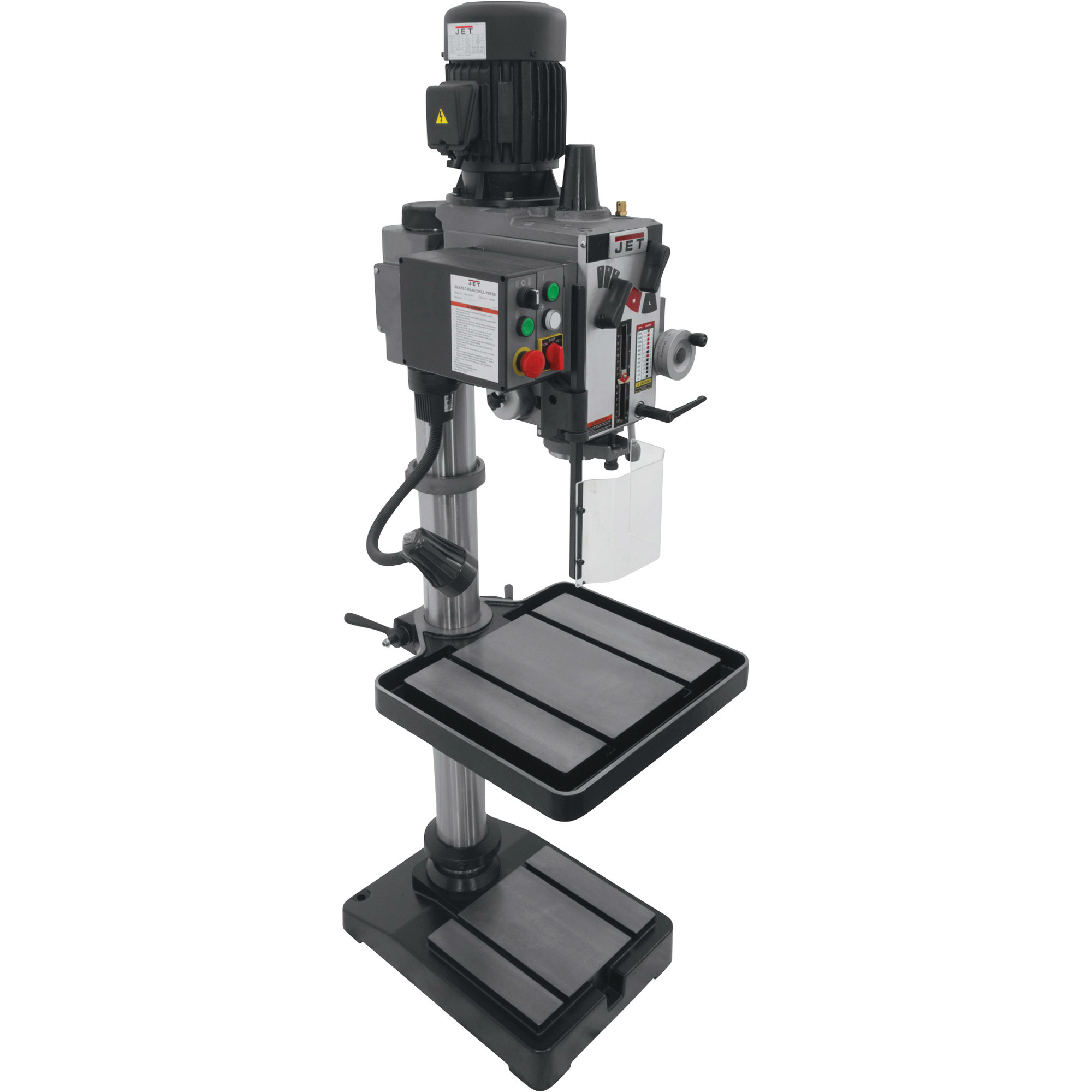

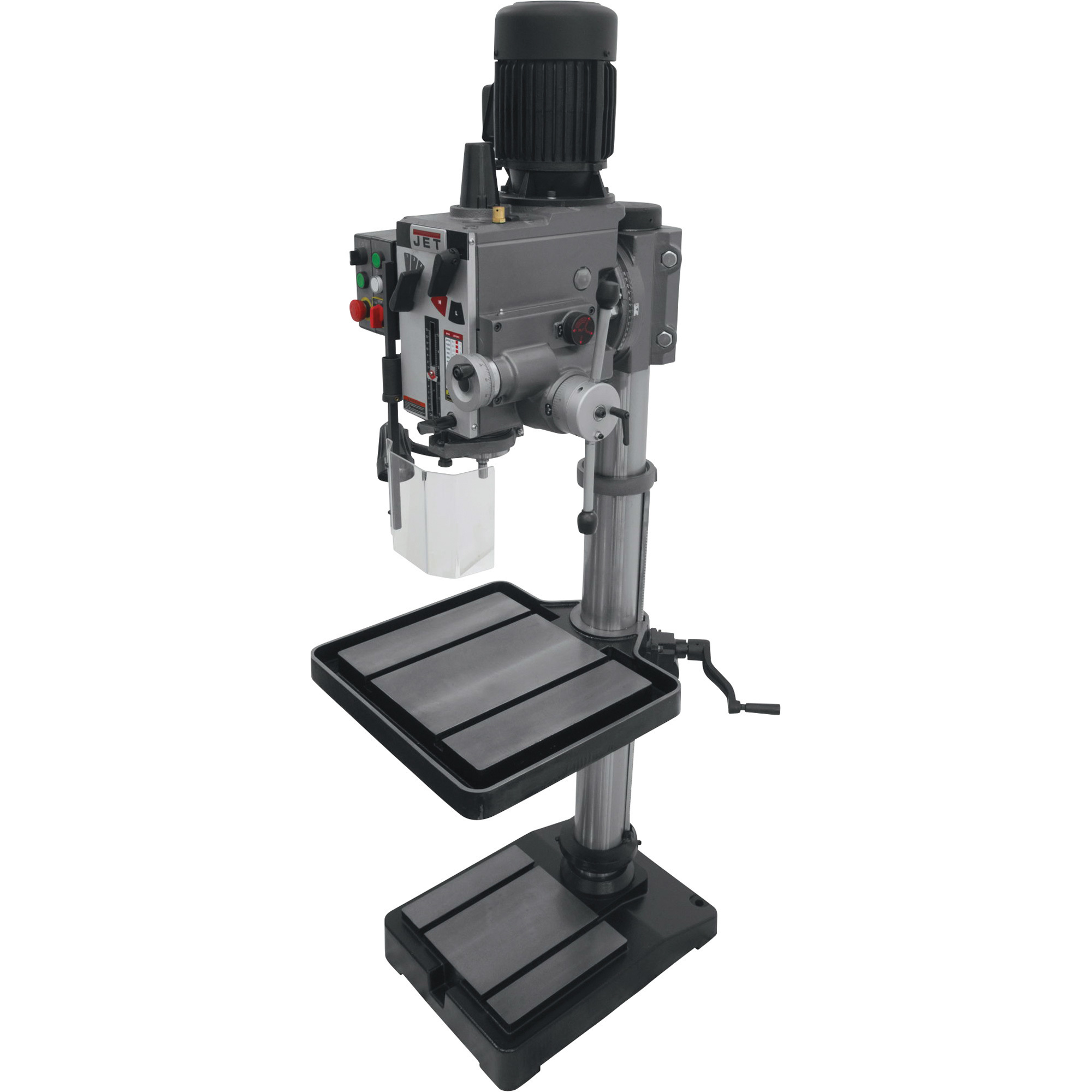

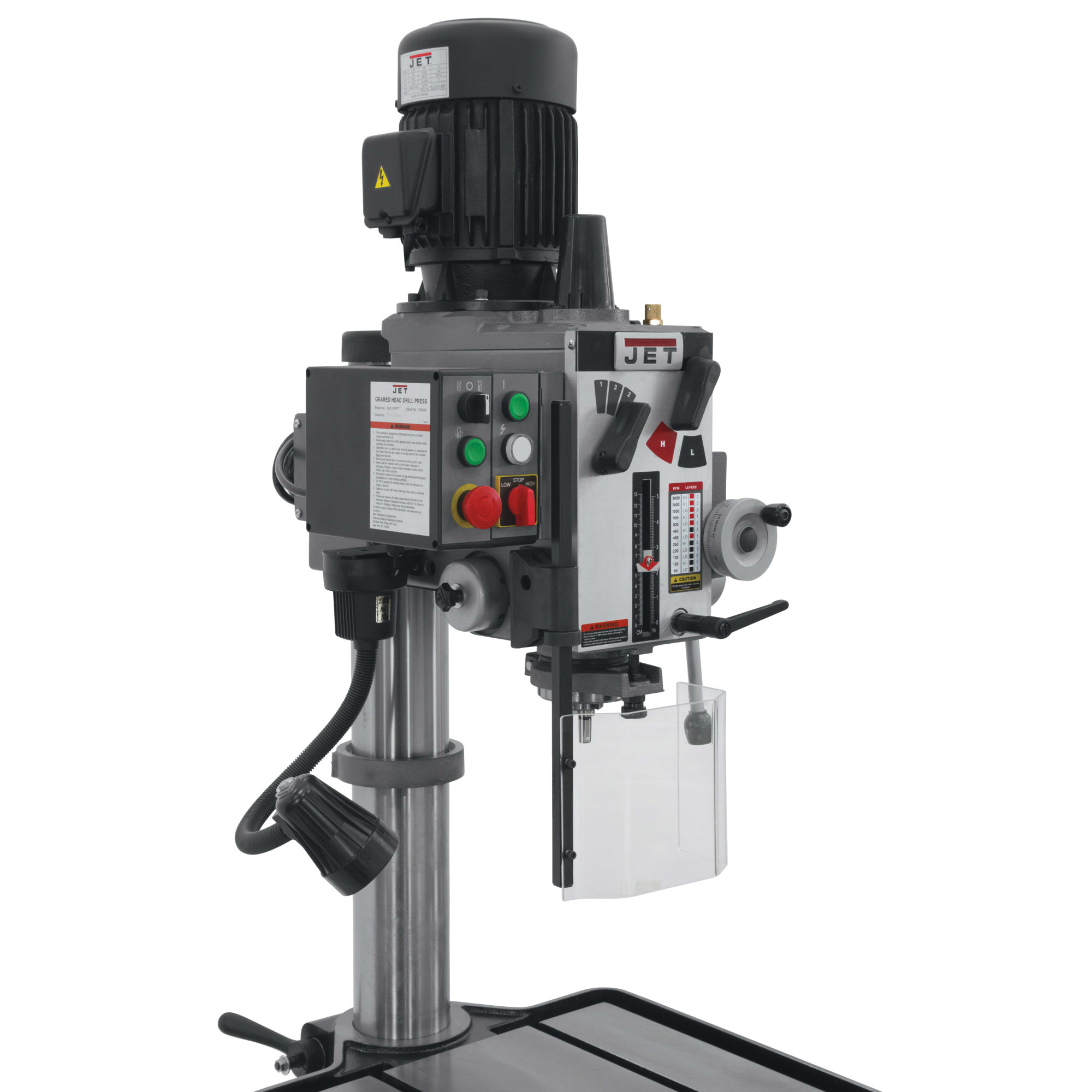

JET Gear Head Tapping Drill Press, 20in., 2 HP, 230V, Model# GHD-20PFT

Item# 27070
JET Gear Head Tapping Drill Press, 20in., 2 HP, 230V, Model# GHD-20PFT

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Gear Head Tapping Drill Press, 20in., 2 HP, 230V, Model# GHD-20PFT

Click or Tap image to Zoom

$7952.00

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Handles a variety of precision drilling and tapping applications
  • Easy-to-read internal depth gauge
  • Three power down feeds
  • Calibrated fine down feed built-in
  • Built-in spindle lock

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • JET Gear Head Tapping Drill Press, 20in., 2 HP, 230V, Model# GHD-20PFT
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
  • Milwaukee Men's Cut 1 Nitrile Utility Gloves, Red/Black, Large, Model# 48-22-8902
  • Radians Earplug Neckband, NRR 25dB, Orange, Model# RB2120
Price for all four:

$7975.45

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The 20in. JET Gear Head Tapping Drill Press is built with a heavy-duty design that allows a variety of precision drilling and tapping applications. This drill press is designed to last and provides the user with enhanced flexibility. Ideal for both a commercial or maintenance shop.

What's Included

    (1) 20in. geared head drilling & tapping press

Downloads

Product Manual

Features + Benefits

  • Handles a variety of precision drilling and tapping applications
  • Easy-to-read internal depth gauge
  • Three power down feeds
  • Calibrated fine down feed built-in
  • Built-in spindle lock
  • Head tilts left or right
  • Easy accessible table riser
  • Large production table and T-slotted base
  • Integrated tapping and reversing controls
  • T-slotted worktable
  • Drill chuck arbor
  • Draw bar
  • TEFC motor
  • Motor: 2HP, 230V, 3-Phase, 2-speed
  • Spindle speeds: 12
  • Range of spindle speeds (RPM): 120, 260, 460, 900, 1600, 3000, 60, 130, 230, 450, 800, 1500
  • Spindle taper : MT-3
  • Quill dia.: 3in.
  • Max distance spindle to table: 30 1/2in.
  • T-slots number and size: 2 x 5/8in.

Key Specs

AttributeSpecification

item#

27070

Brand

JET

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

708.0 LB

Horsepower

2 HP

Volts

230

Max. Speed

1,500 rpm

360 Degree Head Swivel

No

Speeds (qty.)

12
AttributeSpecification

Product Type

Drill Press

Drilling Capacity

1-1/2 in

Light Included

No

Stand Included

Yes

Variable Speed

No

Max. Spindle Distance

30.5 in

Swing

20 in

Product Weight

lb

Dimensions L x W x H (in.)

32.0 x 24.0 x 71.0 in
