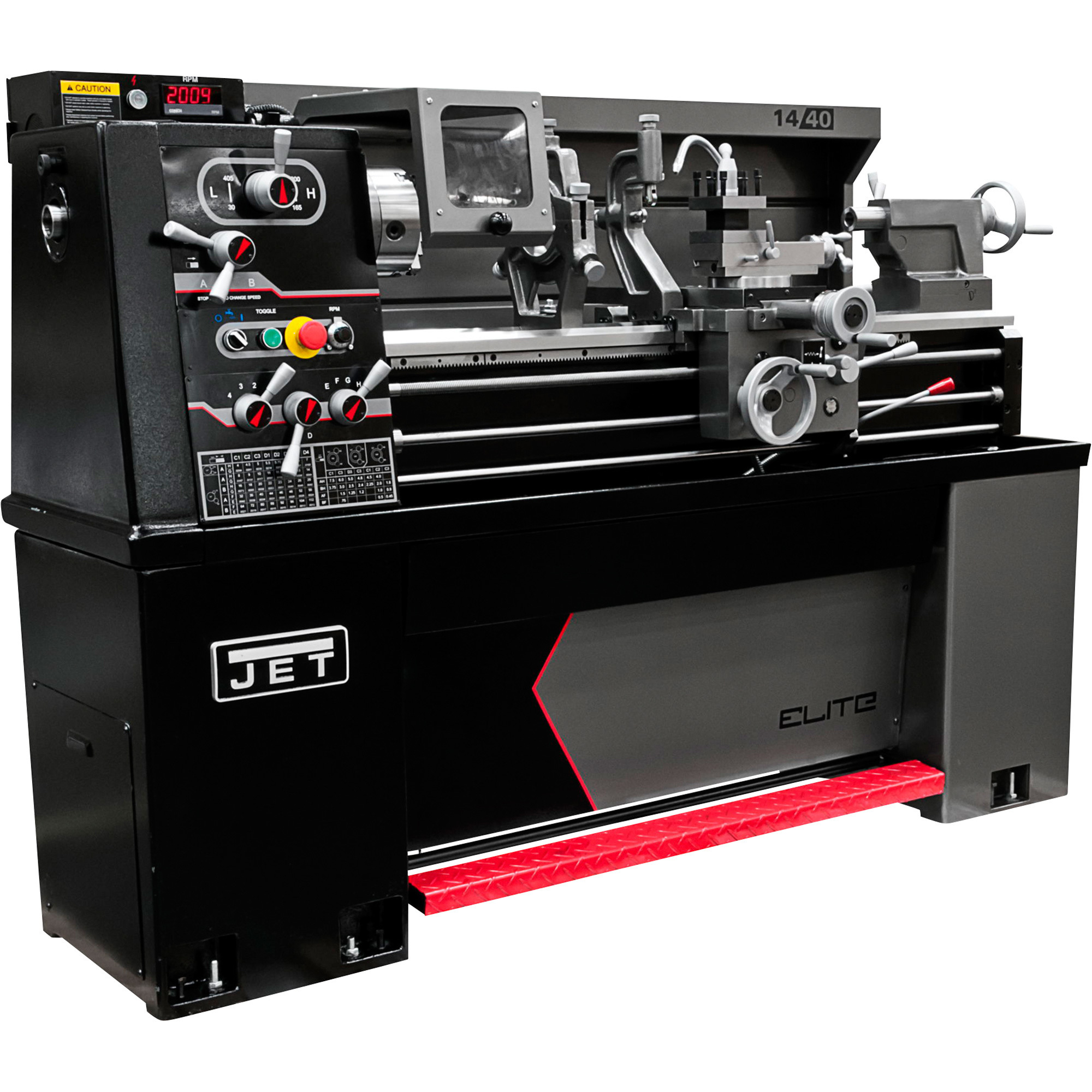

JET Elite Metal Lathe, 14in. x 40in., Model# E-1440VS

Item# 79650
JET Elite Metal Lathe, 14in. x 40in., Model# E-1440VS

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Elite Metal Lathe, 14in. x 40in., Model# E-1440VS

Click or Tap image to Zoom

$23,424.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • 3 HP, 230V 3 phase motor

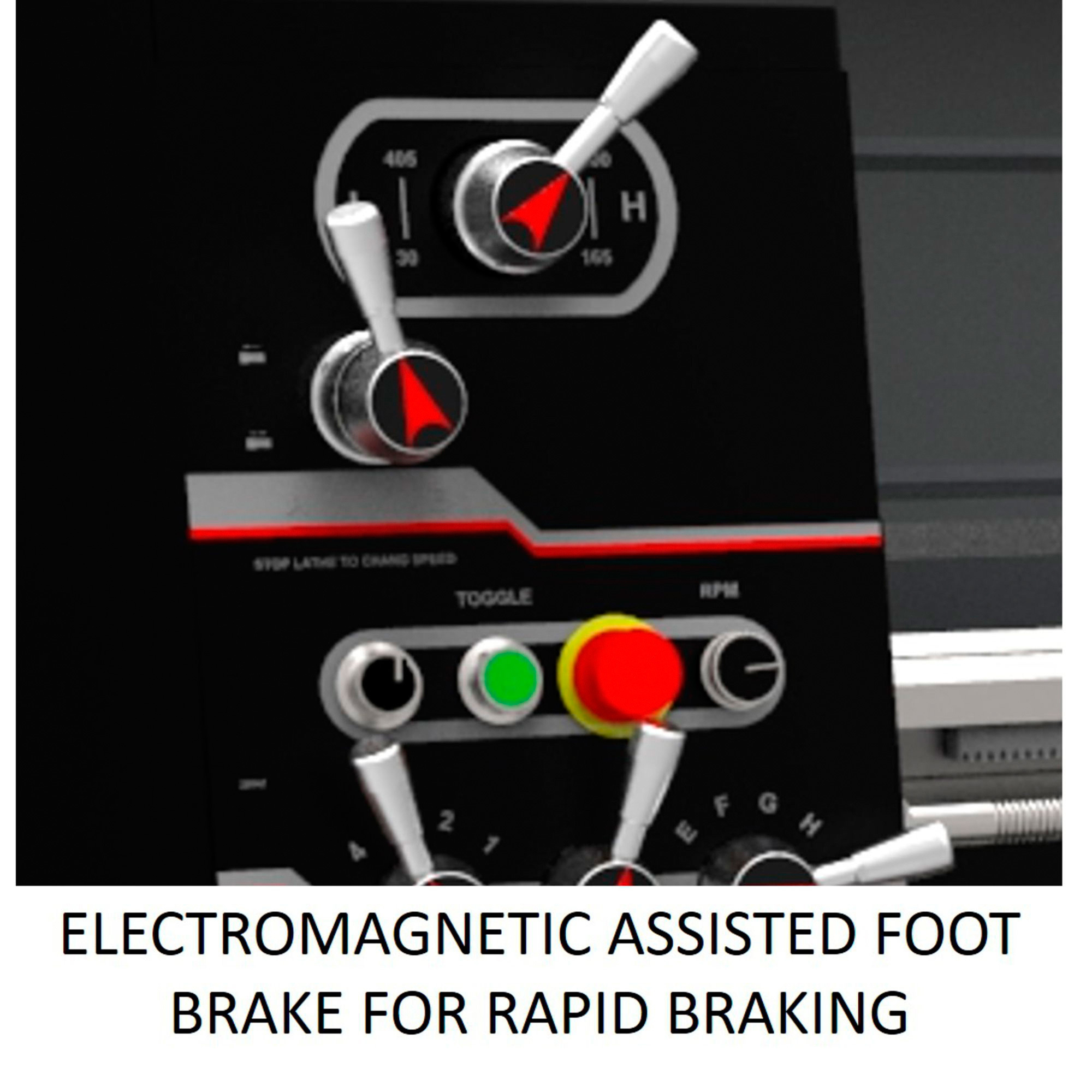

  • Electromagnetic assisted foot brake for rapid braking
  • Inverter drive system provides infinitely variable spindle speeds
  • Steady and follow rest feature double sealed ball bearing guides for smooth material movements
  • Chuck guard provides increased safety

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • JET Elite Metal Lathe, 14in. x 40in., Model# E-1440VS
  • Milwaukee Men's Cut 1 Nitrile Utility Gloves, Red/Black, Large, Model# 48-22-8902
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
  • Radians Earplug Neckband, NRR 25dB, Orange, Model# RB2120
Price for all four:

$23,448.44

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This 14in. x 40in. JET Elite Metal Lathe is a powerful tool packed with features in a compact body. It's the perfect choice for use in schools, small shops, and engineering labs. Has a 14in. swing-over bed. An inverter drive system provides infinitely variable spindle speeds, while the electromagnetic assisted foot brake allows for rapid braking. CSA/CUS certified. Item too large for lift gate. Forklift required for on site unloading. Please closely verify all details prior to confirming this order. NOTE: Because this made-to-order item is manufactured exclusively to match your specifications, it is not eligible for cancellation, refund or return once the order has been placed.

What's Included

    (1) Lathe

Features + Benefits

  • 3 HP, 230V 3 phase motor
  • Electromagnetic assisted foot brake for rapid braking
  • Inverter drive system provides infinitely variable spindle speeds

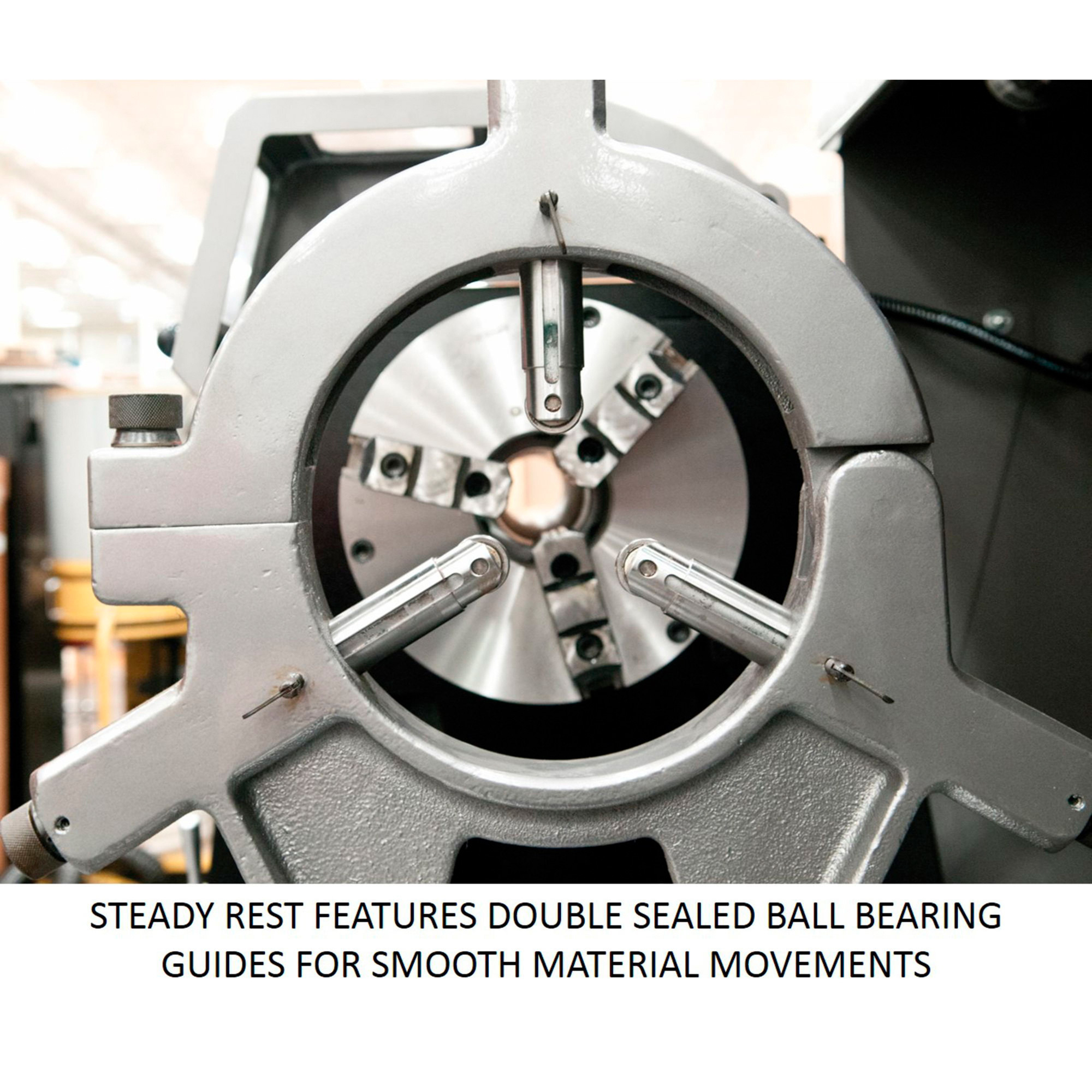

  • Steady and follow rest feature double sealed ball bearing guides for smooth material movements
  • Chuck guard provides increased safety
  • Front facing chip pan allows easy chip removal from the front of the machine
  • 1 1/2in. spindle bore
  • 2-speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2200 RPM

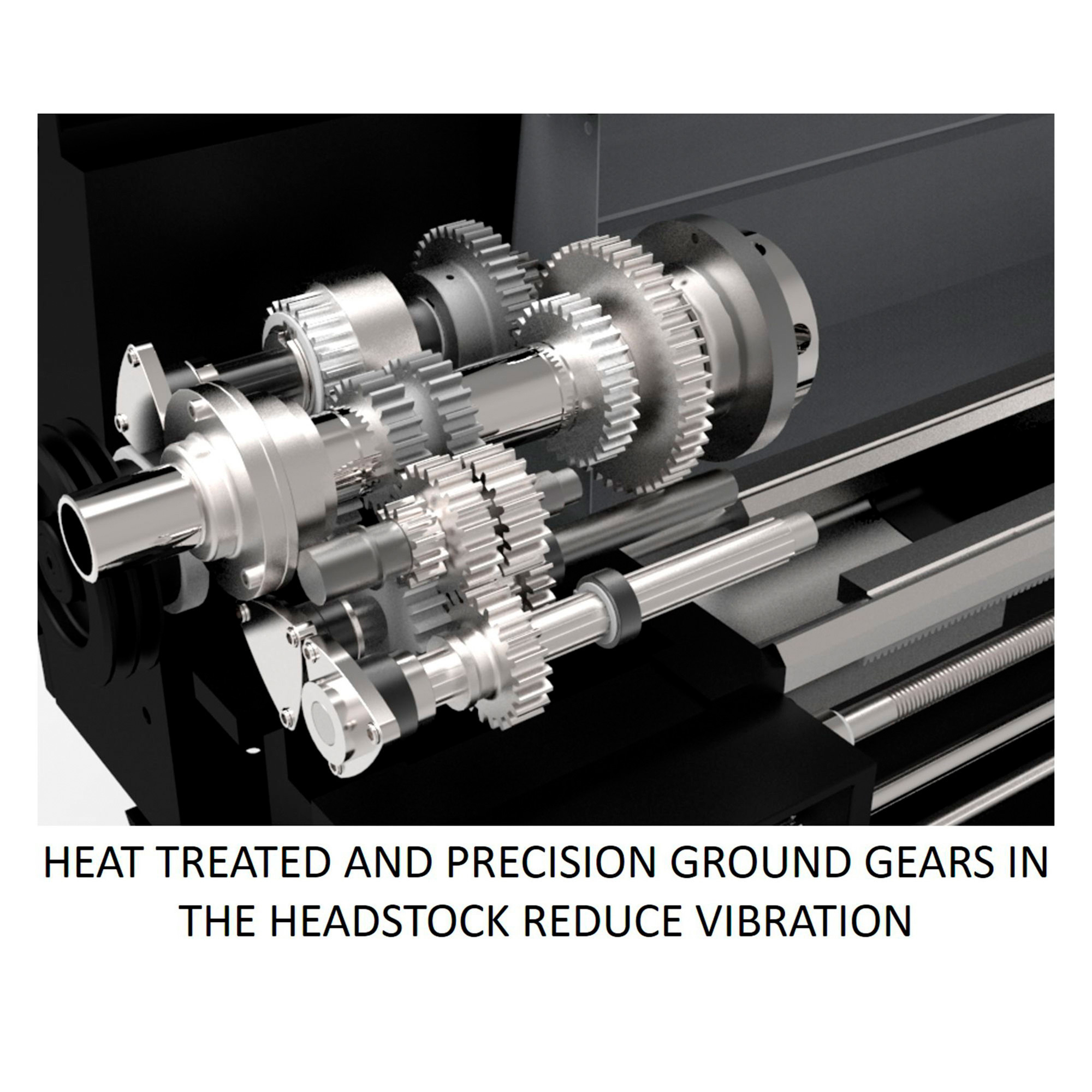

  • Hardened and ground gears in headstock reduce vibration and deflection
  • Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004
  • Enclosed full length splash guard is expertly designed to contain all chips and coolant and is fully lit with CNC style lighting
  • Overload clutch at feed shaft prevents the carriage from crashing into the chuck
  • Certified Meehanite® castings retain their tolerances and remain rigid through many years of machining
  • Integrated locking tool cabinet in stand
  • LED RPM readout allows for precise turning speeds
  • Standard equipment includes: 6in., 3-jaw chuck, 12in. faceplate, steady rest ball bearing, follow rest ball bearing, 4-way tool post, chuck guard, 4-position carriage stop, threading dial, coolant system, center sleeve, dead center, leveling pads, and too

Key Specs

AttributeSpecification

item#

79650

Brand

JET

Manufacturer's Warranty

3 year limited warranty

Ship Weight

1800.0 LB

Horsepower

3 HP

Volts

230

Distance Between Centers

40 in

Swing Over Bed

14 in

Product Type

Bench Lathe

Carriage Travel

14 in
AttributeSpecification

Thread Cutting Max. (SAE)

112 in

Thread Cutting Max.

7.5 mm

Phase

Single-phase

Variable Speed

Yes

Max. Speed

2,200 rpm

Spindle Mount

Yes

Spindle Bore Size

1.5 in

Stand Included

Yes

Product Weight

lb

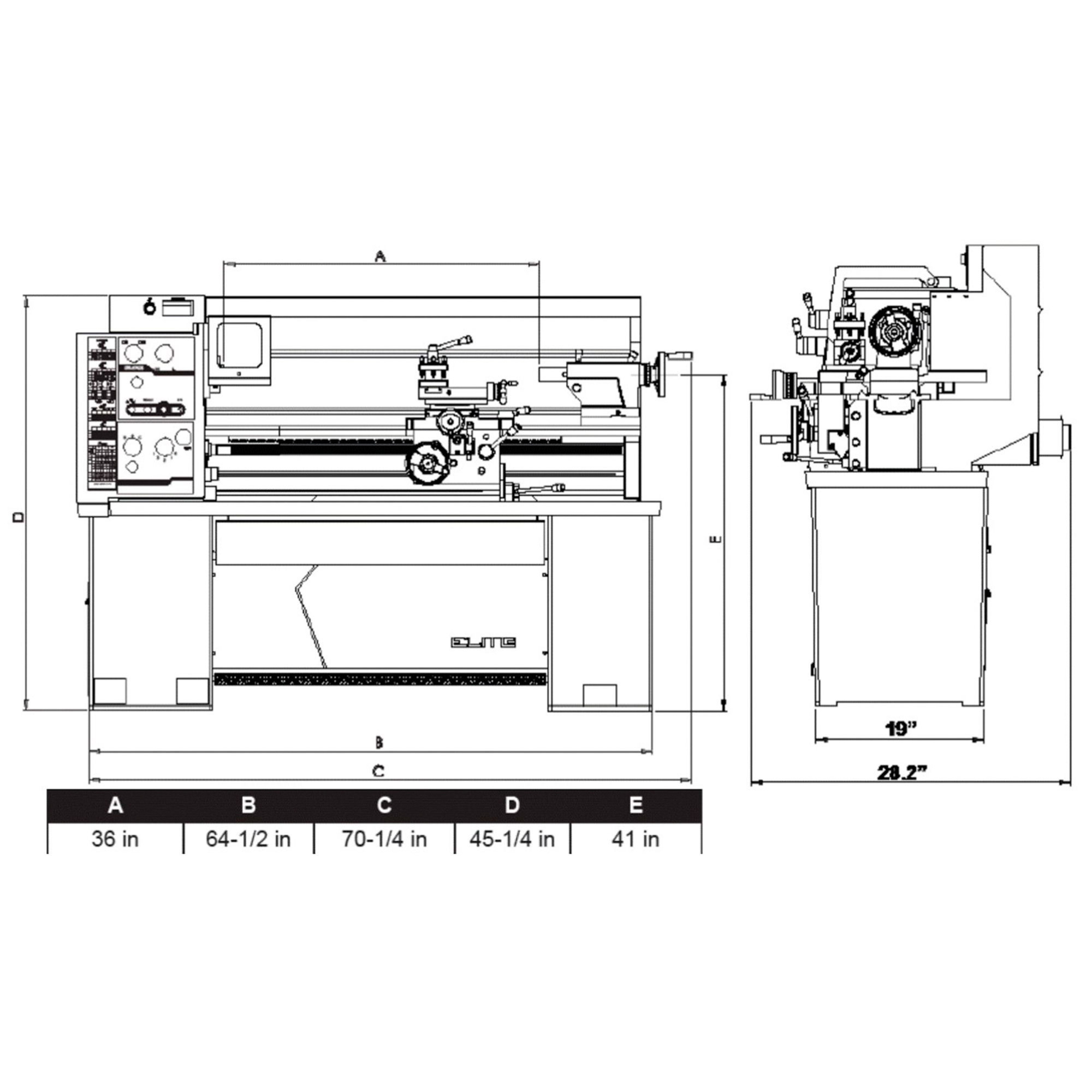

Dimensions L x W x H (in.)

76.0 x 37.0 x 60.0 in
