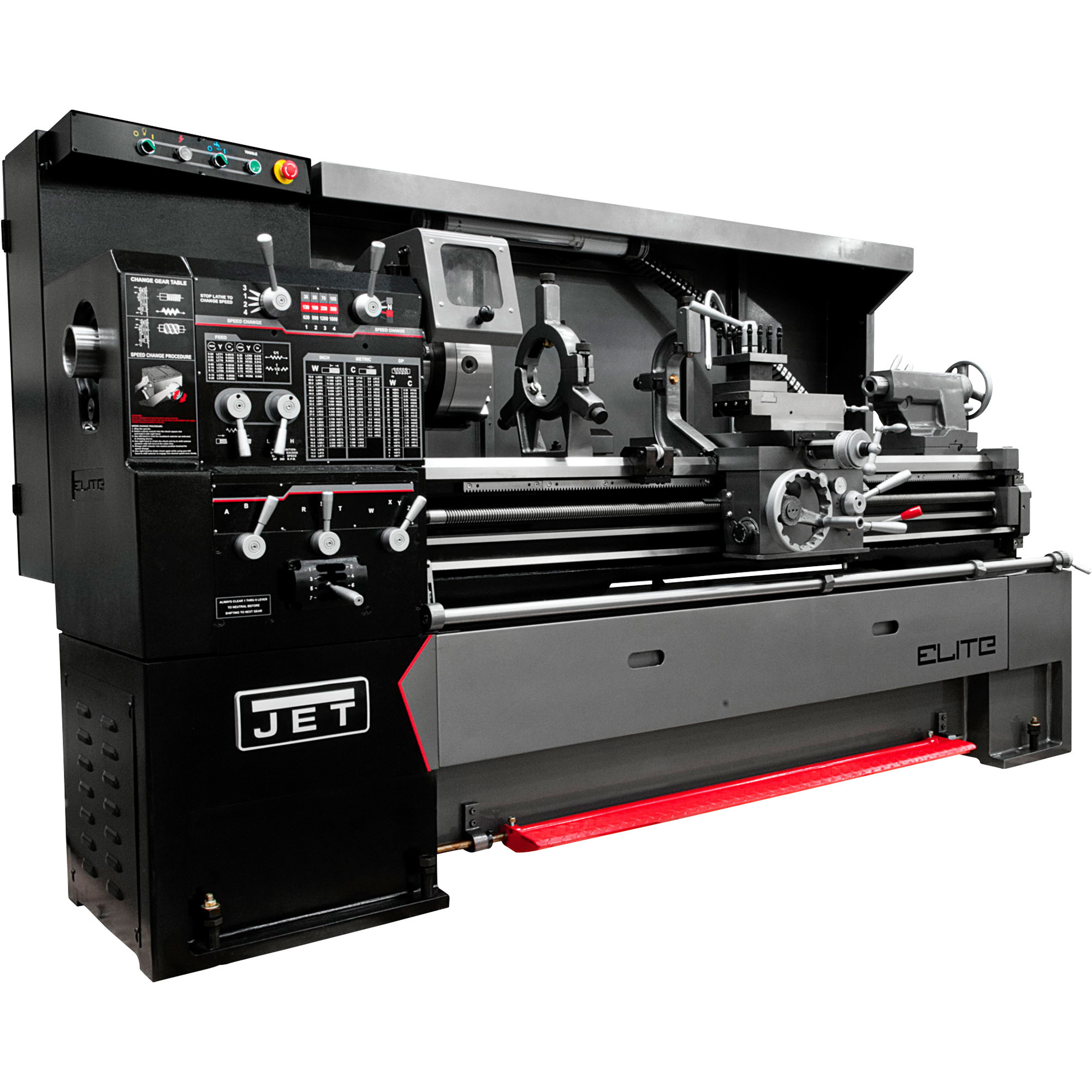

JET Elite Large Spindle Bore Geared Head Lathe, 17in. x 40in., Model# EGH-1740

Item# 79651
JET Elite Large Spindle Bore Geared Head Lathe, 17in. x 40in., Model# EGH-1740

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Elite Large Spindle Bore Geared Head Lathe, 17in. x 40in., Model# EGH-1740

Click or Tap image to Zoom

$41,459.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • 7.5 HP, 230/460V 3 phase motor
  • 17in. swing-over bed
  • 3 1/8in. spindle bore
  • Nylon safety gears in the end train prevent overloading, increasing safety

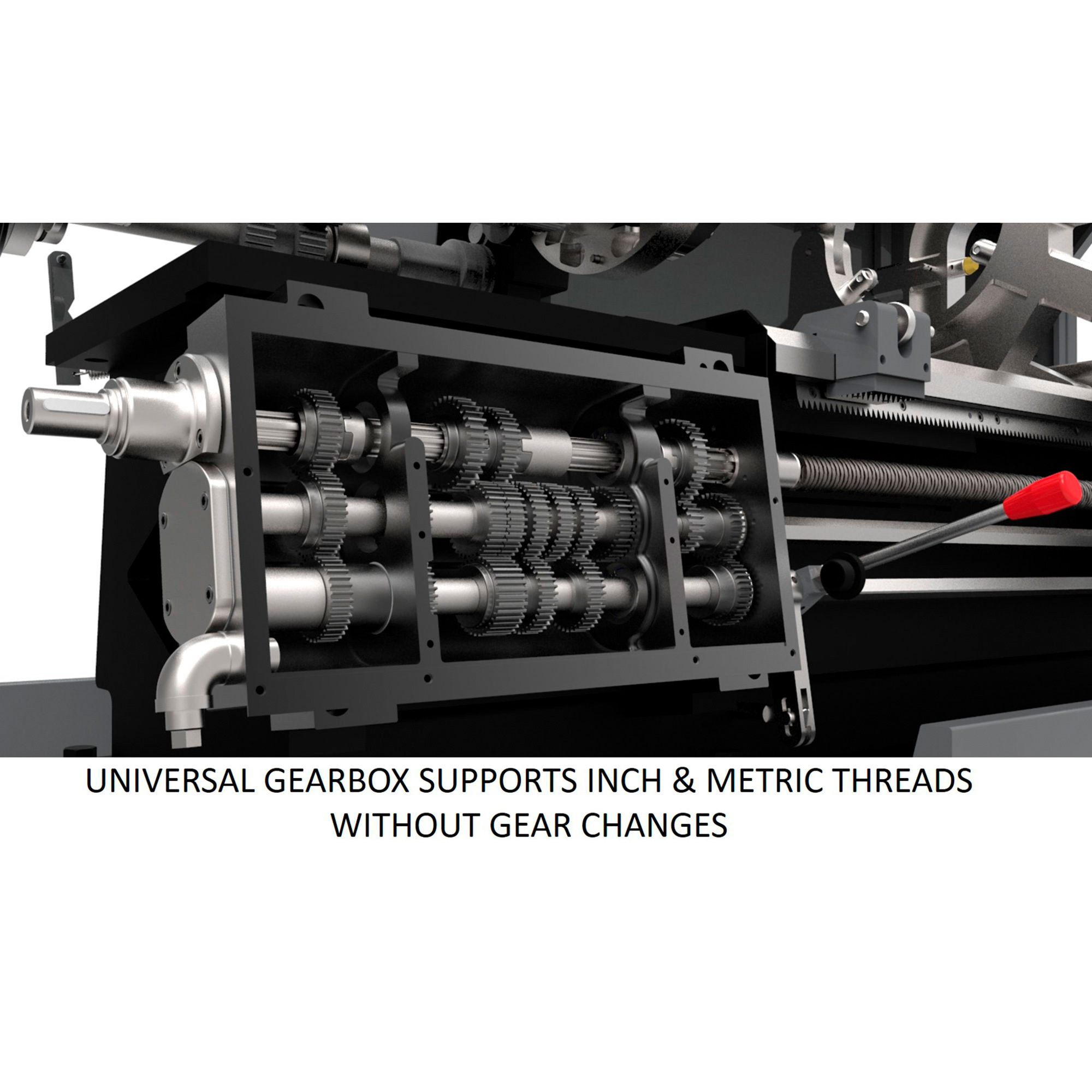

  • Universal gearbox supports inch, metric, modular and diametral threads, without changing gears

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • JET Elite Large Spindle Bore Geared Head Lathe, 17in. x 40in., Model# EGH-1740
  • Milwaukee Men's Cut 1 Nitrile Utility Gloves, Red/Black, Large, Model# 48-22-8902
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
  • Radians Earplug Neckband, NRR 25dB, Orange, Model# RB2120
Price for all four:

$41,483.44

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This 17in. x 40in. JET Elite Large Spindle Bore Geared Head Lathe combines the durability and strength of Meehanite® castings with precision engineering. This dependable, reliable machine turns out high-quality components turn after turn. Designed with a universal gearbox to allow for a wide range of threading without gear changes, and Turcite-B coatings between the bed and carriage to provide smooth and accurate movement. Has a 17in. swing-over bed. CSA/CUS certified. Item too large for lift gate. Forklift required for on site unloading. Please closely verify all details prior to confirming this order. NOTE: Because this made-to-order item is manufactured exclusively to match your specifications, it is not eligible for cancellation, refund or return once the order has been placed.

What's Included

    (1) Geared head lathe

Features + Benefits

  • 7.5 HP, 230/460V 3 phase motor
  • 17in. swing-over bed
  • 3 1/8in. spindle bore
  • Nylon safety gears in the end train prevent overloading, increasing safety
  • Universal gearbox supports inch, metric, modular and diametral threads, without changing gears
  • Enclosed coolant system contains excess coolant for increased safety
  • Front facing chip pan allows easy chip removal from the front of the machine
  • Steady rests feature ball bearing guides for smooth material movements

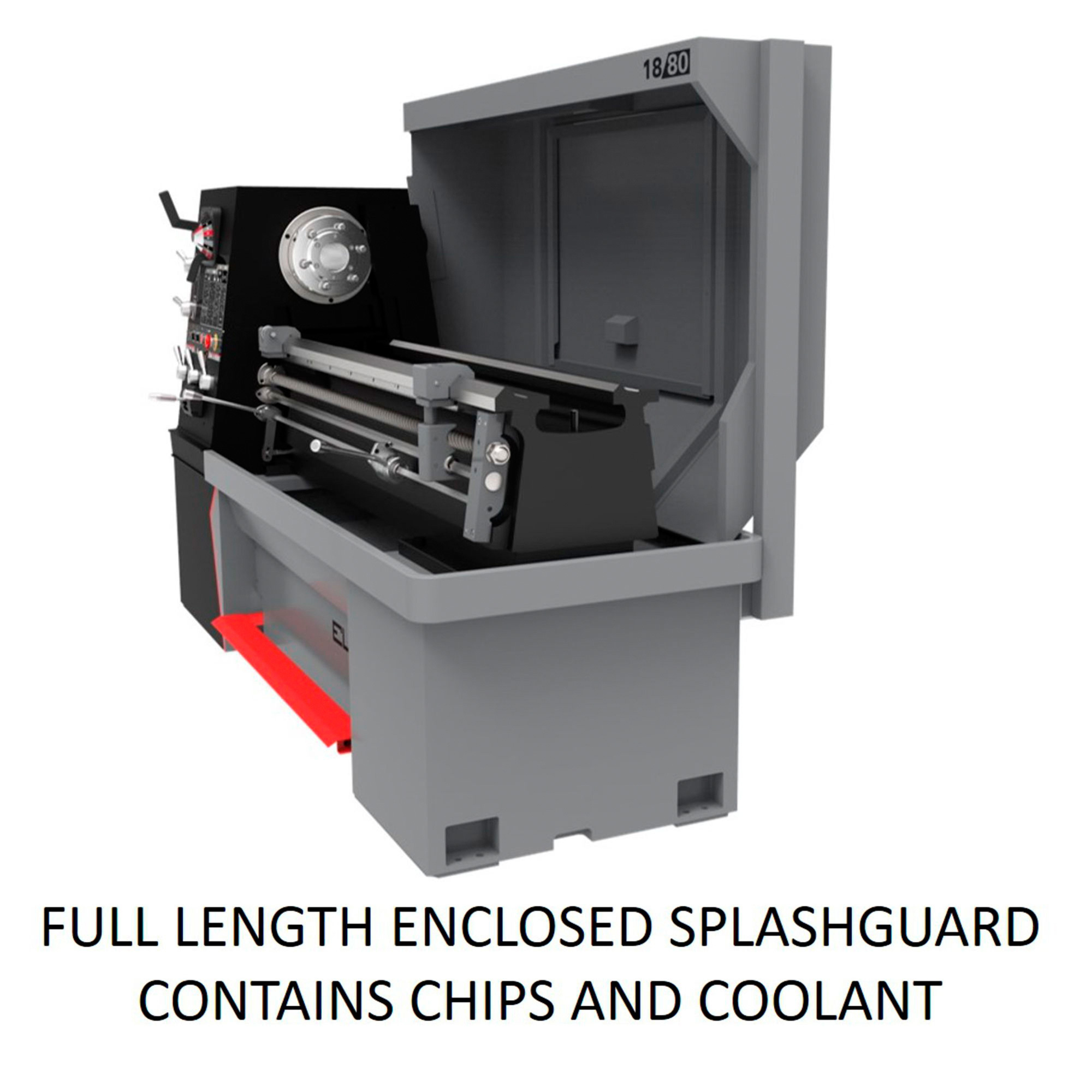

  • Enclosed full length splash guard is expertly designed to contain all chips and coolant and is fully lit with CNC style lighting
  • Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004
  • Hardened and ground gears in headstock reduce vibration and deflection
  • Wider bedways absorb vibration
  • Turcite-B coating between bed and carriage provides friction-free motion in all linear directions
  • Anti-float design eliminates backlash in the cross slide
  • One-shot lubrication in the carriage reduces maintenance
  • Overload clutch at feed shaft prevents the carriage from crashing into the chuck
  • Hardened and ground bedways provide accurate longitudinal movements
  • Shear pin in the lead screw disengages the feed when overloaded, preventing damage to the apron and headstock
  • Certified Meehanite® castings retain their tolerances and remain rigid through many years of machining
  • Standard equipment includes: 10in., 3-jaw chuck, backplate for 10in. chuck, steady rest ball bearing, brass tipped follow rest, 4-position carriage stop, chuck guard, 4-way tool post, micro-carriage stop, threading dial, leveling pads, tool box with tools

Key Specs

AttributeSpecification

item#

79651

Brand

JET

Manufacturer's Warranty

3 year limited warranty

Ship Weight

3747.0 LB

Horsepower

7.5 HP

Volts

230/460

Distance Between Centers

40 in

Swing Over Bed

17 in

Product Type

Other

Carriage Travel

17 in
AttributeSpecification

Thread Cutting Max. (SAE)

72 in

Thread Cutting Max.

14 mm

Phase

Single-phase

Variable Speed

Yes

Max. Speed

1,800 rpm

Spindle Mount

Yes

Spindle Bore Size

3.125 in

Stand Included

Yes

Product Weight

lb

Dimensions L x W x H (in.)

94.0 x 44.0 x 68.0 in
