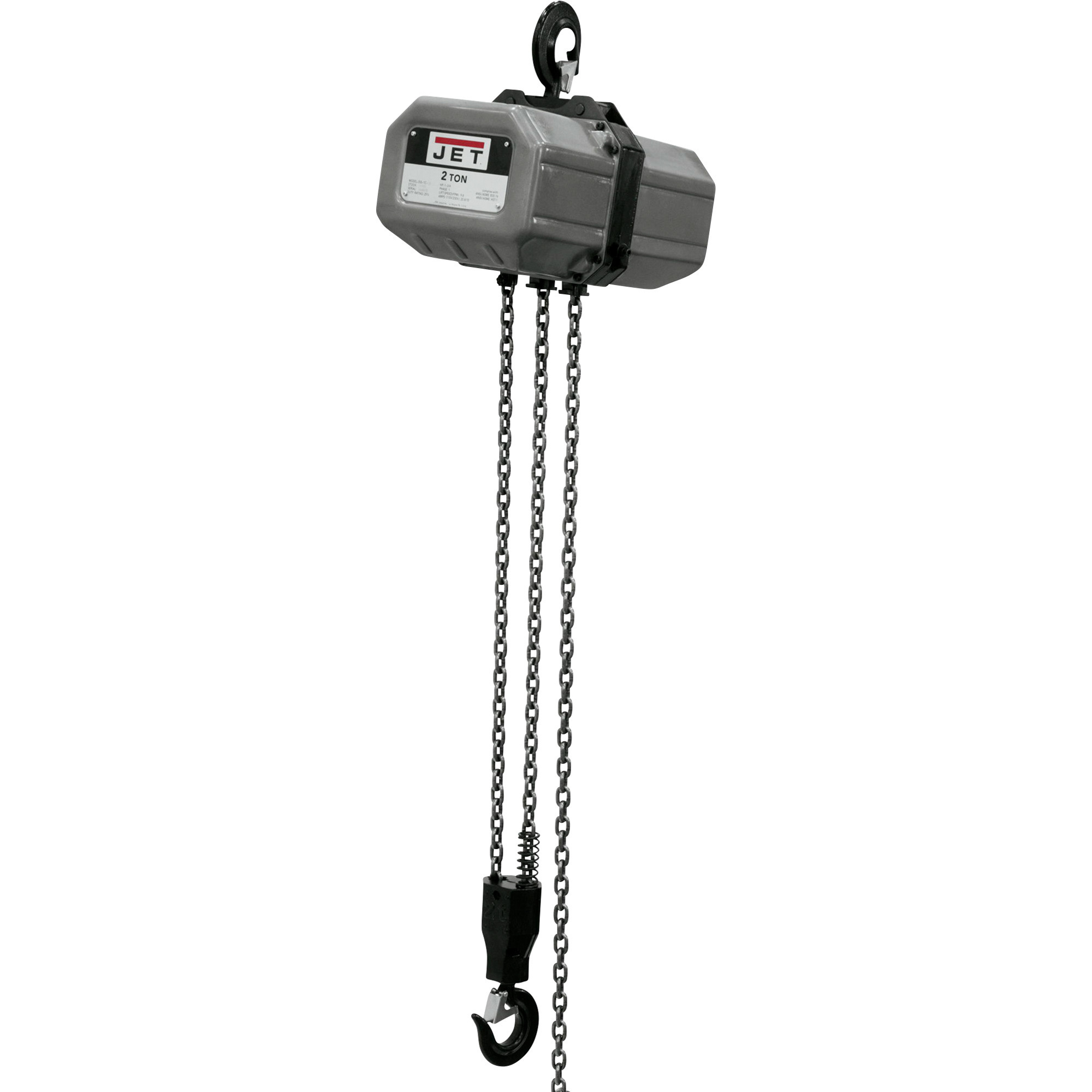

JET Electric Chain Hoist, 2 Ton Capacity, 20Ft. Lift, 3 Phase, Model# 2SS-3C-20

Item# 142250
JET Electric Chain Hoist, 2 Ton Capacity, 20Ft. Lift, 3 Phase, Model# 2SS-3C-20

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET Electric Chain Hoist, 2 Ton Capacity, 20Ft. Lift, 3 Phase, Model# 2SS-3C-20

Click or Tap image to Zoom

$4015.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 18ft. push bottom control length
  • H3 duty cycle rating
  • Lifting speed of 12.4 feet per minute
  • 20ft. lift height
  • Overload protection utilizes a slip clutch design to prevent the hoist from lifting damaging loads above its rated capacity

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • JET Electric Chain Hoist, 2 Ton Capacity, 20Ft. Lift, 3 Phase, Model# 2SS-3C-20
  • Pyramex Cap-Style Hard Hat with 4-Point Pin-Lock Suspension - White, One Size Fits All, Model# HP14010
  • Bullhead Safety Discus Safety Glasses, 10 Base Curve Wrap Around Clear Lens, Model# BH2811
  • Ironton Manual Push Trolley, 4400-Lb. Capacity, Adjustable for 3-1/5in.–8in. I-Beams
Price for all four:

$4130.16

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This JET electric chain hoist combines safety and durability to operate in commercial and industrial applications. This JET electric hoist is certified to 125% of the rated load capacity and complies with OSHA regulations. 2.14 Horse Power, Headroom at 28in., and duty cycle of 30%.

What's Included

    (1) JET 2-ton electric chain hoist

Downloads

Product Manual

Features + Benefits

  • 18ft. push bottom control length
  • H3 duty cycle rating
  • Lifting speed of 12.4 feet per minute
  • 20ft. lift height
  • Overload protection utilizes a slip clutch design to prevent the hoist from lifting damaging loads above its rated capacity
  • Thermal overload protection protects the hoist from overheating in low voltage settings
  • DC Electro Magnetic Brake provides an industry proven safety feature that secures the load even if power is interrupted
  • Upper and lower limiting switches increase safety by preventing the load chain from over traveling
  • Maintenance-free sealed gear train incorporates a sealed oil bath that eliminates upkeep
  • Control Pendant 24V pushbutton controller with cable strain relief system for durability and reliability in commercial settings - Grade 80 Load Chain - provides extra durability lifting heavy loads - All Steel Construction - Fully enclosed, all steel pl

Key Specs

AttributeSpecification

item#

142250

Brand

JET

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

209.0 LB

Capacity

4,000 lb

Lift Height

20 ft

Lift Speed

12.4 ft./min.

Duty Cycle

30 %
AttributeSpecification

Volts

230/460

Brake Type

Magnetic

Control Type

Lever

Chain Bag Included

Yes

Required Head Room

28.12 in

Lift Chain Diameter (SAE)

5/16 in

Motor Output

2.14

Thermal Overload Protection

Yes

Reviews

Questions & Answers

Questions

1–3 of 3 Questions
Sort by:

  1. Need replacement chain ?

    1 answer

    1. A replacement load chain is available directly from the manufacturer for this hoist. The compatible OEM replacement is Load Chain Part # JT9-1SS-3C-075 (sold per foot) for SS-3C series electric chain hoists.

      Helpful?

  2. can this be used at 208V 3 phase

    1 answer

    1. The hoist will require 230/460 volt three phase power. It is not recommended to be run at 208 volt three phase power.

      Helpful?

  3. What is amperage pull at 460 volt?

    1 answer

    1. This JET electric chain hoist has a full load amp draw of 4.2 amps at 460 volts and will use a 15 amp breaker.

      Helpful?
