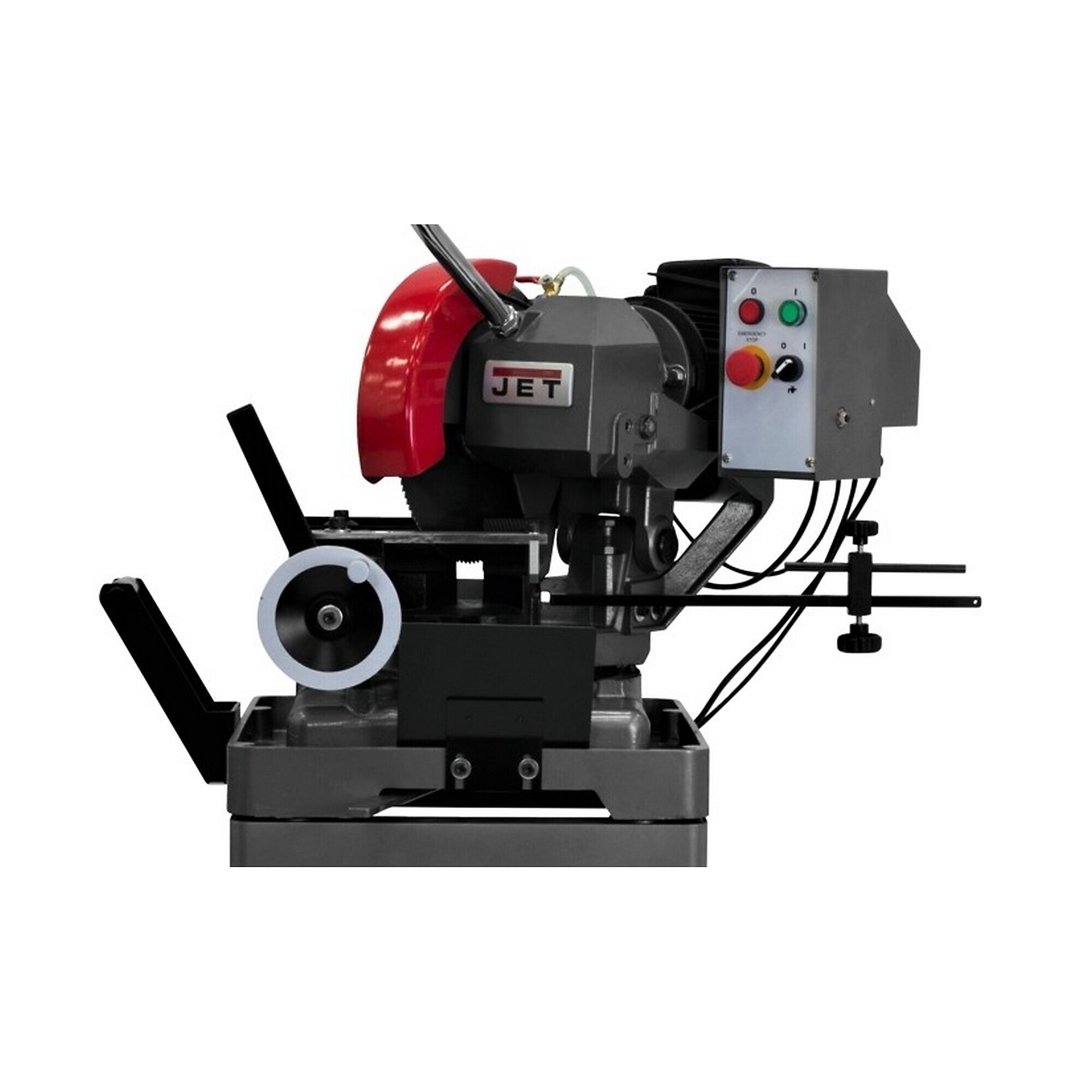

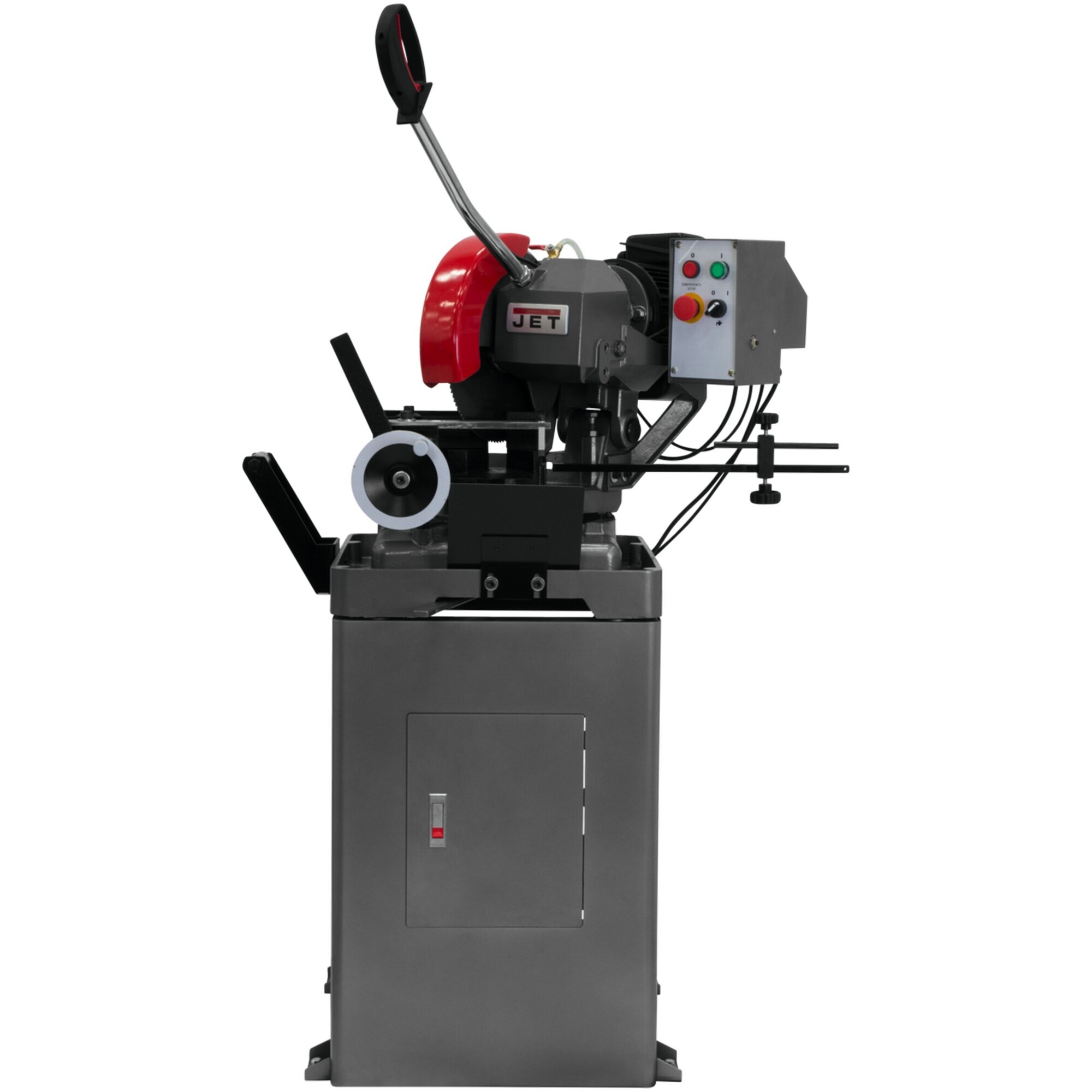

JET, Cold Saw, Max. Blade Diameter 12 in, Volts 230 Model# CS-315

Item# 5059757
JET, Cold Saw, Max. Blade Diameter 12 in, Volts 230 Model# CS-315

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JET, Cold Saw, Max. Blade Diameter 12 in, Volts 230 Model# CS-315

Click or Tap image to Zoom

$3539.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 315mm (12") Ferrous Cold Saw for steel, stainless and tough to cut alloys
  • Blade drive reduction gearbox operates in an oil bath for increased durability
  • Flood coolant system with a 1-1/3 Gallon coolant reservoir and pump with flow control system extends blade life
  • Fully adjustable material depth stop for sawing repeatability and increased production
  • Hardened and ground direct drive worm shaft and bronze worm wheel transmits maximum torque to the saw blade

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

JET Cold Saws deliver clean, burr-free cuts and offer machine shop and fabrication professionals a list of features and standard design characteristics that you’ve come to expect from JET. Designed with heavy-duty cast iron frame base which offers easy access storage and provides a stable cutting platform. All backed by the industry leading full service Two Year Warranty.

What's Included

    (1) CS-315-1 Cold Saw 1Ph 220v

Features + Benefits

  • 315mm (12") Ferrous Cold Saw for steel, stainless and tough to cut alloys
  • Blade drive reduction gearbox operates in an oil bath for increased durability
  • Flood coolant system with a 1-1/3 Gallon coolant reservoir and pump with flow control system extends blade life
  • Fully adjustable material depth stop for sawing repeatability and increased production
  • Hardened and ground direct drive worm shaft and bronze worm wheel transmits maximum torque to the saw blade
  • Quick clamping cam-action vise with adjustable gib and material support bar for burr-free cutting operations
  • Quick tension and release mitering capabilities with stops at 45° right, 45° left
  • Spring loaded whole hand trigger starts or stops the sawing process for easy smooth cutting and increased user safety
  • Two-piece cast iron blade guard system permits quick and easy blade changes without removing the guards

Key Specs

AttributeSpecification

item#

5059757

Brand

JET

Manufacturer's Warranty

1 year limited warranty

Ship Weight

350.0 LB

Max. Blade Diameter

12 in

Volts

230

Power Source

Corded

Phase

Single-phase

Blade Mounting Holes

32 mm

Max. Vise Opening

4 in
AttributeSpecification

Coolant System

Yes

Arbor Size

1.26 in

Round Solid Capacity @ 90 Deg.

3.3 in

Round Tube Capacity @ 90 Deg.

3.3 in

Square Tube Capacity @ 90 Deg.

2.5 in

Head Miter

45° Left / 45° Right

Horsepower

2 HP

Product Weight

350.0000 lb

Dimensions L x W x H (in.)

48.0 x 42.0 x 31.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
