To replace the batteries:
1.Place the helmet face down. Tilt the headgear unit the sweatband is closer to the top of the
helmet. Now undo the thumb screw turning it anti-clockwise, remove the thumb screw
and put to one side.
2. Lift the retainer frame upwards until it is at an angle of roughly 45 degrees. Then gently
pull the frame towards the chin of the helmet this will release the hooks.
3, To release the ADF from the cradle simply push the ADF out whilst holding the retainer (push
from viewing side but not on the glass)
4.The battery trays are located on the bottom of the ADF below the solar panel using your fingernail pull the trays out (the tray will depict the polarity showing which side is + and which side
is negative).
5. Once the batteries have been replaced please follow steps in reverse for refitting.

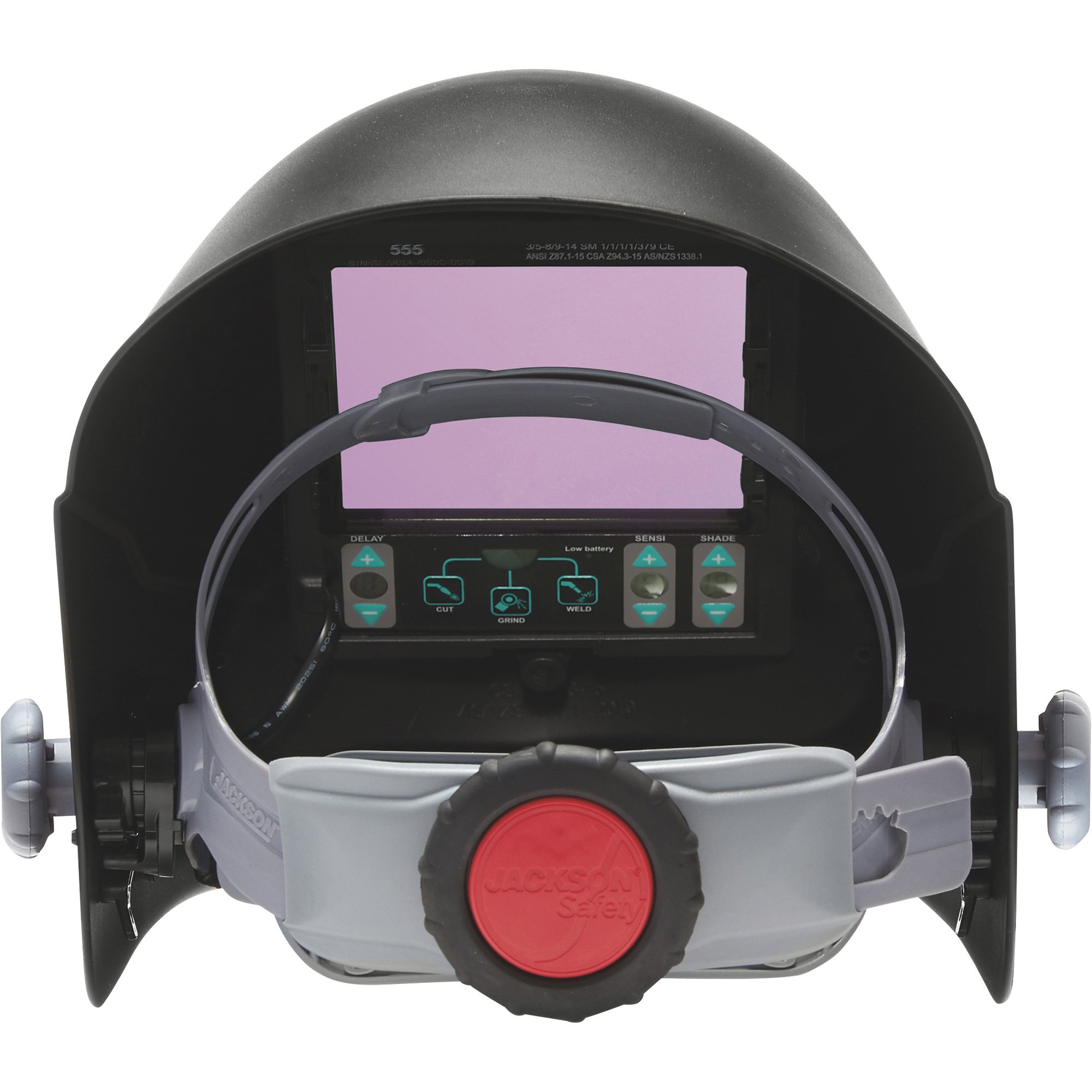

Jackson Safety Translight 555 Premium Auto Darkening Helmet, True Color Technology, Model# 46250
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Filter: 5.25in. x 4.50in.
- Viewing area: 3.86in. x 3.23in.
- Shade range: 3.5 to 14 True Color
- Optical clarity 1/1/1/1
- Switch speeds: 1/25,000 sec.
See full description
What's Included
- (1) Auto-darkening welding helmet
Features + Benefits
- Filter: 5.25in. x 4.50in.
- Viewing area: 3.86in. x 3.23in.
- Shade range: 3.5 to 14 True Color
- Optical clarity 1/1/1/1
- Switch speeds: 1/25,000 sec.
- ADF weight: 7.6 oz.
- Total weight: 1.35 lbs.
- 4 sensors
- TIG Rating >3A
- Digital controls
See All Welding Helmets
See All Jackson Safety Welding Helmets
Currently Viewing This Product
Item # 114520
Shipping: Sold Out
Specifications
Yes
Yes
Yes
Yes
1/25,000 sec.
1/25,000 sec.
1/25,000 sec.
0.0003 sec.
Yes
No
Yes
No
Yes
Yes
Yes
Yes
Black
Other
Red
Other
12.46 in²
6.61 in²
6.61 in²
5.16 in²
Yes
-
No
Yes
3.23 in
1.73 in
1.73 in
1.38 in
3.86 in
3.82 in
3.82 in
3.74 in
Yes
Yes
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
-
1.6000 lb
-
1.5000 lb
lb
18.0 x 12.0 x 19.0 in
-
11.12 x 10.25 x 11.87 in
12.0 x 10.0 x 9.0 in
-
Yes
Yes
Yes
-
-
Yes
-
-
-
2
-
-
-
2 extra inside and outside polycarbonate impact resistant clear lenses
-
