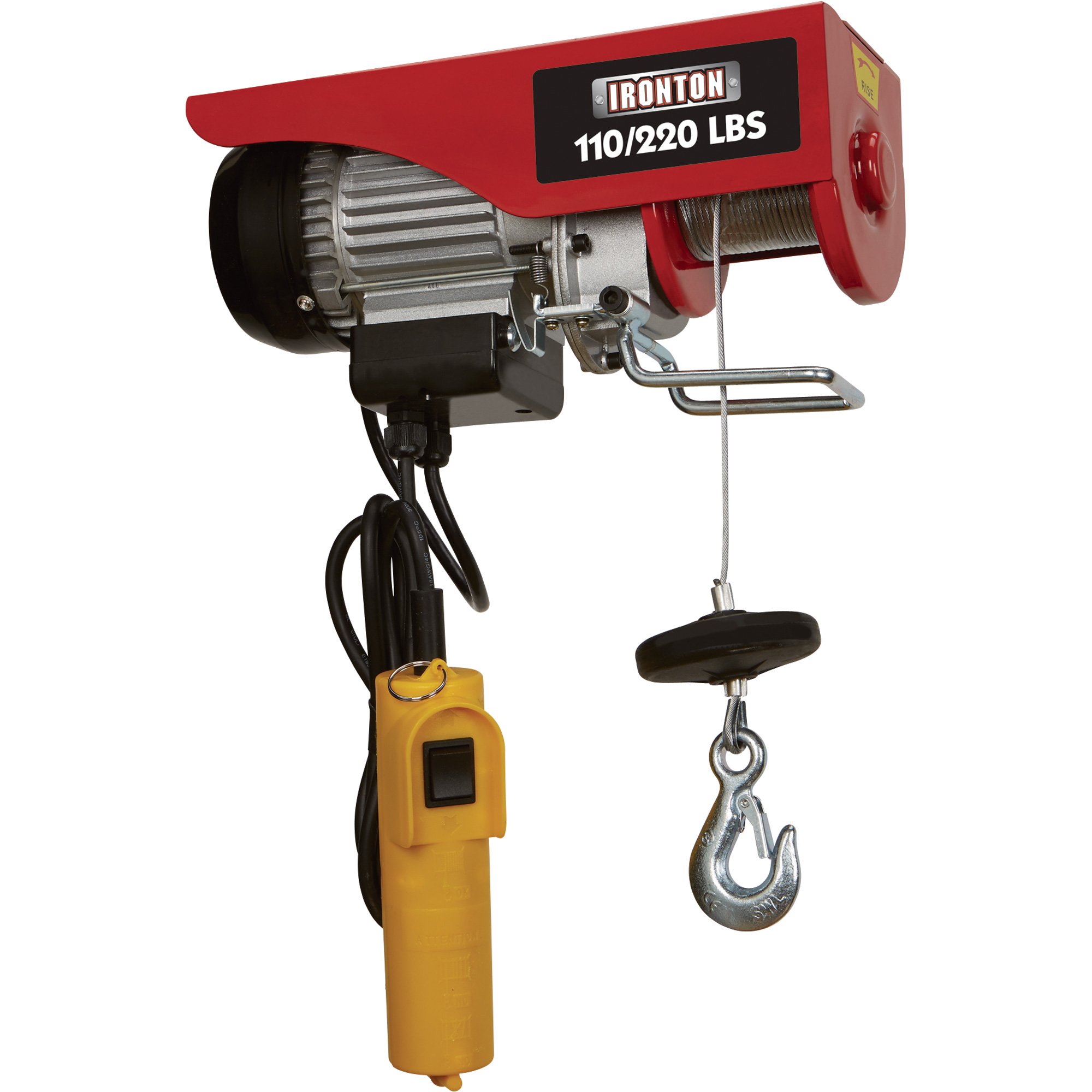

Ironton Double Line Electric Hoist — 110-lb. Single Line/220-lb. Double Line Lift Capacity

Item# 48303
Ironton Double Line Electric Hoist — 110-lb. Single Line/220-lb. Double Line Lift Capacity

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ironton Double Line Electric Hoist — 110-lb. Single Line/220-lb. Double Line Lift Capacity

Click or Tap image to Zoom

  • Rated to lift up to 110lbs. on a single line, or 220lbs. on a double line
  • 125 Watt output power
  • Lifting height is 40ft. with a single line, or 20ft. on a double line
  • 0.17 HP motor delivers a quick lifting speed of 16.4 ft./minute
  • Heavy-duty toggle switch control provides easy operation

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This 110V electric hoist quickly and easily lifts or lowers loads with the push of a button. Includes 40ft. L x 1/8in. dia. cable.

What's Included

  • (1) Electric hoist
  • (1) Switch handle
  • (1) Lift hook
  • (1) Mounting kit

Features + Benefits

  • Rated to lift up to 110lbs. on a single line, or 220lbs. on a double line
  • 125 Watt output power
  • Lifting height is 40ft. with a single line, or 20ft. on a double line
  • 0.17 HP motor delivers a quick lifting speed of 16.4 ft./minute
  • Heavy-duty toggle switch control provides easy operation
  •  10 min. duty cycle at 20%
  • Includes a lift hook and mounting kit

Key Specs

AttributeSpecification

item#

48303

Brand

Ironton

Manufacturer's Warranty

12 months parts / 12 months labor

Ship Weight

11.4 LB

Amps

1.5

Single Line Lift Capacity

110 lb

Double Line Lift Capacity

220 lb
AttributeSpecification

Single Line Lift Height

40 ft

Double Line Lift Height

20 ft

Single Line Lift Speed

16.4 ft./min.

Cable Length

40 ft

Cable Diameter

0.12 in

Duty Cycle

10 min

Horsepower

0.17 HP

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–10 of 18 Questions
Sort by:

  1. does the hoist have a locking mechanism?

    or does it rely upon the motor to hold the hoisted item in place?

    1. Yes, this hoist will support the full load even with the electrical power cord disconnected.

      Helpful?

    2. This cable hoist includes a brake to hold and lock the load in place.

      Helpful?

  2. Can this unit be used outdoors?

    1. For safety reasons, do NOT use this hoist outdoors where rain or other sources of moisture are possible.

      Helpful?

    2. This Ironton Hoist is not weather resistant. It is designed for indoor use only.

      Helpful?

  3. can I leave the load hanging for an extended period?

    1. Yes. However, for safety reasons and for very extended periods of time I install a redundant support for my load.

      Helpful?

    2. This hoist can support a hanging load for extended periods, but the hoist should not be left unattended while it's in use.

      Helpful?

  4. Is a cordless available for a light duty hoist?

    1. No mention of one in the booklet. It seems like an obvious question, but you need to hook and unhook your load, so I can't see an advantage to a remote control for this hoist. Our truck winch has one, but all the rigging is done on the ground, sometimes 40' from the winch. That remote is important.

      Helpful?

    2. Northern Tool does not currently offer a cordless electric hoist.

      Helpful?

  5. If the power fails, will the winch release/let load drop?

    1. No, it stays where it was stopped if you pull power.

      Helpful?

    2. If the power fails the hoist will not release and let the load drop.

      Helpful?

  6. does this hoist come with a double line pully like the second picture?

    1. Ours did. A nice heavy one, sort of like a snatch block. You need to loosen a couple of bolts, tuck the 1/10" wire rope around the pulley and you're ready to lift 220 lbs. The duty cycle is 2 minutes on 8 minutes off.

      Helpful?

    2. The double line pulley block is includes with this hoist.

      Helpful?

  7. What is the max AMPs this unit requires?

    What is the max amps this unit requires?

    1 answer

    1. The Amperage at full load is 2.2A and 1.6A at no load.

      Helpful?

  8. What are the dimensions of the winch?

    1 answer

    1. The electric hoist is 10-1/2" L x 3-3/4" W x 5-1/4" H (when measured to bottom of the limiter).

      Helpful?

  9. Does the motor/reel go both forward and reverse or does the load need to release the reel?

    1 answer

    1. This Ironton electric hoist can lift and lower loads by pushing the button on the control.

      Helpful?

  10. How noisy is this when running? (compared to...)

    1 answer

    1. There is not a decibel rating available for this hoist. The noise level can be directly related to the application and installation of the hoist.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts / 12 months labor
