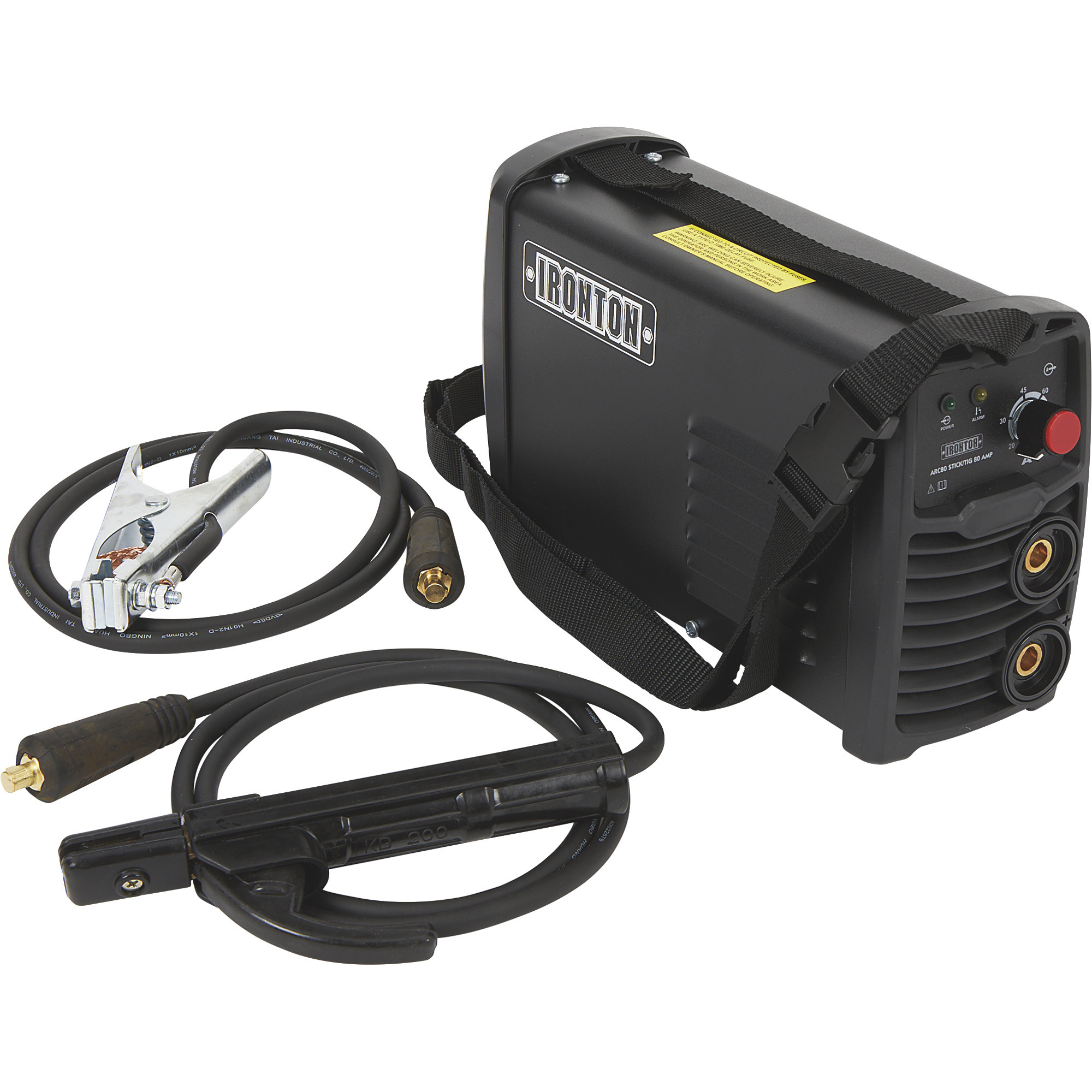

Ironton ARC80 Stick Welder with TIG function, Inverter, 120 Volt, 20-80 Amp Output

Item# 96571
Clearance
Ironton ARC80 Stick Welder with TIG function, Inverter, 120 Volt, 20-80 Amp Output

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ironton ARC80 Stick Welder with TIG function, Inverter, 120 Volt, 20-80 Amp Output

Click or Tap image to Zoom

  • Powerful 80 Amp DC output welds materials up to 1/8in.
  • Inverter technology requires less input power
  • Compact, extra lightweight case for easy portability
  • Cooling fan and thermal overload protection
  • Adjustable amperage dial offers 20-75 Amp DC output for versatility

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Ironton® ARC80 Stick Welder with TIG function is a super compact, lightweight, single-phase inverter stick/TIG welder that makes a perfect choice for mobile and outdoor applications. The efficient 120V inverter-powered system produces smooth DC arc welds. It's an excellent choice for use on mild steel, stainless steel, cast iron and hard surfacing. Includes 5.4ft. electrode cable with holder, 5.4ft. ground cable and clamp and shoulder strap for easy portability. CSA approved. TIG-ready with purchase of a Klutch® TIG Torch (Item# 44455, sold separately).

What's Included

    (1) Stick/TIG welder (1) 5.4ft. electrode cable and holder (1) 5.4ft. ground cable and clamp (1) Shoulder strap
Play Item Video

Features + Benefits

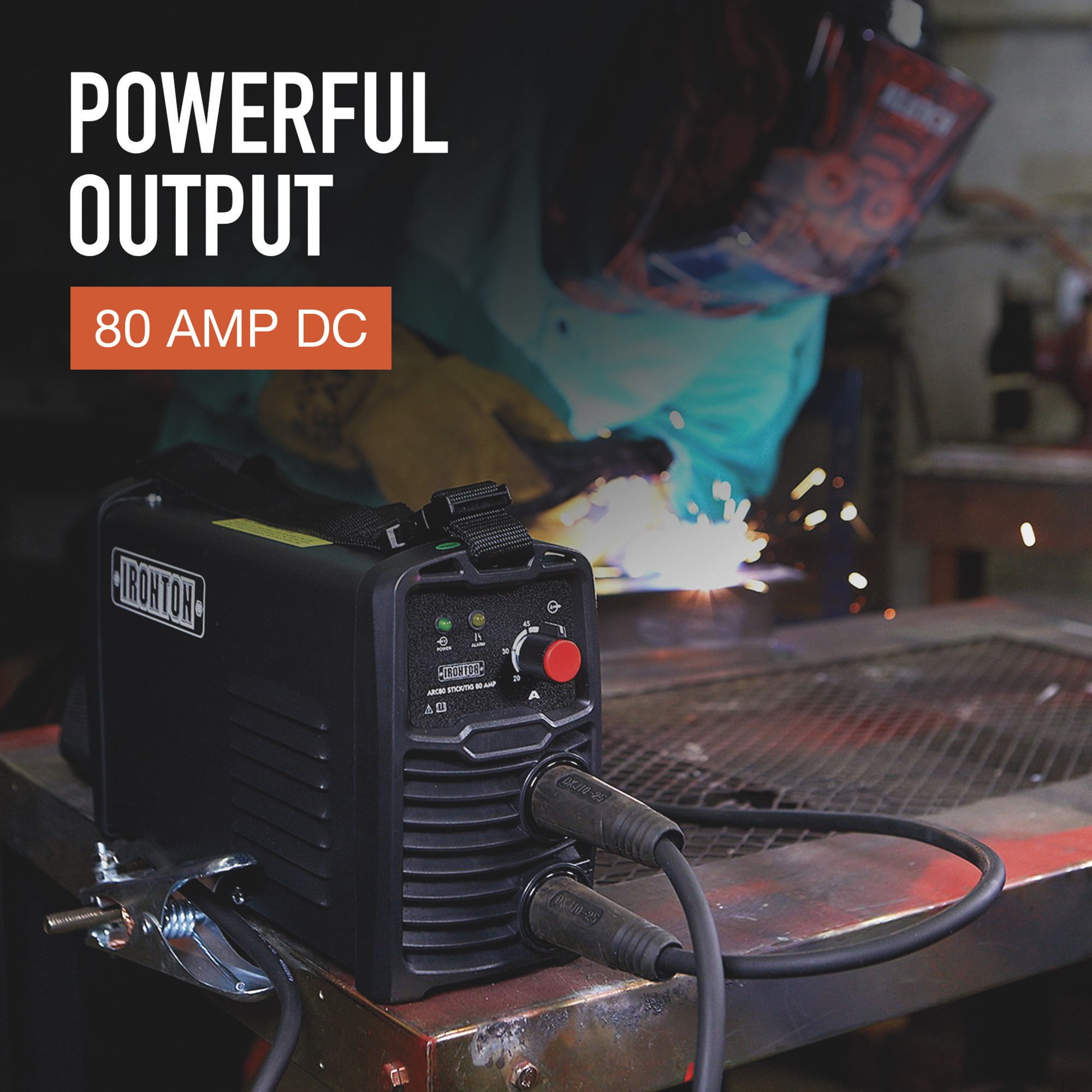

  • Powerful 80 Amp DC output welds materials up to 1/8in.
  • Inverter technology requires less input power
  • Compact, extra lightweight case for easy portability
  • Cooling fan and thermal overload protection
  • Adjustable amperage dial offers 20-75 Amp DC output for versatility
  • Operates with 1/16in. to 3/32in. electrodes
  • Quick-connect welding cable connections make setup and tear down quick and easy
  • DC TIG-ready with purchase of a Klutch® TIG Torch (Item# 44455, sold separately)
  • Duty Cycle: 40% @ 75 Amp
  • CSA approved

Key Specs

AttributeSpecification

item#

96571

Brand

Ironton

Manufacturer's Warranty

1 year limited warranty

Ship Weight

9.8 LB

Volts

120

Max. Amps

75

Power Type

DC

Multi-process

Yes

Max. Weld Thickness

0.13 in
AttributeSpecification

Duty Cycle

40% At 75a

Weldable Materials

Steel, Stainless Steel, Cast Iron, Hard Surfacing

Min. Amps

20

Power Cord Length

6.5 ft

Clamp Cable Length

5.4 ft

Electrode Cable Length

5.4 ft

Product Weight

12.2400 lb

Dimensions L x W x H (in.)

11.0 x 4.0 x 7.25 in

Reviews

Questions & Answers

77 Reviews This action will navigate to reviews.

Questions

1–10 of 29 Questions
Sort by:

  1. If a foot pedal isn't offered how do you use the tig then?.button like a mig or is it constant power to the touch?

    1. It is a lift arc TIG Torch set-up. Meaning you touch the electrode (Tungsten) to the piece you are welding then lift away approximately and 1/8" and your arc is started, then you form puddle and drop in filler rod.

      Helpful?

    2. After installing the TIG setup, you set the current on the machine so the output is constant. You'll have to stop TIG welding to adjust your setting up or down and then resume. No foot pedal our thumb switch to adjust while running a bead. I've had a lot of success welding interior railing as long as you stay within the limitations of the machine regarding thickness of materials welded.

      Helpful?

    3. This welder requires a separate TIG torch for TIG welding. Please see our item #44455 for the TIG torch that works with this machine.

      Helpful?

  2. Can this welder be run off a power inverter for a vehicle?

    1 answer

    1. This welder requires 75 amps and a minimum of 9,000 watts to operate. Running this welder off an inverter is possible; however, it is not recommended.

      Helpful?

  3. Can I weld overhead or vertical with this welder?

    1 answer

    1. With the correct safety protection, this can be used to weld overhead or vertically.

      Helpful?

  4. Is this welder compatible with 6010 rods ?

    1 answer

    1. This welder produces a maximum of 75 amps. A 3/32" 6010 rod typically requires 50 to 90 amps. The other sizes require a higher amperage, so it would not be recommended.

      Helpful?

  5. Can E6011 rods be used?

    1 answer

    1. This welder can use E6011 stick welding electrodes, item 5017995.

      Helpful?

  6. Does it burn 7018

    1 answer

    1. This welder is not recommended for use with 7018 electrodes as they work best with a higher amperage output. This welder produces a maximum of 75 amps.

      Helpful?

  7. Do you need gas to utilize the tig function?

    1 answer

    1. Yes, gas is required to TIG weld.

      Helpful?

  8. Will it weld a pickup trucks frame.Adding a section.

    1 answer

    1. This can weld steel, stainless steel and cast iron up to 0.13 inches thick.

      Helpful?

  9. Is this welder good enough for repairing an iron fence?

    1 answer

    1. This welder can be used on a fence made of cast iron up to 1/8" thick.

      Helpful?

  10. Can this unit weld Aluminum WITH the optional TIG torch?

    1 answer

    1. This welder cannot weld aluminum with the optional TIG torch.

      Helpful?
