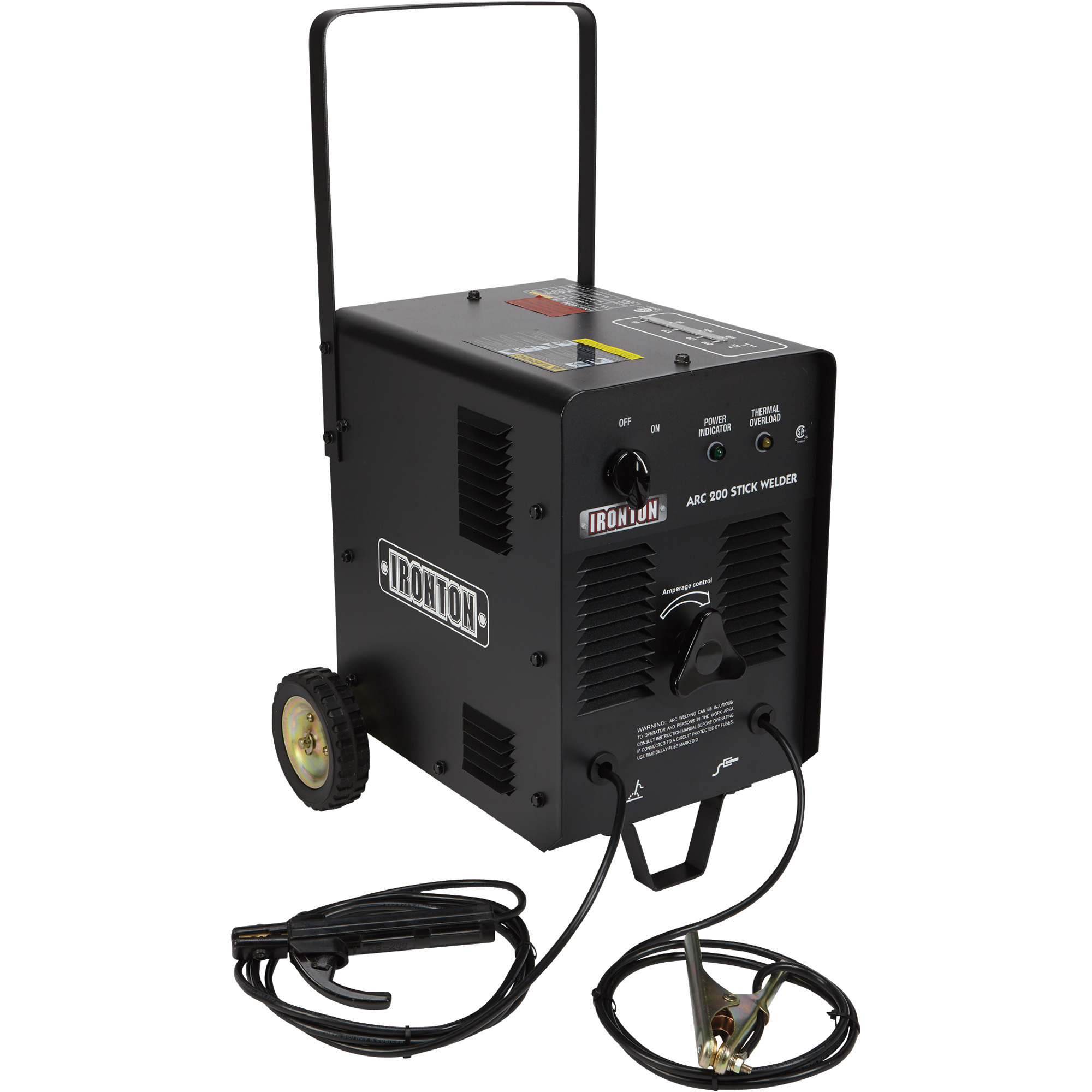

Ironton Arc 200 AC Arc Welder, Transformer, 230 Volt, 65-200 Amp Output

Item# 45432
Ironton Arc 200 AC Arc Welder — Transformer, 230 Volt, 65–200 Amp Output
Ironton Arc 200 AC Arc Welder, Transformer, 230 Volt, 65-200 Amp Output

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ironton Arc 200 AC Arc Welder, Transformer, 230 Volt, 65-200 Amp Output

Click or Tap image to Zoom

  • Stick welder handles 1/16in.-5/32in. dia. electrodes
  • Welds mild steel up to 3/8in. on single pass
  • Infinite amperage control for fine adjustment
  • Amperage indicator
  • Thermal overload protection light

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Ironton® Arc 200 AC Arc Welde is a versatile choice that delivers performance and value. The Arc 200 can weld mild steel up to 3/8in. thick on a single pass, but it also features amperage adjustment that can be dialed down to handle thinner, more delicate materials as well. It's portable too, with handles and wheels for easy maneuverability in the shop. Plus this welder is packed with safety features to prevent overheating and give you peace-of-mind with every use.

What's Included

    (1) Arc welder (1) Welding cable with electrode holder (1) Ground cable and clamp

Downloads

Product Manual

Features + Benefits

  • Stick welder handles 1/16in.-5/32in. dia. electrodes
  • Welds mild steel up to 3/8in. on single pass
  • Infinite amperage control for fine adjustment
  • Amperage indicator
  • Thermal overload protection light
  • Draws approximately 41 Amps at 230V
  • Wheel kit and handles for portability

Key Specs

AttributeSpecification

item#

45432

Brand

Ironton

Manufacturer's Warranty

1 year limited warranty

Ship Weight

60.0 LB

Volts

230

Max. Amps

200

Power Type

AC

Multi-process

No

Max. Weld Thickness

0.38 in
AttributeSpecification

Duty Cycle

10% At 180a

Weldable Materials

Steel, Stainless Steel, Cast Iron, Hard Surfacing

Min. Amps

65

Power Cord Length

8 ft

Clamp Cable Length

6.5 ft

Electrode Cable Length

10 ft

Product Weight

lb

Dimensions L x W x H (in.)

16.0 x 11.0 x 15.0 in

Reviews

Questions & Answers

52 Reviews This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. what rods does it work best with?

    i just got this welder and a 6011 1/8 wont stay burning what rod should be used? im really thinking ill proably get my money back and by a name brand.

    1. I used 6013 but a 6011 should work. This machine has no fancy accessories inside so it’s a little tricky to keep the arc going. Also make sure your rods are dry doesn’t take much moisture to mess stuff up.

      Helpful?

    2. I find it works well with 6013.

      Helpful?

    3. Get the 6013 welding rods.

      You will want to get the appropriate size for the power you are using. I used the 1/8" rods for 1/8" steel and the 3/32" for thinner metals. I have successfully welded all the way down to 16ga steel with the 3/32" rods.

      Helpful?

    4. This AC stick welder works best with 6013 welding rod. Click the links below to view 1/8" 6013 welding rods.

      Helpful?

    5. On page 2, page 11 and page 16 of the manual for this welder says it works best with 6013 rod. Rod should be for AC use as the 6013 is made to work with AC. The 6013 rod in 1/8 can handle between 80-130 amps depending on thickness and type of material compared to 6011 rod in 1/8 handling between 75-125 amps.

      Helpful?

  2. What wattage do you need to run this machine using a generator?

    1 answer

    1. This stick welder draws 9430 watts at 230 volts. It has a NEMA 6-50 plug. Northern Tool doesn't carry a portable generator that accepts a 6-50 plug.

      Helpful?

  3. What is the duty cycle at 65 amps?

    1 answer

    1. This stick welder's duty cycle at 65 amps is 10%.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

1 year limited warranty
