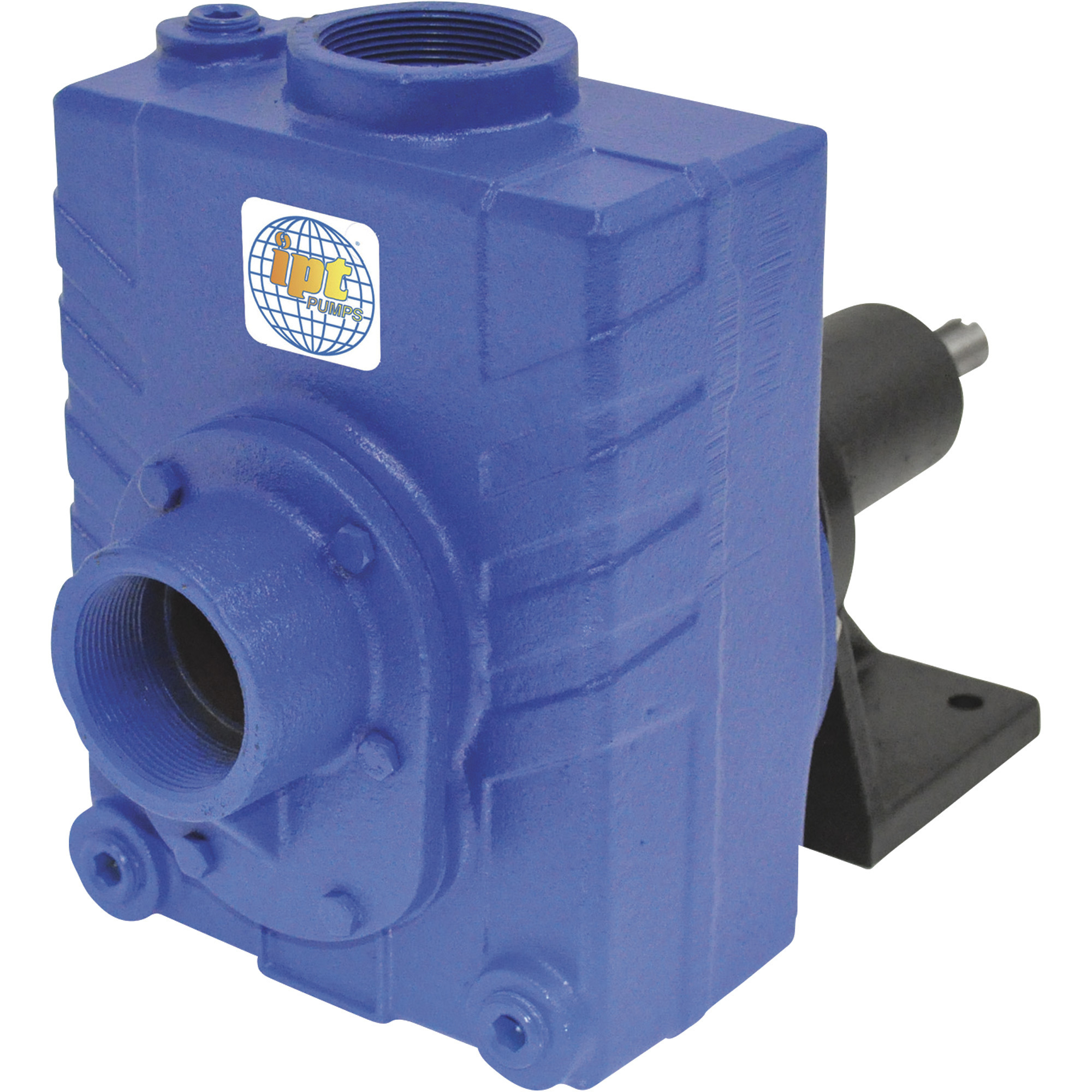

IPT Cast Iron Self-Priming Centrifugal Pedestal Water Pump, 7,200 GPH, 3 HP, 2in., Model# 2760-IPT-99

Item# 109469
"IPT Cast Iron Self-Priming Centrifugal Pedestal Water Pump, 7,200 GPH, 3 HP, 2in., Model# 2760-IPT-99"
IPT Cast Iron Self-Priming Centrifugal Pedestal Water Pump, 7,200 GPH, 3 HP, 2in., Model# 2760-IPT-99

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

IPT Cast Iron Self-Priming Centrifugal Pedestal Water Pump, 7,200 GPH, 3 HP, 2in., Model# 2760-IPT-99

Click or Tap image to Zoom

$499.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 75 PSI maximum working pressure
  • 4,000 maximum RPM
  • 3 HP minimum required @ 3,450 RPM
  • Dual volute design reduces radial load on motor
  • Built-in check valve ensures consistent self-priming to 20 feet

See full description

Complete Your Solution

  • IPT Cast Iron Self-Priming Centrifugal Pedestal Water Pump, 7,200 GPH, 3 HP, 2in., Model# 2760-IPT-99
  • JGB Enterprises Suction Hose, 2in. x 50ft., Model# A007-0329-1650
  • JGB Enterprises Water Pump Discharge Hose, 2in. x 25ft., Model# A008-0321-1625
  • JGB Enterprises Pump Hose Kit, 2in. Dia., 15ft. Suction Hose, 25ft. Discharge Hose, Model# A007-NTEHOSEKIT-2TP
Price for all four:

$880.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

IPT Self-Priming Centrifugal Water Pump features cast iron construction and is ideally suited for both industrial and commercial applications that require high-volume liquid transfer, waste-water drainage and processing. U.S.A.

What's Included

    (1) Self-priming centrifugal pedestal pump

Downloads

Product Manual

Features + Benefits

  • 75 PSI maximum working pressure
  • 4,000 maximum RPM
  • 3 HP minimum required @ 3,450 RPM
  • Dual volute design reduces radial load on motor
  • Built-in check valve ensures consistent self-priming to 20 feet
  • 95 feet maximum head (41 PSI) when coupled to motor (not included; customer must supply motor)

Key Specs

AttributeSpecification

item#

109469

Brand

IPT Pumps

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

50.0 LB
AttributeSpecification

Max. Flow

7,200 GPH

Port Size

2 in

Max. PSI

75

Horsepower

3

Reviews

Questions & Answers

9 Reviews This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. What is the horizontal distance this pump can pump water?

    My application requires a long run, about 700ft, from a pond to a garden, but only rises about 15 ft.

    1 answer

    1. The IPT pump will provide a 20 ft. lift, but will only provide a total head of 95 ft.

      Helpful?

  2. What is the size and direction of rotation of the shaft?

    1 answer

    1. The diameter of the shaft is 3/4" with a key-way of 3/16" x 3/32" x 1⅞. The shaft will rotate counter clockwise.

      Helpful?

  3. How many amps does this motor have?

    Is this pump good enough to pull water from the lake for 12 sprinklers on one acre lot. Are there any accessories needed with this pump ?

    1 answer

    1. This IPT pump does does not include a motor, so the Amp draw will depend on what motor you decide to install.

      You can determine if this pump will support your application by taking your 12 sprinkler heads and multiplying the required GPM for each head, this will need to equal 120 GPM or less.

      Please see some additional accessories you may require listed below...

      Helpful?
