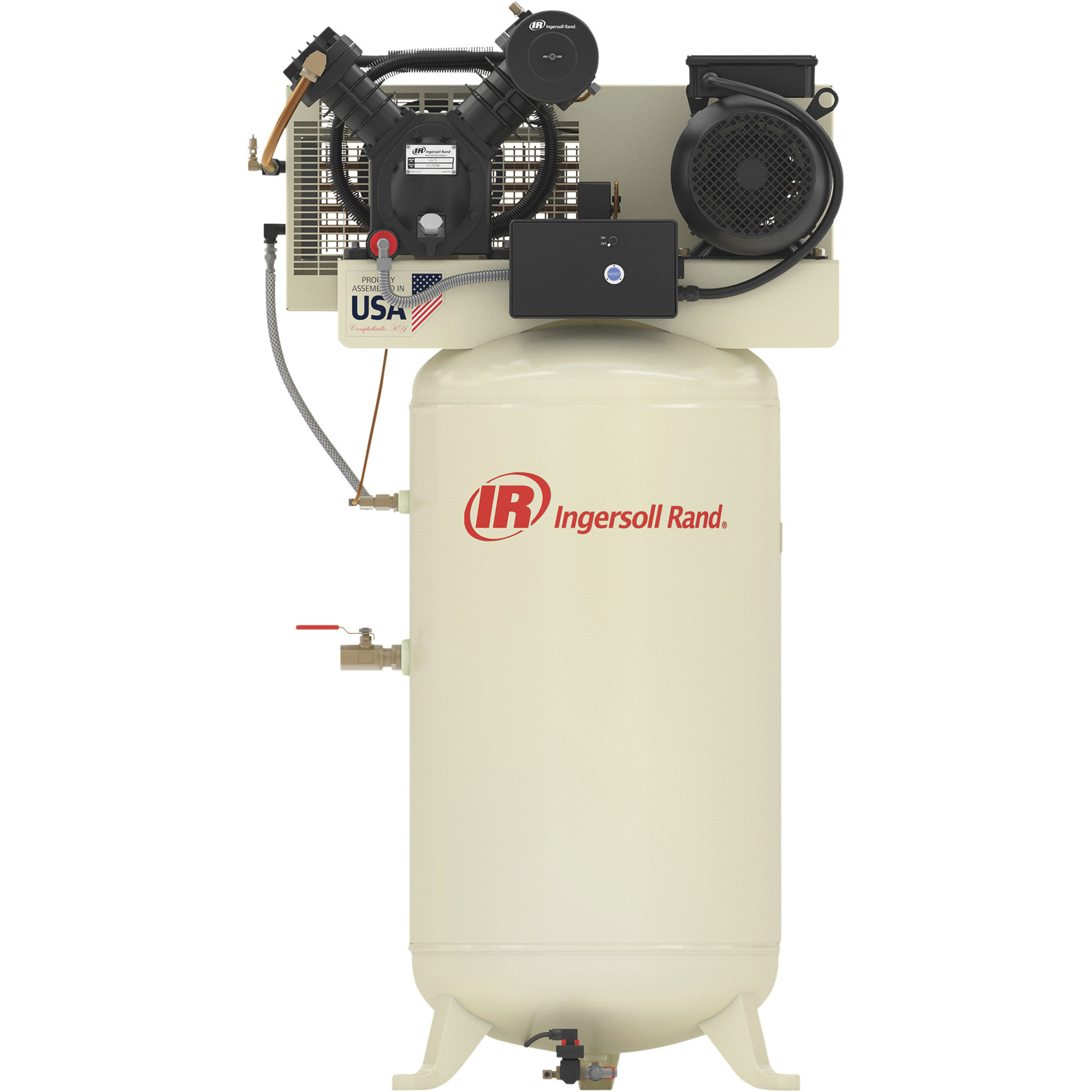

Ingersoll Rand Type-30 Reciprocating Air Compressor (Premium Package), 7.5 HP, 230 Volt, 3 Phase, 80 Gallon Vertical, Model# 2475N7.5-P

Item# 15920030C
"Ingersoll Rand Type-30 Reciprocating Air Compressor (Premium Package), 7.5 HP, 230 Volt, 3 Phase, 80 Gallon Vertical, Model# 2475N7.5-P"
Ingersoll Rand Type-30 Reciprocating Air Compressor (Premium Package), 7.5 HP, 230 Volt, 3 Phase, 80 Gallon Vertical, Model# 2475N7.5-P

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ingersoll Rand Type-30 Reciprocating Air Compressor (Premium Package), 7.5 HP, 230 Volt, 3 Phase, 80 Gallon Vertical, Model# 2475N7.5-P

Click or Tap image to Zoom

$4429.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Durable cast iron construction, long-lasting extended pump life designed for over 15,000 hours of trouble-free use
  • 100% continuous duty, 7.5 HP two-stage air compressor, 175 PSI maximum operating pressure and an 80-gallon ASME receiver tank provide plenty of punch for the most demanding applications
  • Individually cast cylinders, overhung crankshaft and one-piece connecting rod simplifies maintenance and service
  • All Season Select synthetic lubricant increases efficiency
  • With 2000 hours of service between change outs, it performs four times longer than petroleum-based lubricants

See full description

Complete Your Solution

  • Ingersoll Rand Type-30 Reciprocating Air Compressor (Premium Package), 7.5 HP, 230 Volt, 3 Phase, 80 Gallon Vertical, Model# 2475N7.5-P
  • Ingersoll Rand, 2 Year Warranty Startup Kit - 2200/2340/2475/TS4 Model# 47853635004-R
  • Ingersoll Rand Non-Cycling Refrigerated Air Dryer — 25 CFM, Aluminum Heat Exchanger, Model# DA42INA100
  • Ingersoll Rand F-Series General 1 Micron Filter, 3/8in., 17 CFM, Model# FA30IG
Price for all four:

$7178.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Ingersoll Rand's legendary Type-30 air compressors have been providing unsurpassed performance in the most demanding applications for over 75 years. The Type-30 compressors are recognized as the industry's benchmark for quality, power and reliability -- that's why they remain the world's best-selling reciprocating compressor. Designed for heavy shop or industrial use, Ingersoll Rand electric-driven, two-stage air compressors provide the reliability and performance that are ideal for most applications including automotive service and body shops, fleet maintenance, machine shops, production and manufacturing lines, wood working shops, dry cleaners, car washes, general maintenance/repair shops and farms. Whether you're a small shop owner, auto body or repair business owner, or work in a demanding industrial environment, there is a Type-30 air compressor that will meet your needs. Premium package compressor includes low oil level switch, after cooler and automatic tank drain. Warranty on the reciprocating pump extends from 1 year to 2 years with the purchase use of the 2yr Warranty Start Up Kit (Item# 6131984 - sold seperately).

What's Included

    (1) 100% cast iron pump (1) ASME-coded receiver tank (1) ODP motor (1) Magnetic motor starter (1) Automatic start/stop control with pressure switch (1) Manual drain (1) Upgraded electric drain (1) Air-cooled aftercooler (1) Low oil level switch

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Durable cast iron construction, long-lasting extended pump life designed for over 15,000 hours of trouble-free use
  • 100% continuous duty, 7.5 HP two-stage air compressor, 175 PSI maximum operating pressure and an 80-gallon ASME receiver tank provide plenty of punch for the most demanding applications
  • Individually cast cylinders, overhung crankshaft and one-piece connecting rod simplifies maintenance and service
  • All Season Select synthetic lubricant increases efficiency
  • With 2000 hours of service between change outs, it performs four times longer than petroleum-based lubricants
  • Extend your pump warranty to 2yrs with the purchase & use of the 2yr Warranty Start up Kit (Item# 6131984 - sold seperately)
  • 100% cast iron construction
  • 1-pc. connecting rod
  • Finned copper intercooler
  • Extended 2-year warranty on the pump when you use maintenance kit #1592008

Key Specs

AttributeSpecification

item#

15920030C

Brand

Ingersoll Rand

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

611.0 LB

Air Tank Size

80 Gal

Volts

230

Motor Phase

3

Stage

2

Horsepower

7.5 HP

Max. PSI

175

Air Outlets (qty.)

1

Amps

22

Duty Cycle

100 %

Motor RPM

3,450

Working Pressure

175 PSI
AttributeSpecification

Engine Start Type

Electric

Pump Life

10,000 hr

Pump Material

Cast Iron

Air Outlet Size

3/4 in. NPT

CFM at Max. PSI

24

Noise Level

85 dB

Oil Required

Yes

Low Oil Shutdown

Yes

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

Yes

After Cooler Included

Yes

Drain Type

Automatic

Product Weight

600.0000 lb

Dimensions L x W x H (in.)

26.0 x 38.0 x 70.0 in

Reviews

Questions & Answers

32 Reviews This action will navigate to reviews.

Questions

1–10 of 24 Questions
Sort by:

  1. The outlet for this compressor is 3/4" My question is can I use a 1" main line for this compressor without affecting the compressor in any way?

    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor (Premium Package), 7.5 HP, 230 Volt, 1 Phase, 80 Gallon Vertical, Model# 2475N7.5-P"

    1. Yes, thats what I used

      Helpful?

    2. You can use 1" main line with no problem. It would not affect the compressor in any way.

      Helpful?

  2. Does the aftercooler remove water from the compressed air?

    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor (Premium Package), 7.5 HP, 230 Volt, 1 Phase, 80 Gallon Vertical, Model# 2475N7.5-P"

    1. it helps but no it does not remove water. it cools the air after leaving the compressor. the cooler the air the less condensation there will be.

      Helpful?

    2. The function of an after cooler is to cool the air the compressor discharges and eliminates the moisture that is in the compressed air.

      Helpful?

  3. Where can I buy the power cord adapter for this compressor?

    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor (Premium Package), 7.5 HP, 230 Volt, 1 Phase, 80 Gallon Vertical, Model# 2475N7.5-P"

    1. you will have to make on. you have to buy wire no matter what. what ever hardware store you get your wire from will have ends to put on your wire to make a power cord. most people hard wire it into the breaker box.

      Helpful?

    2. The power cord adapter can be purchased locally through a electrical supply store.

      Helpful?

  4. what is the premium package

    1 answer
    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor (Premium Package), 7.5 HP, 200 Volt, 3 Phase, 80 Gallon Vertical, Model# 2475N7.5-P"

    1. The premium package will include an air cooled after cooler, automatic electric tank drain, low oil level switch, mounted and wired magnetic starter and an automatic start/stop control.

      Helpful?

  5. Does it have after cooler included

    1 answer

    1. Yes, the Ingersoll Rand 2475N7.5‑P Premium 7.5 HP 80‑Gallon Air Compressor includes an air-cooled aftercooler as part of its Premium Package.

      Helpful?

  6. What brand electric motor is used on this compressor?

    1 answer
    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor (Premium Package), 7.5 HP, 230 Volt, 1 Phase, 80 Gallon Vertical, Model# 2475N7.5-P"

    1. The 7.5 horsepower motor is manufactured by Ingersoll Rand.

      Helpful?

  7. What direction should the motor turn on 3 ph mine has no arrows to indicate travel direction

    1 answer
    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor (Premium Package), 7.5 HP, 460 Volt, 3 Phase, 80 Gallon Vertical, Model# 2475N7.5-P"

    1. The motor would turn counter clockwise when looking at if from the front of the fill port.

      Helpful?

  8. Do you know what is the decibe level is for this compressor when its running?

    1 answer
    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor (Premium Package), 7.5 HP, 460 Volt, 3 Phase, 80 Gallon Vertical, Model# 2475N7.5-P"

    1. The decibel level for this is 85.

      Helpful?

  9. What does 3 phase motor means ?

    1 answer
    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor (Premium Package), 7.5 HP, 460 Volt, 3 Phase, 80 Gallon Vertical, Model# 2475N7.5-P"

    1. A three-phase motor operates on a three-phase source of power. A three-phase motor is more efficient than a single-phase motor.

      Helpful?

  10. We run a cabinet refinishing shop, what size air dryer would this unit use?

    1 answer
    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor (Premium Package), 7.5 HP, 460 Volt, 3 Phase, 80 Gallon Vertical, Model# 2475N7.5-P"

    1. You would want an air dryer that would cover the maximum CFM of the compressor, which is 24 CFM at the maximum 175 PSI. See our item #1592071 rated for 25 CFM or item 1592023 at 42 CFM.

      Helpful?
