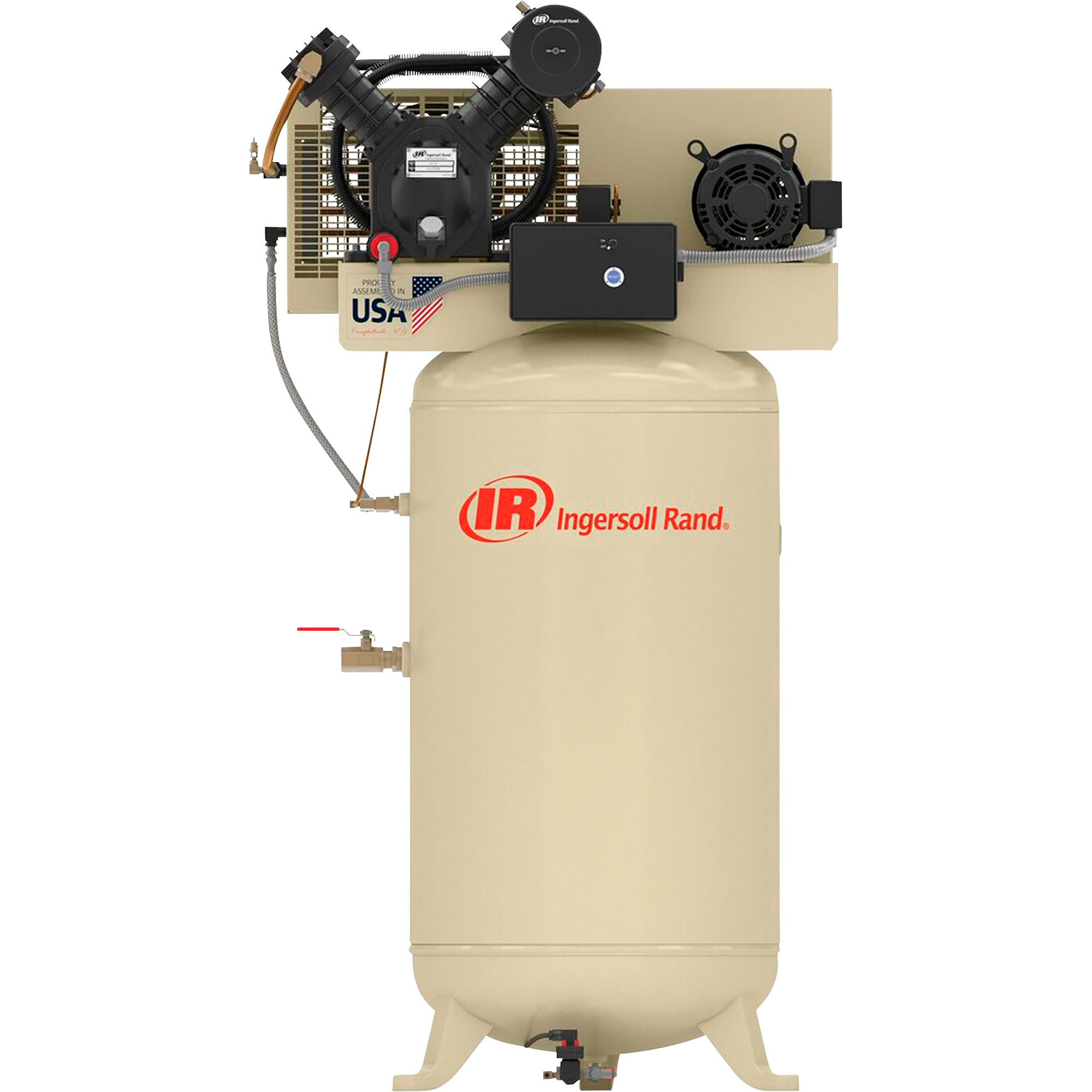

Ingersoll Rand Type-30 Reciprocating Air Compressor (Premium Package), 5 HP, 230 Volt, 1 Phase, 80 Gallon, Model# 2475N5FP

Item# 15920090A
"Ingersoll Rand Type-30 Reciprocating Air Compressor (Premium Package), 5 HP, 230 Volt, 1 Phase, 80 Gallon, Model# 2475N5FP"
Ingersoll Rand Type-30 Reciprocating Air Compressor (Premium Package), 5 HP, 230 Volt, 1 Phase, 80 Gallon, Model# 2475N5FP

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ingersoll Rand Type-30 Reciprocating Air Compressor (Premium Package), 5 HP, 230 Volt, 1 Phase, 80 Gallon, Model# 2475N5FP

Click or Tap image to Zoom

$4299.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Durable cast iron construction, long-lasting extended pump life is designed for over 15,000 hours of trouble-free use
  • 100% continuous-duty, 5 HP two-stage air compressor, 175 PSI maximum operating pressure and an 80-gallon ASME receiver tank provide plenty of punch for the most demanding applications
  • Individually cast cylinders, overhung crankshaft and one piece-connecting rod simplifies maintenance and service
  • All Season Select synthetic lubricant increases efficiency; with 2000 hours of service between change outs, it performs four times longer than petroleum-based lubricants
  • Extend the pump warranty to 2yrs by purchasing & using the 2yr Warranty Start Up Kit (Item# 1631984 - sold seperately)

See full description

Complete Your Solution

  • Ingersoll Rand Type-30 Reciprocating Air Compressor (Premium Package), 5 HP, 230 Volt, 1 Phase, 80 Gallon, Model# 2475N5FP
  • Ingersoll Rand, 2 Year Warranty Startup Kit - 2200/2340/2475/TS4 Model# 47853635004-R
  • Ingersoll Rand Non-Cycling Refrigerated Air Dryer — 25 CFM, Aluminum Heat Exchanger, Model# DA42INA100
  • Ingersoll Rand F-Series General 1 Micron Filter, 3/8in., 17 CFM, Model# FA30IG
Price for all four:

$7048.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Ingersoll Rand's legendary Type-30 air compressors have been providing unsurpassed performance in the most demanding applications for over 75 years. The Type-30 compressors are recognized as the industry's benchmark for quality, power and reliability -- that's why they remain the world's best-selling reciprocating compressor. Designed for heavy shop or industrial use, Ingersoll Rand electric-driven, two-stage air compressors provide the reliability and performance that are ideal for most applications including automotive service and body shops, fleet maintenance, machine shops, production and manufacturing lines, wood working shops, dry cleaners, car washes, general maintenance/repair shops and farms. Whether you're a small shop owner, auto body or repair business owner, or work in a demanding industrial environment, there is a Type-30 air compressor that will meet your needs. Premium Package compressor includes low-oil level switch, after cooler and automatic tank drain. Extend the warranty on the pump by purchasing using hte 2yr Warranty Start Up Kit (Item# 6131984 - sold seperately).

What's Included

    (1) Compressor

Downloads

Product Manual
Additional Product Info

Features + Benefits

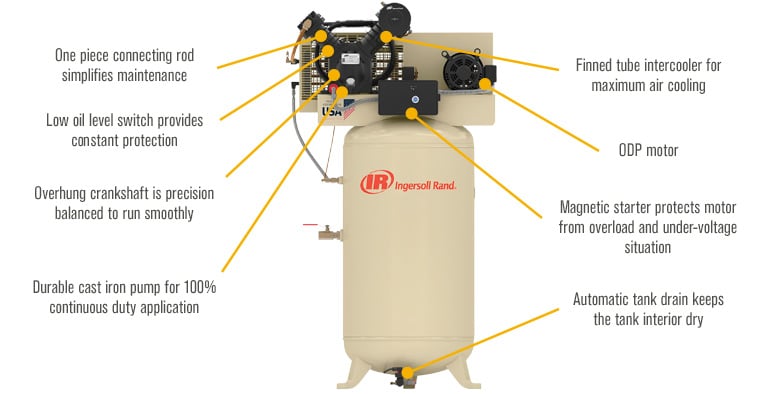

  • Durable cast iron construction, long-lasting extended pump life is designed for over 15,000 hours of trouble-free use
  • 100% continuous-duty, 5 HP two-stage air compressor, 175 PSI maximum operating pressure and an 80-gallon ASME receiver tank provide plenty of punch for the most demanding applications
  • Individually cast cylinders, overhung crankshaft and one piece-connecting rod simplifies maintenance and service
  • All Season Select synthetic lubricant increases efficiency; with 2000 hours of service between change outs, it performs four times longer than petroleum-based lubricants
  • Extend the pump warranty to 2yrs by purchasing & using the 2yr Warranty Start Up Kit (Item# 1631984 - sold seperately)
  • 100% cast iron construction
  • 1-pc. connecting rod

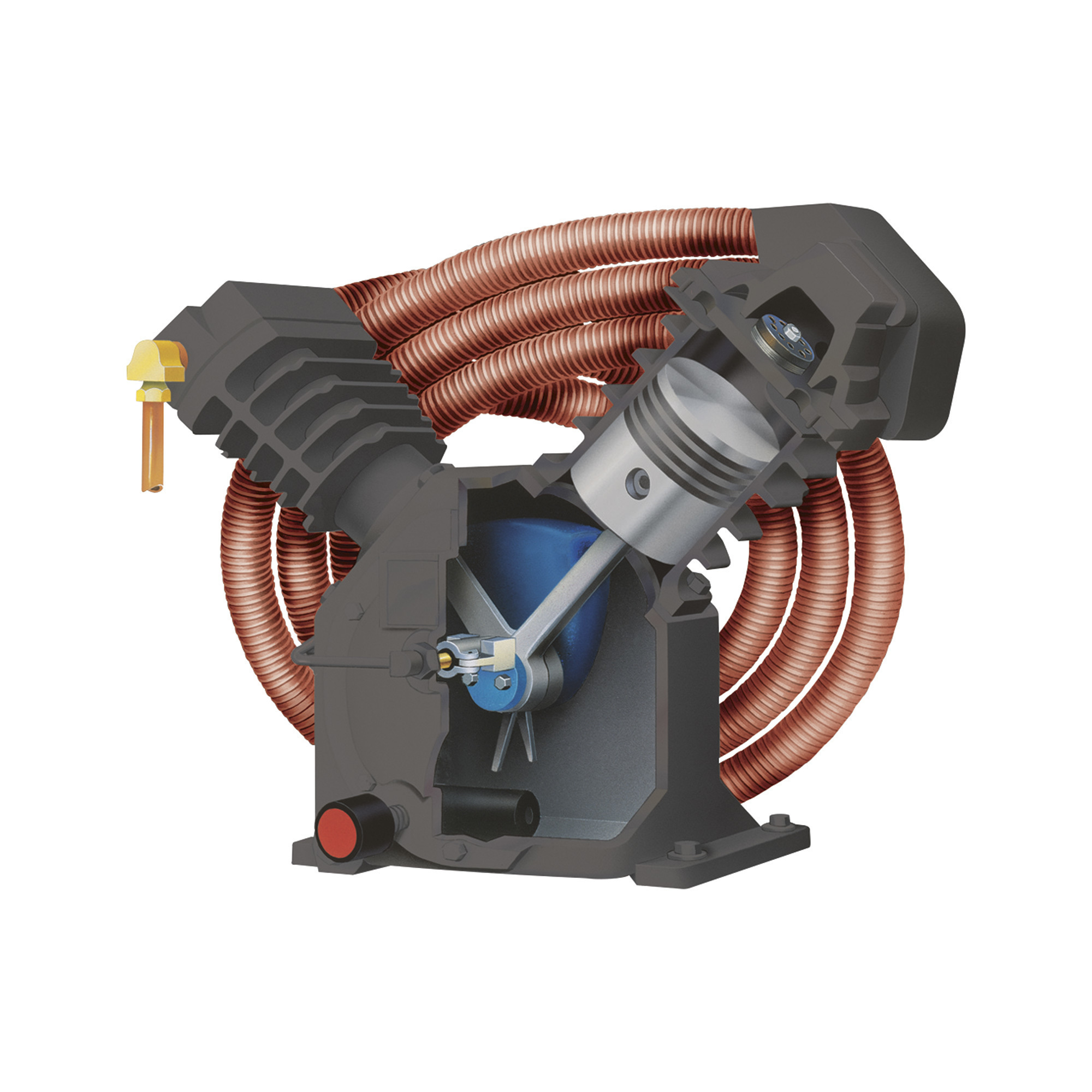

  • Finned copper intercooler
  • Extended 2-year warranty on the pump when you use maintenance kit #1592008

Key Specs

AttributeSpecification

item#

15920090A

Brand

Ingersoll Rand

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

597.0 LB

Air Tank Size

80 Gal

Volts

230

Motor Phase

1

Stage

2

Horsepower

5 HP

Max. PSI

175

Air Outlets (qty.)

1

Amps

28

Duty Cycle

1 %

Motor RPM

1,775

Working Pressure

175 PSI
AttributeSpecification

Engine Start Type

Electric

Pump Life

10,000 hr

Pump Material

Cast Iron

Air Outlet Size

3/4 in. NPT

CFM at Max. PSI

16.8

Noise Level

85 dB

Oil Required

Yes

Low Oil Shutdown

Yes

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

Yes

After Cooler Included

Yes

Drain Type

Manual

Product Weight

597.0000 lb

Dimensions L x W x H (in.)

30.0 x 37.0 x 73.0 in

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. how many cfm's at 90psi?

    1 answer

    1. The Ingersoll Rand air compressor will produce approximately 17 CFM @ 90 PSI.

      Helpful?

  2. What is the difference between the "NP" not packaged and "FP" fully packaged model?

    Ingersoll Rand Type-30 Reciprocating Air Compressor — 5 HP, 460 Volt 3 Phase, Model# 2475NP

    1 answer
    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor (Premium Package), 5 HP, 460 Volt, 3 Phase, 80 Gallon, Model# 2475N5FP"

    1. This Fully packaged Ingersall Rand Air Compressor includes low oil level switch, after cooler and automatic tank drain.

      Helpful?

  3. what size breaker and wire

    What are the electrical load specs for this compressor? What size d.p. breaker should be used and what size wire should be run? I have 100 amp sub panel in garage. There would be 50 feet in relation to the distance between sub panel and where the compressor would be placed.

    1 answer

    1. You will need a 60 amp breaker and use a minimum size wire of #12. It draws 28 amps at full load.

      Helpful?

  4. please provide the dimensions and air output

    1 answer

    1. The dimensions are: 70"H X 38"W X 26"L. This compressor puts out 16.8 CFM @ 175 PSI.

      Helpful?
