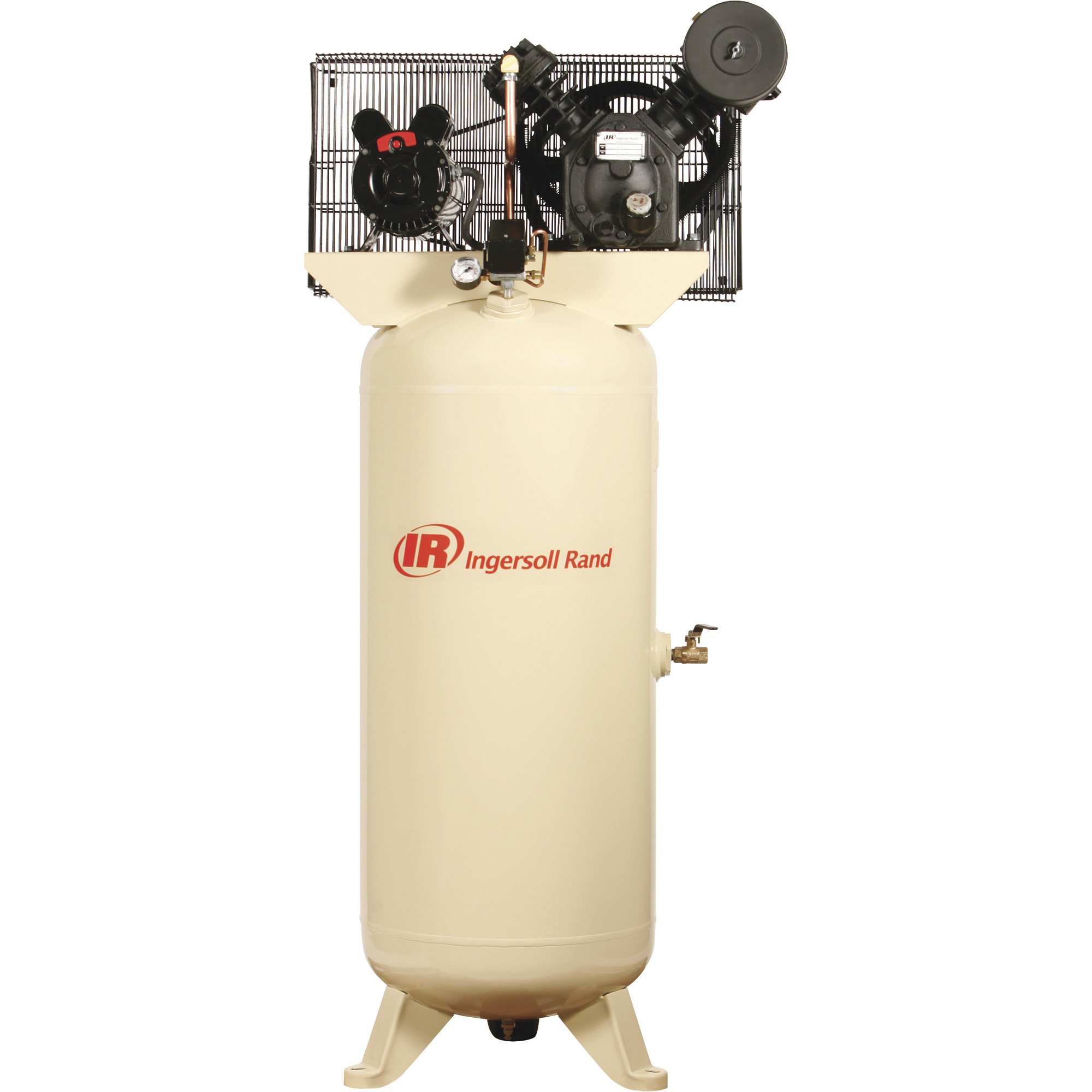

Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 60-Gallon Tank

Item# 1592007
Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 60-Gallon Tank
Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 60-Gallon Tank

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 60-Gallon Tank

Click or Tap image to Zoom

From

$2239.99

Choose Options for complete product description, reviews and purchasing.

VOLTAGE

PHASE

See full description

  • Description

  • Reviews

  • Q & A

  • Accessories

  • Warranty

Product Summary

Ingersoll Rand's legendary Type-30 air compressors have been providing unsurpassed performance in the most demanding applications for over 75 years. The Type-30 compressors are recognized as the industry's benchmark for quality, power and reliability — that's why they remain the world's best-selling reciprocating compressor. Whether you're a small shop owner, auto body or repair business owner or work in a demanding industrial environment, there is a Type-30 air compressor that will meet your needs. Warranty on the reciprocating pump extends from 1 year to 2 years with the use of appropriate maintenance kit (see below).

Features + Benefits

Features + Benefits

Reviews

Questions & Answers

46 Reviews This action will navigate to reviews.

Questions

1–10 of 40 Questions
Sort by:

  1. what about the noise level?

    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 230 Volt 1 Phase, 60 Gallon Tank, Model# 2340L5-V"

    1. The noise level is low due to the vibration pads.

      Helpful?

    2. Much quieter compared to the previous compressor I had.

      Helpful?

    3. This air compressor has decibel rating of 85.

      Helpful?

  2. In a dirty environment (coal ash from forge) does the motor and radiator need extra protection?

    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 230 Volt 1 Phase, 60 Gallon Tank, Model# 2340L5-V"

    1. The motor and radiator always need to be clear and able to get adequate ventilation. In an especially dirty environment, they may require more frequent cleanings to remove any foreign materials that would hamper it's cooling ability.

      Helpful?

    2. I contacted Ingersoll Rand. They said that no extra protection was needed, but more frequent service might be advised.

      Helpful?

  3. what is the difference in a single phase and three phase motor

    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 230 Volt 1 Phase, 60 Gallon Tank, Model# 2340L5-V"

    1. In addition to the Staff answer, in general, Single Phase motors are for Residential (DIY) use and Three Phase are considered Commercial use and need special electrical service.

      Helpful?

    2. Single Phase motors have low starting torque whereas a three phase motor will have higher starting torque. Single phase motors are also less efficient compared to three phase motors.

      Helpful?

  4. What is the operating RPM of the motor?

    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 230 Volt 1 Phase, 60 Gallon Tank, Model# 2340L5-V"

    1. 3450 RPM

      Helpful?

    2. The motor for this Ingersoll Rand Type-30 Reciprocating Air Compressor will run at 3450 rpm.

      Helpful?

  5. What is the cut-in pressure for the motor?

    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 230 Volt 1 Phase, 60 Gallon Tank, Model# 2340L5-V"

    1. 135 PSI

      Helpful?

    2. The cut in pressure would be 135 PSI, the cut out would be 155 PSI.

      Helpful?

  6. Can this compressor operate well in an unheated, uncooled, uninsulated outbuilding?

    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 230 Volt 1 Phase, 60 Gallon Tank, Model# 2340L5-V"

    1. Yes--that is where ours is--and has been in place for about five years.

      Helpful?

    2. If using in weather below 40 degrees Fahrenheit it may be recommended to use a lighter weight oil. Please contact the manufacturer direct for more information on how to winterize an air compressor.

      Helpful?

  7. what is difference between single & two stage

    what is difference between single & two stage

    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 230 Volt 1 Phase, 60 Gallon Tank, Model# 2340L5-V"

    1. The simple answer is that a two stage compressor will provide more pressure.

      A single stage compressor uses only one piston to compress the air and will typically produce no more than 150 psi. A two stage compressor uses a primary piston to compress the air and secondary piston to compress the air further. A two stage compressor will typically produce 175+ psi.

      Note: Do not confuse stage with phase. Single or two stage refers to the pump and single or 3 phase refers to the electrical requirement of the device.

      Helpful?

    2. The simple answer is that a two stage compressor will provide more pressure.

      A single stage compressor uses only one piston to compress the air and will typically produce no more that 150 psi. A two stage compressor uses a primary piston to compress the air and secondary piston to compress the air further. A two stage compressor will typically produce 175+ psi.

      Note: Do not confuse stage with phase. Single or two stage refers to the pump and single or 3 phase refers to the electrical requirement of the device.

      Helpful?

  8. What CFM is it Thanks

    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 230 Volt 1 Phase, 60 Gallon Tank, Model# 2340L5-V"

    1. The cubic feet a minute on this Ingersoll Rand Compressor is 14 at 175 psi.

      Helpful?

    2. 14.0 cfm @ 175 psi for the 2340 L5-V

      Helpful?

  9. what does it weigh

    1 answer
    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 230 Volt 1 Phase, 60 Gallon Tank, Model# 2340L5-V"

    1. This unit weighs 435 pounds.

      Helpful?

  10. Does this compressor require a magnetic starter?

    1 answer
    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 230 Volt 1 Phase, 60 Gallon Tank, Model# 2340L5-V"

    1. The 2340 package with single phase voltage does not come with a magnetic starter.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts / 12 months labor
