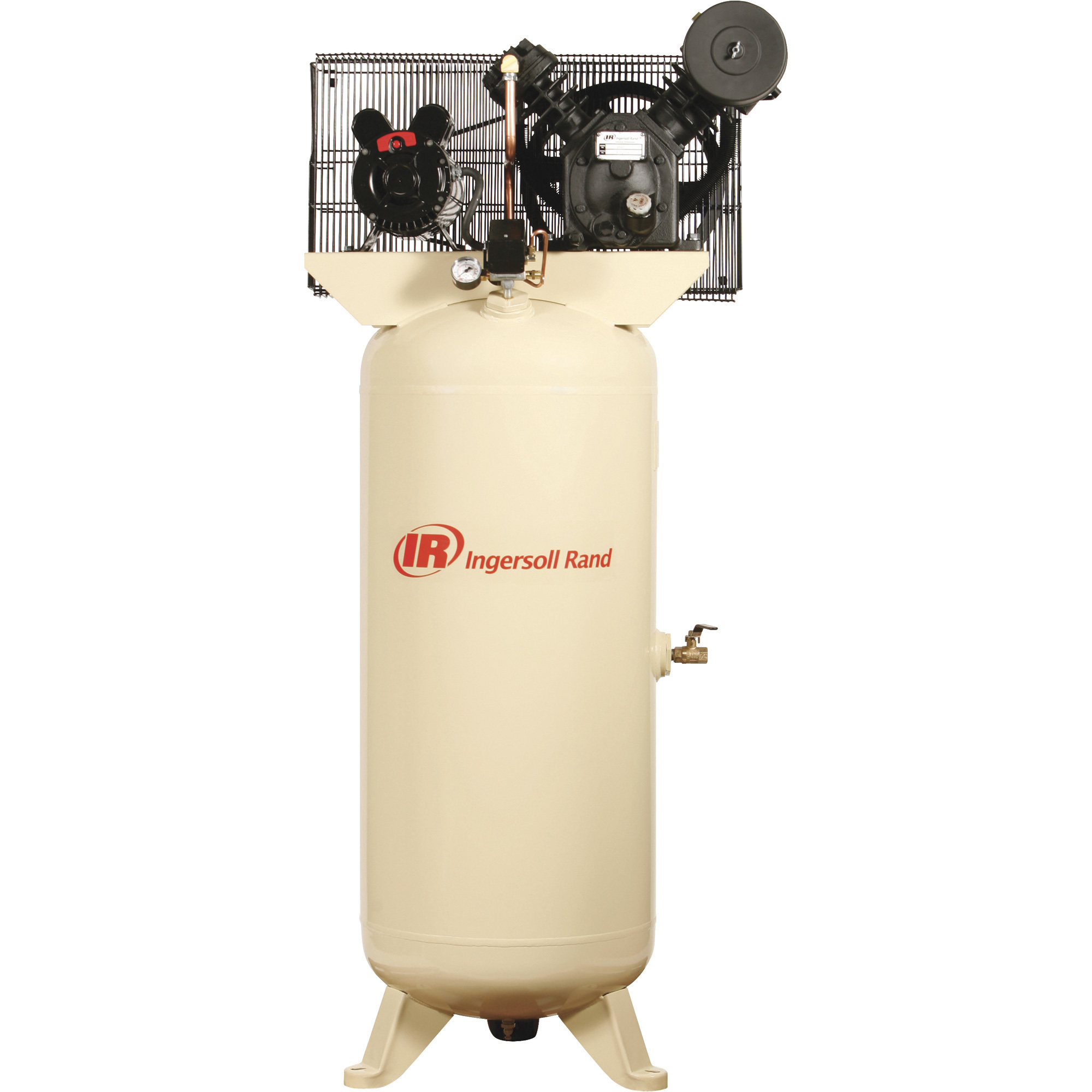

Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 230 Volt 1 Phase, 60 Gallon Tank, Model# 2340L5-V

Item# 1592007A
Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 230 Volt 1 Phase, 60 Gallon Tank, Model# 2340L5-V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 230 Volt 1 Phase, 60 Gallon Tank, Model# 2340L5-V

Click or Tap image to Zoom

$2239.99

Choose Options for complete product description, reviews and purchasing.

VOLTAGE

PHASE

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Durable 100% cast iron construction
  • Long-lasting extended pump life designed for over 15,000 hours of trouble-free use
  • Delivers 14.3 CFM @ 90 PSI
  • 100% continuous duty, 5 HP 2-stage air compressor
  • 175 PSI and a 60-gallon ASME receiver tank provide plenty of punch for the most demanding applications

See full description

Complete Your Solution

  • Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 230 Volt 1 Phase, 60 Gallon Tank, Model# 2340L5-V
  • Ingersoll Rand, 2 Year Warranty Startup Kit - 2200/2340/2475/TS4 Model# 47853635004-R
  • Ingersoll Rand Non-Cycling Refrigerated Dryer — 15 CFM, R513A Refrigerant, Aluminum Heat Exchanger, Model# DA25INA100
  • Ingersoll Rand F-Series General 1 Micron Filter, 3/8in., 17 CFM, Model# FA30IG
Price for all four:

$4157.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Ingersoll Rand's legendary Type-30 air compressors have been providing unsurpassed performance in the most demanding applications for over 75 years. The Type-30 compressors are recognized as the industry's benchmark for quality, power and reliability -- that's why they remain the world's best-selling reciprocating compressor. Whether you're a small shop owner, auto body or repair business owner, or work in a demanding industrial environment, there is a Type-30 air compressor that will meet your needs. Designed for heavy shop or industrial use, Ingersoll Rand electric-driven, two-stage air compressors provide the reliability and performance that are ideal for most applications including automotive service and body shops, fleet maintenance, machine shops, production and manufacturing lines, wood working shops, dry cleaners, car washes, general maintenance/repair shops and farms. Warranty on the reciprocating pump extends from 1 year to 2 years with the purchae use of the 2yr Warranty Start Up Kit# 6131984 - sold seperately

What's Included

    (1) 5 HP, 60-gallon vertical air compressor

Downloads

Product Manual
Additional Product Info

Features + Benefits

Key Specs

AttributeSpecification

item#

1592007A

Brand

Ingersoll Rand

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

537.0 LB

Air Tank Size

60 Gal

Volts

230

Motor Phase

1

Stage

2

Horsepower

5 HP

Max. PSI

175

Air Outlets (qty.)

1

Amps

22.5

Duty Cycle

1 %

Motor RPM

3,450

Working Pressure

175 PSI

Engine Start Type

Electric
AttributeSpecification

Pump Life

10,000 hr

Pump Material

Cast Iron

Air Outlet Size

1/2 in. NPT

CFM at Max. PSI

14.0

Noise Level

85 dB

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Tank Fill Time

6.5 min

Drain Type

Manual

Product Weight

435.0000 lb

Dimensions L x W x H (in.)

20.0 x 33.0 x 69.0 in

Reviews

Questions & Answers

46 Reviews This action will navigate to reviews.

Questions

1–10 of 40 Questions
Sort by:

  1. what about the noise level?

    1. The noise level is low due to the vibration pads.

      Helpful?

    2. Much quieter compared to the previous compressor I had.

      Helpful?

    3. This air compressor has decibel rating of 85.

      Helpful?

  2. In a dirty environment (coal ash from forge) does the motor and radiator need extra protection?

    1. The motor and radiator always need to be clear and able to get adequate ventilation. In an especially dirty environment, they may require more frequent cleanings to remove any foreign materials that would hamper it's cooling ability.

      Helpful?

    2. I contacted Ingersoll Rand. They said that no extra protection was needed, but more frequent service might be advised.

      Helpful?

  3. what is the difference in a single phase and three phase motor

    1. In addition to the Staff answer, in general, Single Phase motors are for Residential (DIY) use and Three Phase are considered Commercial use and need special electrical service.

      Helpful?

    2. Single Phase motors have low starting torque whereas a three phase motor will have higher starting torque. Single phase motors are also less efficient compared to three phase motors.

      Helpful?

  4. What is the operating RPM of the motor?

    1. 3450 RPM

      Helpful?

    2. The motor for this Ingersoll Rand Type-30 Reciprocating Air Compressor will run at 3450 rpm.

      Helpful?

  5. What is the cut-in pressure for the motor?

    1. 135 PSI

      Helpful?

    2. The cut in pressure would be 135 PSI, the cut out would be 155 PSI.

      Helpful?

  6. Can this compressor operate well in an unheated, uncooled, uninsulated outbuilding?

    1. Yes--that is where ours is--and has been in place for about five years.

      Helpful?

    2. If using in weather below 40 degrees Fahrenheit it may be recommended to use a lighter weight oil. Please contact the manufacturer direct for more information on how to winterize an air compressor.

      Helpful?

  7. what is difference between single & two stage

    what is difference between single & two stage

    1. The simple answer is that a two stage compressor will provide more pressure.

      A single stage compressor uses only one piston to compress the air and will typically produce no more than 150 psi. A two stage compressor uses a primary piston to compress the air and secondary piston to compress the air further. A two stage compressor will typically produce 175+ psi.

      Note: Do not confuse stage with phase. Single or two stage refers to the pump and single or 3 phase refers to the electrical requirement of the device.

      Helpful?

    2. The simple answer is that a two stage compressor will provide more pressure.

      A single stage compressor uses only one piston to compress the air and will typically produce no more that 150 psi. A two stage compressor uses a primary piston to compress the air and secondary piston to compress the air further. A two stage compressor will typically produce 175+ psi.

      Note: Do not confuse stage with phase. Single or two stage refers to the pump and single or 3 phase refers to the electrical requirement of the device.

      Helpful?

  8. What CFM is it Thanks

    1. The cubic feet a minute on this Ingersoll Rand Compressor is 14 at 175 psi.

      Helpful?

    2. 14.0 cfm @ 175 psi for the 2340 L5-V

      Helpful?

  9. what does it weigh

    1 answer

    1. This unit weighs 435 pounds.

      Helpful?

  10. Does this compressor require a magnetic starter?

    1 answer

    1. The 2340 package with single phase voltage does not come with a magnetic starter.

      Helpful?
