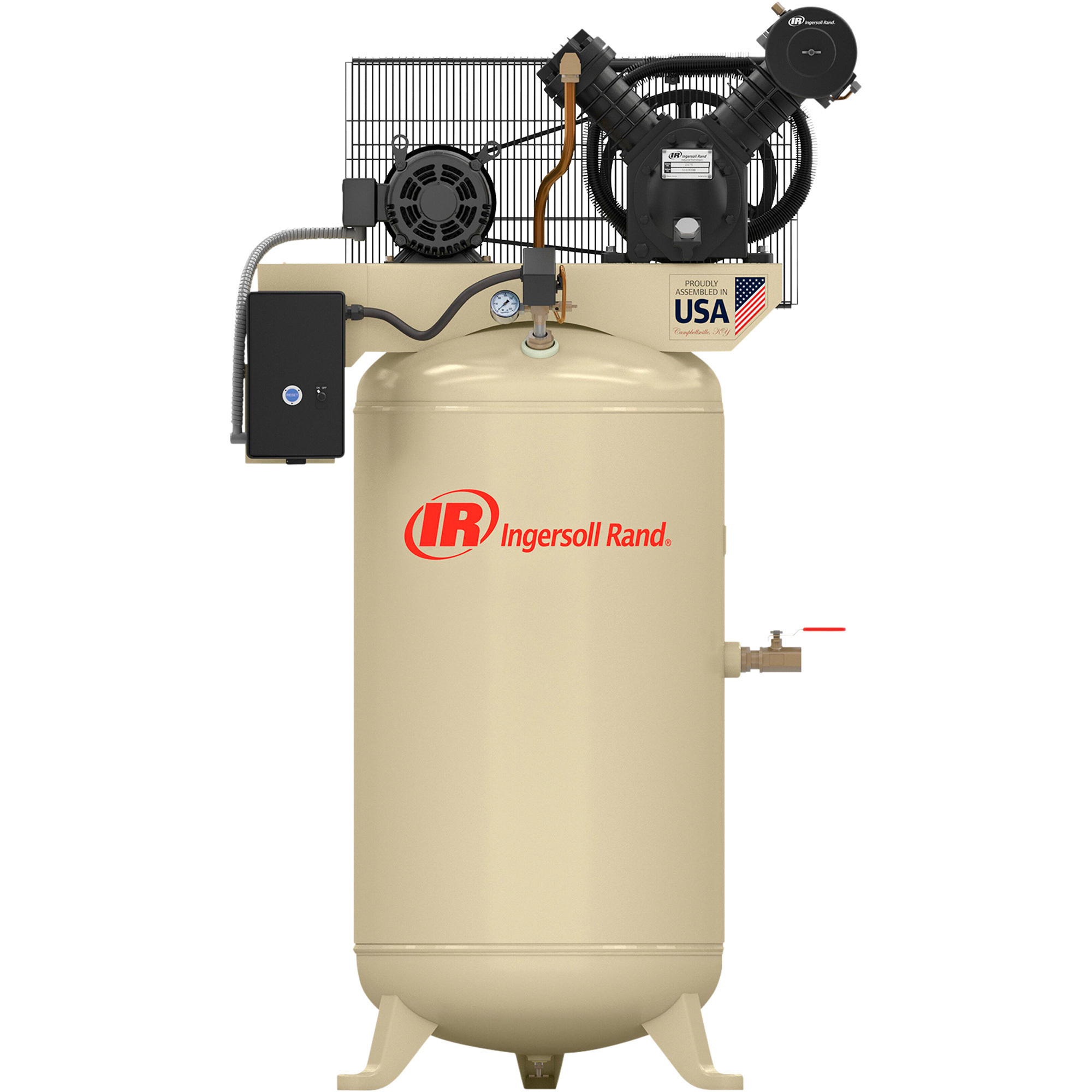

Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 460 Volt 3 Phase, 80 Gallon, Model# 2475N5-V

Item# 1592009D
"Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 460 Volt 3 Phase, 80 Gallon, Model# 2475N5-V"
Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 460 Volt 3 Phase, 80 Gallon, Model# 2475N5-V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 460 Volt 3 Phase, 80 Gallon, Model# 2475N5-V

Click or Tap image to Zoom

$3399.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Durable cast iron construction, long-lasting extended pump life designed for over 15,000 hours of trouble-free use
  • 100% continuous-duty, 5 HP two-stage air compressor, 175 PSI maximum operating pressure and an 80-gallon ASME receiver tank provide plenty of punch for the most demanding applications
  • Individually cast cylinders, overhung crankshaft and one-piece connecting rod simplifies maintenance and service
  • All Season Select synthetic lubricant increases efficiency
  • With 2000 hours of service between change outs, it performs four times longer than petroleum-based lubricants

See full description

Complete Your Solution

  • Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 460 Volt 3 Phase, 80 Gallon, Model# 2475N5-V
  • Ingersoll Rand, 2 Year Warranty Startup Kit - 2200/2340/2475/TS4 Model# 47853635004-R
  • Ingersoll Rand Non-Cycling Refrigerated Air Dryer — 25 CFM, Aluminum Heat Exchanger, Model# DA42INA100
  • Ingersoll Rand F-Series General 1 Micron Filter, 3/8in., 17 CFM, Model# FA30IG
Price for all four:

$6148.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Ingersoll Rand's legendary Type-30 air compressors have been providing unsurpassed performance in the most demanding applications for over 75 years. The Type-30 compressors are recognized as the industry's benchmark for quality, power and reliability -- that's why they remain the world's best-selling reciprocating compressor. Designed for heavy shop or industrial use, Ingersoll Rand electric-driven, two-stage air compressors provide the reliability and performance that are ideal for most applications including automotive service and body shops, fleet maintenance, machine shops, production and manufacturing lines, wood working shops, dry cleaners, car washes, general maintenance/repair shops and farms. Whether you're a small shop owner, auto body or repair business owner, or work in a demanding industrial environment, there is a Type-30 air compressor that will meet your needs. Warranty on the reciprocating pump extends from 1 year to 2 years with the use of the 2yr Warranty Start Up Kit # 6131984 - sold seperately

What's Included

    (1) Compressor

Downloads

Product Manual
Additional Product Info

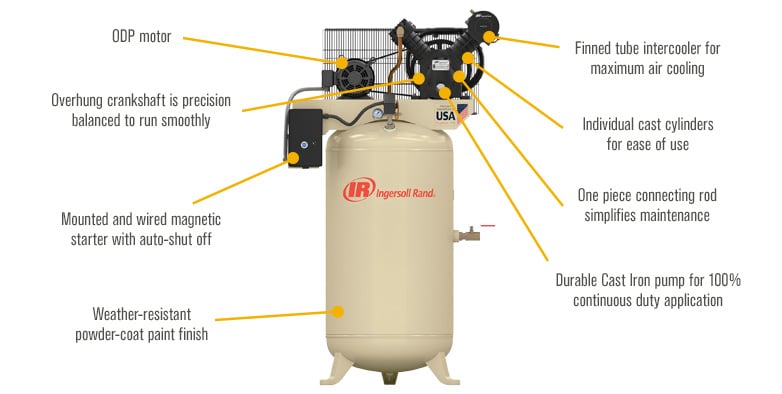

Features + Benefits

  • Durable cast iron construction, long-lasting extended pump life designed for over 15,000 hours of trouble-free use
  • 100% continuous-duty, 5 HP two-stage air compressor, 175 PSI maximum operating pressure and an 80-gallon ASME receiver tank provide plenty of punch for the most demanding applications
  • Individually cast cylinders, overhung crankshaft and one-piece connecting rod simplifies maintenance and service
  • All Season Select synthetic lubricant increases efficiency
  • With 2000 hours of service between change outs, it performs four times longer than petroleum-based lubricants
  • Extend your pump warranty to 2yrs with the purchase & use of a 2yr Warranty Start Up Kit (Item# 6131984 - sold seperately)
  • 100% cast iron construction
  • 1-pc. connecting rod
  • Finned copper intercooler

Key Specs

AttributeSpecification

item#

1592009D

Brand

Ingersoll Rand

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

610.0 LB

Air Tank Size

80 Gal

Volts

460

Motor Phase

3

Stage

2

Horsepower

5 HP

Max. PSI

175

Air Outlets (qty.)

1

Amps

7.6

Duty Cycle

1 %

Motor RPM

1,775

Working Pressure

175 PSI
AttributeSpecification

Engine Start Type

Electric

Pump Life

10,000 hr

Pump Material

Cast Iron

Air Outlet Size

3/4 in. NPT

CFM at Max. PSI

16.8

Noise Level

85 dB

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Drain Type

Manual

Product Weight

610.0000 lb

Dimensions L x W x H (in.)

26.0 x 38.0 x 70.0 in

Reviews

Questions & Answers

5 Reviews This action will navigate to reviews.

Questions

1–8 of 8 Questions
Sort by:

  1. Hi there; Do you have this compressor with 7.5 HP ??

    1 answer
    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 230 Volt 3 Phase, 80 Gallon, Model# 2475N5-V"

    1. This compressor is available in a 7.5 HP model, our item number 1592003C.

      Helpful?

  2. Hi please confirm what amp breaker is needed for a triple pole breaker for this particular model.

    1 answer
    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 230 Volt 3 Phase, 80 Gallon, Model# 2475N5-V"

    1. The compressor would require a 40 amp breaker.

      Helpful?

  3. Does this unit come complete with motor starter?

    1 answer
    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 230 Volt 3 Phase, 80 Gallon, Model# 2475N5-V"

    1. The compressor would come complete with motor starter.

      Helpful?

  4. 2475N5-V vs 2475N5-P

    What is the difference between the 2475N5-V and 2475N5-P? Thanks.

    1 answer
    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 230 Volt 1 Phase, Model# 2475N5-V"

    1. The model 2475N5-P is fully packaged. The fully packaged compressors include low oil level switch, after cooler and tank drain.

      Helpful?

  5. What's the motor/pump RPM & decibels?

    1 answer
    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 230 Volt 1 Phase, Model# 2475N5-V"

    1. The Ingersoll Rand type-30 reciprocating air compressor - 5 HP, 230 Volt 1 Phase has a decibel rating of 79.4 and the motor runs 3450 RPM.

      Helpful?

  6. Picture

    Does this unit have an aftercooler? and automatic drain valve?

    Thank you, Dale

    1 answer
    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 200 Volt 3 Phase, Model# 2475N5-V"

    1. This Ingersoll Rand unit does not have a after cooler, or automatic tank drain.

      Helpful?

  7. How many Amps does a 5 hp 230 3 phase motor draw?

    1 answer
    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 230 Volt 3 Phase, 80 Gallon, Model# 2475N5-V"

    1. The 5hp, 230volt 3 phase motor draws a maximum of 15.2 amps at full load.

      Helpful?

  8. Model Differences

    I did a "compare" between this item and item #1592012A. Everything is the same. Based on the pictures it looks like the motors are different but both are 5HP. What do I get for the extra $700?

    1 answer
    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 230 Volt 1 Phase, Model# 2475N5-V"

    1. Everything is the same except for the pump size.

      Item # 1592012A has a smaller pump and produces 14 CFM (cubic feet per minute) at 175 PSI (pounds per square inch.)

      Item # 1592009A has a larger pump and produces 16.8 CFM at 175 PSI.

      Helpful?
