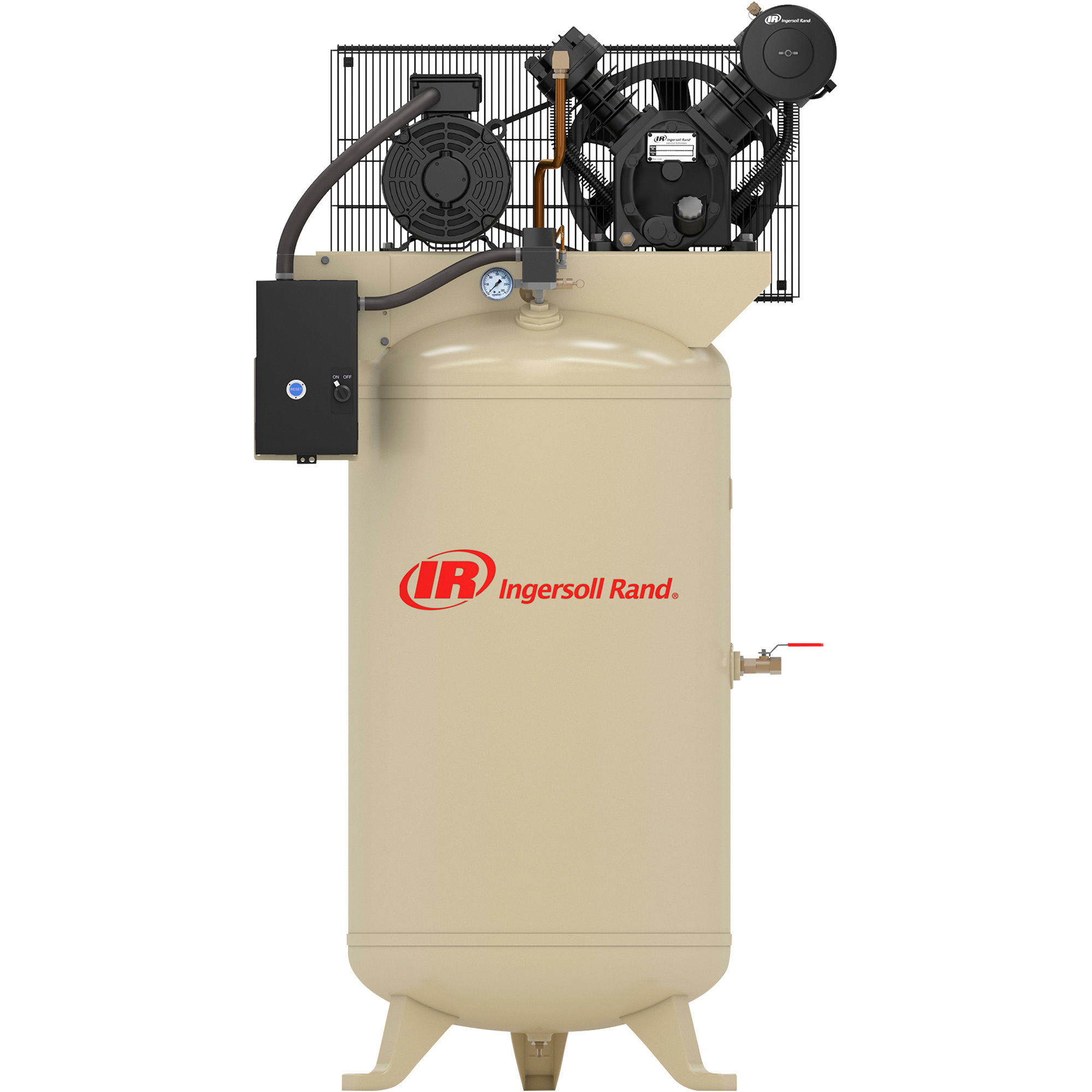

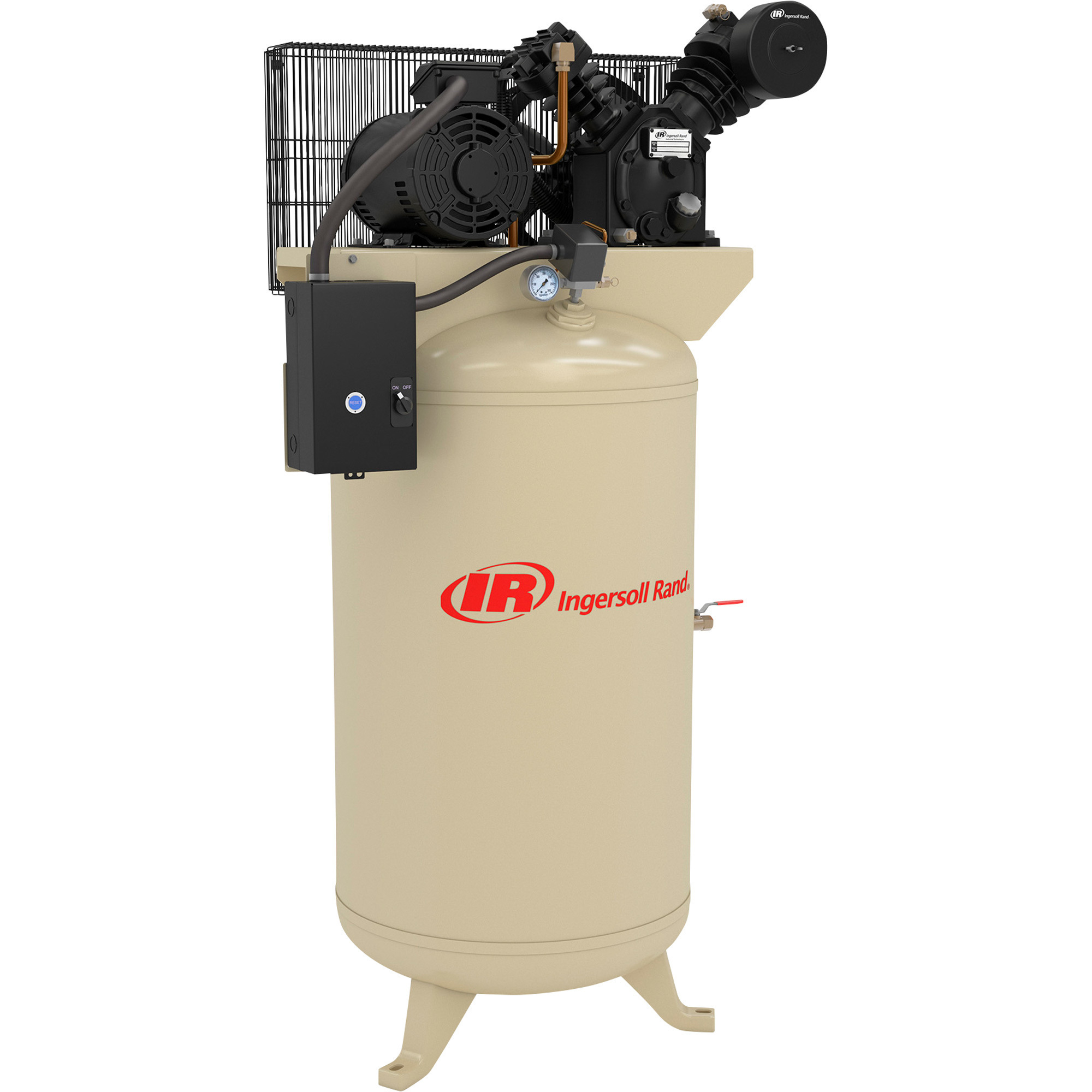

Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 230 Volt, 3 Phase, 80 Gallon, Model# 2340N5-V

Item# 1592012C
"Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 230 Volt, 3 Phase, 80 Gallon, Model# 2340N5-V"
Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 230 Volt, 3 Phase, 80 Gallon, Model# 2340N5-V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 230 Volt, 3 Phase, 80 Gallon, Model# 2340N5-V

Click or Tap image to Zoom

$2649.99

Choose Options for complete product description, reviews and purchasing.

VOLTAGE

PHASE

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Durable 100% cast iron construction
  • Long-lasting extended pump life designed for over 15,000 hours of trouble-free use
  • Delivers 14.3 CFM @ 90 PSI
  • 100% continuous duty, 5 HP 2-stage air compressor
  • 175 PSI and a 80-gallon ASME receiver tank provide plenty of punch for the most demanding applications

See full description

Complete Your Solution

  • Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 230 Volt, 3 Phase, 80 Gallon, Model# 2340N5-V
  • Ingersoll Rand, 2 Year Warranty Startup Kit - 2200/2340/2475/TS4 Model# 47853635004-R
  • Ingersoll Rand F-Series General 1 Micron Filter, 3/8in., 17 CFM, Model# FA30IG
  • Ingersoll Rand Non-Cycling Refrigerated Dryer — 15 CFM, R513A Refrigerant, Aluminum Heat Exchanger, Model# DA25INA100
Price for all four:

$4567.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Ingersoll Rand's legendary Type-30 air compressors have been providing unsurpassed performance in the most demanding applications for over 75 years. The Type-30 compressors are recognized as the industry's benchmark for quality, power and reliability -- that's why they remain the world's best-selling reciprocating compressor. Whether you're a small shop owner, auto body or repair business owner, or work in a demanding industrial environment, there is a Type-30 air compressor that will meet your needs. Designed for heavy shop or industrial use, Ingersoll Rand electric-driven, two-stage air compressors provide the reliability and performance that are ideal for most applications including automotive service and body shops, fleet maintenance, machine shops, production and manufacturing lines, wood working shops, dry cleaners, car washes, general maintenance/repair shops and farms. Warranty on the reciprocating pump extends from 1 year to 2 years with the use of the 2yr Warranty Start Up Kit (Item# 6131984, sold separately).

What's Included

    (1) Compressor with 80-gallon tank

Downloads

Product Manual
Additional Product Info

Features + Benefits

Key Specs

AttributeSpecification

item#

1592012C

Brand

Ingersoll Rand

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

481.0 LB

Air Tank Size

80 Gal

Volts

230

Motor Phase

3

Stage

2

Horsepower

5 HP

Max. PSI

175

Air Outlets (qty.)

1

Amps

15.2

Duty Cycle

1 %

Motor RPM

3,450

Working Pressure

175 PSI
AttributeSpecification

Engine Start Type

Electric

Pump Life

10,000 hr

Pump Material

Cast Iron

Air Outlet Size

1/2 in. NPT

CFM at Max. PSI

14.0

Noise Level

85 dB

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Drain Type

Manual

Product Weight

475.0000 lb

Dimensions L x W x H (in.)

24.0 x 33.0 x 67.0 in

Reviews

Questions & Answers

33 Reviews This action will navigate to reviews.

Questions

1–10 of 24 Questions
Sort by:

  1. does this compressor come with a plug or needs to be direct wired?

    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 230 Volt, Single Phase, 80 Gallon, Model# 2340N5-V"

    1. Direct wire

      Helpful?

    2. The compressor would need to be direct wired.

      Helpful?

  2. What IR regulator will work?

    What IR regulator will work with this compressor? I noticed that the compressor is rated at 175 psi while the IR regulators available are only rated for 150 psi?

    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 230 Volt, Single Phase, 80 Gallon, Model# 2340N5-V"

    1. This Ingersoll Rand Type-30 Reciprocating Air Compressor can be used with regulators, item 404799 and 404800.

      Helpful?

    2. This Ingersoll Rand Type-30 Reciprocating Air Compressor can be used with the regulators listed below.

      Helpful?

  3. Do you sell parts for Ingersoll Rand Air Compressors?

    1 answer

    1. Replacement parts would be available through the manufacturer.

      Helpful?

  4. how do you check the oil level

    1 answer
    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 230 Volt, Single Phase, 80 Gallon, Model# 2340N5-V"

    1. There should be a sight glass or dip stick on the compressor. The dipstick would be found on the compressors crankcase. The instructions should be listed in your product manual.

      Helpful?

  5. ordered a 230 volt instead of a 460v, what items will need to be changed on this to make it 460v?

    1 answer

    1. You would need to contact the manufacturer for a conversion kit to change the 230 volt to 460 volt.

      Helpful?

  6. What thread size is the air inlet?

    1 answer
    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 230 Volt, Single Phase, 80 Gallon, Model# 2340N5-V"

    1. The air inlet would be 1/2" NPT.

      Helpful?

  7. what brand motor.and where is it made

    1 answer
    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 230 Volt, Single Phase, 80 Gallon, Model# 2340N5-V"

    1. The electric motor is made by Ingersoll Rand in Italy.

      Helpful?

  8. What kind of oil do I use in the motor for the compressor?

    1 answer

    1. The recommended oil to use with the compressor will be a Type 30 compressor oil item number 1592005. This is a 20W-40 oil. We also offer a compressor maintenance kit item number 1592008. This will include 4 quarts of oil and two air filters.

      Helpful?

  9. How many watts does it take to run this air compressor

    1 answer
    Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 5 HP, 230 Volt, Single Phase, 80 Gallon, Model# 2340N5-V"

    1. This item requires a 230 volt 60 Amp double pole breaker. It will need to be hardwired, and will take approximately 14,000 watts.

      Helpful?

  10. Is this unit rated for outdoor installation

    1 answer

    1. The air compressor is rated for indoor installation only.

      Helpful?
