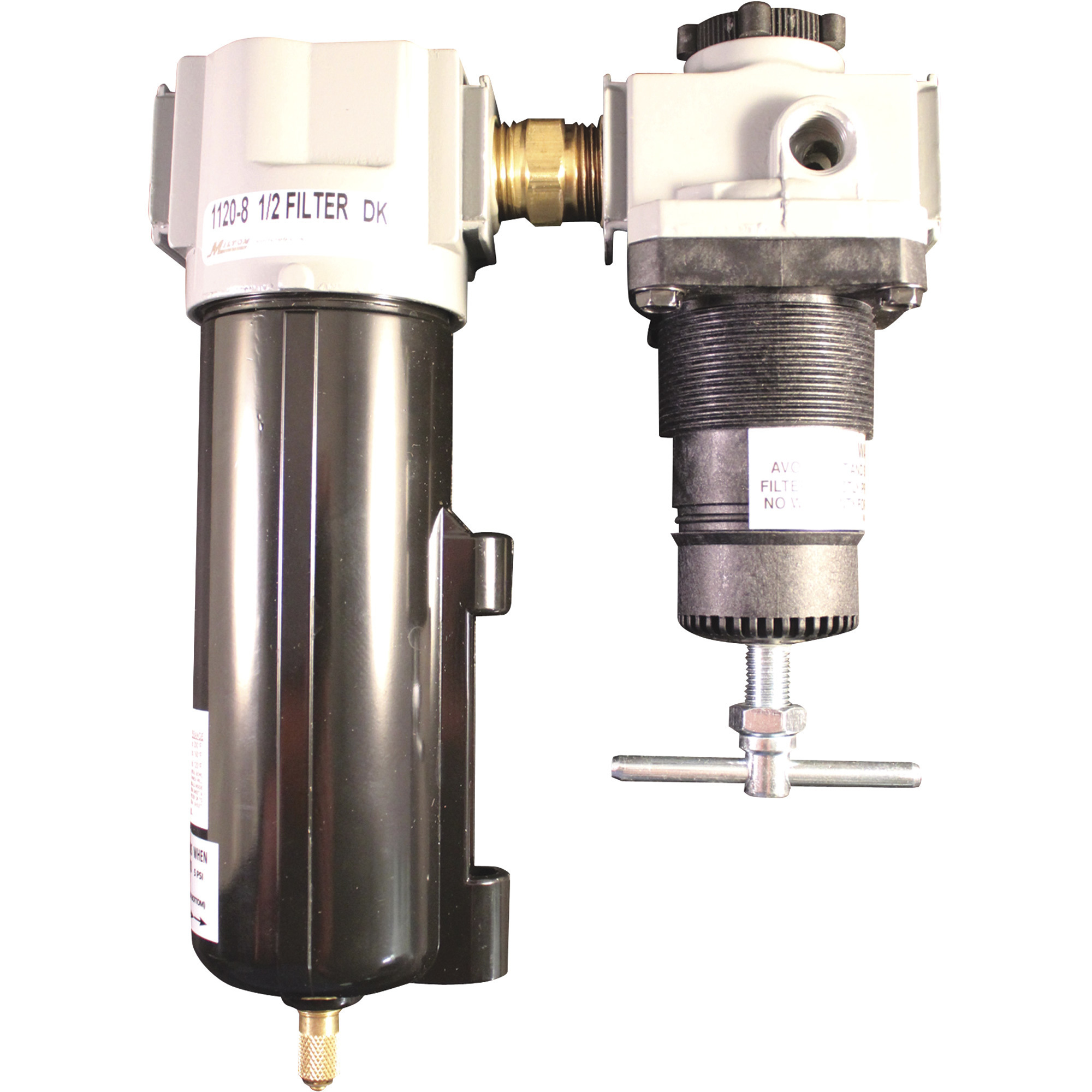

Milton Air Filter Regulator with Metal Bowl, 1/2in. NPT Inlet, 0-160 PSI, 100 CFM, Model# 1108

Item# 159673
"Milton Air Filter Regulator with Metal Bowl, 1/2in. NPT Inlet, 0-160 PSI, 100 CFM, Model# 1108"
Milton Air Filter Regulator with Metal Bowl, 1/2in. NPT Inlet, 0-160 PSI, 100 CFM, Model# 1108

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Milton Air Filter Regulator with Metal Bowl, 1/2in. NPT Inlet, 0-160 PSI, 100 CFM, Model# 1108

Click or Tap image to Zoom

$175.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 2-125 PSI outlet pressure
  • 9 oz. porous bronze 40 micron filter element allows less pressure drop and longer cleaning intervals

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Factory-assembled 1/2in. NPT FR duo air filter regulator has 0-160 PSI gauge with metal bowl and a 5-125 PSI regulator. Automatic overnight drain. Made in U.S.A.

What's Included

    (1) Filter (1) Regulator

Features + Benefits

  • 2-125 PSI outlet pressure
  • 9 oz. porous bronze 40 micron filter element allows less pressure drop and longer cleaning intervals

Key Specs

AttributeSpecification

item#

159673

Brand

Milton Industries

Manufacturer's Warranty

1 year limited warranty

Ship Weight

3.61 LB

CFM

100 cfm

Inlet Diameter

0.5 in
AttributeSpecification

Outlet Diameter

0.5 in

Recommended Use

Filter and Regulator

Max. PSI

250

Product Weight

lb

Dimensions L x W x H (in.)

8.5 x 6.3 x 3.75 in

Reviews

Questions & Answers

35 Reviews This action will navigate to reviews.

Questions

1–10 of 17 Questions
Sort by:

  1. What is the Max. output pressure

    I need 140-150 psi output pressure.

    1. mine is set at 150. no problems.

      Helpful?

    2. The max output pressure of this item is 160 PSI.

      Helpful?

  2. Which side is the air inlet on?

    1. On the left (filter) side.

      Helpful?

    2. The air inlet is on the side where it enters into the filter and the outlet is on the side with the regulator.

      Helpful?

  3. Does Auto-Drain feature drain tank pressure?

    Does the Auto Drain feature also bleed the tank pressure slowly so that every day the tank will need to be taken from 0-operating pressure? I use my compressor infrequently, but don't want to have to wait 8 minutes for it to come up to pressure every time I want to use it.

    1. Yes, the auto drain only splits out water when the main tank gets below 5 pounds pressure and I only allow this to work once a month. Remember that this drain only collects moisture that you use from the actual hose and 99% of the water collects at the bottom of the pressure tank which is usually only drained at the end of each day by opening a separate drain cock at the bottom of the tank for a second or two. No need to let all the air out, just a pound or two.

      Helpful?

    2. The auto drain feature will not drain the tank, only the bowl.

      Helpful?

  4. Does this have a sight glass?

    I can't quite tell from the pictures but is there a sight glass to let you see the water level in the filter bowl?

    1. No...

      Helpful?

    2. This MIlton filter regulator has a metal bowl and not a sight glass.

      Helpful?

  5. Will this product work if it is not in a vertical position?

    1. No, Since the water collects by gravity in the chamber I do not think the unit will work the way you describe. The set up must be mounted as in the pictures.

      Helpful?

    2. This Milton air filter portion would need to be in the vertical position to work. The regulator would work in any position.

      Helpful?

  6. is this a good choice for using with a HVLP paint gun or will i need a different type of water separator?

    1. To be safe I used another moisture filter as well. I found this catches some but not all moisture, it saves filters.

      Helpful?

    2. This air filter regulator with metal bowl can be used with an HVLP paint gun and should do a good job of keeping the water out.

      Helpful?

  7. What does the automatic overnight drain do?

    What does the automatic overnight drain do? Also, will this product work on a 175 PSI tank?

    1. when the air pressure drops below 5 psi the valve in the bottom opens, and any water drains. when air pressure is again applied the valve closes.

      Helpful?

    2. Yes, this regulator will work on a compressor rated for 175 PSI. The automatic overnight drain will remove moisture automatically when the pressure goes below 5 PSI.

      Helpful?

  8. 1/2in. NPT Inlet, is the outlet 1/2 also?

    1. Yes. 1/2 in 1/2 out

      Helpful?

    2. The outlet measures 1/2 inch.

      Helpful?

  9. Does Milton offer a mounting bracket for this item?

    1. Milton sells a bracket for this regulator but Northern Tool does not sell it. This unit is heavy and needs to be brackets to the wall in some fashion.

      Helpful?

    2. There is not a mounting bracket available for this item through the manufacturer.

      Helpful?

  10. will this work with a 160# compresser?

    1. My compressor is set at 160psi and works fine

      Helpful?

    2. This Milton filter regulator will work with a 160 PSI compressor.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
