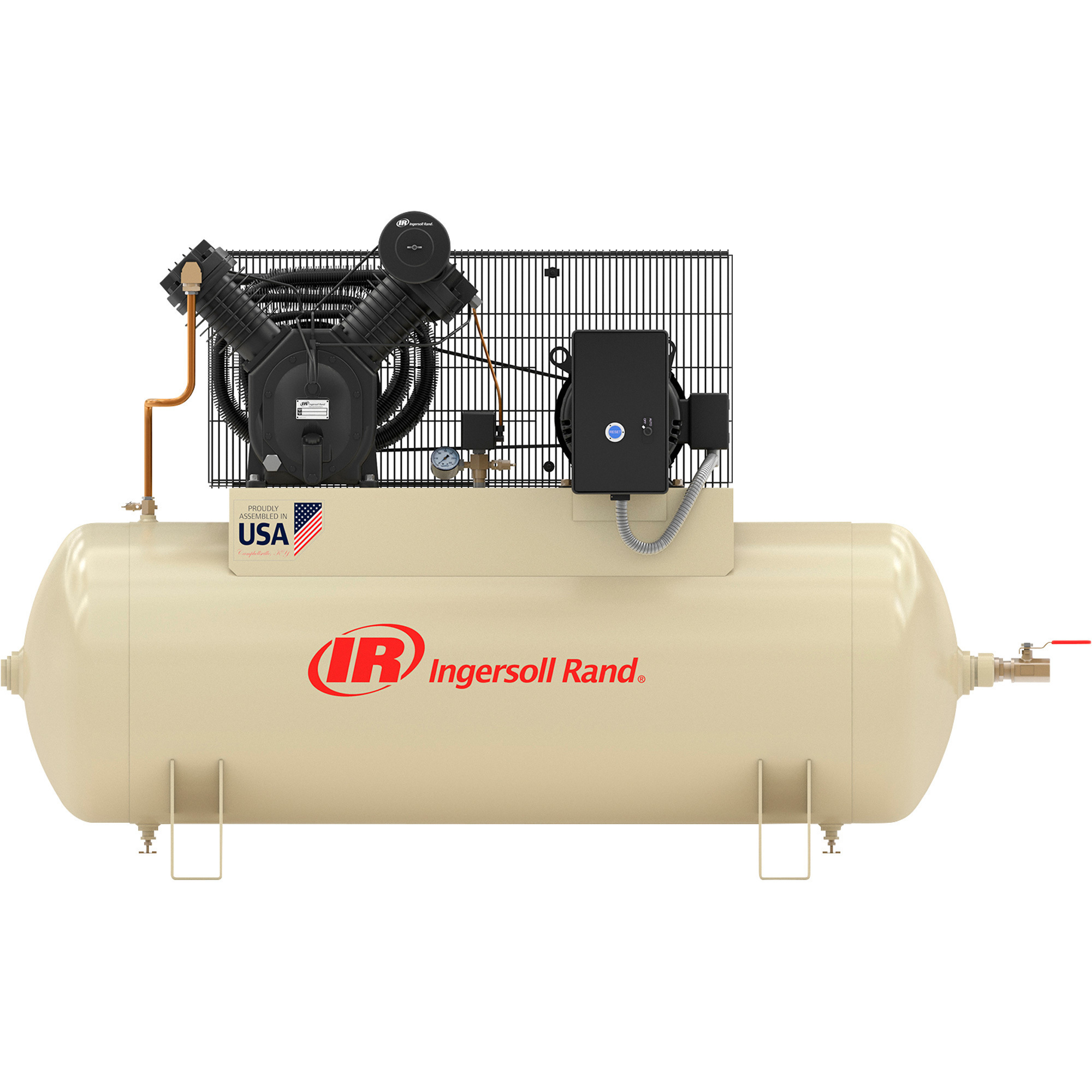

Ingersoll Rand Type-30 Reciprocating Air Compressor, 15 HP, 460 Volt, 3 Phase, 120 Gallon Horizontal, Model# 7100E15-V

Name: Ingersoll Rand Type-30 Reciprocating Air Compressor
Brand: Ingersoll Rand
SKU: 1592046

Item# 1592046D

Ingersoll Rand Type-30 Reciprocating Air Compressor, 15 HP, 460 Volt, 3 Phase, 120 Gallon Horizontal, Model# 7100E15-V

Click or Tap image to Zoom

$6779.99

Choose Options for complete product description, reviews and purchasing.

CHOOSE VOLTAGE

Quantity

Save to List

Shipping:
Free shipping (lower 48 states) - Factory shipped
Heavy/large item. Lift gate service available.
Store Pickup:
Not available - online only

100% cast iron construction
1-pc. connecting rod
Finned copper intercooler
Extended 2-year warranty on the pump when you use maintenance kit #15920081
Designed for heavy shop or industrial use, Ingersoll Rand electric-driven, 2-stage air compressors provide the reliability and performance that are ideal for most applications including automotive service and body shops, fleet maintenance, machine shops,

See full description

Product Summary

Ingersoll Rand's legendary Type-30 air compressors have been providing unsurpassed performance in the most demanding applications for over 75 years. The Type-30 compressors are recognized as the industry's benchmark for quality, power and reliability -- that's why they remain the world's best-selling reciprocating compressor. Whether you're a small shop owner, auto body or repair business owner, or work in a demanding industrial environment, there is a Type-30 air compressor that will meet your needs. Warranty on the reciprocating pump extends from 1 year to 2 years with the use of the 2yr Warranty Start Up Kit# 6131992 - sold seperately

What's Included

(1) 100% cast iron pump (1) ASME-coded receiver tank (1) ODP motor (1) Magnetic motor starter (1) Automatic start/stop control with pressure switch (1) Oil sight glass (1) Manual drain

Downloads

Product Manual

Additional Product Info

Key Specs

Attribute	Specification
item#	1592046D
Brand	Ingersoll Rand
Manufacturer's Warranty	12 months parts/12months labor
Ship Weight	1239.0 LB
Air Tank Size	120 Gal
Volts	460
Motor Phase	3
Stage	2
Horsepower	15 HP
Max. PSI	175
Air Outlets (qty.)	1
Amps	20
Duty Cycle	100 %
Motor RPM	1,775
Working Pressure	175 PSI

Attribute	Specification
Engine Start Type	Electric
Pump Life	10,000 hr
Pump Material	Cast Iron
Air Outlet Size	1 in. NPT
CFM at Max. PSI	50
Noise Level	85 dB
Oil Required	Yes
Low Oil Shutdown	No
Lubrication System	Splash
Pressure Gauge	Yes
Electronic Drain Valve	No
After Cooler Included	No
Drain Type	Manual
Product Weight	lb
Dimensions L x W x H (in.)	72.0 x 30.0 x 56.0 in

Reviews

Questions & Answers

: 9 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions

4 years ago

Is this particular unit plug and play right out of the crate? or is a separate starter box required?

1 answer

Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 15 HP, 200 Volt, 3 Phase, 120 Gallon Horizontal, Model# 7100E15-V"
1. ProductExpert6

  4 years ago

  The air compressor requires to be hardwired to 200 volt for 3 phase by a qualified electrician.

  Helpful?
5 years ago

Can it on 220 single phase

1 answer

Originally posted on "Ingersoll Rand Type-30 Reciprocating Air Compressor, 15 HP, 230 Volt, 3 Phase, 120 Gallon Horizontal, Model# 7100E15-V"
1. ProductExpert31

  5 years ago

  This is unable to be hooked up to single phase power.

  Helpful?
