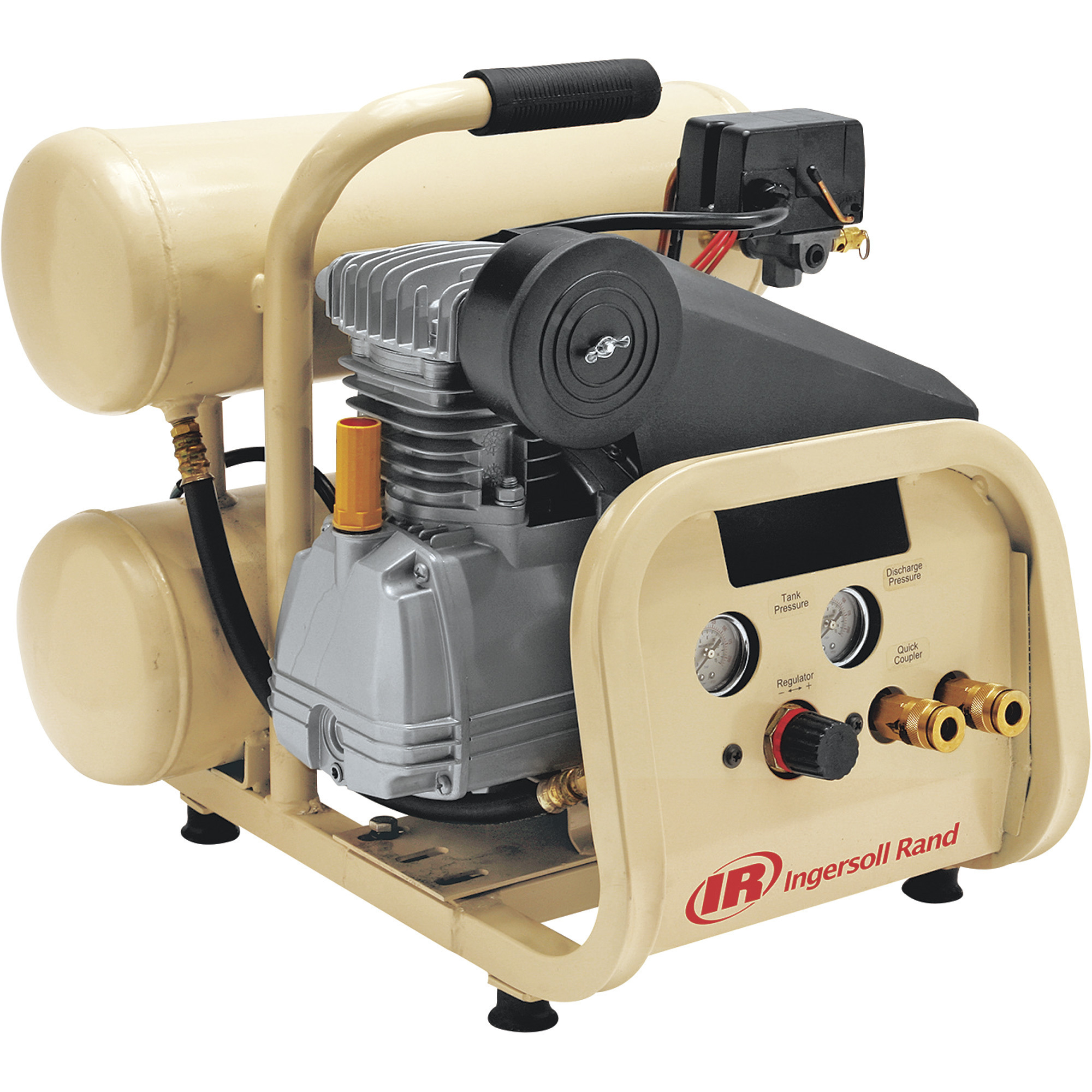

Ingersoll Rand Twin-Stack Portable Electric Air Compressor, 2 HP, 4-Gallon, 4.3 CFM, Model# P1IU-A9

Item# 154220
"Ingersoll Rand Twin-Stack Portable Electric Air Compressor, 2 HP, 4-Gallon, 4.3 CFM, Model# P1IU-A9"
Ingersoll Rand Twin-Stack Portable Electric Air Compressor, 2 HP, 4-Gallon, 4.3 CFM, Model# P1IU-A9

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ingersoll Rand Twin-Stack Portable Electric Air Compressor, 2 HP, 4-Gallon, 4.3 CFM, Model# P1IU-A9

Click or Tap image to Zoom

$479.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not Available
  • Ships with one bottle of Ingersoll Rand All-Season Select synthetic lubricant and one air filter

See full description

Complete Your Solution

  • Ingersoll Rand Twin-Stack Portable Electric Air Compressor, 2 HP, 4-Gallon, 4.3 CFM, Model# P1IU-A9
  • Ingersoll Rand T-30 Select Compressor Oil, 1 Liter Bottle
  • Ingersoll Rand Impact Sockets, 8-Pc. Set, 3/8in. Drive, Metric, Model# SK3M8
  • Milton M-Style Air Coupler and Plug Set, 1/4in. NPT, 5-Pc., Model# S-211
Price for all four:

$588.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Ingersoll Rand hand-carry air compressor provides the power, durability and portability you want on the jobsite. Built to last and designed for the toughest 100% continuous-duty applications. Includes two quick-connect couplers to run two tools simultaneously.

What's Included

    (1) Ingersoll Rand Twin-Stack Portable Electric Air Compressor

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Ships with one bottle of Ingersoll Rand All-Season Select synthetic lubricant and one air filter

Key Specs

AttributeSpecification

item#

154220

Brand

Ingersoll Rand

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

84.0 LB

Horsepower

2 HP

Air Tank Size

4 Gal

Volts

120

CFM at 90 PSI

4.3

Max. PSI

135

Amps

15
AttributeSpecification

Duty Cycle

100 %

Pump Material

Cast Iron

Air Outlet Size

1/4 in. NPT

CFM at 40 PSI

5.3

CFM at Max. PSI

3.2

Noise Level

82 dB

Oil Required

Yes

Tank Orientation

Horizontal

Product Weight

77.0000 lb

Dimensions L x W x H (in.)

19.0 x 19.0 x 19.0 in

Reviews

Questions & Answers

76 Reviews This action will navigate to reviews.

Questions

1–10 of 20 Questions
Sort by:

  1. what is the noise level of this air compresor

    1. Kinda loud but it is a heavy-duty compressor meant to be used outdoors.

      Helpful?

    2. 80-82 DBA. Not nearly as noisy as my similar HF compressor, and this one fills much more quickly, runs more smoothly, and reaches a higher pressure.

      Helpful?

    3. It is a compressor so it isn't going to be silent. My shop vacuum is noisier then this.

      Helpful?

    4. The air compressor has a rating of 80-82 dba.

      Helpful?

  2. Do you recommend a break in period for the air compressor. i.e 30 minutes with air tank valve open

    1. The owners manual siad nothing about a break-in period, but Ingersoll Rand did include a bottle of break-in oil.

      Recently I purchase the 3 hp 60 gallon Ingersoll Rand compressor and the owners manual with that unit did say to run the compressor for 30 minutes with the drain valve in the open position. So I used the same procss for the small compressor.

      Helpful?

    2. According to instructions it tells you to do this. Doesn't hurt anything doing it. I did it just for peace of mind. Will it shorten the life? No because you are talking about 30 minutes for a 100% duty cycle product that will last well of 1000 hours or more if you take care of it.

      Helpful?

    3. It would be recommended to insert your oil filter, fill with oil, open the drain valve and let run for approximately 30 minutes to break in the motor and pump.

      Helpful?

  3. What's the recommended hose size?

    Is 1/4" the recommended hose size for this compressor? What would be the downside to upgrading to a 3/8" hose?

    1. I use a 50-ft 1/4 hose and it works fine. The 3/8" hose would work just as well but for more demanding jobs.

      Helpful?

    2. The hose size recommended is 1/4". The downside to upgrading to a 3/8" hose would be a higher CFM at a lower PSI.

      Helpful?

  4. What is the SCFM rating?

    1. The Ingersoll owners manual for this product says 4.3 cfm @90 psi and 3.2 cfm @ 135 psi. hope this helps. I have used this product with my finish nailer and it works fine.

      Helpful?

    2. The compressor is rated at 4.3 CFM at 90 PSI and 3.2 CFM at 135 PSI.

      Helpful?

  5. Does this IR Compressor mod P1lu-A9 start up in cold weather

    1. Never had a problem with it starting in Chicago winter. So yes, it will.

      Helpful?

    2. This compressor will start up in cold weather.

      Helpful?

  6. Are there actual current usage (surge and nominal) for this compressor?

    I have an outlet in my garage with a 15 Amp breaker and I'd like to know that I'm not going to continually trip it with this compressor.

    1. Running amps is rated at 15 amps. Would be better to have a 20 amp breaker for it.

      Helpful?

    2. A 20 amp circuit breaker is recommended.

      Helpful?

  7. is this unit American-made?

    1. This air compressor is manufactured in India.

      Helpful?

    2. No, the unit is not manufactured here in the U.S.A.

      Helpful?

  8. Can this compressor be kept out in the weather, as in rain won't hurt it.

    1 answer

    1. The compressor is not designed to be kept outdoors. It is recommended to use the compressor in a dry, well lighted area with plenty of space for proper cooling air flow and accessibility. Ideal temperature for use is 50 degrees F and 100 degrees F (10 degrees C to 37.8 degrees C).

      Helpful?

  9. I purchased a twin stacked electric air compressor from Northern Tool Model AC 2016BD years ago. took the oil cap off and it fell into broken pieces I need the cap plus the plug that screws into the oil chamber. Where do i order these two things?

    1 answer

    1. Parts for this air compressor can be purchased through the manufacturer.

      Helpful?

  10. How long is the power cord?

    1 answer

    1. The power cord for the Ingersoll Rand P1IU-A9 air compressor is 6.25 feet.

      Helpful?
