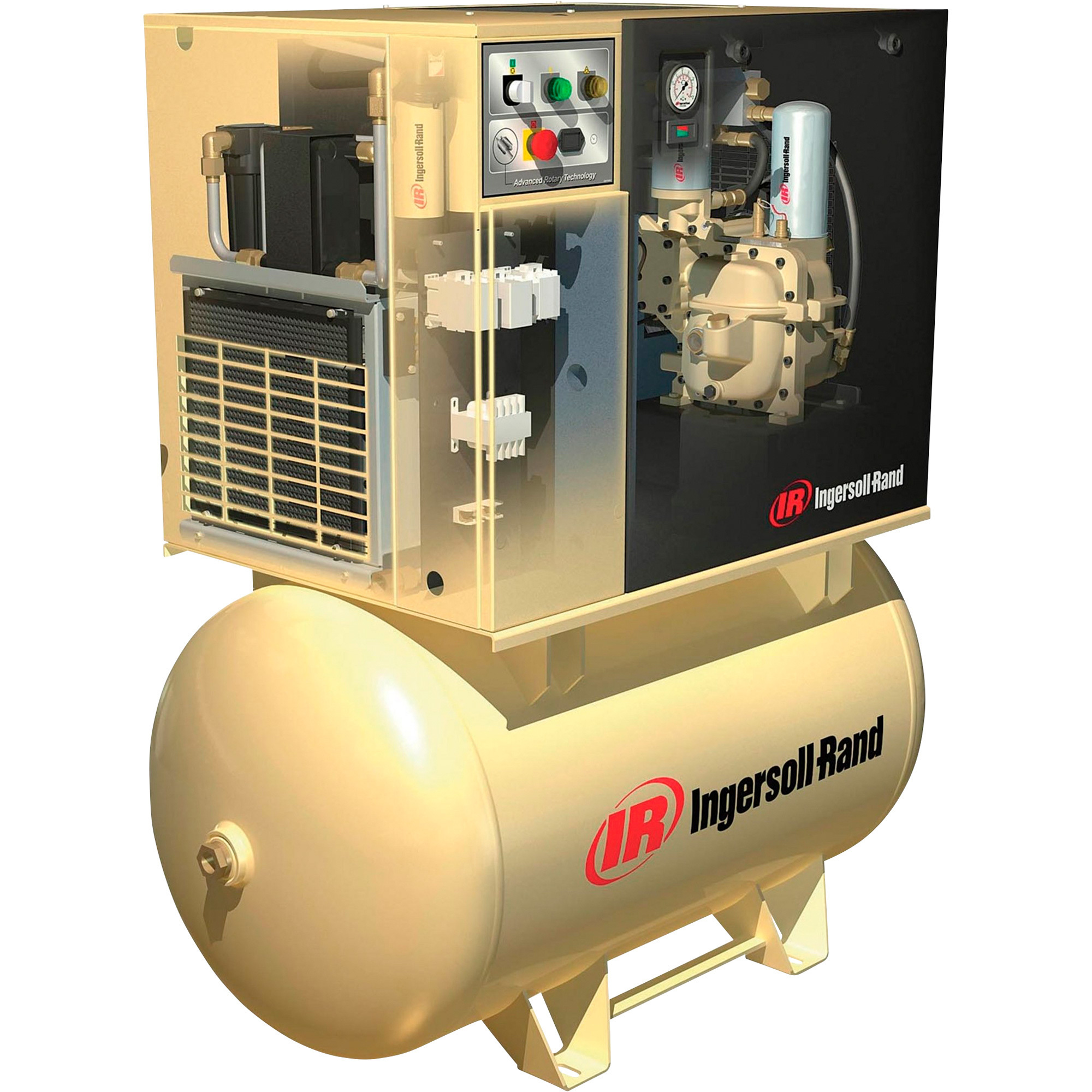

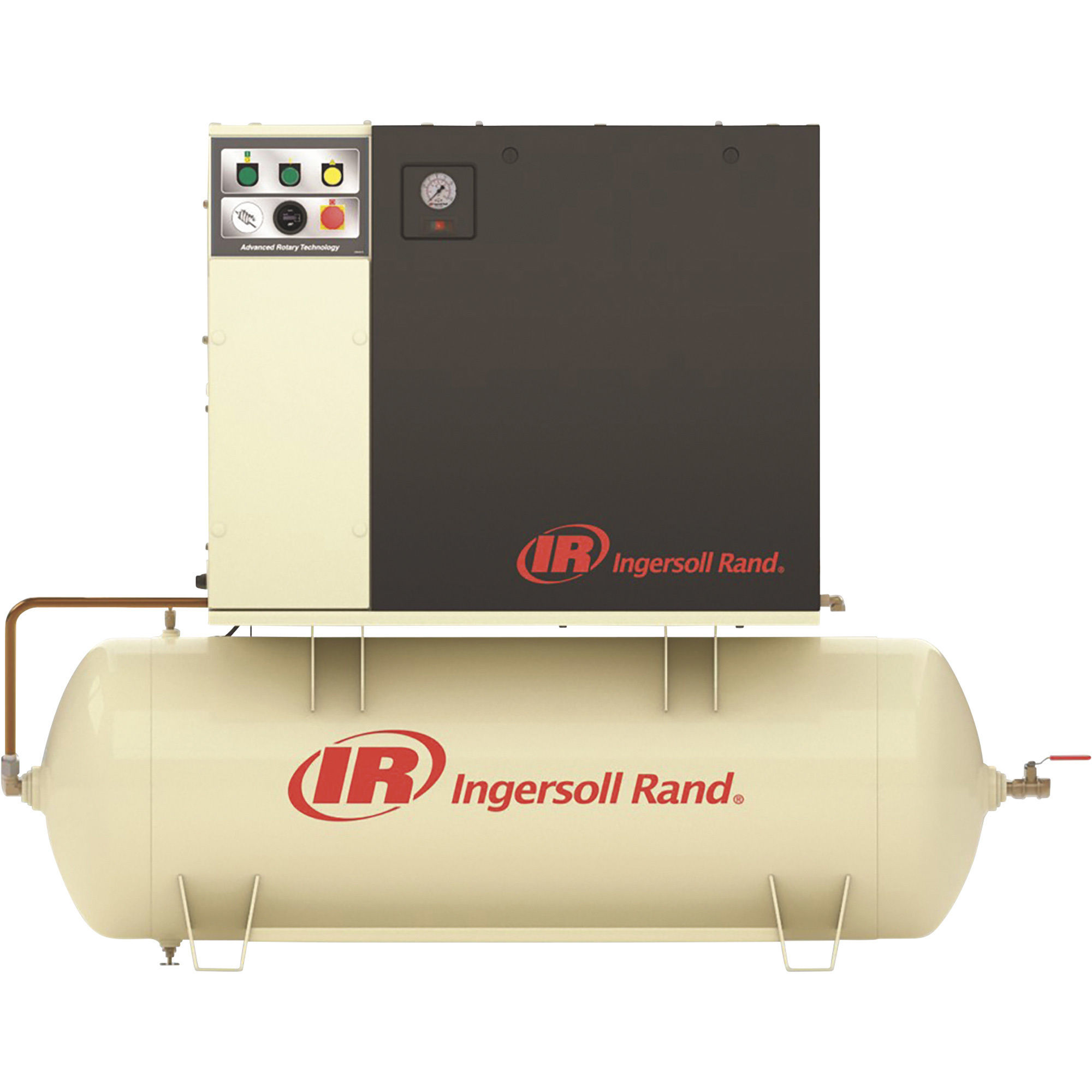

Ingersoll Rand Rotary Screw Air Compressor w/ Total Air System, 200 Volts, 3-Phase, 10 HP, 38 CFM, Model# UP6-10TAS-125

Item# 1540447
Ingersoll Rand Rotary Screw Air Compressor w/ Total Air System, 200 Volts, 3-Phase, 10 HP, 38 CFM, Model# UP6-10TAS-125

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ingersoll Rand Rotary Screw Air Compressor w/ Total Air System, 200 Volts, 3-Phase, 10 HP, 38 CFM, Model# UP6-10TAS-125

Click or Tap image to Zoom

$13,819.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Compressor package comes standard with:
  • ODP electric motor
  • Air-cooled aftercooler to reduce discharge air temperatures
  • Full voltage motor starter (mounted and wired)
  • Auto start/stop control

See full description

Complete Your Solution

  • Ingersoll Rand Rotary Screw Air Compressor w/ Total Air System, 200 Volts, 3-Phase, 10 HP, 38 CFM, Model# UP6-10TAS-125
  • Ingersoll Rand Ultra Coolant Lubricant, 5L Container for Rotary Screw Air Compressors, Model# 92692284
  • Ingersoll Rand F-Series General 1 Micron Filter, 3/4in., 45 CFM, Model# FA75IG
  • Ingersoll Rand Maintenance Kit for IR 5-15 HP Rotary Compressors, Model# 23352131
Price for all four:

$14,465.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Ingersoll Rand UP6-10TAS-125 is a 10 HP rotary screw air compressor that offers an exceptional value without sacrificing the reliability you've come to expect from Ingersoll Rand. The UP6 TAS oil-flooded rotary screw compressor includes dryer and filter to provide a complete air solution in an easy to use, easy to access compact package, delivering efficient performance. Maintenance kit, Item# 305900 (sold separately).

What's Included

    (1) Compressor

Downloads

Product Manual

Features + Benefits

  • Compressor package comes standard with:
  • ODP electric motor
  • Air-cooled aftercooler to reduce discharge air temperatures
  • Full voltage motor starter (mounted and wired)
  • Auto start/stop control
  • Low sound/full sheet metal enclosure
  • Pre-filter
  • 9000-hr. rated Ultra Plus coolant
  • Oil filter and separator element
  • ASME tank
  • NEMA-1 electrical protection
  • Refrigerated dryer with integrated controls
  • Dual, high-efficiency final filters
  • Advanced high-efficiency combination cooler with roof-mount package exhaust enables easy ducting for efficient operation
  • Simple diagnostics, auto start/stop and a spacious design to maximize serviceability makes the UP6 Series easy to operate
  • Whisper quiet operation allows for installation closer to point-of-use, reducing costs and ensuring a better and safer work environment
  • Fewer connections and smart integration eliminates leaks and pressure drops, maximizing reliability
  • With Total Air System (TAS) included, you will get clean, dry air in a cost-effective single package

Key Specs

AttributeSpecification

item#

1540447

Brand

Ingersoll Rand

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

1000.0 LB

Horsepower

10 HP
AttributeSpecification

Air Tank Size

80 Gal

Volts

200

Max. PSI

125

Product Weight

lb

Dimensions L x W x H (in.)

54.0 x 29.0 x 61.0 in

Reviews

Questions & Answers

Questions

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

24 months parts/24months labor
