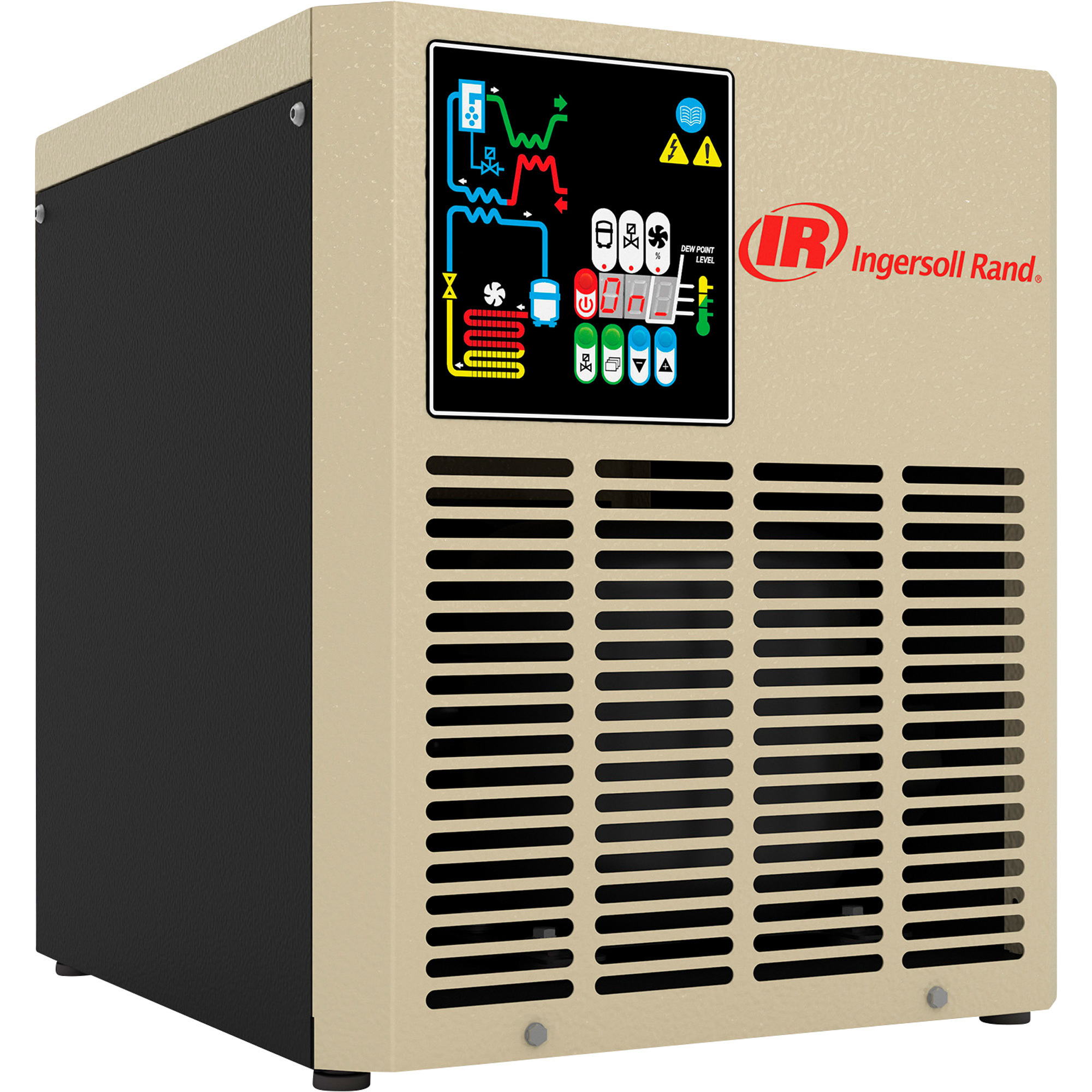

Ingersoll Rand Refrigerated Air Dryer, 15 CFM, Model# 23231814

Item# 1592070
"Ingersoll Rand Refrigerated Air Dryer, 15 CFM, Model# 23231814"
Ingersoll Rand Refrigerated Air Dryer, 15 CFM, Model# 23231814

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ingersoll Rand Refrigerated Air Dryer, 15 CFM, Model# 23231814

Click or Tap image to Zoom

  • Energy-consumption reducing and reliability-improving technology
  • Corrosion-resistant heat exchangers reduce air flow restriction
  • Dryer provides more efficient throughput with less wasted energy
  • Microprocessor control with easy-to-use graphic interface lets you adjust and manage system parameters efficiently
  • Variable-speed fans reduce power consumption when units operate at less than maximum cooling capacity while ensuring a consistent dew point

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Make providing continuous dry air easy by piping the Ingersoll Rand self-contained refrigerated air dryer unit into your compressed air supply line.

What's Included

    (1) Air dryer

Features + Benefits

  • Energy-consumption reducing and reliability-improving technology
  • Corrosion-resistant heat exchangers reduce air flow restriction
  • Dryer provides more efficient throughput with less wasted energy
  • Microprocessor control with easy-to-use graphic interface lets you adjust and manage system parameters efficiently
  • Variable-speed fans reduce power consumption when units operate at less than maximum cooling capacity while ensuring a consistent dew point
  • Fully adjustable programmable electronic drain valve helps minimize air loss
  • Dimensions are 16 x 12 x 16
  • Capacity CFM (scfm): 15
  • Connection Air In/Out (NPT): 3/8in.
  • Operating Power (kW): 0.16
  • Max Air Inlet Temp 140F
  • Min - Max Ambient Temp 36F - 122F
  • Max Air Pressure 203 Psig
  • <50F ISO Class 6 Dew Point

Key Specs

AttributeSpecification

item#

1592070

Brand

Ingersoll Rand

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

65.0 LB

Max. Flow Rate

15 cfm

Volts

115

Air Inlet Size

3/8 in

Max. Temperature

140 °F
AttributeSpecification

Dew Point

50 °F

Watts

0.16

Filter Type

Coalescing

Adjustable

Yes

Environmentally Friendly

Yes

Product Weight

lb

Dimensions L x W x H (in.)

16.0 x 12.0 x 16.0 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–10 of 10 Questions
Sort by:

  1. What are the electrial requirements, especially amp draw

    1. This dryer runs on 115/1/60 power pulling .22 KW.

      Helpful?

    2. This Ingersoll Rand Refrigerated Air Dryer is 115 volt single phase and pulls 2.8 amps at full load.

      Helpful?

  2. What is the operating voltage of this unit? Thank you

    1 answer

    1. This is a 115V single phase air dryer.

      Helpful?

  3. does this require a filter of anykind

    1 answer

    1. The air dryer would require a 10 micron filter. Northern Tool does not carry a filter that would work with this air dryer. You would contact the manufacturer for the correct filter.

      Helpful?

  4. Hookup

    Do you place the dryer before the air compressing stage or after is compressed?

    1 answer

    1. The placement of the dryer is after the air is compressed.

      Helpful?

  5. What model is this Air Dryer? The model you have listed does not coincide with the models on Ingersoll Rand website.

    I'm trying to get installtion instructions so I have everything needed to complete the install. I seen on a previous question a filter is needed that northern tools does not sell.

    1 answer

    1. The model number on the Ingersoll Rand website would be D25IN.

      Helpful?

  6. What will the output dew point temperature be for 1 CFM flow at 10 psi and an input dew point of 80 deg F?

    1 answer

    1. The dryers are rated at 100 degrees, at this temperature the output dew point would be 38 degrees. They do not have a calculation to figure it at the lower degrees.

      Helpful?

  7. What is the recommended operating pressure for this unit and what is the maximim pressure?

    1 answer

    1. The maximum pressure is 203 PSI. The operating pressure would be determined by the air compressor you are using and the required CFM of the tool.

      Helpful?

  8. What is is the noise dB level?

    1 answer

    1. This Ingersoll Rand Refrigerated Air Dryer currently does not have a decibel rating. The noise level about the same or less than a dorm size refrigerator.

      Helpful?

  9. Will the air exiting the dryer be between 100F and 33F

    1 answer

    1. The temperature of the air exiting the dryer would be between 36 and 122 degrees F.

      Helpful?

  10. what is the elctrical requirement ans see added comments

    Does this unit control water dew point to 40F or below?

    1 answer

    1. It is 115 volt and the manual shows the dew point at less than 50 degree F.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts/12months labor
