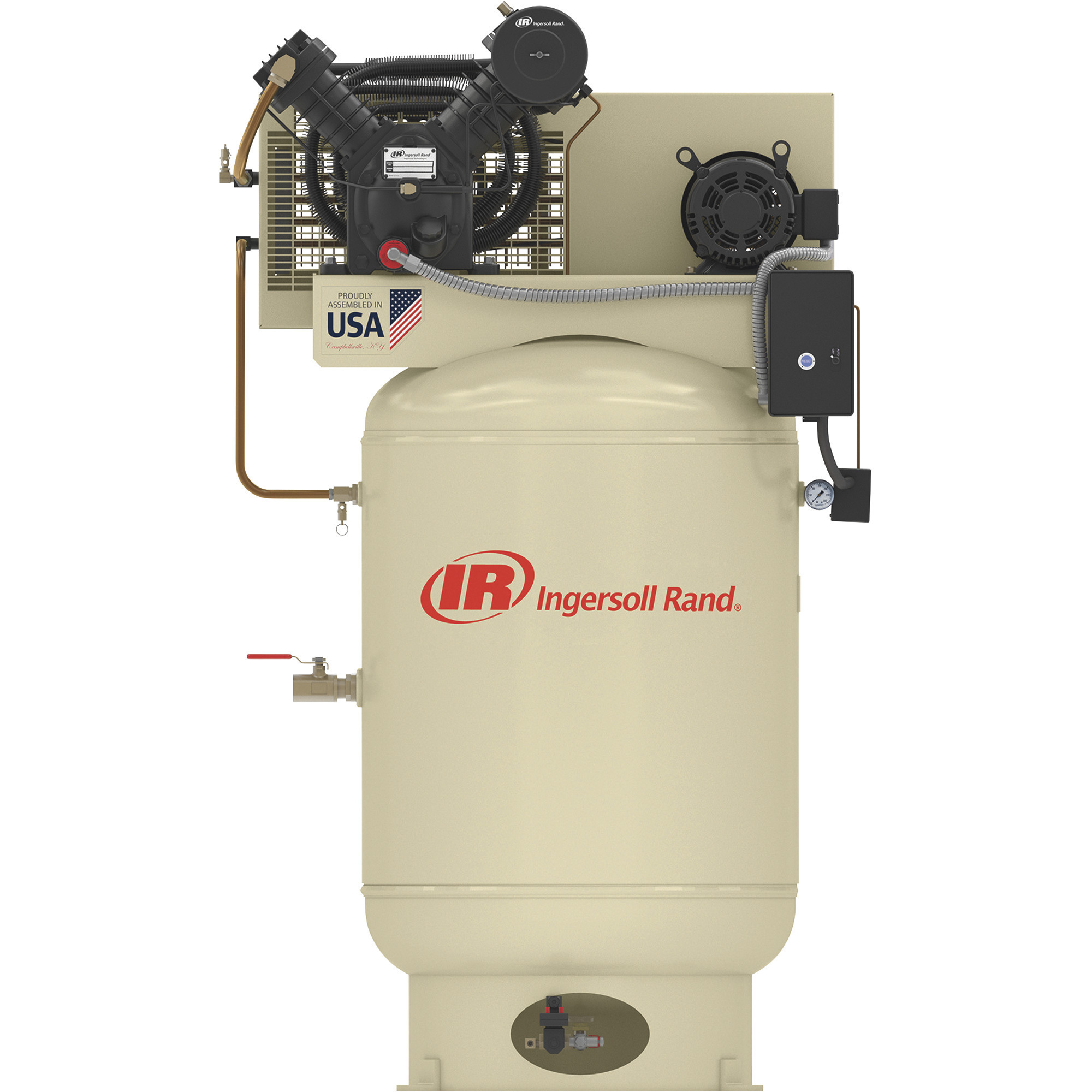

Ingersoll Rand Electric Stationary Air Compressor (Premium Package), 10 HP, 460 Volts, 3 Phase, 120 Gallon Vertical, 35 CFM At 175 PSI, Model# 2545K10-P

Item# 1592011D
"Ingersoll Rand Electric Stationary Air Compressor (Premium Package), 10 HP, 460 Volts, 3 Phase, 120 Gallon Vertical, 35 CFM At 175 PSI, Model# 2545K10-P"
Ingersoll Rand Electric Stationary Air Compressor (Premium Package), 10 HP, 460 Volts, 3 Phase, 120 Gallon Vertical, 35 CFM At 175 PSI, Model# 2545K10-P

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ingersoll Rand Electric Stationary Air Compressor (Premium Package), 10 HP, 460 Volts, 3 Phase, 120 Gallon Vertical, 35 CFM At 175 PSI, Model# 2545K10-P

Click or Tap image to Zoom

$7659.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Durable cast iron construction and long-lasting extended pump life designed for over 15,000 hours of trouble-free use
  • 100% continuous duty, 10 HP two-stage air compressor, 175 PSI maximum operating pressure and 120 gallon ASME receiver tank provide plenty of punch for the most demanding applications

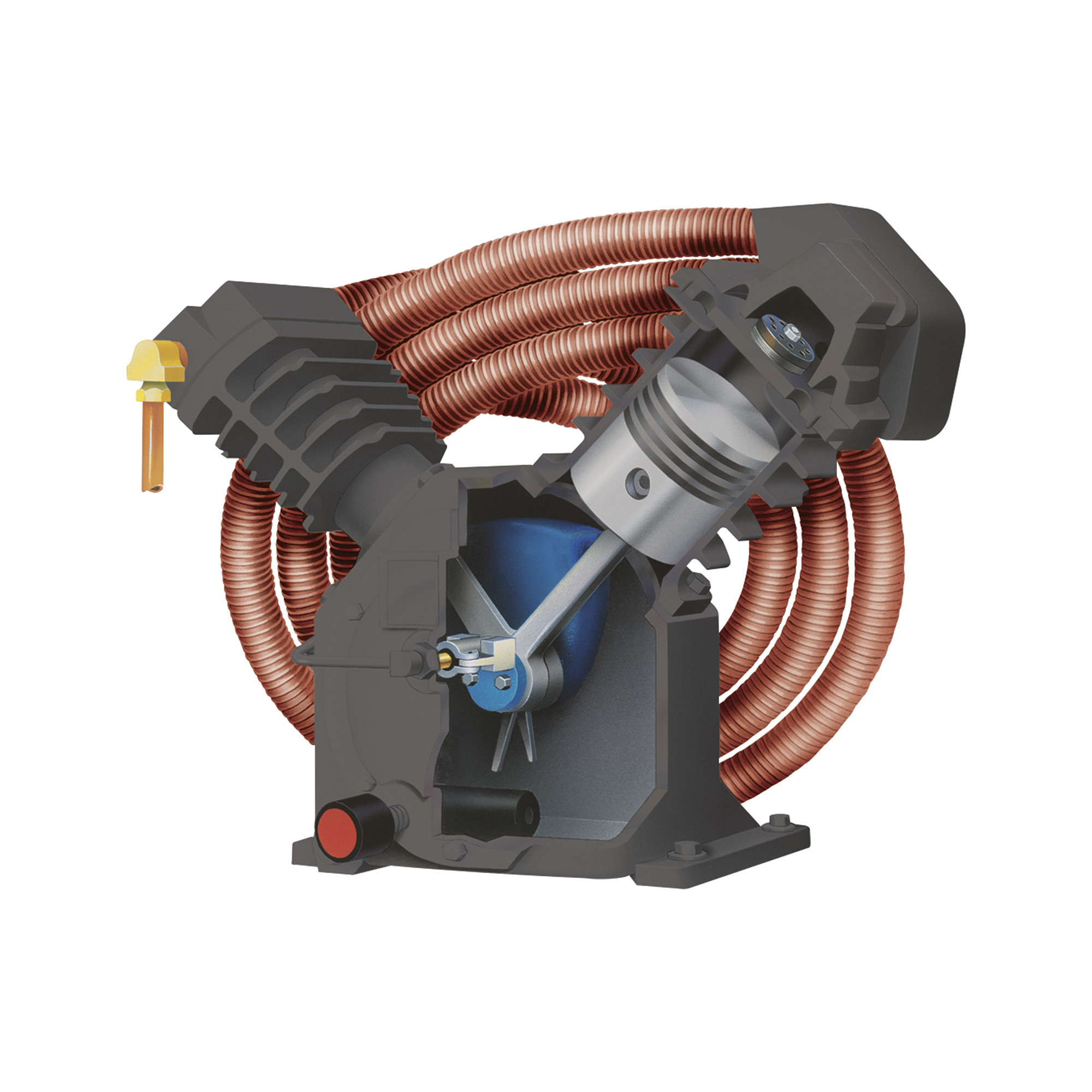

  • Individually cast cylinders, overhung crankshaft and one piece connecting rod simplifies maintenance and service
  • All Season Select synthetic lubricant increases efficiency; with 2000 hours of service between change outs, it performs four times longer than petroleum-based lubricants
  • Premium package compressor includes low oil level switch, after cooler and automatic tank drain

See full description

Complete Your Solution

  • Ingersoll Rand Electric Stationary Air Compressor (Premium Package), 10 HP, 460 Volts, 3 Phase, 120 Gallon Vertical, 35 CFM At 175 PSI, Model# 2545K10-P
  • Ingersoll Rand, 2 Year Warranty Startup Kit - 2545/7100 Model# 47853635005-R
  • Ingersoll Rand Non-Cycling Refrigerated Air Dryer — 42 CFM, R513A Refrigerant, Model# DA72INA100
  • Ingersoll Rand F-Series General 1 Micron Filter, 3/4in., 45 CFM, Model# FA75IG
Price for all four:

$11,618.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Designed for heavy shop or industrial use, Ingersoll Rand Type-30 electric-driven, two-stage air compressors provide the reliability and performance that are ideal for most applications including automotive service and body shops, fleet maintenance, machine shops, production and manufacturing lines, wood working shops, dry cleaners, car washes, general maintenance/repair shops and farms. Premium package compressor includes low oil level switch, after cooler and automatic tank drain. Warranty on the reciprocating pump extends from 1 year to 2 years with the purchase of the 2yr Warranty Start Up Kit# 6131992 - sold seperately.

What's Included

    (1) Compressor

Downloads

Additional Product Info

Features + Benefits

  • Durable cast iron construction and long-lasting extended pump life designed for over 15,000 hours of trouble-free use
  • 100% continuous duty, 10 HP two-stage air compressor, 175 PSI maximum operating pressure and 120 gallon ASME receiver tank provide plenty of punch for the most demanding applications
  • Individually cast cylinders, overhung crankshaft and one piece connecting rod simplifies maintenance and service
  • All Season Select synthetic lubricant increases efficiency; with 2000 hours of service between change outs, it performs four times longer than petroleum-based lubricants
  • Premium package compressor includes low oil level switch, after cooler and automatic tank drain
  • Purchase an All-Season Select lubricant start-up kit (#15920081), and receive all the parts you need for start-up and the first year of maintenance, along with an extended pump warranty
  • 100% cast iron construction
  • 1-pc. connecting rod
  • Finned copper intercooler
  • Extended 2-year warranty on the pump when you purchase & use the 2yr Warranty Start Up #6131992

Key Specs

AttributeSpecification

item#

1592011D

Brand

Ingersoll Rand

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

1104.0 LB

Air Tank Size

120 Gal

Volts

460

Motor Phase

3

Stage

2

Horsepower

10 HP

Max. PSI

175

Air Outlets (qty.)

1

Amps

12.5

Duty Cycle

1 %

Motor RPM

1,775

Working Pressure

175 PSI
AttributeSpecification

Engine Start Type

Electric

Pump Life

10,000 hr

Pump Material

Cast Iron

Air Outlet Size

3/4 in. NPT

CFM at Max. PSI

35

Noise Level

83 dB

Oil Required

Yes

Low Oil Shutdown

Yes

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

Yes

After Cooler Included

Yes

Drain Type

Automatic

Product Weight

lb

Dimensions L x W x H (in.)

32.0 x 28.0 x 71.0 in
