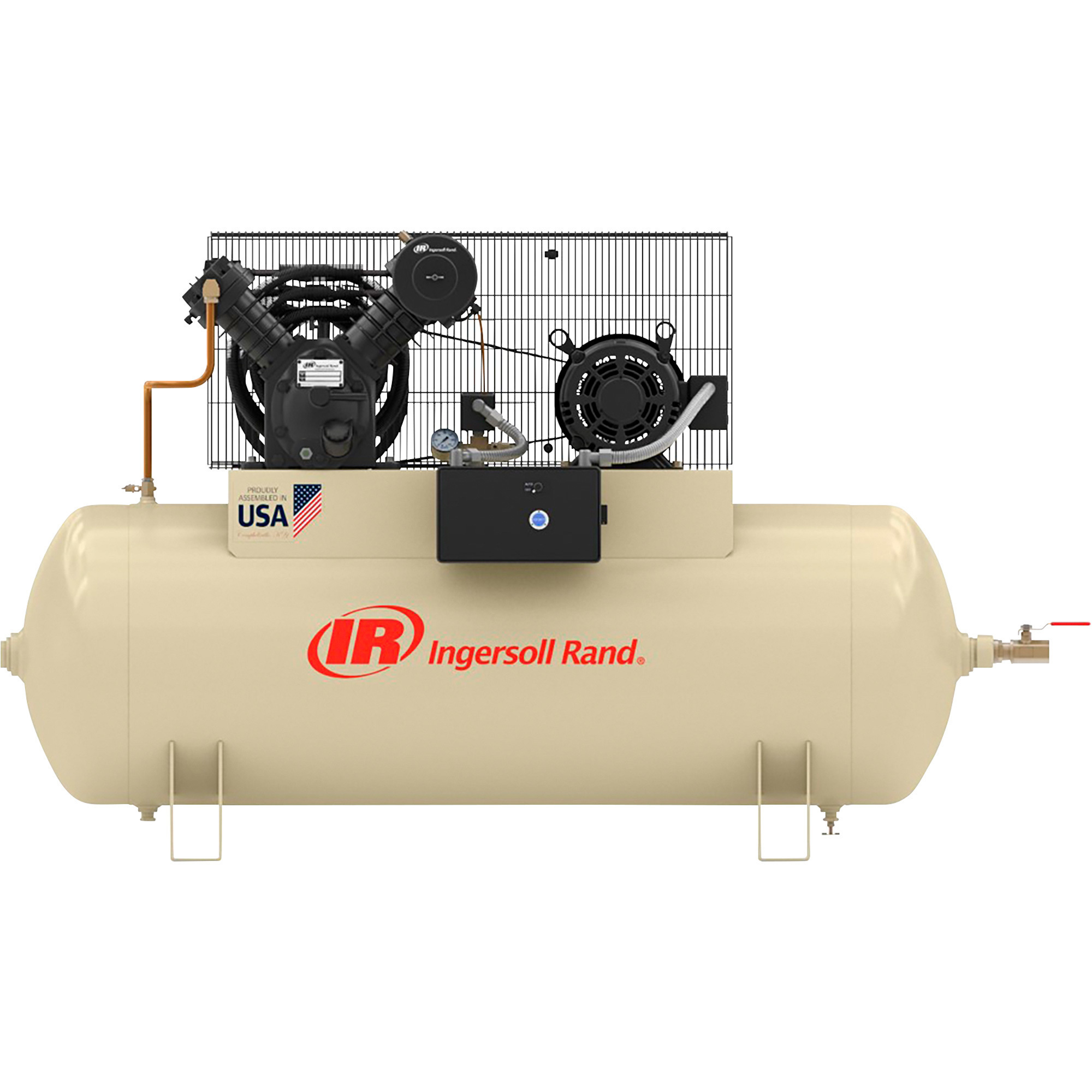

Ingersoll Rand Electric Stationary Air Compressor, 10 HP, 200 Volts, 3 Phase, 120 Gallon Horizontal, 35 CFM At 175 PSI, Model# 2545E10-V

Item# 1592010B
"Ingersoll Rand Electric Stationary Air Compressor, 10 HP, 200 Volts, 3 Phase, 120 Gallon Horizontal, 35 CFM At 175 PSI, Model# 2545E10-V"
Ingersoll Rand Electric Stationary Air Compressor, 10 HP, 200 Volts, 3 Phase, 120 Gallon Horizontal, 35 CFM At 175 PSI, Model# 2545E10-V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ingersoll Rand Electric Stationary Air Compressor, 10 HP, 200 Volts, 3 Phase, 120 Gallon Horizontal, 35 CFM At 175 PSI, Model# 2545E10-V

Click or Tap image to Zoom

$4929.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Durable cast iron construction and long-lasting extended pump life designed for over 15,000 hours of trouble-free use
  • 100% continuous duty, 10 HP two-stage air compressor, 175 PSI maximum operating pressure and 120 gallon ASME receiver tank provide plenty of punch for the most demanding applications
  • Individually cast cylinders, overhung crankshaft and one piece connecting rod simplifies maintenance and service
  • All Season Select synthetic lubricant increases efficiency; with 2000 hours of service between change outs, it performs four times longer than petroleum-based lubricants
  • Purchase an All-Season Select lubricant start-up kit (#15920081), and receive all the parts you need for start-up and the first year of maintenance, along with an extended pump warranty

See full description

Complete Your Solution

  • Ingersoll Rand Electric Stationary Air Compressor, 10 HP, 200 Volts, 3 Phase, 120 Gallon Horizontal, 35 CFM At 175 PSI, Model# 2545E10-V
  • Ingersoll Rand, 2 Year Warranty Startup Kit - 2545/7100 Model# 47853635005-R
  • Ingersoll Rand Non-Cycling Refrigerated Air Dryer — 42 CFM, R513A Refrigerant, Model# DA72INA100
  • Ingersoll Rand F-Series General 1 Micron Filter, 3/4in., 45 CFM, Model# FA75IG
Price for all four:

$8888.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Designed for heavy shop or industrial use, Ingersoll Rand Type-30 electric-driven, two-stage air compressors provide the reliability and performance that are ideal for most applications including automotive service and body shops, fleet maintenance, machine shops, production and manufacturing lines, wood working shops, dry cleaners, car washes, general maintenance/repair shops and farms. Warranty on the reciprocating pump extends from 1 year to 2 years with the use of the 2yr Warranty Start Up Kit (#6131992, sold separately).

What's Included

    (1) Compressor

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Durable cast iron construction and long-lasting extended pump life designed for over 15,000 hours of trouble-free use
  • 100% continuous duty, 10 HP two-stage air compressor, 175 PSI maximum operating pressure and 120 gallon ASME receiver tank provide plenty of punch for the most demanding applications
  • Individually cast cylinders, overhung crankshaft and one piece connecting rod simplifies maintenance and service
  • All Season Select synthetic lubricant increases efficiency; with 2000 hours of service between change outs, it performs four times longer than petroleum-based lubricants
  • Purchase an All-Season Select lubricant start-up kit (#15920081), and receive all the parts you need for start-up and the first year of maintenance, along with an extended pump warranty
  • 100% cast iron construction
  • 1-pc. connecting rod
  • Finned copper intercooler
  • Extended 2-year warranty on the pump when you use the 2yr Warranty Start Up Kit #6131992 - sold seperately

Key Specs

AttributeSpecification

item#

1592010B

Brand

Ingersoll Rand

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

921.53 LB

Air Tank Size

120 Gal

Volts

200

Motor Phase

3

Stage

2

Horsepower

10 HP

Max. PSI

175

Air Outlets (qty.)

1

Amps

28.2

Duty Cycle

100 %

Motor RPM

1,775

Working Pressure

175 PSI
AttributeSpecification

Engine Start Type

Electric

Pump Life

10,000 hr

Pump Material

Cast Iron

Air Outlet Size

3/4 in. NPT

CFM at Max. PSI

35

Noise Level

83 dB

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Drain Type

Manual

Product Weight

lb

Dimensions L x W x H (in.)

73.0 x 28.0 x 51.0 in

Reviews

Questions & Answers

9 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. Does this unit work on 208V 3 phase

    Originally posted on "Ingersoll Rand Electric Stationary Air Compressor, 10 HP, 230 Volts, 3 Phase, 120-Gallon Horizontal, 35 CFM @ 175 PSI, Model# 2545E10-V"

    1. This 230V air compressor would not work on 208V 3 phase power. Instead a 200V air compressor like item 1592010B would be recommended.

      Helpful?

    2. This 230V air compressor would not work on 208V 3 phase power. Instead a 200V air compressor like item 1592010B would be recommended. You may view this item below.

      Helpful?

  2. Which way is the motor supposed to spin

    1 answer
    Originally posted on "Ingersoll Rand Electric Stationary Air Compressor, 10 HP, 230 Volts, 3 Phase, 120-Gallon Horizontal, 35 CFM @ 175 PSI, Model# 2545E10-V"

    1. The motor would spin clockwise when viewed from the flywheel/pulley end.

      Helpful?

  3. Do you know the operating db level?

    1 answer

    1. The compressor is rated at 83 decibels.

      Helpful?

  4. At what outside air temperature will this compressor shut off?

    1 answer
    Originally posted on "Ingersoll Rand Electric Stationary Air Compressor, 10 HP, 230 Volts, 3 Phase, 120-Gallon Horizontal, 35 CFM @ 175 PSI, Model# 2545E10-V"

    1. This unit does not have a high air temperature switch that would shut the unit down.

      Helpful?

  5. Is motor NEMA 4 rated?

    1 answer
    Originally posted on "Ingersoll Rand Electric Stationary Air Compressor, 10 HP, 230 Volts, 3 Phase, 120-Gallon Horizontal, 35 CFM @ 175 PSI, Model# 2545E10-V"

    1. The motor is not NEMA 4 rated.

      Helpful?

  6. Does the compressor include the Ingersoll Rand start up kit that extends the warranty on the compressor?

    1 answer
    Originally posted on "Ingersoll Rand Electric Stationary Air Compressor, 10 HP, 230 Volts, 3 Phase, 120-Gallon Horizontal, 35 CFM @ 175 PSI, Model# 2545E10-V"

    1. The compressor will come with oil in the pump. It will not come with a start up kit. They are sold separately.

      Helpful?

  7. What type of plug/recepticle will we need to plug this in? A dryer plug?

    1 answer

    1. The Ingersoll Rand electric air compressor is designed to be a hard wire connection only.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

12 months parts/12months labor
