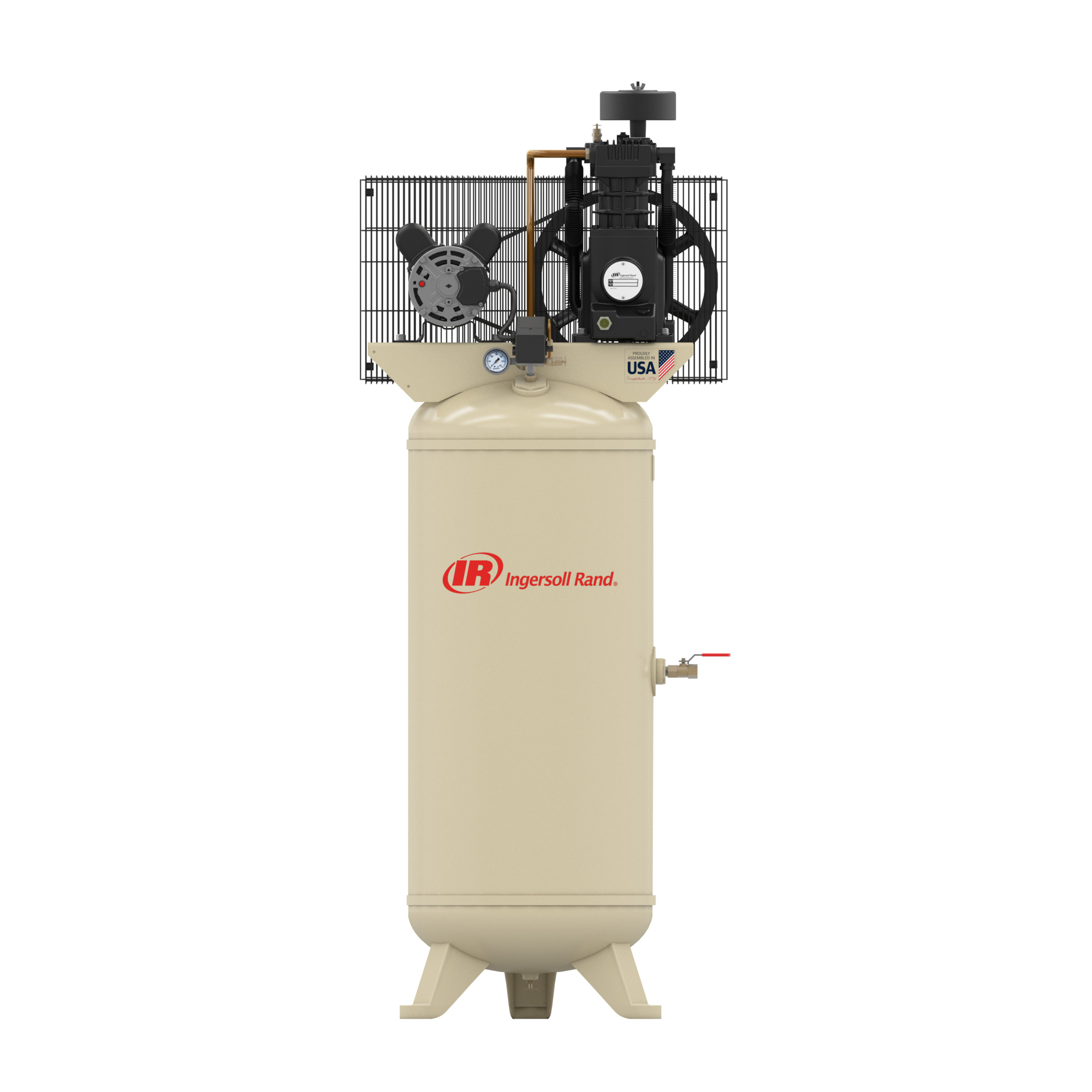

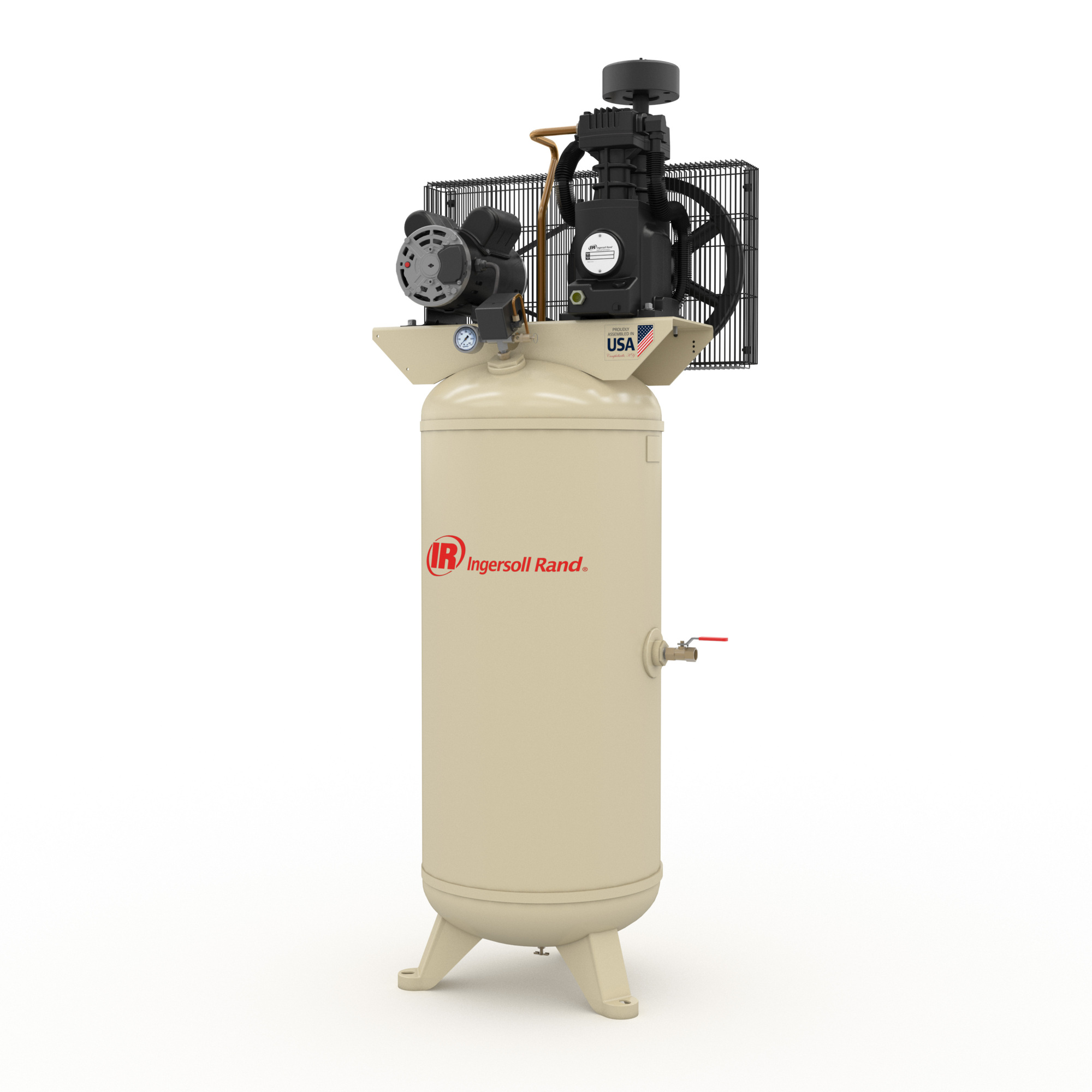

Ingersoll Rand 60-Gallon, 5 HP, 2-Stage Air Compressor, 230/1/60 Volts, Model# 2200L5

Item# 6145446
"Ingersoll Rand 60-Gallon, 5 HP, 2-Stage Air Compressor, 230/1/60 Volts, Model# 2200L5"
Top Seller
Ingersoll Rand 60-Gallon, 5 HP, 2-Stage Air Compressor, 230/1/60 Volts, Model# 2200L5

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ingersoll Rand 60-Gallon, 5 HP, 2-Stage Air Compressor, 230/1/60 Volts, Model# 2200L5

Click or Tap image to Zoom

$1999.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not Available
  • Long-Life: Durable cast iron construction, long-lasting extended pump life built to last up to 30 years
  • Optimized Power and Flexibility: 100% continuous duty, 5 hp 230 V two-stage air compressor, 175 psig maximum operating pressure and a 60-gallon ASME receiver tank provide plenty of punch for demanding applications
  • Easy to Service: Individually cast cylinders, overhung crankshaft and one-piece connecting rod simplifies maintenance and service
  • Reliable Operation: All Season Select synthetic lubricant increases efficiency; with 2,000 hours of service between changeouts, it performs four times longer than petroleum-based lubricants
  • Two-Year Warranty Startup Kit Available (Sold Separately): Purchase a 2 Year Warranty Startup Kit NTE# 6131984 and receive a 2-year bumper-to-bumper compressor warranty and a 5-year tank warranty

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Ingersoll Rand 60-Gallon, 5 HP, 2-Stage Air Compressor, 230/1/60 Volts, Model# 2200L5
  • Ingersoll Rand, 2 Year Warranty Startup Kit - 2200/2340/2475/TS4 Model# 47853635004-R
  • Ingersoll Rand Non-Cycling Refrigerated Air Dryer — 25 CFM, Aluminum Heat Exchanger, Model# DA42INA100
  • Ingersoll Rand Receiver Tank Accessory Kit, Model# EDV 2000
Price for all four:

$4868.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Ingersoll Rand 2200L5 60 gallon, electric-driven two-stage air compressor has the flexibility to provide both intermittent and continuous power. Built from high-quality parts, this reliable workhorse is ideal for heavy shop or industrial use, such as automotive applications, dry cleaners, farms or ranches as well as machine, wood working and maintenance or repair shops. Extend the pump warranty to 2yrs with the purchase use of the 2yr Warranty Start Up Kit (Item# 6131984 - sold seperately).

What's Included

    (1) 2200L5 Ingersoll Rand 60 Gallon 5hp Two Stage Air Compressor

Downloads

Product Manual Product Manual2
Additional Product Info Additional Product Info2

Features + Benefits

  • Long-Life: Durable cast iron construction, long-lasting extended pump life built to last up to 30 years
  • Optimized Power and Flexibility: 100% continuous duty, 5 hp 230 V two-stage air compressor, 175 psig maximum operating pressure and a 60-gallon ASME receiver tank provide plenty of punch for demanding applications
  • Easy to Service: Individually cast cylinders, overhung crankshaft and one-piece connecting rod simplifies maintenance and service
  • Reliable Operation: All Season Select synthetic lubricant increases efficiency; with 2,000 hours of service between changeouts, it performs four times longer than petroleum-based lubricants
  • Two-Year Warranty Startup Kit Available (Sold Separately): Purchase a 2 Year Warranty Startup Kit NTE# 6131984 and receive a 2-year bumper-to-bumper compressor warranty and a 5-year tank warranty
  • Enhanced Durability: Crafted from robust cast iron for longevity, with a pump life of up to 30 years, ensuring reliable performance for years to come.
  • Power & Versatility: Experience uninterrupted operation with a 5 hp 230 V two-stage air compressor. It's built for 100% continuous duty and is equipped with a 60-gallon ASME-certified receiver tank and a 175-psig maximum operating pressure to tackle demanding applications.
  • Maintenance Made Simple: Thanks to the individual casting of cylinders, an overhung crankshaft, and a one-piece connecting rod, upkeep and repairs are straightforward, minimizing downtime.
  • Consistent and Efficient Performance: All Season Select synthetic lubricant not only enhances efficiency but also offers an impressive 2,000-hour service interval — four times longer than petroleum-based lubricants, ensuring smooth operation all year round.
  • 15.5 CFM@ 90 PSI
  • 175 Max PSI
  • 5HP Motor
  • Flow @ Max Pressure (cfm) 15.4
  • 30x20x75
  • 359 lbs
  • 60 Gallon Vertical Tank
  • .5" NPT Outlet
  • Model 2200L5 (47837647001)
  • Two-Stage Electric Drive Reciprocating Air Compressor

Key Specs

AttributeSpecification

item#

6145446

Brand

Ingersoll Rand

Manufacturer's Warranty

1 year limited warranty

Ship Weight

384.0 LB

Air Tank Size

60 Gal

Volts

230/1/60

CFM at 90 PSI

15.5

Motor Phase

1

Stage

2

Tank Orientation

Vertical

Horsepower

5 HP

Max. PSI

175

Air Outlets (qty.)

1

Amps

21.5
AttributeSpecification

Duty Cycle

100 %

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

1/2 in. NPT

Noise Level

78 dB

Oil Required

Yes

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

Air Dryer

None

Drain Type

Manual

Product Weight

359.0000 lb

Dimensions L x W x H (in.)

30.0 x 20.0 x 75.0 in

Reviews

Questions & Answers

8 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. Is the oil included or purchased

    1 answer

    1. The air compressor would not include the oil. It would need to be purchased separately.

      Helpful?

  2. What cfm does it have at 175psi?

    1 answer

    1. The compressor will produce 15.4 CFM at 175 PSI.

      Helpful?

  3. What size breaker is required?

    1 answer

    1. The compressor will require a minimum of 60-70 amp three pole breaker. The recommended wire size is #6 AWG.

      Helpful?

  4. Does this unit come ready to run including oil and power cord

    1 answer

    1. This compressor does not come with oil and would need to be purchased prior to the initial startup. It is designed for a permanent hardwired electrical installation and does not come with a power plug or cord.

      Helpful?

  5. What is the cfm on this unit

    1 answer

    1. The compressor will produce 15.5 CFM at 90 PSI.

      Helpful?

  6. What is the motor and pump rpm

    1 answer

    1. The RPM on the electric motor is 3455 RPM. The RPM on the pump will be 1360 RPM.

      Helpful?

  7. Will this run on 208 volt?

    1 answer

    1. This air compressor requires a 230V power source.

      Helpful?
