Industrial Gold, 15hp 3 phase, 208-230V Permanent Magnet Rotary, Horsepower 15 HP, Volts 208-230 Model# RS15ENC-PM

Item# 6097974
Industrial Gold, 15hp 3 phase, 208-230V Permanent Magnet Rotary, Horsepower 15 HP, Volts 208-230 Model# RS15ENC-PM

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

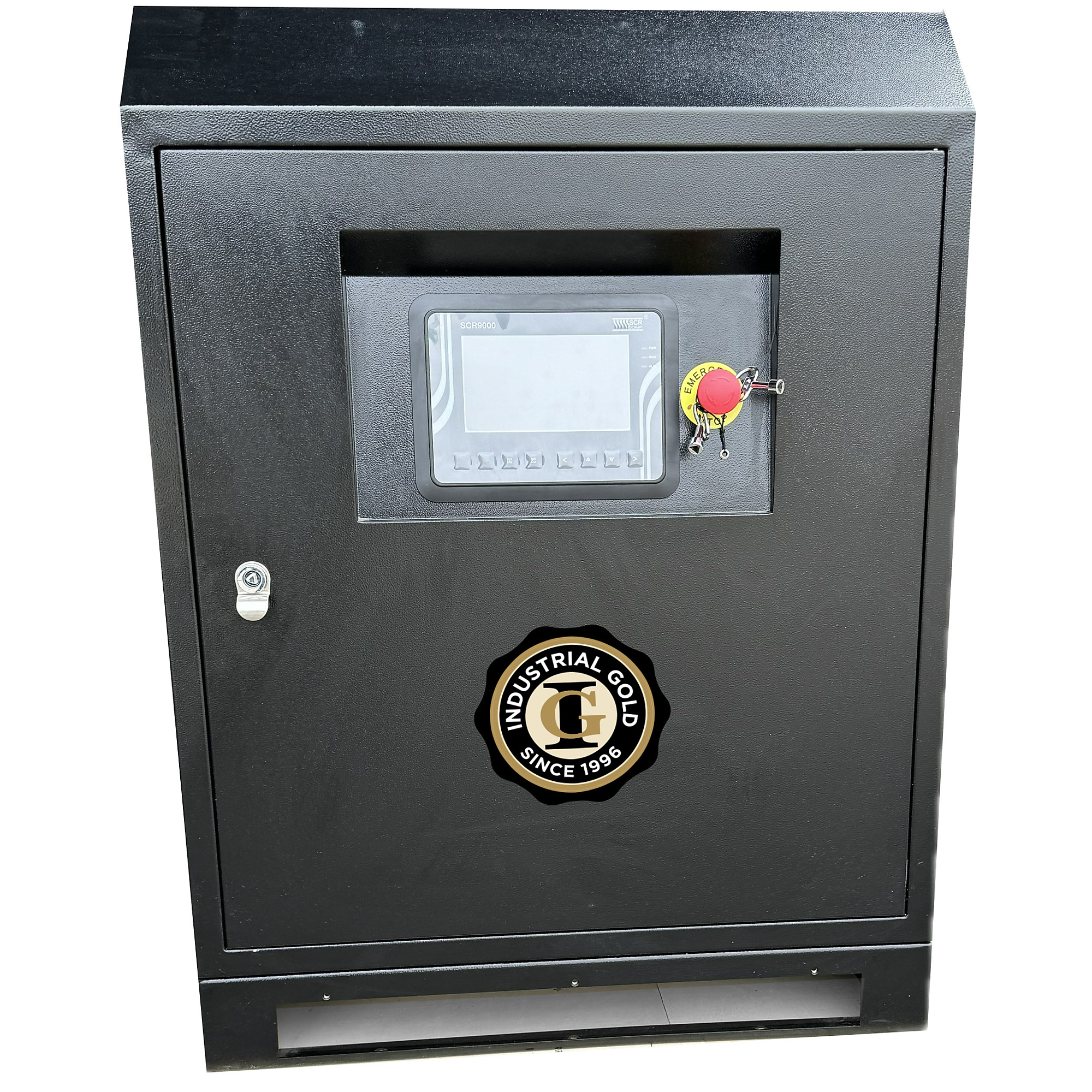

Industrial Gold, 15hp 3 phase, 208-230V Permanent Magnet Rotary, Horsepower 15 HP, Volts 208-230 Model# RS15ENC-PM

Click or Tap image to Zoom

$14,299.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Standard Features: 67 dBa, 60 cfm @ 125 PSI, 53 cfm @ 150 PSI, Liquid Cooled Permanent Magnet drive motor, Air/oil cooler, Direct drive, IE4 Effeciancy standard Variable Speed Drive, UL Certified Electrical controls, VSD controlled cooling fan, Built in DC Reactor, 7 inch touch screen, RS485 Interface, Bearing free drive motor, Closed Loop dynamic controls, Thermostat controlled cooling fan, Compressor air end speed 3500rpm or less, Easy Controller interface, Oversized cooling system to allow for higher ambient conditions CRD Compressor Features: All basic features, Air receiver, ASME / CRN, Automatic tank drain, Refrigerated air dryer, SMART contact controls, Vibration isolation pads,

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Future of Compressor Efficiency is Here, Introducing The Industrial Gold permanent magnet, liquid cooled, bearingless motor inverter driven screw compressor that offers up to 45% energy savings in variable demand applications.

What's Included

    (1) Air Compressor

Features + Benefits

  • Standard Features: 67 dBa, 60 cfm @ 125 PSI, 53 cfm @ 150 PSI, Liquid Cooled Permanent Magnet drive motor, Air/oil cooler, Direct drive, IE4 Effeciancy standard Variable Speed Drive, UL Certified Electrical controls, VSD controlled cooling fan, Built in DC Reactor, 7 inch touch screen, RS485 Interface, Bearing free drive motor, Closed Loop dynamic controls, Thermostat controlled cooling fan, Compressor air end speed 3500rpm or less, Easy Controller interface, Oversized cooling system to allow for higher ambient conditions CRD Compressor Features: All basic features, Air receiver, ASME / CRN, Automatic tank drain, Refrigerated air dryer, SMART contact controls, Vibration isolation pads,

Key Specs

AttributeSpecification

item#

6097974

Brand

Industrial Gold

Manufacturer's Warranty

1 year limited warranty

Ship Weight

700.0 LB

Horsepower

15 HP

Volts

208-230

CFM at 90 PSI

61

Max. PSI

150

Air Outlets (qty.)

1

Working Pressure

150 PSI

Motor Phase

3

Pump Material

Cast Iron

Pump Drive

Direct
AttributeSpecification

Air Outlet Size

3/4 in. NPT

CFM at Max. PSI

53

Oil Required

Yes

Low Oil Shutdown

Yes

Lubrication System

Pressure

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Air Dryer

None

Drain Type

Manual

Product Weight

992.0000 lb

Dimensions L x W x H (in.)

36.0 x 48.0 x 44.0 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

1 year limited warranty
