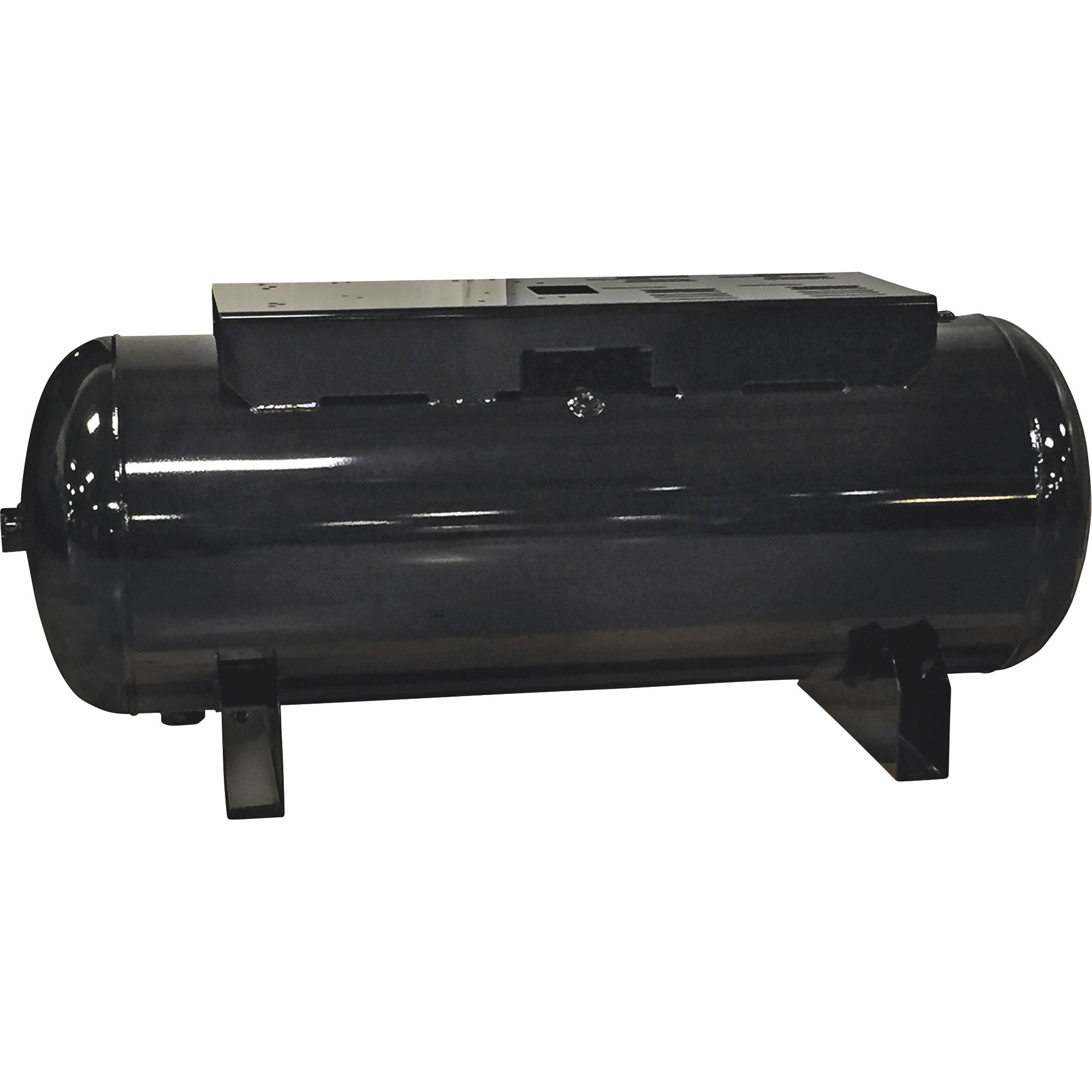

Industrial Air Horizontal Receiver Tank with Platform, 120 Gallon, 200 PSI, Model# 021-0420

Item# 60561
Industrial Air Horizontal Receiver Tank with Platform, 120 Gallon, 200 PSI, Model# 021-0420

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Industrial Air Horizontal Receiver Tank with Platform, 120 Gallon, 200 PSI, Model# 021-0420

Click or Tap image to Zoom

$1449.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

  • ASME 120-gallon horizontal air receiver tank
  • 200 PSI working pressure
  • ASME certified weld flanges
  • Includes platform to mount pump/motor
  • One 1/4in. NPT tank drain port

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Industrial Air ASME certified 120-Gallon Horizontal Receiver Tank is ideal when installing a compressed air system or when you need more air storage. This receiver tank has a platform to mount pump/motor. Receiver tank is also fitted with a drain. U.S.A.

What's Included

    (1) 120-gallon horizontal air receiver tank

Features + Benefits

  • ASME 120-gallon horizontal air receiver tank
  • 200 PSI working pressure
  • ASME certified weld flanges
  • Includes platform to mount pump/motor
  • One 1/4in. NPT tank drain port
  • Durable powder-coat paint
  • Shipped on individual pallets

Key Specs

AttributeSpecification

item#

60561

Brand

Industrial Air

Manufacturer's Warranty

1 year limited warranty

Ship Weight

325.0 LB

Capacity

120 Gal
AttributeSpecification

Max. PSI

200

Application

Air Storage

Product Weight

lb

Dimensions L x W x H (in.)

74.0 x 28.5 x 36.2 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. What are the dimensions for the mounting feet?

    1 answer

    1. The center to center mounting hole dimensions for the feet are 49.5"L x 23.5"W. The tank will require 1/2"-5/8" anchor bolts for mounting.

      Helpful?

  2. what are the dementions of the tank.

    1 answer

    1. The dimensions of this tank are 74 x 28.5 x 36.2 in (L x W x H).

      Helpful?

  3. What certification comes with this product. I will need a certificate of conformance, and any other certification that might be offered

    1 answer

    1. The tank is ASME and can be provided by the manufacturer at request. The certification is also noted on the tank.

      Helpful?

  4. The description mentioned powder coated. Is that inside, outside, or both?

    1 answer

    1. The interior of this receiver tank would be raw steel. The powder coat would just be on the exterior.

      Helpful?

  5. What size NPT fittings are there and what is their location. The only one mentioned is the 1/4” drain .

    1 answer

    1. There will be (1) 3/4" NPT port centered on the top of the tank, (1) 1/4" NPT port centered in the front of the platform, (1) 1/4" NPT port on the top of the tank on the right side of the platform, (2) 3/4" NPT ports centered on both tank heads left and right ends of the tank and a 1/4" NPT bottom drain port.

      Helpful?

  6. Detail Spec

    Hello. What is the dimension of the top Platform?

    1 answer

    1. The platform measures 44 inches in length and is 17 inches wide.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
