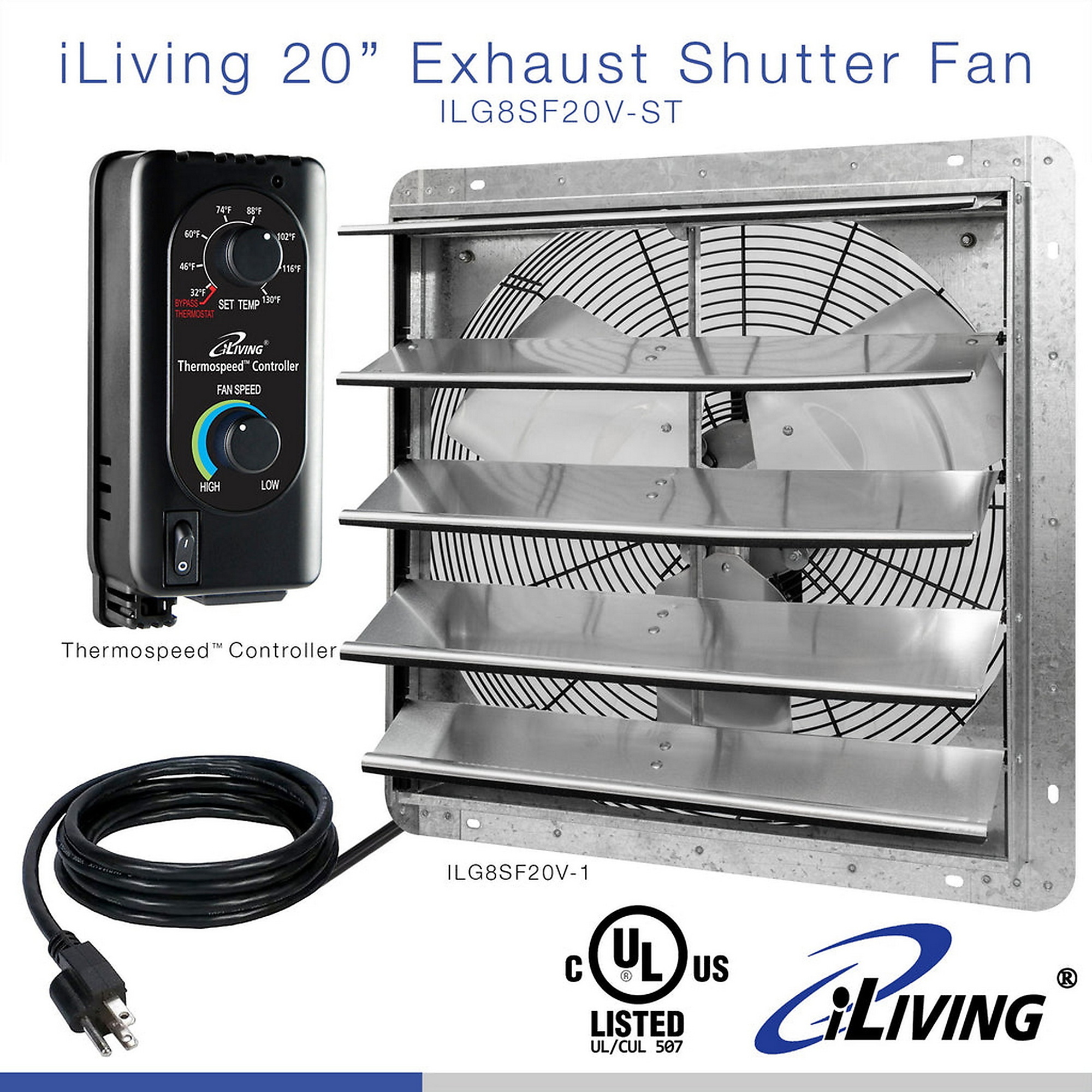

Dr. Infrared Heater iLiving Wall Mounted Shutter Exhaust Fan — 20in., Thermostat, Variable Speed Controller, 3368 CFM, Silver, Model# ILG8SF20V-ST

Item# 7188940
Dr. Infrared Heater iLiving Wall Mounted Shutter Exhaust Fan — 20in., Thermostat, Variable Speed Controller, 3368 CFM, Silver, Model# ILG8SF20V-ST

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Dr. Infrared Heater iLiving Wall Mounted Shutter Exhaust Fan — 20in., Thermostat, Variable Speed Controller, 3368 CFM, Silver, Model# ILG8SF20V-ST

Click or Tap image to Zoom

$179.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

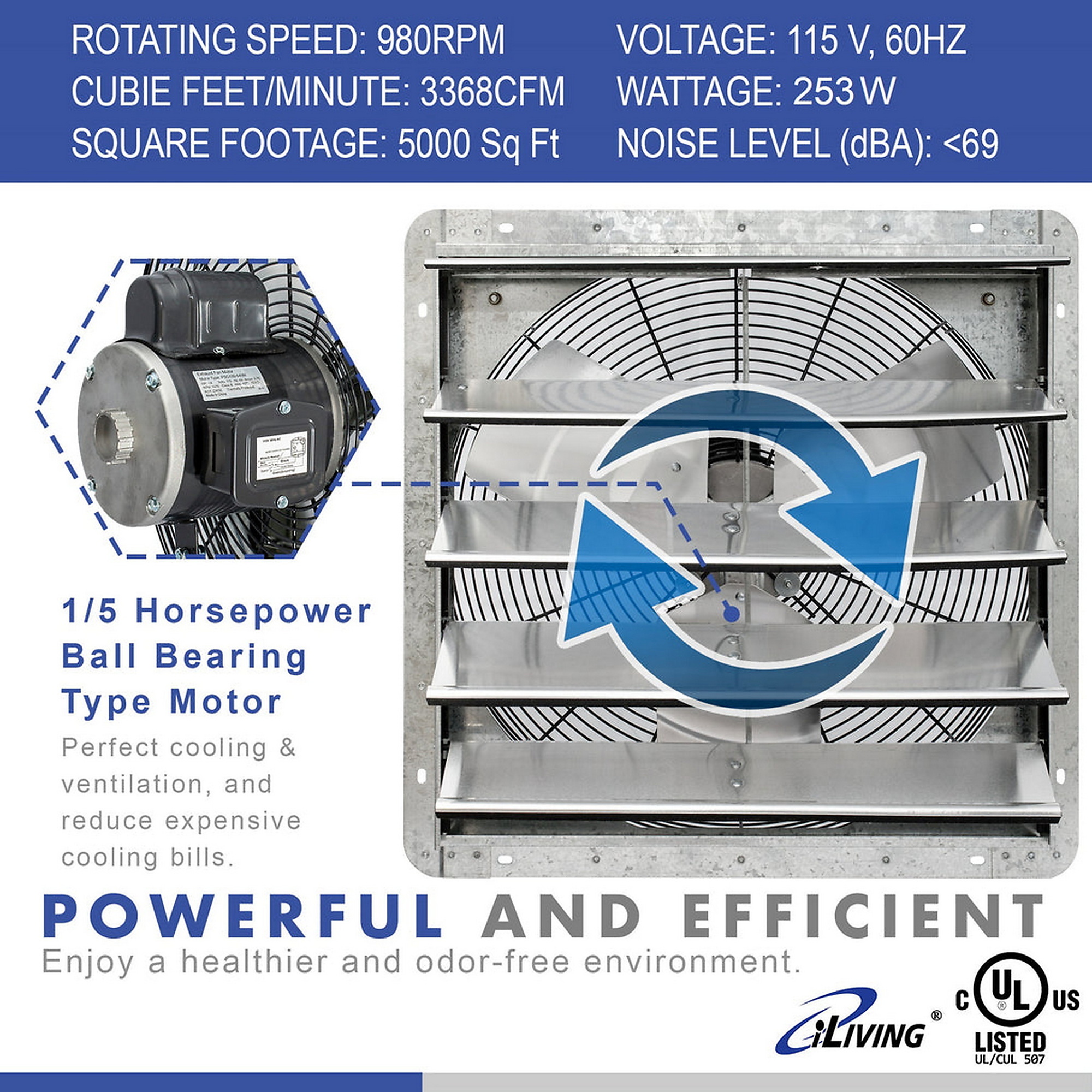

  • POWERFUL AIR VENTILATOR - 3368 CFM, 115V, 2.2A, 1/5 Horsepower, 980 RPM, Coverage up to 5000 square feet. Industrial ventilation fan with shutter. 20 Inch Variable Speed Shutter Exhaust Fan with automatic shutters
  • SPEED AND THERMAL CONTROL - Variable speed and temperature regulation control, comes with Variable speeds and thermal control features of newest Thermospeed(TM) Controller ILG8SFST, temperature control range 32 - 130F
  • BUILD TO LAST - Industrial grade galvanized steel frame with aluminum shutters and fan blades, reliable direct drive motor, Variable speed, UL certified, Noise Level < 69dB. Ideal for warehouse, garage, greenhouse, workshop exhaust and dust extraction. Corrosion-resistant with OSHA compliant wire guards. UL Listed with speed controllable, permanently lubricated motor
  • EFFICIENT - 20 inches steel blades with deep pitch angle for maximum air movement, exchange air at 3368 cubic feet per minutes. Mounting type: Wall Mount
  • CUSTOMER SUPPORT - Local customer support to address all questions and concerns.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

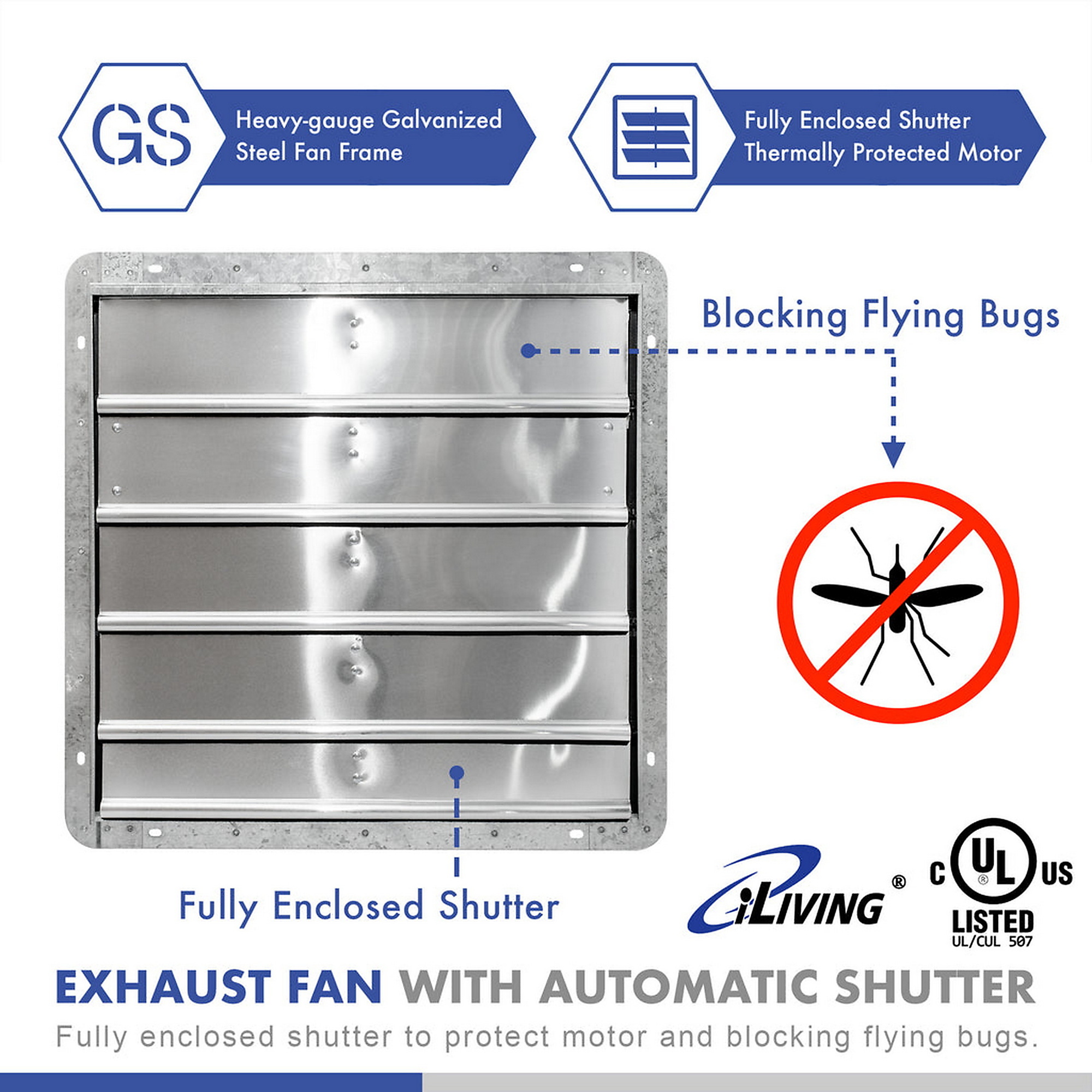

The iLIVING Shutter Exhaust Fan is perfect for removing excess heat, moisture, and unpleasant odors from virtually any commercial location, including restaurants, factories, warehouses, barns, and greenhouses. This fan features aluminum blades, OSHA compliant wire guards, and automatic shutters that open and close in tandem with the operation of the fan. The completely enclosed motor is thermally protected and permanently lubricated. Equipped with the newest Thermospeed Controller which can easily control the temperature and speed. Auto cycle ON/OFF at your desired temperature. The fan comes fully assembled out of the box.

What's Included

    (1) Exhaust Fan

Downloads

Product Manual

Features + Benefits

  • POWERFUL AIR VENTILATOR - 3368 CFM, 115V, 2.2A, 1/5 Horsepower, 980 RPM, Coverage up to 5000 square feet. Industrial ventilation fan with shutter. 20 Inch Variable Speed Shutter Exhaust Fan with automatic shutters
  • SPEED AND THERMAL CONTROL - Variable speed and temperature regulation control, comes with Variable speeds and thermal control features of newest Thermospeed(TM) Controller ILG8SFST, temperature control range 32 - 130F
  • BUILD TO LAST - Industrial grade galvanized steel frame with aluminum shutters and fan blades, reliable direct drive motor, Variable speed, UL certified, Noise Level < 69dB. Ideal for warehouse, garage, greenhouse, workshop exhaust and dust extraction. Corrosion-resistant with OSHA compliant wire guards. UL Listed with speed controllable, permanently lubricated motor
  • EFFICIENT - 20 inches steel blades with deep pitch angle for maximum air movement, exchange air at 3368 cubic feet per minutes. Mounting type: Wall Mount
  • CUSTOMER SUPPORT - Local customer support to address all questions and concerns.
  • Product is UL/cUL Listed.

Key Specs

AttributeSpecification

item#

7188940

Brand

Dr. Infrared Heater

Manufacturer's Warranty

1 year limited warranty

Ship Weight

26.5 LB

Drive Type

Direct

Fan Diameter

20 in

Air Delivery

3,368 cfm
AttributeSpecification

Volts

120

Watts

253

Amps

2.2

Max. Fan Speed

980 rpm

Primary Color

Silver

Product Weight

27.5000 lb

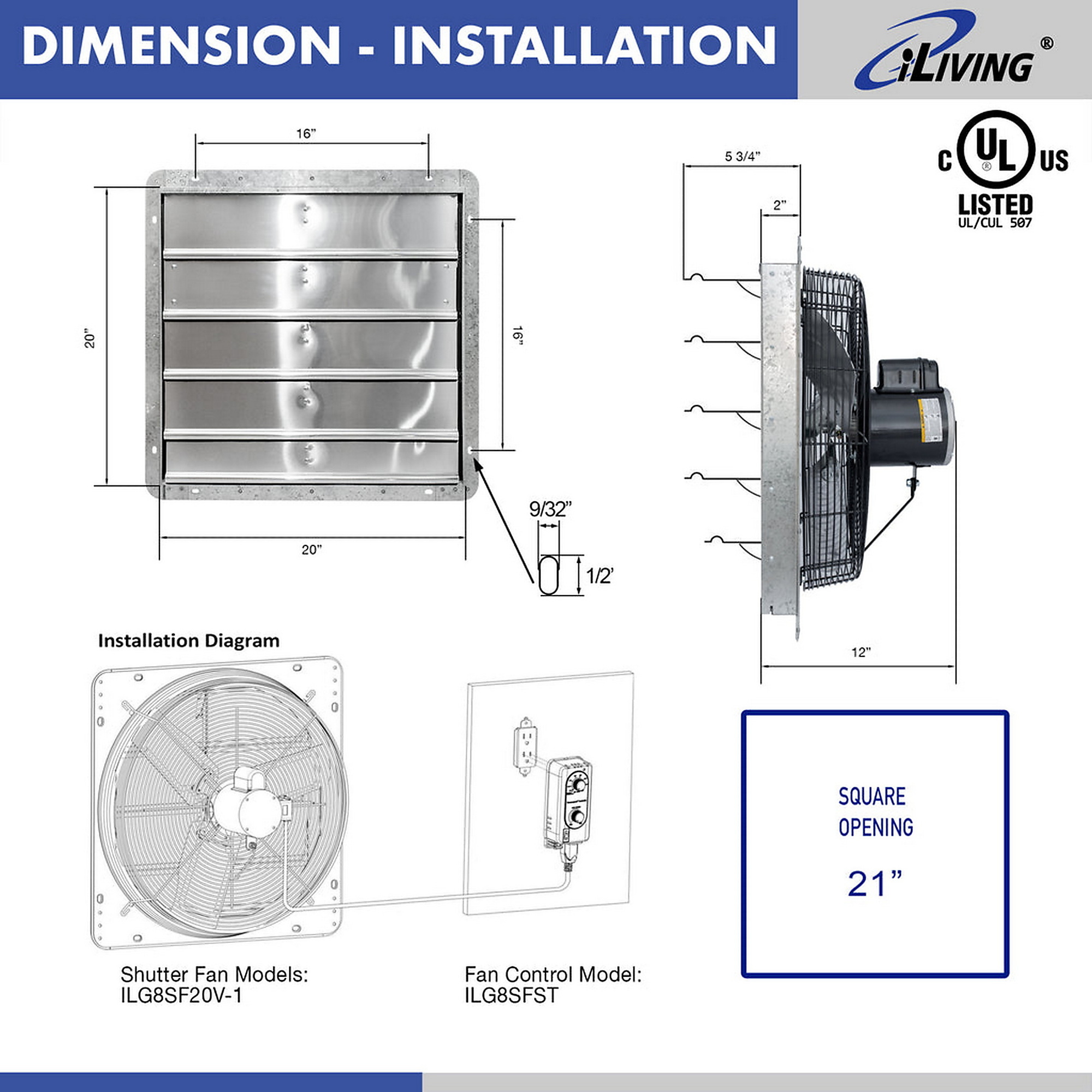

Dimensions L x W x H (in.)

23.0 x 5.75 x 23.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
