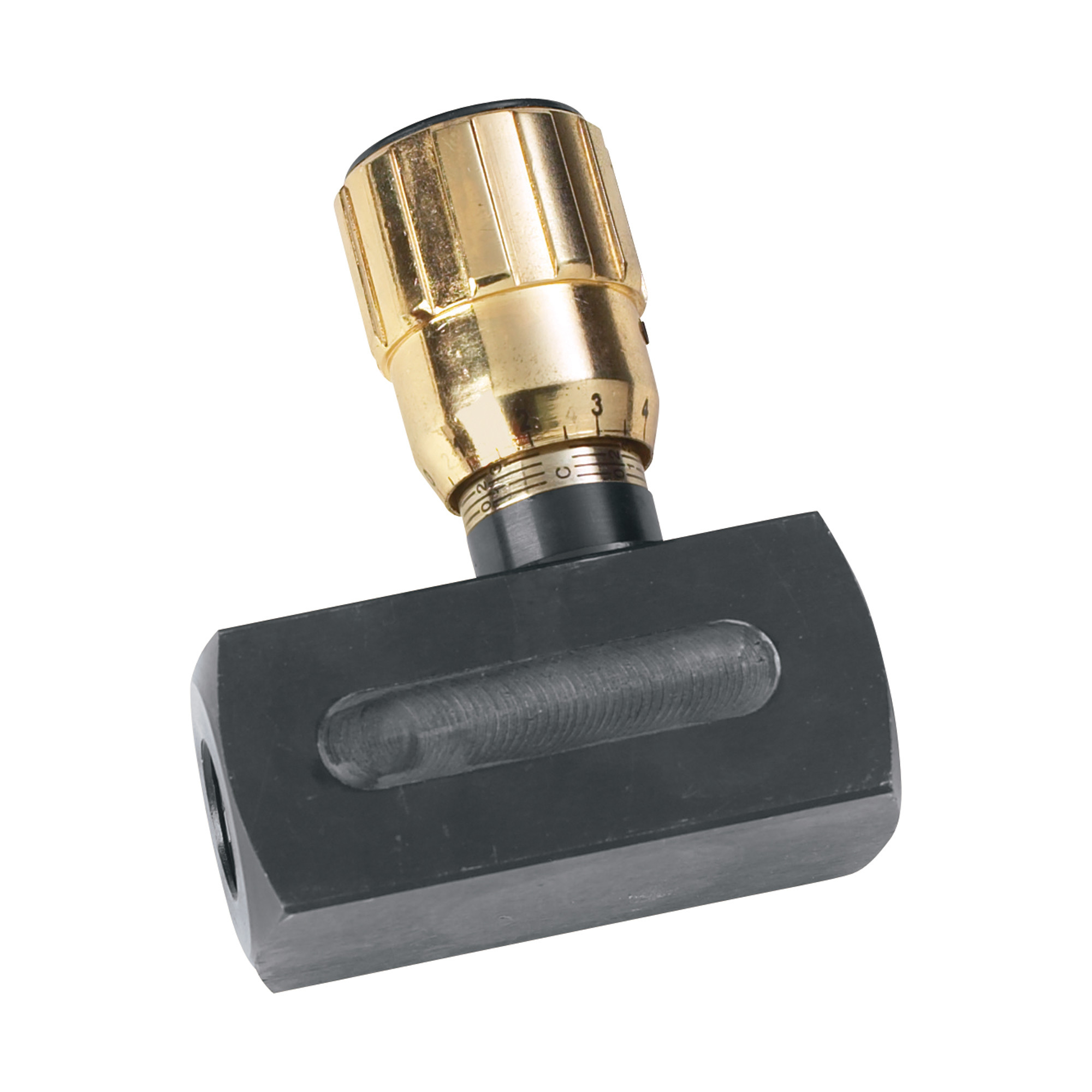

HydraStar, 1/2in. NPT Steel Flow Control Valve, GPM 15 Working Port 1/2 in, Max. PSI 5000 Model# F800S

Item# 2057
"HydraStar, 1/2in. NPT Steel Flow Control Valve, GPM 15 Working Port 1/2 in, Max. PSI 5000 Model# F800S"
HydraStar, 1/2in. NPT Steel Flow Control Valve, GPM 15 Working Port 1/2 in, Max. PSI 5000 Model# F800S

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

HydraStar, 1/2in. NPT Steel Flow Control Valve, GPM 15 Working Port 1/2 in, Max. PSI 5000 Model# F800S

Click or Tap image to Zoom

$69.99

  • Shipping:

    Available now

  • Store Pickup:

  • Lets you speed up or slow down an operation for greater smoothness and control.
  • Ideal for plowing and dump applications.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Compare

Product Summary

Precision HydraStar flow control and full shutoff in one flow direction, unrestricted flow in opposite direction. Ideal for control of flow to hydraulic motors as a means of controlling motor speed. 5000 PSI, steel construction.

What's Included

    (1) Control Valve

Features + Benefits

  • Lets you speed up or slow down an operation for greater smoothness and control.
  • Ideal for plowing and dump applications.

Key Specs

AttributeSpecification

item#

2057

Brand

HydraStar

Ship Weight

2.33 LB
AttributeSpecification

GPM

15

Working Port

1/2 in

Max. PSI

5,000

Reviews

Questions & Answers

5 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. do i need one on each line on a two way cylinder

    1. Yes, if you want to adjust the speed of the cylinder in both directions.

      Helpful?

    2. It depends on your application, but it seems what you are trying to do is to slow a cylinder's actuation time of either direction. You might consider using a flow restictor upstream the control valve inlet port. Yet, that also depends on your control valve configuration.

      Helpful?

    3. You would need one for each line on a two way cylinder.

      Helpful?

  2. Can this be adjusted while oil flowing through, or do you have to shut down and have no pressure/flow?

    1. You can adjust the valve while under pressure.

      Helpful?

    2. This unit can be adjusted while under pressure and oil flowing through, there will be some shudder but that is normal and will soon go away. You will want to check periodically afterwards once set for consistency.

      Helpful?

  3. Will it shut flow completely off if turned all the way down?

    1. Yes

      Helpful?

    2. This unit will provide full shut off in one flow direction when turned all the way down.

      Helpful?

  4. Are the threads 8- SAE?

    1 answer

    1. This control valve would have 1/2" NPT threads.

      Helpful?

  5. Is there a way to mount this ?

    1 answer

    1. The way to mount this valve is by plumbing in line with a fixed existing hydraulic platform of piping or hose.

      Helpful?

  6. what are the materials of constuction? The top appears to be bronze, but the body appears to be coated steel?

    1 answer

    1. This flow control valve is constructed from steel. The top knob is coated steel and the main body is anodized coated steel.

      Helpful?
