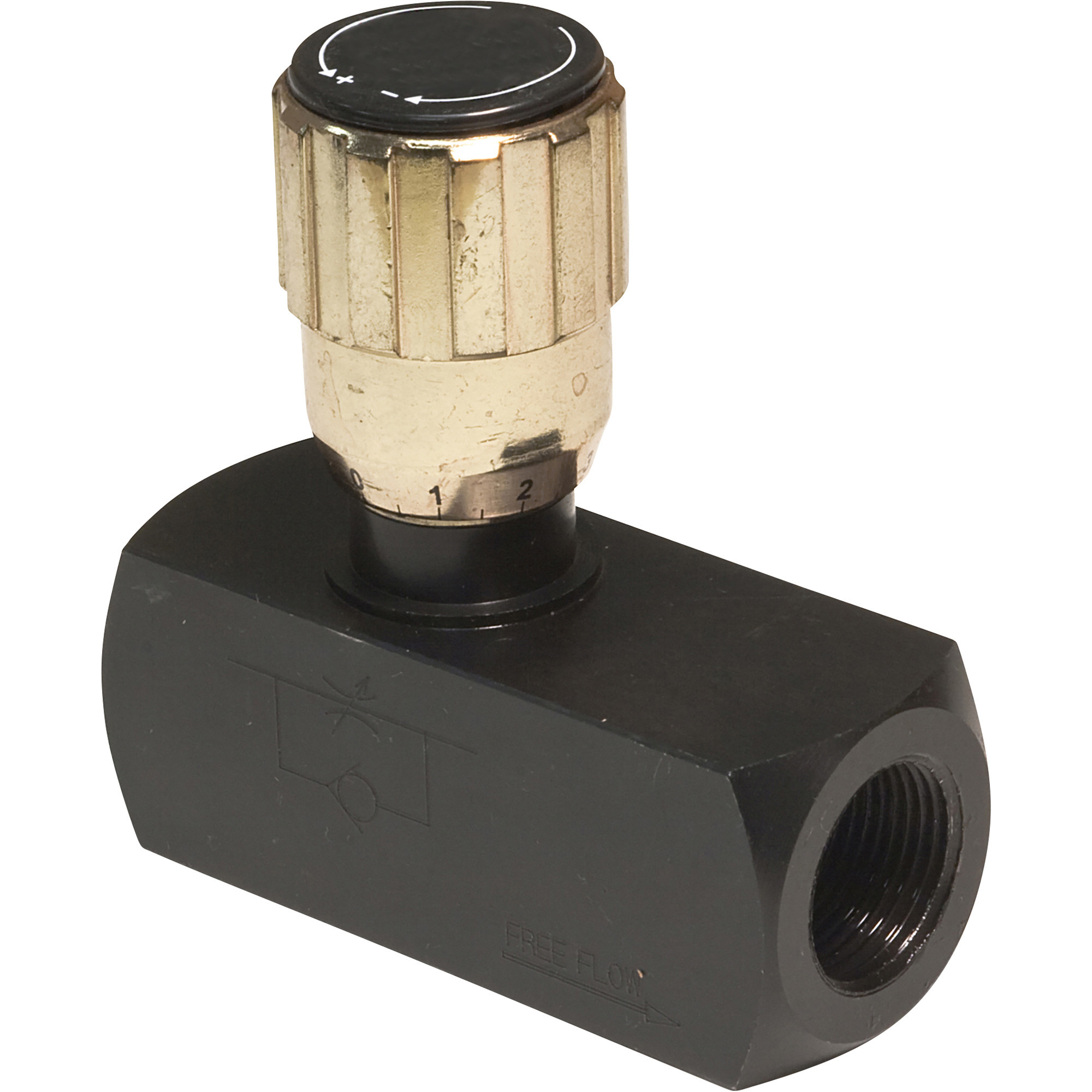

HydraStar, 3/8in. NPT Steel Flow Control Valve, GPM 8 Working Port 3/8 in, Max. PSI 5000 Model# F600S

Item# 2056
"HydraStar, 3/8in. NPT Steel Flow Control Valve, GPM 8 Working Port 3/8 in, Max. PSI 5000 Model# F600S"
Top Seller
HydraStar, 3/8in. NPT Steel Flow Control Valve, GPM 8 Working Port 3/8 in, Max. PSI 5000 Model# F600S

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

HydraStar, 3/8in. NPT Steel Flow Control Valve, GPM 8 Working Port 3/8 in, Max. PSI 5000 Model# F600S

Click or Tap image to Zoom

$59.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not Available
  • Lets you speed up or slow down an operation for greater smoothness and control.
  • Ideal for plowing and dump applications.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Precision HydraStar flow control and full shutoff in one flow direction, unrestricted flow in opposite direction. Ideal for control of flow to hydraulic motors as a means of controlling motor speed. 5,000 PSI, steel construction.

What's Included

    (1) Flow Control Valve

Features + Benefits

  • Lets you speed up or slow down an operation for greater smoothness and control.
  • Ideal for plowing and dump applications.

Key Specs

AttributeSpecification

item#

2056

Brand

HydraStar

Manufacturer's Warranty

1 year limited warranty

Ship Weight

1.08 LB
AttributeSpecification

GPM

8

Working Port

3/8 in

Max. PSI

5,000

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. Can two of these be used to control the speed of a hydraulic cylinder in both directions by using one on the inlet line and one on the outlet line?

    1. If you want a different speed then 2 is necessary! If you want both directions to have the same speed the only one is necessary so long it is placed in the line from the pump before the spool valve, then both directions the speed is as your set speed.

      Helpful?

    2. You would be able to use two of these to control the speed of the hydraulic cylinder in both directions putting one on the inlet line and one on the outlet line.

      Helpful?

  2. Are the numbers on the knob GPM

    1 answer

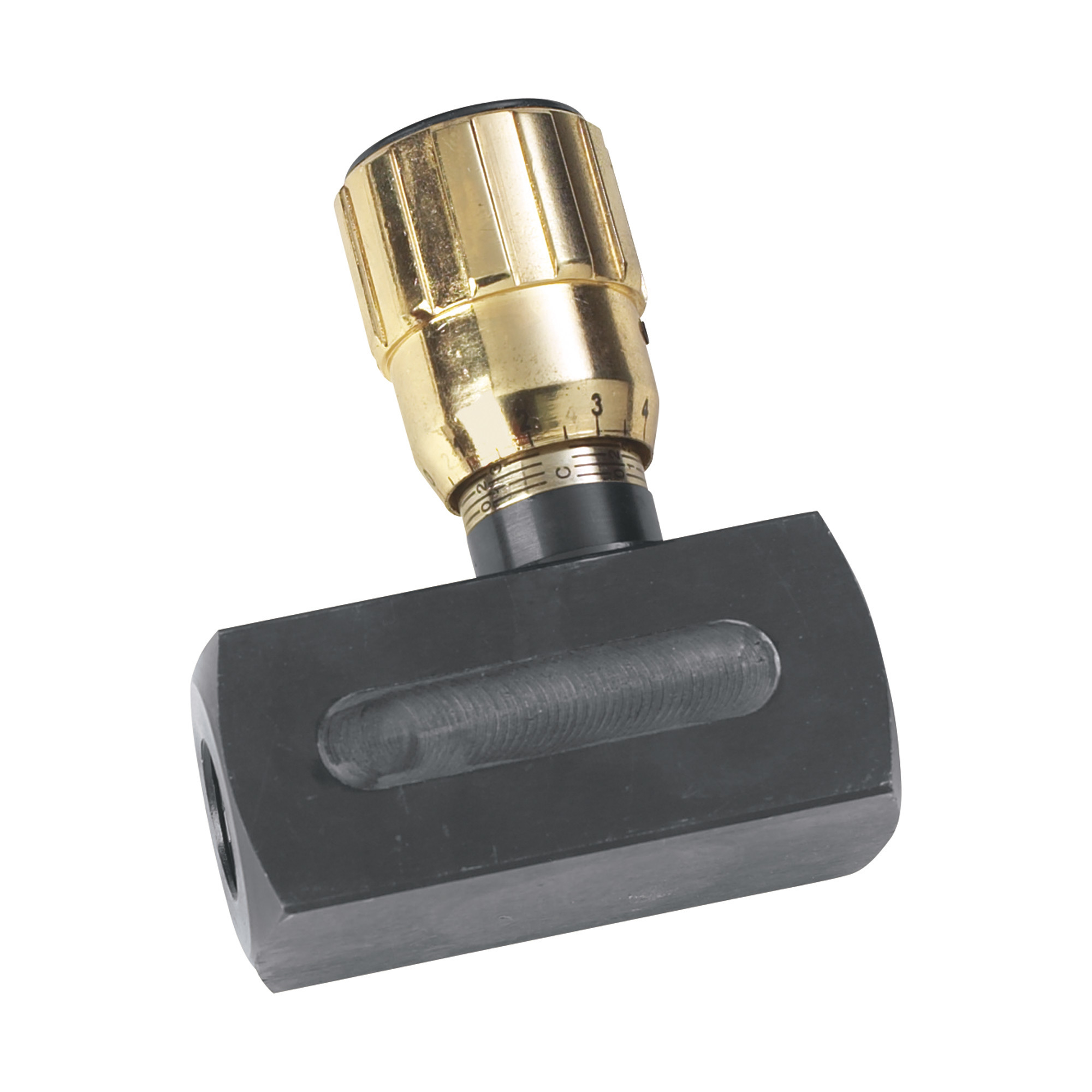

    1. The hash marks at the base of the brass knob represent the gallons per minute flow rate.

      Helpful?

  3. What is the country of origin

    1 answer

    1. The HydraStar Flow Control Valve is manufactured in China.

      Helpful?

  4. is port size NPT F ?

    1 answer

    1. Yes the port size is 3/8" NPTF.

      Helpful?

  5. What are the dimensions of this product?

    Specifically the length of the main steel block.

    1 answer

    1. The dimensions on this is 1-1/16" x 1-1/16" x 2-3/4"L. The height from bottom to top of knob is 3".

      Helpful?
