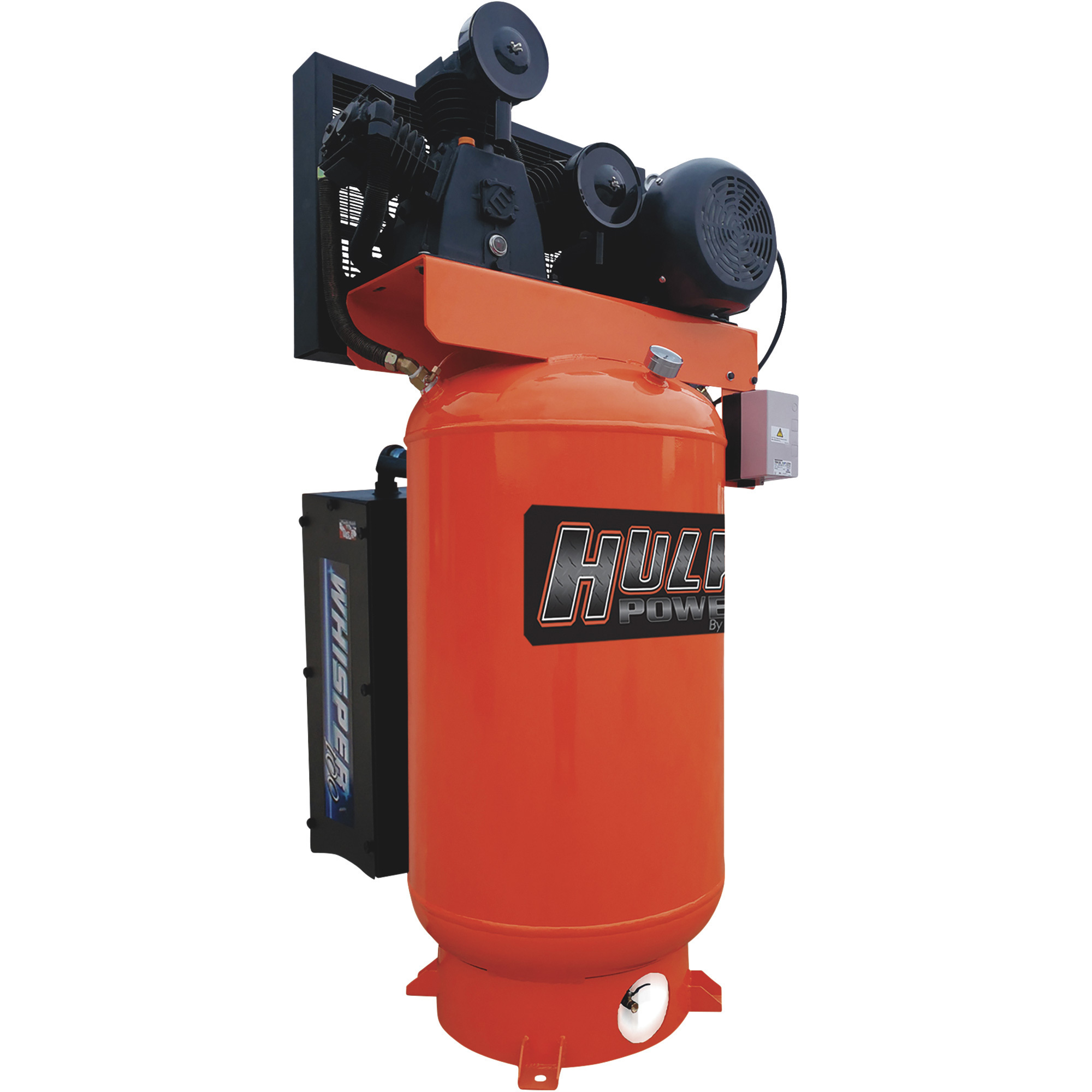

Hulk by EMAX Silent 5 HP, 2-Stage, 80-Gallon Vertical Air Compressor, 230 Volt, 1-Phase, Model# HI05V080Y1S

Item# 61124
Hulk by EMAX Silent 5 HP, 2-Stage, 80-Gallon Vertical Air Compressor, 230 Volt, 1-Phase, Model# HI05V080Y1S

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Hulk by EMAX Silent 5 HP, 2-Stage, 80-Gallon Vertical Air Compressor, 230 Volt, 1-Phase, Model# HI05V080Y1S

Click or Tap image to Zoom

  • Designed for up to 50,000 hours of commercial or industrial use with proper maintenance
  • Whisper 100 noise suppression system installed on back for easy removal and low profile
  • Operating noise level up to 25% quieter than comparable 5 HP air compressors
  • Ideal for an environment where workers are close to the compressor
  • 680 RPM pump with solid cast iron crankcase for alignment and durability under heavy workloads

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Hulk by EMAX Silent 5 HP, 2-Stage, 80-Gallon Vertical Air Compressor is designed for up to 50,000 hours of commercial or industrial use with proper maintenance. This unit features the Whisper 100 noise suppression system installed on the back of the unit with brackets fabricated for easy removal and low profile. With an operating noise up to 25% quieter than comparable models, this unit is ideal for an environment where workers are close to the compressor. The pump features a solid cast iron crankcase to ensure stable crankshaft alignment and durability under heavy workloads. 100% brass ASME safety valves are preset and sealed for correct settings. The 5 HP 1.15 service factor industrial motor runs at 3450 RPM.

What's Included

    (1) Air compressor

Downloads

Product Manual Product Manual2

Features + Benefits

  • Designed for up to 50,000 hours of commercial or industrial use with proper maintenance
  • Whisper 100 noise suppression system installed on back for easy removal and low profile
  • Operating noise level up to 25% quieter than comparable 5 HP air compressors
  • Ideal for an environment where workers are close to the compressor
  • 680 RPM pump with solid cast iron crankcase for alignment and durability under heavy workloads
  • 100% brass ASME safety valves are preset, and sealed for correct settings
  • 5 HP motor runs at 3450 RPM - ODP
  • Condor pressure switch
  • 4-year full parts warranty

Key Specs

AttributeSpecification

item#

61124

Brand

EMAX

Manufacturer's Warranty

4 year limited warranty

Ship Weight

706.0 LB

Air Tank Size

80 Gal

Volts

230

CFM at 90 PSI

20

Motor Phase

1

Stage

2

Horsepower

5 HP

Max. PSI

150

Air Outlets (qty.)

1

Amps

24

Duty Cycle

60 %
AttributeSpecification

Motor RPM

3,450

Working Pressure

145 PSI

Pump Life

50,000 hr

Pump Material

Cast Iron

Air Outlet Size

3/4 in. NPT

CFM at Max. PSI

14

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Splash

Tank Fill Time

5 min

Drain Type

Manual

Product Weight

558.0000 lb

Dimensions L x W x H (in.)

34.0 x 39.0 x 69.0 in

Reviews

Questions & Answers

9 Reviews This action will navigate to reviews.

Questions

1–7 of 7 Questions
Sort by:

  1. What size holes are on the feet/floor mount? I want to install it on anti vibration mounts and the ones I'm looking at here have 3/8" bolts

    1 answer

    1. The recommended anchor bolt will be a wedge anchor that is 3/8" x 3.5" L.

      Helpful?

  2. Did it come with wiring diagram for magnetic starter or pressure safety switch

    1 answer

    1. This will include a pre-wired condor starter and pressure switch built into one. Please contact the manufacturer directly for wiring diagrams.

      Helpful?

  3. why only 60% duty cycle,is this true

    1 answer

    1. This model is indeed 60 percent duty cycle.

      Helpful?

  4. Is the 24 amps at start up or is it during run time

    1 answer

    1. This unit will require 48 Amps at start-up and 24 Amps running.

      Helpful?

  5. Can this compressor be put outside under a shed roof?

    1 answer

    1. Because of the electrical components, the manufacturer recommends that this compressor be used indoors only.

      Helpful?

  6. What is the decibel rating on this compressor?

    1 answer

    1. The decibel rating on this compressor is 74 decibels.

      Helpful?

  7. Can you please tell me where this compressor is made?

    1 answer

    1. This compressor is made in the United States.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

4 year limited warranty
