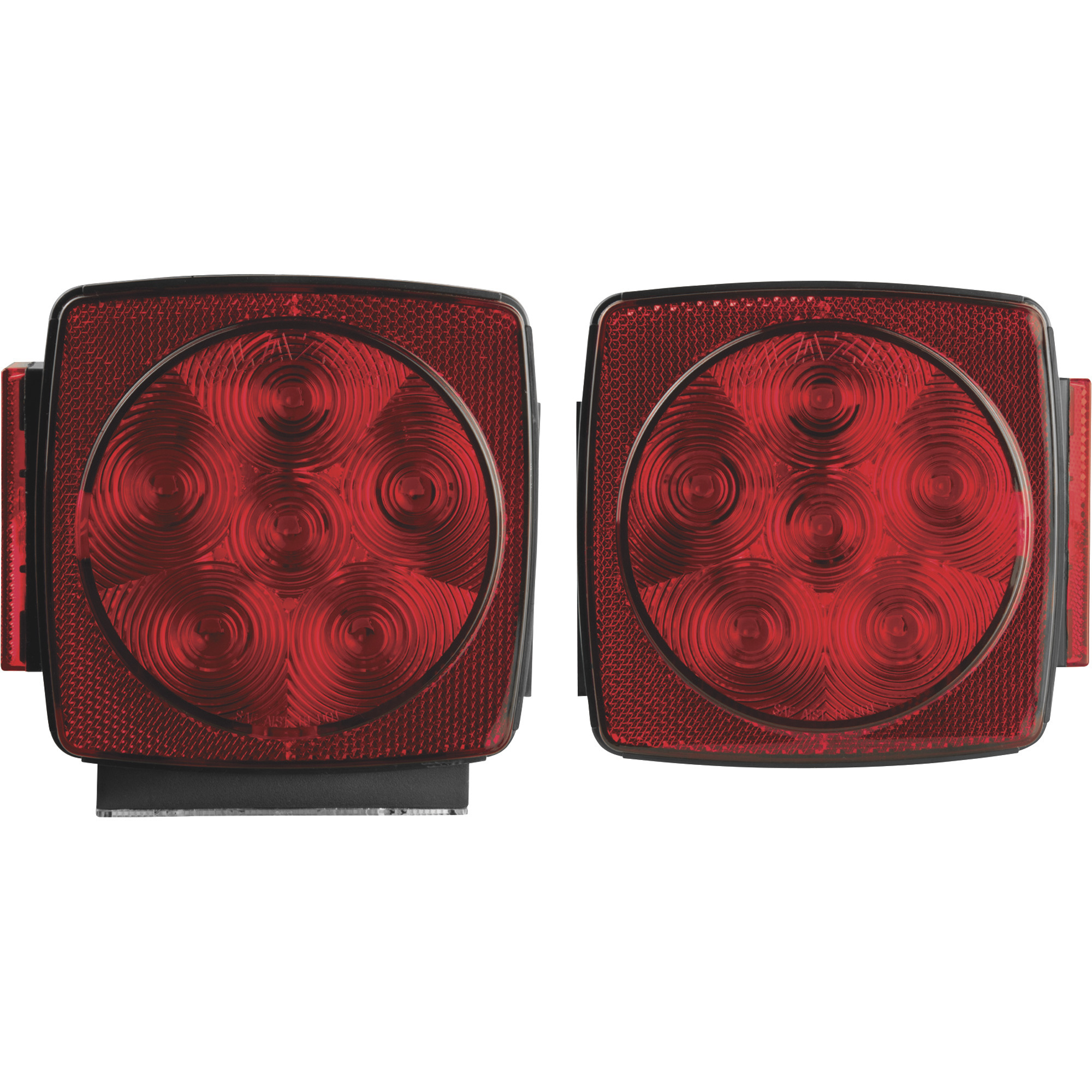

Hopkins Towing Solutions Submersible LED Trailer Light Kit, Model# C7423

Item# 127680
"Hopkins Towing Solutions Submersible LED Trailer Light Kit, Model# C7423"
2 Included
Hopkins Towing Solutions Submersible LED Trailer Light Kit, Model# C7423

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Hopkins Towing Solutions Submersible LED Trailer Light Kit, Model# C7423

Click or Tap image to Zoom

  • Kit includes 2 stop/tail/turn LED lights, a 20 ft. 4-way wire harness, corrosion resistant license plate bracket, mounting hardware, and trilingual instructions
  • Square trailer lights are DOT compliant and meet FMVSS 108 and CMVSS regulations for trailers under 80in. wide
  • Submersible lens and housing are sonically sealed and epoxy sealed electronics resist moisture and corrosion
  • Dual mounting option allows you to mount on the back or the side of the trailer
  • Works with 12V systems

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Compare

Product Summary

The Hopkins Towing Solutions LED Submersible Square Trailer Light Kit is designed to conform to applicable US FMVSS108 and Canadian CMVSS safety standards for trailers under 80in. wide. This kit is not only ideal for boat trailers, but for any utility, camping, snowmobile, and motorcycle trailer where LED lights are desired. The life of an LED trailer light far exceeds traditional incandescent trailer lights lasting up to 100,000 hours and no bulb changes. The lens is sonically sealed to provide protection from moisture and corrosion. Additionally, all electronics are potted with water-resistant resin for a second layer of defense. The 12V stop/tail/turn lights feature universal back and side mount options. Lights are individually replaceable with Blazer model numbers C7483RTM and C7493RTM. The kit includes 2 submersible stop/tail/turn lights, 20ft. wire harness, license plate bracket, mounting hardware, and trilingual instructions- everything needed for easy installation and DOT compliance.

What's Included

    (2) Stop/tail/turn lights (1) 20 ft. 4-way wire harness (1) License plate bracket (1) Mounting hardware kit
Play Item Video

Features + Benefits

  • Kit includes 2 stop/tail/turn LED lights, a 20 ft. 4-way wire harness, corrosion resistant license plate bracket, mounting hardware, and trilingual instructions
  • Square trailer lights are DOT compliant and meet FMVSS 108 and CMVSS regulations for trailers under 80in. wide
  • Submersible lens and housing are sonically sealed and epoxy sealed electronics resist moisture and corrosion
  • Dual mounting option allows you to mount on the back or the side of the trailer
  • Works with 12V systems
  • Submersible for boat trailer use
  • Left side light is 1 3/4in.L x 5in.W x 5in.H
  • Right side light is 1 3/4in.L x 5in.W x 4 3/4in.H

Key Specs

AttributeSpecification

item#

127680

Brand

Hopkins Towing Solutions

Ship Weight

2.11 LB

Light Diameter

5 in
AttributeSpecification

Bulbs Per Light (qty.)

10

Included (qty.)

2

License Plate Bracket Included

Yes

Reviews

Questions & Answers

110 Reviews This action will navigate to reviews.

Questions

1–10 of 13 Questions
Sort by:

  1. Are these led lights totally submersible & waterproof?

    1. yes

      Helpful?

    2. Yes

      Helpful?

    3. Yes, these are submersible and waterproof.

      Helpful?

  2. How long is the wiring harness?

    It´s the little things that can set a project back.

    1. This set has a pre-split harness so you don't have to splice from one light to the other so it should be long enough, i would think, for an 18' trailer.

      Helpful?

    2. Didn't measure the length before I installed it, but my EZ Loader trailer is at least 22 feet long from coupler to end, and I had at least a 1.5 feet of wire to spare. Width between side rails is 66 inches.

      Helpful?

    3. The wiring harness is 4 ft., positive wire is 20ft. and the negative is 25 ft.

      Helpful?

  3. wires

    How many wires and what is the lenght of each wire can you be more desciptive than the other answes on here?

    1. 4 wires, 2 to each side and ground to the chassis and on my 5'x8' trailer, I had about 4' left on one side and 3' on the other after install. If you do not follow the frame, you can probably gain an additional foot or two as well. Note this is very common stranded auto electrical wiring and NOT anything special; extending the wiring is as simple as using butt-connectors if needed.

      Helpful?

    2. There are 4 wires, yellow, green, red and white. They are all 25 feet long.

      Helpful?

  4. What are the dimensions of the lights? And how do they mount to the trailer? Any manual/PDF for this kit would be helpful on the Northern site?

    1. The lights in this Blazer International LED Trailer Light Kit are 5 5/16" L x 3 1/16" D x 5 1/4" H. They would mount to your existing light location with 2-1/4" bolts that are 2" on center. Please see your installation instructions for further details.

      Helpful?

    2. The two tail lights are square about 5.5"x5.5". They mount to the brackets on the trailer with 2 bolts each that are included with the kit.

      Helpful?

  5. Can I replace the LED lights

    1 answer

    1. The LED lights are individually replaceable.

      Helpful?

  6. Does the wiring harness include the connector for plugging it into the vehicle? If so, what kind of connector is it?

    1 answer

    1. The lights will include a 4 way flat wire harness connector.

      Helpful?

  7. Are all the lights Led?

    1 answer

    1. All of the lights in this kit are LED. Each one of the lights in the kit has 10 LED lights inside of it.

      Helpful?

  8. Is the built in side marker light an led or incandescent bulb?

    1 answer

    1. The side marker light is an LED bulb.

      Helpful?

  9. Does ground wire run to each light?

    Does the white ground wire run to each light or do the lights rely on the trailer frame for ground? (I am sick and tired of chasing bad ground induced problems.)

    1 answer

    1. Each light, as well as the wiring harness, features a white ground wire that is to be connected to a good ground location on the trailer using a circle connector and screw.

      Helpful?

  10. Size of wiring

    What is the gauge of the wiring. Is it one wire or stranded.

    1 answer

    1. This Blazer light kit has 18 gauge wire that is stranded.

      Helpful?

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

See All Grease + Gear Oil

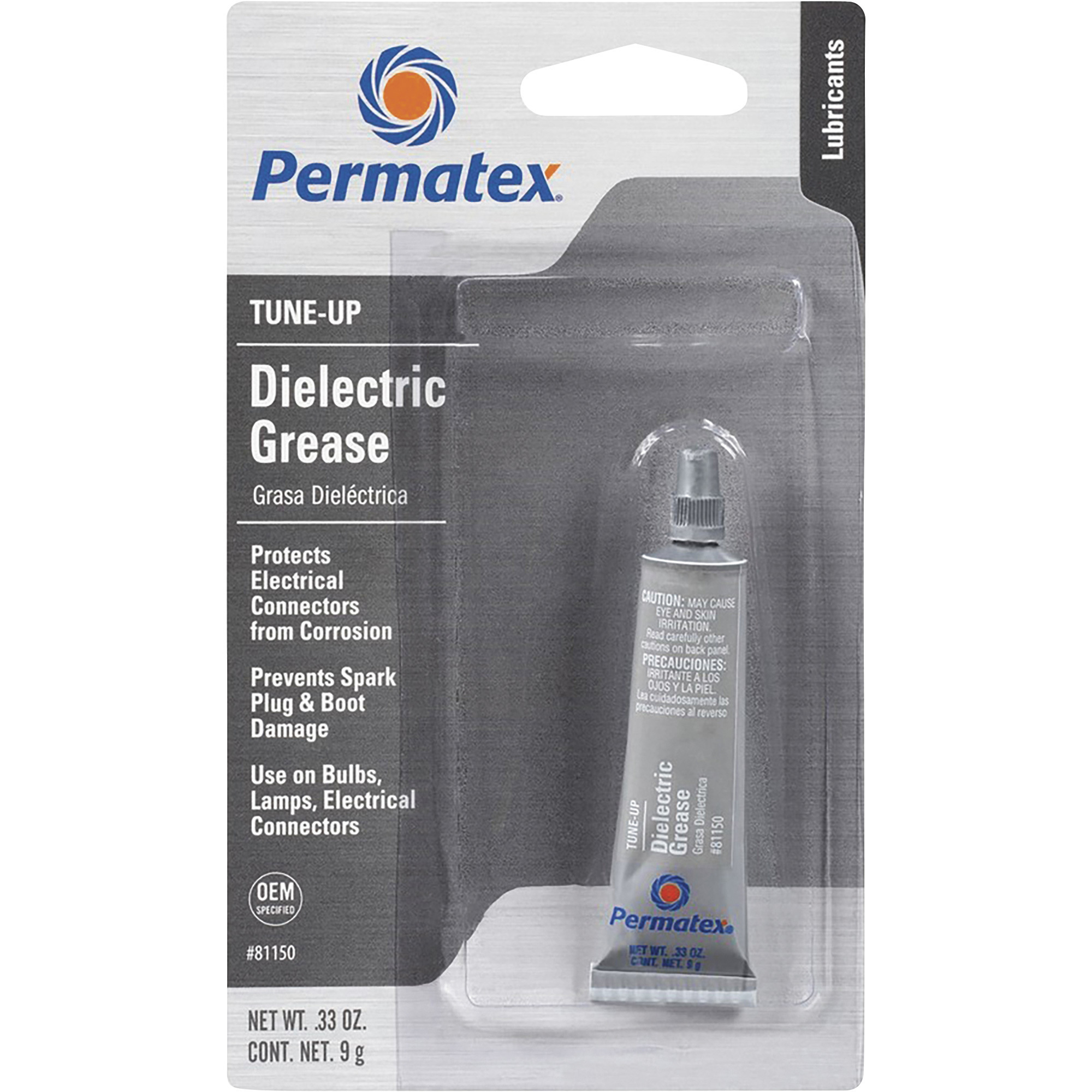

Permatex Dielectric Grease 0.33 Oz., PERM81150
4.9 out of 5 stars. 7 reviews

Permatex Dielectric Grease 0.33 Oz., PERM81150

Item # 94999

$5.79
See All Testers + Accessories

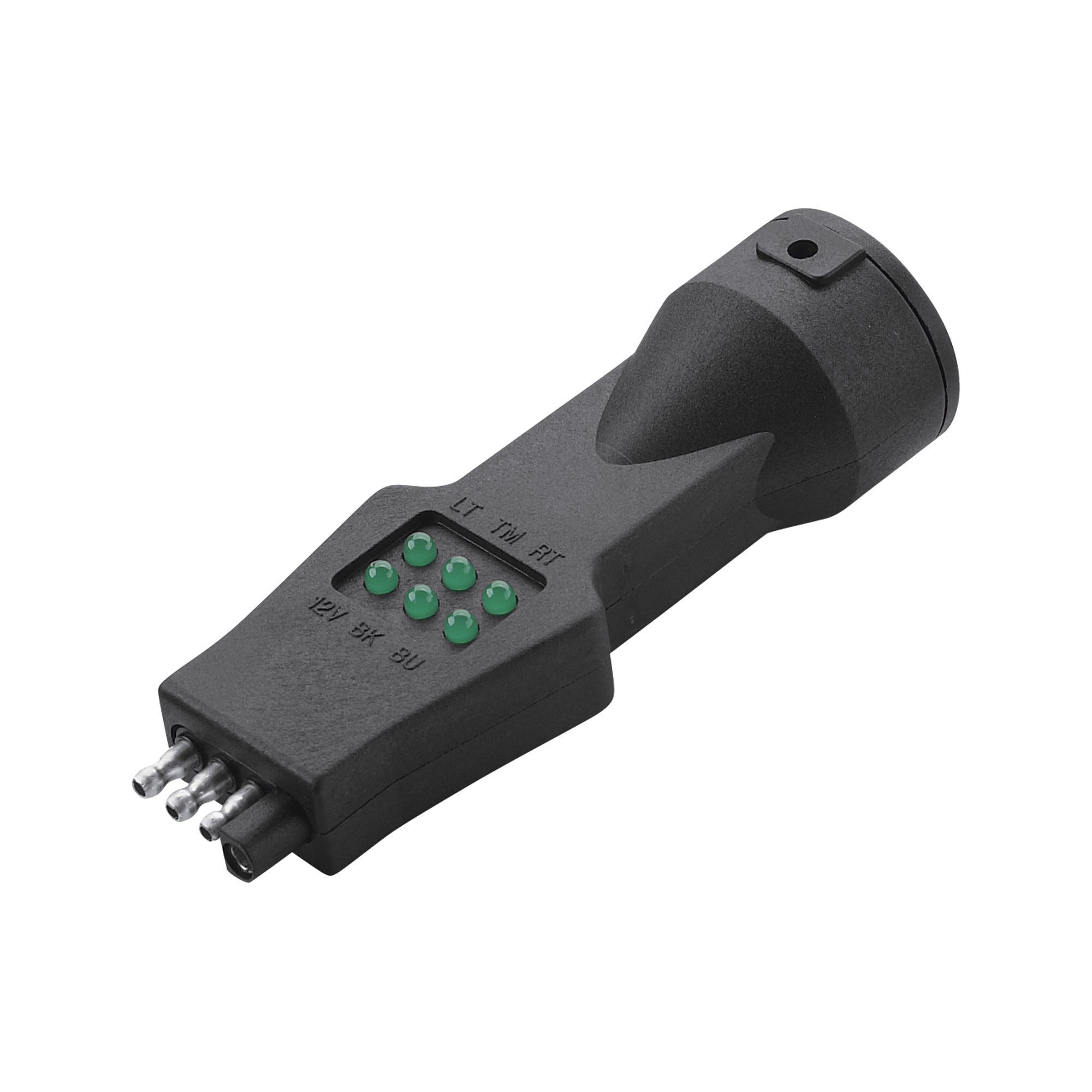

Ultra-Tow 7- and 4-Way Circuit Tester
