Hopkins Towing Solutions Submersible LED Trailer Light Kit, Model# C7280

Item# 127705
"Hopkins Towing Solutions Submersible LED Trailer Light Kit, Model# C7280"
2 Included
Hopkins Towing Solutions Submersible LED Trailer Light Kit, Model# C7280

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Hopkins Towing Solutions Submersible LED Trailer Light Kit, Model# C7280

Click or Tap image to Zoom

$59.99

  • Shipping:

    Available now

  • Store Pickup:

    Out of stock at Fredericksburg VA

  • 10 LED diodes per light
  • Works with 12V systems
  • Premium low-profile design for trailers over and under 80in. wide
  • Epoxy sealed electronics resist moisture and corrosion
  • Sonic welded lens and housing is submersible

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

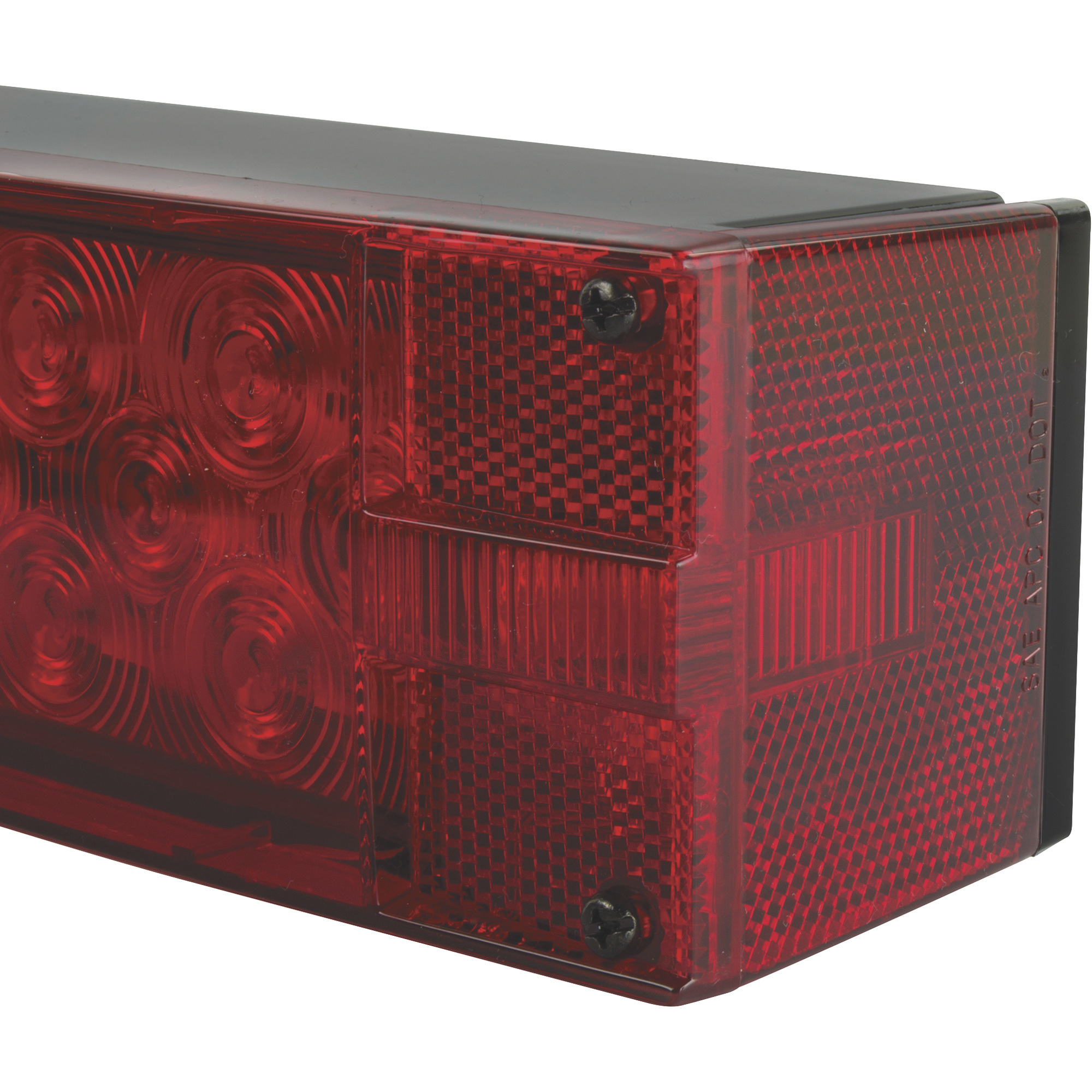

Hopkins Towing Solutions LED low-profile submersible trailer light kit is designed to conform to applicable US FMVSS108 and Canadian CMVSS safety standards for trailers over and under 80in. wide. The drivers side features a combination of 7-function (stop/tail/turn/side marker/reflector marker/reflector stop/rear license plate). The passenger side has the same functions as the drivers side with the exceptions of the license plate light. This kit is not only ideal for boat trailers, but for any utility, camping, snowmobile, and motorcycle trailer where LED lights are desired. The life of an LED trailer light far exceeds traditional incandescent trailer lights. Lenses are sonically sealed to provide protection from moisture and corrosion. Additionally, all electronics are potted with water resistant epoxy for a second layer of defense. These stop/tail/turn lights are individually replaceable with Blazer model numbers C7288TM and C7298TM. The kit includes 2 submersible stop/tail/turn lights, wire harness, license plate bracket, mounting hardware, and trilingual instructions, everything needed for easy installation and DOT compliance.

What's Included

    (2) LED trailer lights (left & right) (1) Wiring harness (1) License plate bracket (1) Attachment hardware kit
Play Item Video

Features + Benefits

  • 10 LED diodes per light
  • Works with 12V systems
  • Premium low-profile design for trailers over and under 80in. wide
  • Epoxy sealed electronics resist moisture and corrosion
  • Sonic welded lens and housing is submersible
  • Light dimensions: 7.88in.D x 2.75in.H x 2.88in.W
  • Universal design for easy surface mounting on 2in. or 4in. mounting centers
  • Maintenance-free LED lights require no bulb changes
  • Kit includes 2 stop/tail/turn lights, 20ft. wire harness with 4-flat connector, rustproof license plate bracket and mounting hardware

Key Specs

AttributeSpecification

item#

127705

Brand

Hopkins Towing Solutions

Ship Weight

2.61 LB

Light Type

LED

Shape

Rectangle

Lens Color

Red

Light Diameter

7.875 in
AttributeSpecification

Housing Material

Plastic

Bulbs Per Light (qty.)

10

Included (qty.)

2

Mounting Hardware Included

Yes

License Plate Bracket Included

Yes

Usage

Boat trailers, utility, camping, snowmobile and motorcycle trailers where LED lights are desired.

Reviews

Questions & Answers

22 Reviews This action will navigate to reviews.

Questions

1–10 of 11 Questions
Sort by:

  1. How many LED bulbs in each light

    In ad you say 10 but I count 12 on back of each light. Also is there LED for the side marker/running light?

    Thanks

    1. This light kit contains a left and right light, each light has 10 rear facing LEDs. There are 2 additional LEDs on each light that are for the clearance and side markers. The left light also features two LEDs that act as a license plate light.

      Helpful?

    2. Blazer International Trailer lights are manufactured to meet all DOT requirements. The LED Trailer Light Kit, Model # C7280, contains a left and right light, each having 10 rear-facing LEDs, that perform stop/tail/turn functions, with 2 additional LEDs that act as a clearance and side marker (DOT req'd). The left light also has an additional two white LEDs that act as a license plate light (DOT req'd).

      Helpful?

  2. HOW LONG IS THE WIRING HARNESS

    1. The wiring harnes is very long indeed. Long enough to reach the front of the Trailer Hitch. However, I didn't need to use the included wiring harnes, but instead used the existing trailer wiring harness that was already in the Trailer, and just spliced the Trailer Light wires into the existing Wiring Harness. It was very easy to do, and has worked great for these past many months.

      Helpful?

    2. This light kit includes a wiring harness that measures 24' 10" long.

      Helpful?

  3. are these stop, turn and tail lights

    1. YES, and they work terrific, and are very visible from long distances away.

      Helpful?

    2. This kit is stop, turn and tail lights.

      Helpful?

  4. Do these lights have a side clearance light on one end?

    1. There is a side clearance light at the end of the Tail Light Fixture that works well. However, the kit does not come with the small yellow market lights that are typically mounted on the front of the trailer. This is a tail light kit only.

      Helpful?

    2. This Blazer Trailer light kit have a side clearance light on one end.

      Helpful?

  5. How long is the wire

    1 answer

    1. The Hopkins Towing Solutions Submersible LED Trailer Light Kit (Model# C7280) includes a wiring harness that measures 24 feet 10 inches long.

      Helpful?

  6. Is this trailer light kit made in the USA?

    1 answer

    1. This light kit is manufactured in Taiwan.

      Helpful?

  7. Are replacement lens available? What is the part number?

    1 answer

    1. Replacement parts are not available for the Blazer Submersible LED Trailer Light Kit.

      Helpful?

  8. How are these lights mouned?

    I need details on how these lights are mounted. Are they bolt on? one bolt or two? bolt spacing? Including a picture in th product description showing the rear of the light fixture with the mounting method would be helpful.

    1 answer

    1. The Blazer LED trailer lights are bolt on. They require 2 bolts per light and the bolt spacing is 2" on center.

      Helpful?

  9. do these lights work as brake light and blinker

    1 answer

    1. The Blazer Trailer light kit will work as a brake light and as a signal light.

      Helpful?

  10. what are the dimensions of the lights also is the wire harness a Y harness

    1 answer

    1. The dimension of the light is 7.78"L x 2-7/8" W x 2-3/4"D. The wiring harness is not considered a Y harness.

      Helpful?
