check the shaft size. each lawn mower has different size shaft for blade. this one didn't work for my mower and Honda doesn't make blade adapters for it. if the this shaft is not identical to yours it won't work.

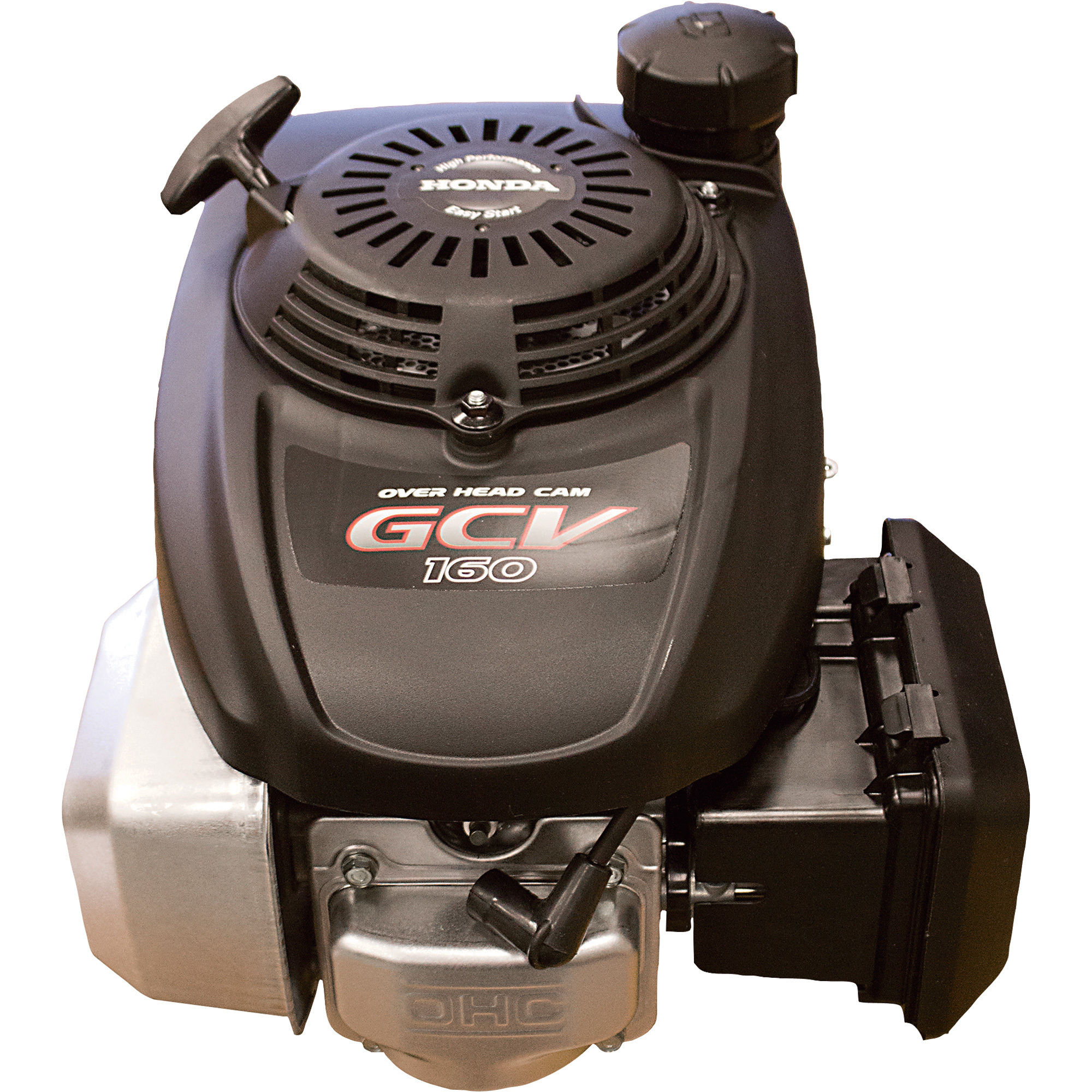

Honda Engines, ENGINE, OHC HONDA 160CC, Engine Displacement 160 cc, Engine Type GCV Series OHC Commercial-duty, Shaft Diameter 7/8 in, Model# GCV160LA1A1A-BLK
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Model GCV160LA0A1A-BLK; 160cc, 4.4 HP compact, lightweight, air-cooled 4-stroke single cylinder engine with 7/8in. x 3 5/32in. vertical shaft
- Honda's latest overhead cam technology
- Recoil start; flywheel brake
- Approx. mounting base dim. 8in.
- Aluminum alloy cylinder bore
See full description
-
can this engine be used as a replacement on a lawn mower currently using a Honda GCV 160 ASIA?
-
Helpful?
-
yes if the shaft size is the same
Helpful?
-
This engine can be used as a replacement engine for a lawn mower. You will need to be sure that the shaft size and bolt circle would match up to the existing engine.
Helpful?
-
-
is api sn sae 30 motor oil good to use in this engine
I was thinking of using Castrol HD 30 optimum viscosity oil.
-
This Honda Vertical OHC Engine is only recommended for use with SAE 10W-30.
Helpful?
-
SAE 10W-30 is the only recommend oil for this engine.
-Robert@Honda
Helpful?
-
-
Can this motor be used on a log splitter?
-
absolutely NOT. Go to nearest Northern tool store and ask them to help you and have them order it for your log splitter to find out exactlly which engine is for your model log splitter or go to manufacturer of your engine, give them all the facts about your log splitter and your engine and ask for exact replacement engine. It will be costly if you order the wrong engine.
Helpful?
-
The vertical shaft engine is designed for walk mowers and chippers/vacs. It is not designed for log splitter application.
Helpful?
-
-
WHAT TYPE OF GAS TO USE DOES IT TAKE REGULAR GAS OR MIXED GAS
1 answer-
This engine is certified to operate on regular unleaded gasoline with a pump octane rating of 86 or higher. It would not use a gas mix.
Helpful?
-
-
what type of spark plug does this engine require?
1 answer-
Item #7019807900 spark plug is recommended for this engine. This can be found under the accessories portion at the bottom of the product page. You can also search "7019807900" in our website search bar.
Helpful?
-
-
Does this engine have a crank brake to stop engine? How do you shut it off?
1 answer-
The engine will come with a flywheel brake and an engine stop switch.
Helpful?
-
-
what is the rated horsepower of the gcv160 engine?
1 answer-
This Honda Vertical OHC Engine has a rated horsepower of 4.4.
Helpful?
-
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Vertical Engines
See All Honda Engines Vertical Engines
Currently Viewing This Product
Specifications
Specifications
Honda Engines, ENGINE, OHC HONDA 160CC, Engine Displacement 160 cc, Engine Type GCV Series OHC Commercial-duty, Shaft Diameter 7/8 in, Model# GCV160LA1A1A-BLK
Briggs & Stratton Vertical OHV Engine, 724cc, 1 1/8in. x 4 19/64in. Shaft, Model# 44S977-0033-G1
Briggs & Stratton Twin Cylinder Vertical Shaft Engine with Electric Start, 25HP, 1in. x 3 5/32in. Shaft, Model# 44S977-0032-G1
Briggs & Stratton Intek Vertical OHV Engine, 344cc, 1in. x 3 5/32in. Shaft, Model# 21R807-0072-G1
Engine Displacement
Same
160 cc
724 cc
724 cc
344 cc
Engine Type
Same
GCV Series OHC Commercial-duty
Professional Series OHV
Twin
Intek OHV
Shaft Diameter
Same
7/8 in
1-1/8 in
1 in
1 in
Shaft Length
Same
3.15 in
4.29 in
3.15 in
3.15 in
Fuel Type
Same
Gasoline
Gasoline
Gasoline
Gasoline
Start Type
Same
Recoil
Electric
Electric
Electric and Recoil
Shaft Keyway
Same
0.43 in
0.25 in
0.25 in
0.25 in
Net Torque
Same
6.9 ft-lbs.
-
-
-
Crankshaft
Same
N1 Type
Vertical
Vertical
1 x 3.15 In
Cylinders (qty.)
Same
1
2
2
1
Cylinder Bore
Same
Aluminum
Cast Iron
Cast Iron
Cast Iron
Net Power Output
Same
4.4 HP
25 HP
25 HP
11.5 HP
Compression Ratio
Same
8.5:1
-
-
-
Fuel Tank
Same
Yes
No
No
No
Fuel Tank Capacity
Same
0.98 qt
-
-
-
Oil Capacity
Same
0.58 qt
2 qt
2 qt
1.5 qt
Max. RPM
Same
3,600
3,400
3,300
3,300
Shaft Rotation (From PTO Shaft Side)
Same
Counter Clockwise
Counter Clockwise
Counter Clockwise
Counter Clockwise
Governor System
Same
Centrifugal Mechanical
Mechanical
Mechanical
Mechanical
Ignition System
Same
Electronic
Electronic
Electronic
Electronic
Carburetor
Same
Float
Yes
Yes
Yes
Lubrication System
Same
Splash
Full Pressure
Pressure
Splash
Cooling System
Same
Air
Air
Air
Air
Bore
Same
2.5 in
3.12 in
3.12 in
3.44 in
Stroke
Same
2 in
2.89 in
2.89 in
2.26 in
Air Cleaner Type
Same
Single Element
Single Element
Dual Element
Single Element
Choke Control
Same
Remote
Automatic
Automatic
Automatic
Throttle Control
Same
Remote
Remote
Remote
Remote
Muffler Included
Same
Yes
No
No
Yes
Bolt Circle
Same
8.5 in
-
-
-
Product Weight
Same
lb
87.0000 lb
84.0000 lb
72.0000 lb
Dimensions L x W x H (in.)
Same
14.37 x 13.0 x 13.81 in
16.0 x 19.0 x 18.0 in
18.81 x 18.0 x 15.0 in
16.5 x 16.0 x 13.0 in
Low Oil Shutdown
Same
-
No
No
No
Low Oil Alert
Same
-
No
No
No
CARB Approved
Same
-
No
No
No
Bearing Type
Same
-
Ball
Plain
Plain
Auto Compression Release
Same
-
Yes
Yes
Yes
Fuel Filter
Same
-
Yes
Yes
Yes
Charging System Amps
Same
-
16
16
3
