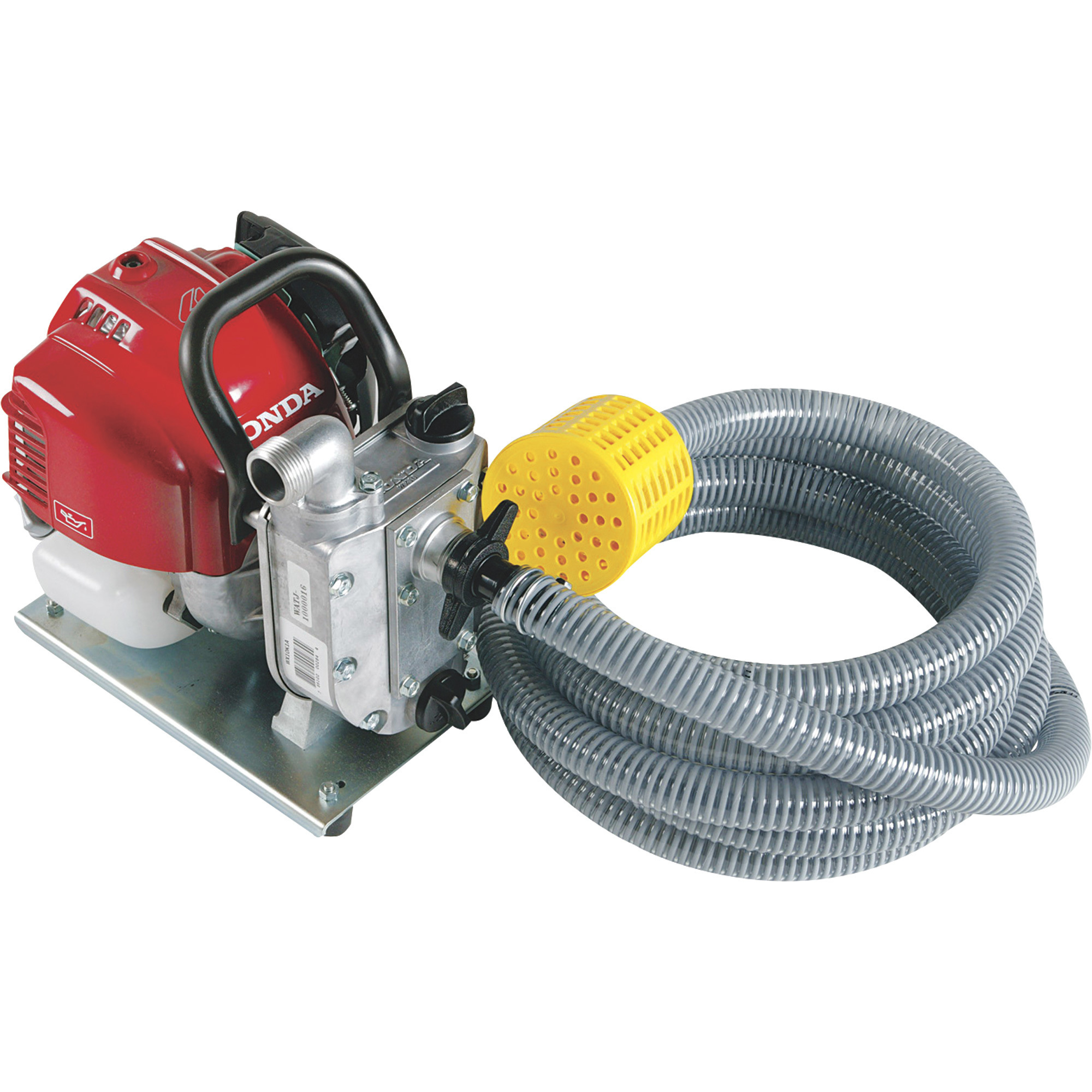

Honda Self-Priming Water Pump, 1,920 GPH, 1in. Ports, 25cc Honda GX25 4-Stroke Engine, Model# WX10TA

Item# 109424
Honda Self-Priming Water Pump, 1,920 GPH, 1in. Ports, 25cc Honda GX25 4-Stroke Engine, Model# WX10TA

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Honda Self-Priming Water Pump, 1,920 GPH, 1in. Ports, 25cc Honda GX25 4-Stroke Engine, Model# WX10TA

Click or Tap image to Zoom

  • Durable 25cc Honda GX25 commercial-grade engine is easy to start and provides ample power for the toughest conditions
  • 4-stroke engine uses regular gasoline-no need to mix oil and gas
  • Compact and easy to use at only 14 lbs.
  • Standard transport handle
  • Garden hose adaptor, suction hose, clamps, and strainer included

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Honda Water Pump, powered by a durable Honda GX mini 4-stroke commercial engine, is perfect for homeowners, gardeners, boat owners and more. It is lightweight, compact and easy to use. Easily portable at only 14 lbs.

What's Included

    (1) Water pump (1) Suction hose

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Durable 25cc Honda GX25 commercial-grade engine is easy to start and provides ample power for the toughest conditions
  • 4-stroke engine uses regular gasoline-no need to mix oil and gas
  • Compact and easy to use at only 14 lbs.
  • Standard transport handle
  • Garden hose adaptor, suction hose, clamps, and strainer included
  • Honda Oil Alert® protects the pump by shutting the engine off when low oil is detected

Key Specs

AttributeSpecification

item#

109424

Brand

Honda Power Equipment

Manufacturer's Warranty

24 months parts/24months labor

Ship Weight

21.4 LB

Max. Flow

1,920 GPM

Engine Displacement

25 cc
AttributeSpecification

Port Size

1 in

Self-Priming

Yes

Max. PSI

52 PSI

Product Weight

lb

Dimensions L x W x H (in.)

13.4 x 8.75 x 11.81 in

Reviews

Questions & Answers

61 Reviews This action will navigate to reviews.

Questions

1–10 of 38 Questions
Sort by:

  1. Does the garden hose adapter attach to the discharge side of the pump?

    1. yes

      Helpful?

    2. Yes, the adapter fits on the discharge port and then into the female end of your garden hose.

      Helpful?

    3. yes and i recomend teflon tape

      Helpful?

    4. For Honda Water Pump the garden hose adapter does attach to the discharge.

      Helpful?

  2. if this pump is started without water in the priming tank will it damage it?

    1. Yes

      Helpful?

    2. Yes, water is necessary to keep the bearing/seal cooled during operation. Dry running will cause bearing/seal failure.

      Helpful?

    3. Yes, water is absolutely necessary to keep the bearing/seal cooled during operation. Dry running will cause bearing/seal failure. -Robert@Honda

      Helpful?

  3. Can the plugs for priming and drain plug we bought mine have been lost

    1. The parts you request are unavailable from Northern Tool.

      Helpful?

    2. The replacement drain and fill plugs are part #HC78117YB3KI10 and can be ordered through our parts department at 1-800-657-0516.

      Helpful?

  4. what is the flow rate of this pump at 100 verticle feet? will it vary with horizontal distance?

    1. The flow rate at 100 vertical feet is about 5 gallons per minute. There would be just a slight difference with a horizontal flow.

      Helpful?

    2. At 100 feet of total lift, you'll get a bit more than 5 gallons per minute. While there is a modest amount of friction/heat generated over long horizontal runs, it not an issue or factor. -Robert@Honda

      Helpful?

  5. Since pump is self-priming, why does it have a priming tank?

    "Honda Water Pump - 1in. Ports, 2220 GPH, 25cc Honda GX25 Engine 4-Stroke Engine, Model# WX10K1A"

    1. All centrifugal pumps requires an initial prime. You have to pour water into the the prime chamber, and this allows the water to start moving though the suction hose.

      Helpful?

    2. Any centrifugal pump requires an initial priming; water is poured in the the prime chamber, and this provides the initial pressure differential to get the water moving though the suction hose. If you shut off the pump, and leave the hose undisturbed, you can restart the engine without having to prime it again. -Robert@Honda

      Helpful?

  6. What is the outside diameter of the provided suction hose and the stariner?

    "Honda Water Pump - 1in. Ports, 2220 GPH, 25cc Honda GX25 Engine 4-Stroke Engine, Model# WX10K1A"

    1. The suction hose has an inside diameter of 1". The strainer has an outside diameter of 1".

      Helpful?

    2. The suction hose has an inside diameter of 1-inch. The strainer has an outside diameter of 1-inch. The strainer can pass solids up to 1/4" inch. -Robert@Honda

      Helpful?

  7. if I put a nozzle on the end of the discharge, will it damage the pump to have it running while no water is coming out?

    1. It is okay to block flow from the pump with a nozzle for short periods of time when the pump is running. Do not block flow for extended periods of time or the pump will overheat and the bearings will fail. -Robert@Honda

      Helpful?

    2. Shutting off the discharge output while the pump is running could lead to over-heating resulting in damage to the pump.

      Helpful?

  8. If I use this pump in a stream and put a smaller screen filter on, will it damage the pump?

    1. No, using a smaller strainer won't damage anything, but it could reduce the ability of the pump to prime and operate properly. The strainer included with the pump has 1/16" holes, so the pump is rated to allow solids up to 1/16" to pass through safely. A smaller strainer (or screen filter) could clog the suction line in some cases. If you wish to filter out solids smaller than 1/16" inch, might want to consider a filter on the discharge side of the pump, not the suction side.-Robert@Honda

      Helpful?

    2. When using the included strainer or a smaller strainer, care should be exercised to ensure the strainer does not become completely clogged with debris because running the pump dry or nearly dry could result in damage to the pump.

      Helpful?

  9. What is the length of the supplied suction hose?

    1. The suction hose is 16.4 feet long.

      Helpful?

    2. The supplied suction hose is 5 meters (16.4 ft.) in length. If you wish to use a different size, the hose must be at least 1" inside diameter, and no longer than 8 meters (23 feet). -Robert@Honda

      Helpful?

  10. I’m a little confused on pumping distance.

    I just tested this pump and was able to pump water 400 feet with this pump. So why is this pump say it will only pump 118 feet? For this test I was using a garden hose.

    1. It will pump with a maximum of 118' change in elevation. The horizontal distance matters but isn't as important since the weight of the water itself doesn't work against the pump as much. Your 400' must be largely horizontal instead of vertical.

      Helpful?

    2. The listed 118 feet is the maximum height the pump can push water. It can push water horizontally at a much larger distance.

      Helpful?
